Step by Step to Pattern-3
- A pattern project with one pattern and the desired settings is created.
- 1
- Open
Knit Explorer. - 2
- Then, in
Knit Explorer under Modules de structure -> Par défaut -> Pétinet select the knitting element Pétinet, maille v to draw. - 3
- Draw the desired structure.
|
Presentation in yarn color |
Presentation by module color |
|
|
|
- 4
- Select a structure in the desired width and height.
- 5
- Create from selection:
- With CTRL + C create a temporary pattern element to draw.
- Open the context menu -> Sélection
-> select
Élément du dessin:
Pattern element is saved in the
Parties de dessin tab.
- 6
- Draw-in the pattern element with the help of the center of the pattern field several times to the left and right into the basic pattern.
- 7
- Then, in
Knit Explorer under Modules de structure -> Par défaut -> Modes de tricotage base select the knitting element 1x1 Côte perlée to draw.
: For working with PTS - different stitch length index in one technical row - the STOLL knitting elements Structure from the Knit Explorer already have different stitch lengths allocated. The stitch lengths are allocated in the control columns, as well as needle-exactly to the needle action.
- 8
- Activate
Reprendre la longueur de la maillein the cursor attributes.
- 9
- Draw the 1x1 Côte perlée knitting element in the design pattern.
- The needle-exact stitch length from the knitting element will be entered in the design pattern.
|
Presentation of the design pattern in pattern color |
|
|
|
|
|
Presentation of the design pattern in stitch length (NPJ) |
|
|
Result:
|
:
When positioning the knitting element 1x1 Côte perlée be sure that it is positioned correctly to Début, 1x1.
This means that the structure 1x1 from the start without racking has to continue running in the structure of the 1x1 half cardigan.
Apply stitch lengths from knitting element to the control columns when drawing:
Condition:
The knitting element 1x1 Côte perlée has different stitch length entries in the control columns
and
as in the basic pattern.
- Select a knitting element.
-
: The Cursor Attributes window with the currently available attributes appears.
- Via the
Reprendre les colonnes de commande button make the desired setting to draw: - - Activated
Stitch lengths from the knitting element are entered in the control columns. - - Deactivated
Stitch lengths from the knitting element are not entered in the control columns. - Draw the knitting element in the design pattern.
-
: The stitch length is present in the control column and is therefore valid for the entire technical row. No Power Tension Setting (NPJ) is created.
Apply stitch lengths from knitting elements exactly to the needles when drawing into the design pattern:
Condition:
In the knitting element 1x1 Côte perlée there are entered different stitch lengths in the needle actions.
- Select a knitting element.
-
: The Cursor Attributes window with the currently available attributes appears.
- Via the
Reprendre la longueur de la maille button make the desired setting to draw: - - Activated
Stitch lengths from the knitting element will be applied to the design pattern. - - Deactivated
Stitch lengths from the knitting element will not be applied to the design pattern. - Draw the knitting element in the design pattern.
-
: Now there are different stitch lengths available for PTS in a single technical row.
Draw stitch lengths from the table needle-exactly into the design pattern:
Condition:
- In the design pattern there are drawn different structures by areas.
- The standard stitch lengths are entered in the control columns
and
.
- In the status bar of the design pattern, switch from
Couleur de dessin to
Longueur de la maille. - Open the selection list in the Accueil ribbon under Paramètre at
Fenêtre Outils
and select the
Longueur de la maille (NP) tool window. -
: The Longueur de la maille (NP) tool window appears. - Select the Par défaut tab.
- Select the desired stitch lengths with the CTRL key in the
and
columns additively. -
: The stitch length for the front and rear needle bed are at the cursor. - Draw stitch lengths in the desired structure area needle-exactly into the design pattern.
-
: Now, different stitch lengths for PTS exist in one knitting row.
Result:
|
| |
|
1 |
Grey = no colored entry of a stitch length In these areas, the default stitch length from the control columns
|
|
2 |
Colored entry for further stitch lengths in one pattern row |
- 10
- To create a project-related lined shape, select the
Coupes tab in the tool window. - 11
- Open the context menu with RMB and select Créer une nouvelle coupe dans la taille M... .
- The Nouvelle coupe de ligne tool window is opened.

|
Input Format | ||
|
Maille |
Entry in the table of the lined shape
| |
|
Escaliers |
Entry in the table of the lined shape
| |
|
Tricot main (tours) |
Entry in the table of the lined shape
| |
|
Rules for widening with hand knitting | ||
|
|
Knitting before widening following the start | |
|
|
Widening before knitting following the start (default setting) | |
|
Créer une coupe à partir d'une image |
|
No images will be used |
|
|
Use image as template | |
|
Comment |
Information about the shape | |
- 12
- Make the desired entries:
- Nom de la coupe : Any
- Format d'entrée : Stitch
- 13
- Confirm with the OK key.
- The new lined shape (basic shape) is graphically displayed in the
Coupes tab and in a new document window
as rectangle.
: Default attributes are used for the shape edges of the lined shape.
Menu Fichier -> Options -> Coupe de ligne -> Options pour nouvelle coupe de ligne

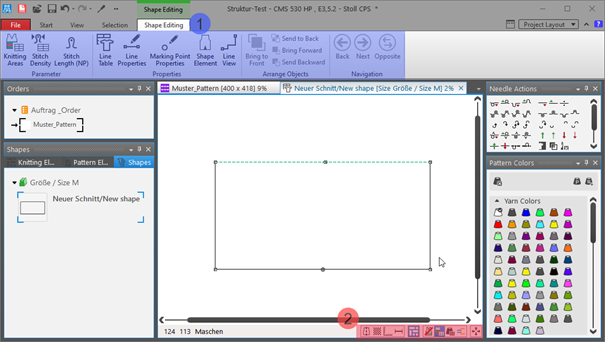

Document window
|
| |||
|
1 |
Élaboration de la coupe ribbon | ||
|
Paramètre Ribbon Group | |||
|
|
Zones de tricotage |
Create new knitting areas and display existing knitting areas | |
|
|
Densité des mailles |
Create new stitch density and display existing stitch density | |
|
|
Longueur de la maille (NP) |
Display of the | |
|
|
Caractéristiques Ribbon Group | ||
|
|
Yableau des lignes |
Display of the line table for entering the shape data | |
|
|
Propriétés des lignes |
Display of the line properties (attributes) of a selected shape edge | |
|
|
Propriétes du point de marquage |
Display of the marking point properties (attributes) of a selected marking point | |
|
|
Élément de coupe |
Display of the shape element properties of a selected shape element
| |
|
|
Vue de la ligne |
Graphical display of a selected shape edge | |
|
2 |
Status bar in the document window for shapes | ||
|
|
Afficher l'axe de symétrie | ||
|
|
Afficher le quadrillage des mailles | ||
|
|
Afficher les axes du diagramme | ||
|
|
Afficher les cotes de contrôle dans les mailles. | ||
|
|
Afficher les icônes des points de marquage | ||
|
|
Masquer les zones de tricotage | ||
|
|
Afficher les zones de tricotage | ||
|
|
Afficher les zones de tricotage (couleur de fil) | ||
|
|
Afficher les zones de tricotage (couleur de CA) | ||
|
|
Dépalcer l'objet sélectionné (point de coupe, point de marquage, zone de tricotage ou élément de coupe) avec les touches flèches du clavier (point de coupe uniquement au format d'insertion Mailles) | ||
- 14
- To create a lined shape based on the displayed rectangle in the ribbon Élaboration de la coupe under Caractéristiques, click the
Yableau des lignes button.
- or -
Use the graphic displayed in the
document window.
: The method (table or graphic) to create a project-related lined shape is freely eligible, since the views are always updated simultaneously.
- 15
- Open
Yableau des lignes in the ribbon. - The table Coupe de ligne with the values of the rectangular shape is displayed.
- 16
- Insert new shape lines in the table and enter the desired values for the basic shape.

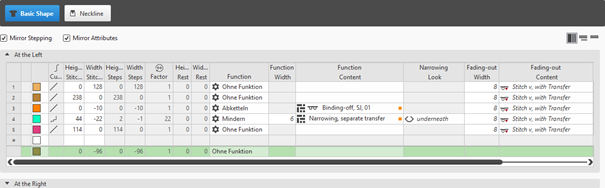

Example: Lined shape for Pattern-3
|
Basic Shape: Front |
|
|
|
| ||||
|
1 |
| |||
|
2 |
|
Inverser les escaliers en miroir |
Creating a symmetric shape of shape element
| |
|
|
Faire une inversion miroir des attributs |
Attribute changes carried out in the line table at the left and right. | ||
|
|
Do not mirror attributes |
Attribute changes are carried out in the line table at the left or at the right. | ||
|
|
Do not mirror stepping |
Creating an asymmetric shape / shape element
| ||
|
3 |
|
Afficher toutes les propriétés | ||
|
|
Afficher les sous-lignes | |||
|
|
Masquer les sous-lignes | |||
|
4 |
Display color for main lines and sublines of a selected line in the | |||
|
5 |
|
Courbe |
| |
|
6 |

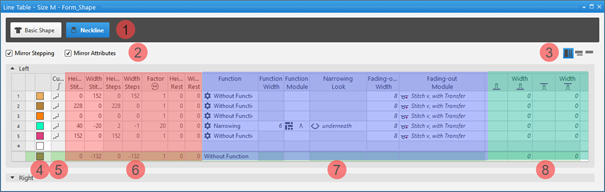

Columns for entering the values for the lines of the lined shape in the input format
| |||
|
7 |
Columns for the input of line attributes
| |||
|
8 |
Specification for working with PTS (NPJ) for one line (shape edge)
| |||
Insert shape line in a shape element:
: The shape lines are inserted symmetrically with both methods by default.
-
In the Line Table:
Entry of a positive value: Widening and upwards
Entry of a negative value: Narrowing and down - Enter the desired values in the last table line with the * symbol. When confirming the input with the Enter key a new table line is inserted.
- Select a row -> open the context menu with RMB -> select Ajouter une ligne principale.
- Select a row -> open the context menu with RMB -> select Ajouter une ligne avant.
- or -
Select Ajouter une ligne après.
: Only in the line table it is possible to create an asymmetrical line shape by deactivating
Inverser les escaliers en miroir.
- In the
document window - Position the cursor on a line of the displayed graphic -> open the context menu with RMB and select -> Insérer la ligne de coupe .
Changing line properties of a shape line
- Global project-related setting of the line properties via
Configuration / Toutes les coupes tab - In the shape regarding a shape line
Changing Line Properties:
- In the Line Table
- Direct change of a line property in the corresponding column of the table

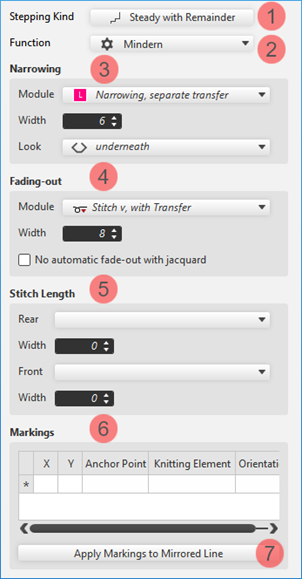

- Select a line in the table, open the tool window with the
Propriétés des lignes button and make the desired entries. - In the
document window - Position the cursor on a line of the displayed graphic, select the context menu
Propriétés des lignes and make the desired entries in the tool window.
|
|
1 |
Modification of the curve type | |
|
2 |
Modification of the function of a shape line
| ||
|
3 |
Modifications for the shape line with the Diminuer function | ||
|
4 |
Modifications of the Masquer attribute for a shape line | ||
|
5 |
Specification for a shape line for working with PTS in the shape edge | ||
|
6 |
Display of the markings that are assigned to a shape line. | ||
|
Reprendre les marquages pour la ligne inversée |
Applies the line-bound markings of the selected line to the line on the opposite.
| ||
Changing curve type:
- In the Line Table
- In the
Courbe column open the context menu with the RMB and select the desired curve type. - Select line -> with the
Propriétés des lignes button open the Propriétés des lignes and select the desired curve type at Évolution des escaliers - In the
document window - Position the cursor on a line of the displayed graphic -> open the context menu with RMB and select ->
Adapter l'évolution des escaliers....
- Select the desired Évolution des escaliers in the selection menu.

- When selecting the curve type
homogène par rapport au reste via·Adapter les escaliers, specify the desired values for and of the steps. -
: The window for entering specifications is displayed according to the selected curve type. - Transfer the entry to the shape line with the Recalculer button.
-
: The shape line is displayed in the graphic and in the line table as well.
- 17
- Allocate the desired attributes to the new shape lines:
- Function: Function content + Function width
- Fade-out: Fade-out content + Fade-out width
- Line 3:
- Function: Binding-off (at the external edge of the shape)
- Function content: desired bind-off method
|
Binding-off of the left external edge of the shape |
Binding-off of the right external edge of the shape |
|
| |
|
|
|
|
|
|
: The knitting sequence when binding-off depends on the carriage stroke!
The height (number of knitting rows) until binding-off is as desired, since the binding-off edges are moved in height by the technical processing according to the carriage direction.
- 18
- In the line table, position the cursor in the area next to the
coupe de base button -> open the context menu by RMB -> select Ajouter un nouvel élément de coupe.... - 19
- In the selection menu select the desired shape element Encolure -> symmetrically.

- 20
- Create the shape lines of the new shape element the same way as the basic shape.
- The newly created shape element is displayed in the graphic and in the line table as well.
|

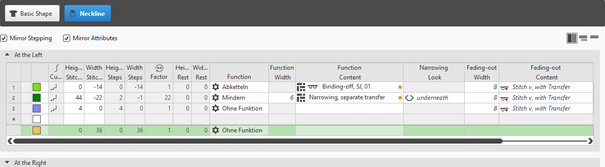

Shape Element Type: Neckline symmetric |
|
|
Positioning of a shape element in the basic shape
:
Every shape element gets a link (anchor) to a shape point in the basic shape during its creation.
Condition:
- A basic shape with a shape element Encolure is created.
- Position the cursor in the shape element.
- Reposition the shape element with the LMB pressed.
- or -
Move the shape with the arrow keys of the keyboard.
- or -
Open the coordinate display in the shape element double-clicking LMB and enter values. -
: The anchor point becomes visible with its X and Y coordinates in the Encolure shape element.
- Change the positioning if necessary.
Possibilities for editing an anchor via the context menu
|
| |
|
|
Tool window for manually changing the values of X and Y coordinates. |
|
Diviser l'ancre |
Ungroup the grouped anchor in one anchor for X coordinate and one for Y coordinate, to be able to anchor one anchor with another shape element.
|
- 21
- Allocate the desired attributes to the new shape lines:
- Function: Function content + Function width
- Fade-out: Fade-out content + Fade-out width
- Line 1:
- Function: Binding-off (at the neckline start)
- Function content: desired bind-off method
Variants of necklines
- Neckline start with only one needle (shape odd-numbered in the total width)
- Neckline start with 2 needles (shape even numbered in the total width)
- Neckline start with more than 2 needles -> Binding-off at the start
: Knitting element Début encolure en V, croisement is linked with the marking point of the shape element Neck.
|
Graphic presentation of the neckline start |
|
|
|
|
|
| |
|
|
|
|
| |
Adjusting the position of the Start V-Neck Crossover knitting element:
: Attention:
If a knitting element Début encolure en V, croisement is connected to a shape line, then the knitting element at marking should be removed.
- In the Line Table
- Select a line in the table.
Open the tool window with the
Propriétés des lignes button and make the desired entries. - In the
document window - Position the cursor on a line of the displayed graphic and open the context menu.
Select
Propriétés des lignes and make the desired entries in the tool window.
- Select the desired shape line.
- Open the tool window via
Propriétés des lignes. - Make the following settings in the Marquages section:
- - X / Y: the positioning of the selected knitting element
- - Anchor Point: at which point of the shape line (start/end) should the knitting element be added
- - Knitting Element: specify desired knitting element
- - Orientation: specify desired point in the knitting element (reference point) for the positioning
- Make further changes if necessary.
-
: The knitting element should be placed at the left shape line (endpoint), as the binding-off is done from left to right.
|
| |
|
1 |
Positioning of the Début encolure en V, croisement knitting element with
|
|
2 |
Positioning of the Début encolure en V, croisement knitting element with
|
|
3 |
Positioning of the Début encolure en V, croisement knitting element with
|
: The knitting sequence when binding-off always depends on the carriage stroke!
|
|
Binding-off in the carriage stroke to the right >>
|
|
|
Binding-off in the carriage stroke to the left <<
|
|
|
Split the bind-off in the center
|
Draw-in the separation manually in the Finishing Layer:
- Shape is positioned in the design pattern.
-
Icônes de forme is enabled in the view of the design pattern.
- 1
- Via the layer user control, switch from
Modifier le calque du dessin to
Modifier couche de raffinement.
- 2
- In the tool window Actions de l'aiguille -> Icônes de forme -> select symbol
Séparation. - 3
- Insert manually in the Finishing layer the symbol
Séparation over 2 knitting rows.
- 4
- Position starting module of the neckline start related to the symbol
.
-
: The starting row of the neckline will be bound-off from the center.
- 22
- In the tool window Shapes select the created shape with LMB.
- 23
- Open the context menu -> Positionner la coupe -> select Pattern name.
- The shape is floating in the basic pattern.
- 24
- Enable the
button of the document window. - 25
- Position the shape on the basic pattern via
. - 26
- Check shape lines, attributes and if desired make corrections.
- 27
- If necessary, allocate a sub-color to the left side of the neckline to add other attributes via the Paramètres de couleurs table.
- 28
- Start the
Élaboration
technique:
Show symbol view after technical processing. - 29
- Generate
Sintral. - 30
- Start the
Contrôle du Sintral. - 31
-
Extraire the knitting program. - A program for the knitting machine will be created: CMS530.Pattern-3.zip.
- Load knitting program into the machine.
: The extracted file "CMS530.Pattern-3.zip" can be loaded onto the machine with an USB stick or via Ethernet.
factor, height of rest and width of rest is calculated.
