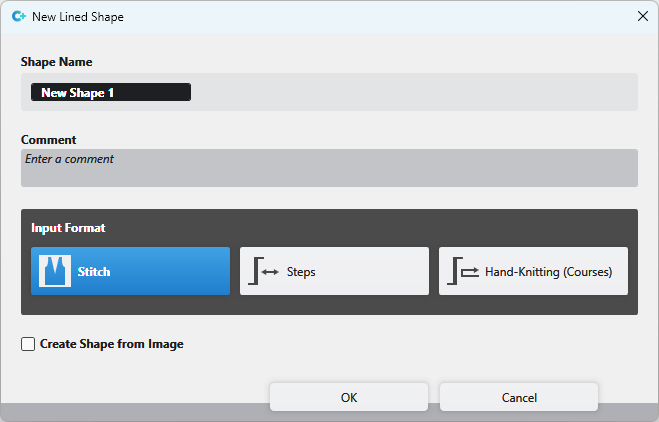

New Lined Shape

With this dialog box you create a new lined shape.

Open the dialog box using the context menu of the empty area in the Coupes tool window.

Make the following settings in the Nouvelle coupe de ligne dialog box:

Nom de la coupe

Enter the name of the lined shape

Commentaire

Enter a comment to the lined shape

Select the Format d'entrée:

Stitch

You enter the line by Stitch.

Escaliers

You enter the line by Escaliers.

Tricot main (tours)

You enter the line by courses as for hand knitting.
For this selection are the following options available:

Créer une coupe à partir d'une image

Create a shape from an existing image file.

Charger l'image...

Charger le fichier image comme modèle pour la coupe.

Outside Shape Colors

Click on Colors for Outside Shape and pick the color from the picture.

Within a lined shape project you can manage several lined shapes together in the Stitch and Escaliers input format.

Lined shapes in the Tricot main (tours) input format cannot be managed together with lined shapes in the Stitch or Escaliers input format in the same lined shape project.

You can find examples to create lined shapes here:
