Example 2: Color Arrangement for 'Combining yarn carriers'

The yarn carriers are to be combined with this Color Arrangement CA2, to reduce the production time.

Create the Color Arrangement CA2:

The pattern project of pattern Pattern-7 is open.
Pattern in Dessin de conception is active.

: Colors from the Couleurs de fil table were used to draw the basic pattern.

1: If necessary, save the pattern project under a new name.

2: In the Rangée du dessin control column, select the first two pattern rows.

3: Position the cursor in the pattern area.

4: Open the context menu and select Sélection / Créer un Color Arrangement... .
- or -
Click directly the button in the ribbon.

The Color Arrangement Editor appears with the original 'Default knitting process' of both selected pattern rows.

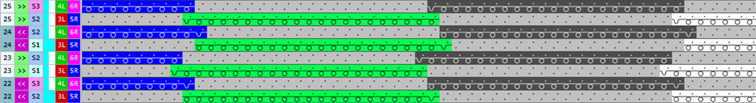

Result after technical processing

Default knitting process from the original CA

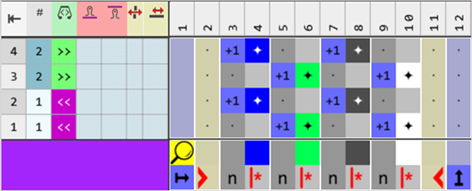

Yarn carriers are not combined

: This knitting process can also be knitted with 'Normal yarn carrier', as there is never more than one yarn carrier at one position and also no yarn carrier has to pass another.

The colors (= yarn carrier) from the 'processing area' of the CA are processed according to the number of knitting systems of the selected machine.

Search Area:
The symbol (default entry) repeats the needle action from the source row in the entire color area from the left to the right
Processing Area:
Based on the symbol, the corresponding needle action from the source row of the design pattern is read out and knitted according to the search color.

5: Select Déplacer drawing tool.

6: Define the desired function in the ribbon
- or -
Open the pop-up window with the Ctrl + Space bar button.

Pop-up window appears.

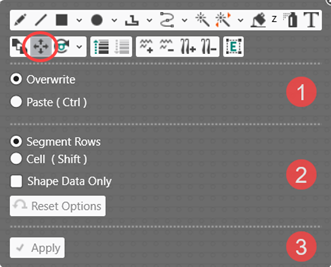

1	Select modes for the Déplacer drawing tool Écraser Insérer (Ctrl)
		Écraser mode active : The content of a selection overwrites the content of an existing Rangée de segment / Cellule.
	or
		Insérer mode (Ctrl) active : Content of a selection is inserted at the cursor position between existing segment rows / cells.
2	Selection for the selected Écraser / Insérer mode Rangée de segment Cellule (SHIFT)
		Rangée de segment	Cursor position in the control columns, then an entire row is overwritten or inserted. Cursor position in the color segment, then the content of the color segment is overwritten or inserted.
		Cellule (SHIFT)	Overwriting or Inserting a cell (pixel)
		Uniquement les données de la forme	All data at the cursor position is overwritten or inserted.
			Only the shape data at the cursor position is overwritten or inserted. : The function is only possible in the raster shape.
3	The Accepter button is not available in the CA editor.

7: With the Rangée de segment selection in the Écraser mode, move the entries in the processing area into the desired position.

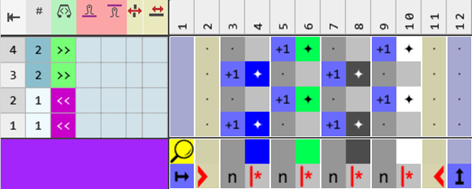

Example explaining ‚Combine Yarn Carriers‘

: Please pay attention to the necessary distances for the 'Combining yarn carriers'!

CA2-1

8: Check the generated Color Arrangement on correct entries with the Vérifier button.
: The technical knitting technique and the necessary distances cannot be checked!

9: If necessary, in case of a Color Arrangement already used in the design pattern, apply the changes to the basic pattern with the Accepter button.

- or -
Close the tool window with button.

10: Close the prompt with the desired button:

Save: Color Arrangement is saved locally in the CA tool window.
Reject: The changes will not be saved.
Copy: The changed Color Arrangement is saved as copy in the CA tool window.

11: Enter the generated Color Arrangement via the control column into the desired rows of the design pattern.

Options to enter the Color Arrangement in the 'Color Arrangement' control column:

Select the desired CA in the tool window in the CA tab
Color Arrangement control column: Open the context menu with RMB.


1	List of all generated Color Arrangements in the pattern project Used CAs CAs not in use (can be deleted) : The list corresponds to the display in the CA tab in the tool window
2		CA entry is replaced with the default setting
		CA entry is deleted
3	Assign Color Arrangements Automatically : The color sequences are checked in the defined search area. If existing CAs match, these CAs are automatically inserted into the area as specified by the settings.


1	List of all generated Color Arrangements in the pattern project Used CAs CAs not in use (can be deleted) : The list corresponds to the display in the CA tab in the tool window
2		CA entry is replaced with the default setting
		CA entry is deleted
3	CA1 – Éditer... : The CA entered at the cursor position in the Color Arrangement control column, is opened for processing.
	CA1 – Actualiser les couleurs secondaires dans le CA : If a sub-color is saved and drawn in the design pattern for a color used in the CA, then this sub-color can also be applied in the CA.
	Attribuer automatiquement les Color Arrangements : The color sequences are checked in the defined search area. If existing CAs match, these CAs are automatically inserted into the area as specified by the settings.
