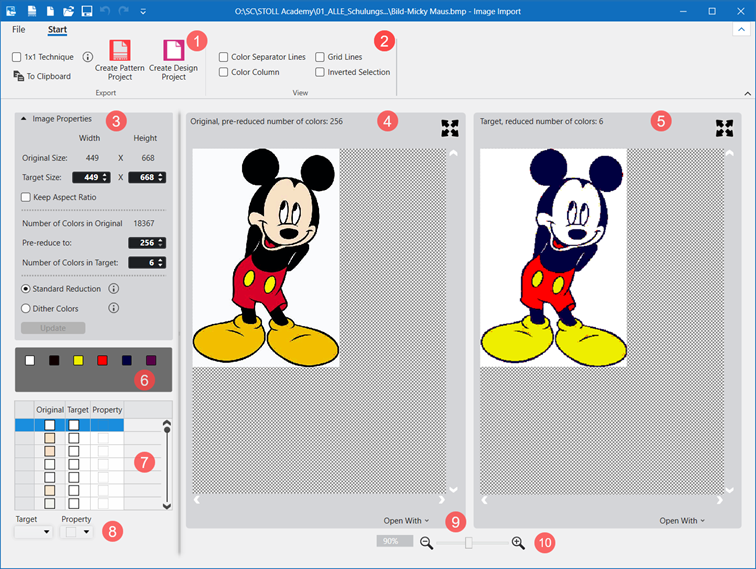

Image Import dialog box

Working with the Image Import dialog box

Options to open the dialog box

Importing an image:

    1
    Start the program double-clicking .
    2
    Click Importer une image in the start page under Start.
    - or -
    In the started CREATE PLUS, in the File ribbon, Importer tab, select Importer une image.
  1. The Image import dialog box is opened without display of an image.
    2. 3
    Select and open the path of the desired image in the File ribbon over Ouvrir.
    : The following formats can be read: bmp, jpg, jpeg, jpe, jfif, gif, tiff, tif, png
  2. The image reduced by the default settings is displayed in the dialog box under Target and the original one under Original.

Start ribbon

1

Exporter group

Technique 1x1

The image will be doubled in the width (1x1 technique).

: Attention
Note the knitting technique of the design pattern!

  • Toutes les aiguilles
  • Technique-1x1

This affects the insertion of the image!

Dans le presse-papiers

The edited image is copied to the clipboard.

: In the CPS, the image can be inserted in the Pattern Elements tool window under Pattern Elements.

Élaborer un projet de dessin

A pattern project with a design pattern is opened from an edited image.

Créer un projet de conception

A design project with a design pattern is opened from an edited image.

2

Affichage group

: The settings are displayed only in the Destination, nombre de couleurs réduit : view.

Lignes de séparation des couleurs

Display of the Destination, nombre de couleurs réduit : view of colored separating lines for subdividing the different areas with different quantity of colors

Lignes de la grille

Display of a grid in the Destination, nombre de couleurs réduit : view

Colonne de couleur

Display of an additional column in the Destination, nombre de couleurs réduit : view with the existing colors in each case.

Sélection inversée

Display of the selected color

: Select the color only in the Original or in the Destination.

3

Propriétés de l'image

Grandeur originale :

Display of the original size of the image in width x height

Taille de la destination :

Edit boxes for the size of the target in width x height

Conserver les proportions

Size of the image freely changeable in width and height.

Size of the image changeable depending on the aspect ratio.

Nombre de couleurs dans l'original

Original quantity of colors in the original image

Réduire préalablement à :

Entry of the quantity of colors to which the image is to be reduced when loading it.

: This, already reduced image will be displayed as Original.

Nombre de couleurs dans la cible :

Entry of the quantity of colors for reducing the Original to Destination

Réduction par défaut

Type of reduction of an image, e.g. for Jacquard

Mélanger les couleurs (Dithering)

Type of reduction of an image with smooth color transitions, e.g. for photos

Actualiser

Apply changes of the settings

4

Display of the Original with already previously reduced number of colors

5

Display of the Destination image with the specified quantity of colors

6

  • Display of all colors in the target
  • For selecting all the original colors of the table that correspond to the target color

: Corresponds to the entry under Nombre de couleurs dans la cible : .

7

Table with the following columns

Original

Quantity of colors which were entered at Réduire préalablement à :.

Destination

Allocation of a target color to a original color

: Manual changing of the allocation via the selection menu at the corresponding target color.

Caractéristique

 Extérieur de la forme

Allocate 'outside shape' to one or more selected target colors.

: When importing an image, e.g. as shape template

 Utiliser la couleur

One or more selected target colors are imported as color in the CPS.

: When importing an image as Jacquard template

 Transparent

Allocate Transparent to one or more selected target colors.

: When importing an image, which is to be positioned on a specific background.

8

Destination

Selection of the target color for the allocation of a property

Caractéristique

Selection of the desired property for the selected target color

9

Ouvrir avec

Open the original or the target in an image editing app to make changes

10

Zoom

Zoom display
