Step by Step to Pattern-8

  1. A pattern project with one pattern and the desired settings is created.
  2. The image was reduced to 3 colors in the Importation d'image dialog box and was saved on the clipboard as a pattern element.
    1
    Select the tab in the Parties de dessin tool window.
    2
    Position the cursor in the tool window.
    3
    Open the context menu with RMB.
    4
    Using Insert (Ctrl+V) save the image from the clipboard in the tool window.
  1. Image with name and image size is displayed.
    2. 5
    Select image.

: Modify the pattern element (image), if desired, to avoid unnecessary knit-in and knit-out rows!

    6
    Position image in the Dessin de conception.

: If necessary for the better positioning of the image, save the shape in advance in Dessin de conception (floating).

    7
    To create a project-related lined shape, in the tool window change to the Coupes tab.
    8
    Open the context menu with RMB and select Créer une nouvelle coupe dans la taille M....
  1. The Nouvelle coupe de ligne tool window is opened.
    2. 9
    Make the desired entries:
    10
    Confirm with the OK key.
  1. The new lined shape (basic shape) is graphically displayed in the Coupes tab and in a new document window New shape xx [size x] as rectangle.

: Default attributes are used for the shape edges of the lined shape.
Menu Fichier -> Options -> Coupe de ligne -> Options pour nouvelle coupe de ligne

    11
    To create a lined shape based on the displayed rectangle in the ribbon Élaboration de la coupe under Caractéristiques, click the Yableau des lignes button.
    - or -
    Use the graphic displayed in the New shape xx [size x] document window.

: The method (table or graphic) to create a project-related lined shape is freely eligible, since the views are always updated simultaneously.

    12

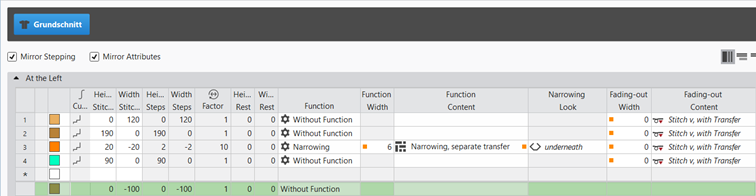

    Insert new shape lines in the table and enter the desired values for the basic shape.
  1. Standard attributes from configuration are assigned to those shape lines.

Example: Lined shape for Pattern-8

Basic Shape: Front without neckline

Rules for creating a shape for the knitting mode SJ:

Example Front:

Shape Attributes

Rules / possible settings

Knitting Mode:

Single Jersey

Step width of widening

1 needle (stitch) per knitting row

Step height of widening

As desired

Quantity of rows without shape modification

As desired

Step width when narrowing

1 - 3 needles (stitches)

Step height when narrowing

As desired

Fading-out Width

As desired

Knitting mode for fading-out

Front Stitch with Transfer

Binding-off width:

Stepping > 3 stitches

Binding-off methods

Binding-off, Structure, Single Jersey

  • Binding-off, SJ, 01
  • Binding-off, SJ, 02
    13
    Allocate the desired attributes to the shape lines of the shape.
    14
    In the Coupes tool window select the created shape with LMB.
    15
    Open the context menu -> Positionner la coupe -> select Pattern name.
  1. The shape is floating in the Dessin de conception.
    2. 16
    To position the shape in the Editing Layers user control, change from the Modifier le calque du dessin to the Modifier le calque de la coupe de ligne (Y).
    17
    If necessary, use to position the floating shape in the Dessin de conception.
    18
    Using the Editing Layers user control, change back from the Modifier le calque de la coupe de ligne (Y) to the Modifier le calque du dessin.
    19
    In the control column, create a row selection over the whole height of the image.
    20
    Position cursor in the image area.
    21
    Open the context menu with RMB.
    22
    Under Sélection -> select Créer un MC jacquard....

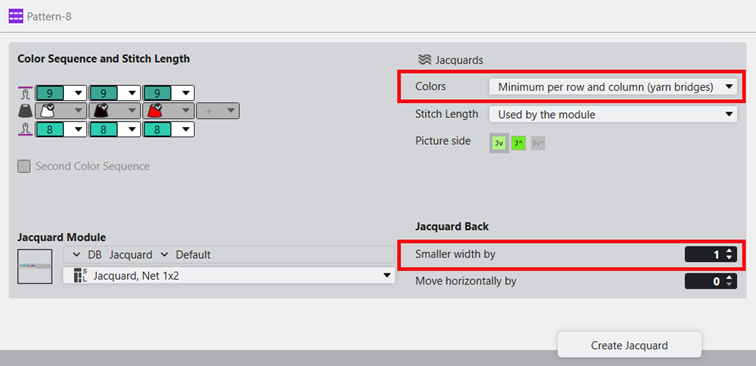

  2. The Élaborer un jacquard dialog box appears.

    23
    Make the desired settings:
    24
    Apply the presets with the Élaborer un jacquard button into the design pattern.
  1. The selected Jacquard module is displayed in the Dessin de conception.
    2. 25
    For further presets, open the dialog box in the ribbon under Configuration -> Configuration.
    26

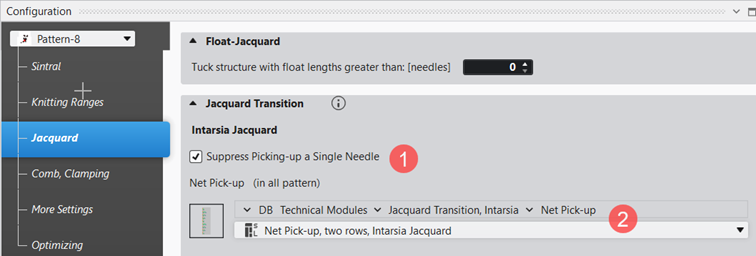

    In the Configuration dialog box, select the Jacquard tab.
    27
    Under the Transition jacquard -> Jacquard intarsia section, make the desired settings.

1

Supprimer la prise d'une seule aiguille

Default Setting

: With Jacquard rows where the rear side starts with only one needle, the selected technical module for the net pick-up is not entered.

With Jacquard rows where the rear side starts with only one needle, the selected technical module for the net pick-up is entered.

2

Selection of the desired technical module for net pick-up.

    28
    Open the Guide-fil tool window to edit the presets for the yarn carriers.
    29
    In the Paramètres de couleurs table make the desired changes in the following groups:
    30
    Make the desired changes in the following control columns:
    31
    Start the Élaboration technique.
    32
    Generate Sintral.
    33
    Execute Contrôle du Sintral.
    34
    Extraire the knitting program.
  1. A program for the knitting machine will be created: CMS530.Pattern-8.zip
    2. 35
    Load knitting program into the machine.

: The extracted file CMS530.Pattern-8.zip can be loaded onto the machine with an USB stick or via Ethernet.
