Working with Presser Foot Corrections ESCI

The presser foot corrections are used to control the switching times of the weft yarn presser feet.

Command for machines with W presser foot

Correction de presse

Control column for the presser feet correction

: Control column is empty by default!

Selection menu of the control column Correction de presse:

: The presets appear in the Pattern Parameters tool window (Preset Setup Data) -> Presse tab.


to	Select the desired entry and enter it into the control column. : Display of the entries used in the pattern and of the entries marked as favorites in the pattern parameters.
to	Note: ESCI50 is used automatically for inverse plating with weft yarn presser foot, whereby manually entered ESCI indices can be overwritten by ESCI50.
Default	Set the setting to Default. Applies the default setting from the header row.
Supprimer	Deletes the entry.
Afficher dans le tableau	Open the presser foot correction table in the setup data. : In the table, make further settings and apply them to the pattern then.

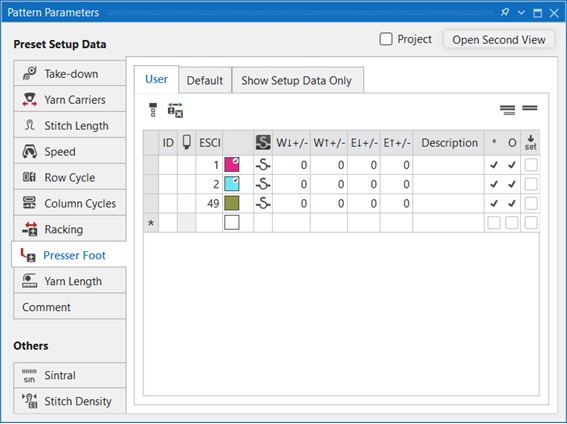

Presser Foot tab


Name	ESCI commands in use
Systems	Column is only displayed on the machine! : Display of the active knitting systems of the corresponding knitting row
W ↓ +/-	Correction of the shift-in point for the weft yarn presser foot Positive value: Move the shift point in direction of the carriage W presser foot will be set down in delay. Negative value: Move the shift point in opposite direction of the carriage W presser foot will be set down earlier
W ↑ +/-	Correction of the shift-off point for the weft yarn presser foot Positive value: Move the shift point in direction of the carriage W presser foot will be pulled-up in delay. Negative value: Move the shift point in opposite direction of the carriage W presser foot will be pulled-up earlier.
E ↓ +/-	Correction of the shift-in point for the knitting-in presser foot Positive value: Move the shift point in direction of the carriage E presser foot will be set down in delay. Negative value: Move the shift point in opposite direction of the carriage E presser foot will be set down earlier
E ↑ +/-	Correction of the shift-off point for the knitting-in presser foot Positive value: Move the shift point in direction of the carriage E presser foot will be pulled-up in delay. Negative value: Move the shift point in opposite direction of the carriage E presser foot will be pulled-up earlier.


: Activating and deactivating depends on the carriage direction!
	Activating the Weft Yarn Presser Foot
	Deactivating the Weft Yarn Presser Foot
0	Standard shift position
+	Later shift position
-	Earlier shift position

1: Display the Correction de presse control column in the Dessin de conception.
- or –
Show the Correction de presse control column in the Color Arrangement editor.

4: Enter the selected index into the technical row of the active weft yarn presser foot .

Example by the Color Arrangement:

Recommendation:
Use a different ESCI index for each direction of the carriage.

5: Select Correction de presse -> Afficher dans le tableau via the context menu of the control column.

Correction values entered on CREATE PLUS will be applied by the technical processing in order to park the yarn carriers at the fabric selvedge.
If necessary, yarn carriers in the area for activating and deactivating will be displaced or their path will be extended correspondingly.
If you enter a too high value, the switch-on or switch-off area of the presser foot may be moved so far that the yarn carrier is in the active area of the presser foot.
The technical processing will be canceled and you have to change the presets.

An error message and machine stop may occur if you only enter correction values in the Setup Editor of the machine.
