Draw the structure

Draw a single jersey structure and a cable:

    1
    To draw, select the desired setting in the status bar .
    Colore del disegno
    - or -
    Colore del modulo
    2
    Draw the motif with the following drawing tools:
    3
    Select the desired needle action in the Azioni dell'ago tool window and draw it into the design pattern.

Needle actions in use

Design Pattern

Front Stitch with Transfer

Rear Stitch with Transfer

Structured single jersey

: The Ombreggiatura della struttura setting can be selected in the status bar.

    4
    Open STOLL Knit Explorer.
    Elementi di lavoro tool window -> Accesso rapido or
    Elementi di lavoro tool window -> Knit Explorer
    5
    Open the Structure Modules / Standard / Cables, Single-sided Float directory under Deposito elementi di lavoro and select the Cable 3x3 knitting element.
  1. The selected knitting element is shown in the Moduli tool window and is assigned to the cursor for drawing.
    2. 6
    Select the desired attribute before drawing into the design pattern:

Identification at the bottom of the graphic:

Used Knitting Element

Cable 3x3

: When drawing the knitting element into the design pattern, the knitting element is added locally to the pattern project and marked as 'Used'.

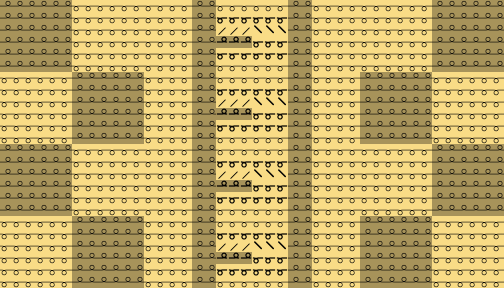

Result:

The transfer actions of the knitting elements will not be displayed in the design pattern at first.

You can open the Vista dei simboli espansa window which shows the transfer actions by Simbolo.
