Change the default settings for the main take-down (WMF)
Change the specifications for the main take-down in the pattern:
- You see and change the default settings for the main take-down in the
Disegno design. - The
Tirapezza principale (WMF) control column is displayed.
- 1
- Open the existing Progetto per disegni and save it with a new name via the File / Salva con nome menu.
- or -
Create new Progetto per disegni with an individual pattern. - 2
- In the document window Disegno design, position the cursor on the Tirapezza principale (WMF) control column and click the RMB.
- or -
Open the context menu in the second row of the table header containing the default settings with RMB. - The context menu for the Tirapezza principale (WMF) appears.
- The fabric take-down functions (WMF) used in the pattern are displayed and are marked by the
symbol. - The entries marked as favorites in the Tirapezza principale (WMF / WBF) / Impostazione predefinita tab under the Tirapezza section of the Parametri del disegno
tool window are displayed.
- 3
- Select the desired main take-down value and enter it in the control column.
- or -
Fill a selection.

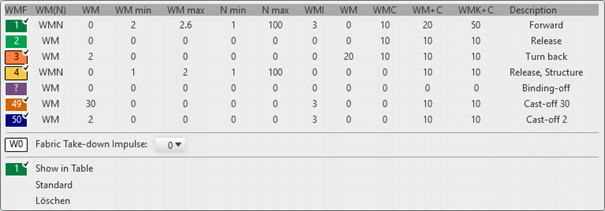

The main take-down values (WMF) displayed in the context menu correspond to the table in the Parametri del disegno
tool window in the Tirapezza principale (WMF) section of the Utente tab.
