Edit and modify inserted Jacquards

I. Edit the inserted Jacquards:

In the pattern there are areas with inserted Jacquard modules.

1: In the Avvio ribbon under Finestre degli strumenti, open the Jacquard tool window.
- or -
Click on the Apri Jacquard... in the context menu on the pattern.

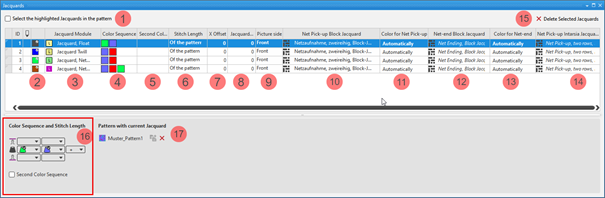

The Jacquard tool window is opened.


1	Seleziona le voci della tabella selezionate nel disegno
		The Jacquards selected in the table are not displayed as selection in the pattern. : Selection via the first column in the table.
		The Jacquards selected in the table are displayed as selection in the pattern.
ID	Consecutive numbering of the Jacquard areas
2		For drawing a Jacquard module in the pattern The Jacquard area has the same colors as the selected Jacquard: No other entry necessary in the table The Jacquard area has different colors from the selected Jacquard: Another entry necessary in the table
		Index Color: Application in the search area of a Color Arrangement : If there exist several patterns in the pattern project, the color is marked according to the active document (pattern) with (Utilizzato).
3	Modulo Jacquard Elemento di lavoro per dietro Jacquard Name of the Jacquard module with the 'L' identifier for local Allocated knitting element color under Proprietà
4	Sequenza di colori Sequenza di colori Jacquard sul rovescio Display for the color sequence for the first and second pattern row if Seconda sequenza di colori is not active.
5	Seconda sequenza di colori Seconda sequenza di colori Jacquard per ogni secondo rango di disegno sul rovescio Display for the color sequence for the second pattern row if Seconda sequenza di colori is active.
6	Lunghezza della maglia Lunghezza della maglia per la zona jacquard Specification for the stitch length which is to be used in the pattern: Utilizza da disegno Utilizza da modulo Personalizzato
7	Offset X Spostamento orizzontale del punto iniziale del rovescio Value in needles for the horizontal offset of a Jacquard module
8	Lato posteriore più stretto Lato posteriore più stretto di n aghi rispetto al lato del disegno Value in needles, regarding how much the Jacquard back side is to be narrower in relation to the picture side. : If there are various entries, get a new Jacquard created with the desired value for Dorso Jacquard  Più stretto a sinistra.
9	Lato del disegno Lato del disegno dello Jacquard sulla frontura anteriore o posteriore Davanti Dietro davanti e dietro
10	Inizio in rete, Jacquard di blocco Inizio in rete per il Jacquard di blocco Display of the knitting elements in use for the net pick-up with continuous Jacquards
11	Colore per l'inizio in rete Specification of the color (yarn carrier) which is used for the net pick-up knitting element
12	Completamento di rete, Jacquard di blocco Completamento di rete per il Jacquard di blocco Display of the knitting elements in use for the net ending with continuous Jacquards
13	Completamento di rete colore Specification of the color (yarn carrier) which is used for the knitting element
14	Inizio in rete, Jacquard entro intarsio Inizio in rete per il Jacquard entro intarsio Display of the knitting elements in use for the net pick-up with Intarsia with Jacquard back
15	Elimina Jacquard selezionati		The selected Jacquard is deleted in all the pattern where it is in use.
16	Sequenza di colori e lunghezza della maglia
		Display or edit box for the stitch length per color / system for rear needle bed : Depends on the selection under Lunghezza della maglia ((6)).
		Display of the color sequence from the left for the Jacquard area selected in the table
		Display or edit box for the stitch length per color / system for front needle bed : Depends on the selection under Lunghezza della maglia ((6)).
		Aggiungi nuovo colore...
	Seconda sequenza di colori
			Default setting The color sequence is the same as in the first pattern row
			Definition of the color sequence for the second pattern row is possible. : The input panel for the color sequence for the second pattern row is displayed.
17	Disegno con Jacquard corrente List of the patterns, where the Jacquard selected in the table is in use. : Attention: By default, the Jacquard areas with the same Jacquard module and the exact same colors are grouped.
			Ungroup the grouped Jacquard areas. : Necessary, if different settings must be made for the Jacquard areas.
			The Jacquard module inserted in the pattern will be removed from the area in the pattern. Result: In the pattern area, no Jacquard module is attached anymore.

2: Select the Jacquard to be changed in the table.

3: Make the desired changes in the tool window.

4: Close the tool window with X.

The changes will be applied to the pattern.

II. Direct selection of a Jacquard module in the pattern:

In the pattern there are Jacquard modules in use.

1: Position the cursor in a Jacquard area with an inserted Jacquard module.

2: Apply the Jacquard module with the F5 key.

3: Enter the selected Jacquard module via the control columns in the entire pattern width or only in an area within the pattern.

The selected Jacquard module is inserted.

Pay attention whether the exact same colors are in use in the area to be entered or not!

Exactly the same colors
The Jacquard areas will be grouped.
Different Colors
A new entry is added in the table.

III. Selection of a Jacquard module in the Jacquard table:

In the pattern there are Jacquard modules in use.
All the Jacquard modules in use are contained in the table.

1: In the Avvio ribbon under Finestre degli strumenti, open the Jacquard tool window.

2: Select the desired Jacquard in the Jacquard tool window in the column.
: Pay attention to the Jacquard colors in use!

3: Enter the selected Jacquard module via the control columns in the entire pattern width or only in an area within the pattern.

The following message appears:
Nella zona nella quale avete eseguito disegni è presente almeno un colore che manca nello Jacquard della tabella. La zona viene collegata con uno Jacquard adatto. Qualora mancasse, verrà creato un nuovo Jacquard.

4: Confirm message with:

OK
A new Jacquard with the missing color is created in the table.
Annulla
No Jacquard module is inserted.

IV. Adding an extra color:

The colors identified with knit only on the Jacquard back.

In the pattern there are Jacquard modules in use.
All the Jacquard modules in use are contained in the table.
The Jacquard tool window is open.

1: Select a Jacquard in the first column of the Jacquard tool window.

The color sequence is displayed in the tool window under Sequenza di colori e lunghezza della maglia.

2: Select an additional color (additional color) in the empty edit box at the end of the displayed color sequence by the icon from the Colori del disegno tool window.

The additional color is added to the color sequence and identified with .

V. Deleting an additional color marked with :

The colors identified with knit only on the Jacquard back.

In the pattern there are Jacquard modules in use.
All the Jacquard modules in use are contained in the table.
The Jacquard tool window is open.

1: Select a Jacquard with additional colors in the first column of the Jacquard tool window.

The color sequence is displayed in the tool window under Sequenza di colori e lunghezza della maglia.

2: Position the cursor on the additional color -> click the Rimuovi colore context menu.

The additional color is removed from the color sequence.
