Step by Step to 'Pattern-12'

A pattern project with one pattern and the desired settings is created.

1: To create a project-related lined shape, select the Tagli tab in the tool window.

2: Open the context menu with RMB and select Crea nuovo taglio nella taglia M… .

The Nuovo taglio lineare tool window is opened.


Nome del taglio	Name for the shape element
Commento	Information about the shape

Input Format
Maglia		Entry in the table of the lined shape Height by stitches (stitch rows) Width by stitches (wales) : The stepping is converted based on the specification.
Gradi		Entry in the table of the lined shape Height of step by stitches (stitch rows) Width of step by stitches (wales)
Lavorazione a mano (giri)		Entry in the table of the lined shape Height by courses (1 course corresponds 2 stitch rows) Width by stitches (wales)
		Rules for widening with hand knitting
			Knitting before widening following the start
			Widening before knitting following the start (default setting)
Crea taglio da immagine			No images will be used
			Use image as template

3: Make the desired entries:

Nome del taglio : Any
Formato input : Stitch

4: Confirm with the OK key.

The new lined shape (basic shape) is graphically displayed in the Tagli tab and in a new document window New shape xx [size x] as rectangle.

: Default attributes are used for the shape edges of the lined shape.
Menu File -> Opzioni -> Taglio lineare -> Opzioni per un nuovo taglio lineare

5: Open the docked line table by LMB in the New shape xx [size x] document window.

- or -
Use the graphic displayed in the New shape xx [size x] document window.

The table Taglio lineare with the values of the rectangular shape appears.

: The method (table or graphic) to create a project-related lined shape is freely eligible, since the views are always updated simultaneously.

6: Insert new shape lines in the table and enter the desired values for the basic shape.

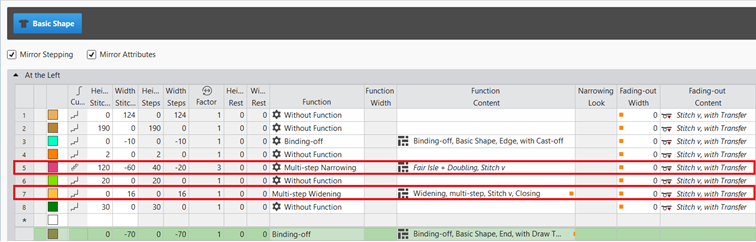

Example: Lined shape for Pattern-12

Basic Shape: Front

Row 5	Steps for 'Multi-step Narrowing' (Fair Isle) : With ‘multi-step narrowing’, narrowings (e.g. 20 stitches per step) are carried out one after the other, evenly distributed in a row.
Row 7	Stepping for Multi-step Widening : With ‘multi-step widening’, widenings (e.g. 16 stitches per step) are carried out one after the other, evenly distributed in a row.
End line	End line of the basic shape (green) : No assignment of attributes by default

Rules for creating a shape for the knitting mode SJ:

Example Front:

Shape Attributes	Rules / possible settings
Knitting Mode:	Single Jersey
Step width of widening	1 needle (stitch) per knitting row
Step height of widening	As desired
Quantity of rows without shape modification	As desired
Step width when narrowing	1 - 3 needles (stitches)
Step height when narrowing	As desired
Fading-out Width	As desired
Knitting mode for fading-out	Maglia davanti con trasporto
Binding-off width:	Stepping > 3 stitches
Binding-off methods	Binding-off, Structure, Single Jersey Rimagliatura, Struttura, Maglia rasata Rimagliatura, RL, 01 > Rimagliatura, RL, 01 Rimagliatura, RL, 02


1	Display of the available shape elements Taglio base (exists always) Adding a new symmetric or asymmetric shape element Scollatura Scollatura riempita Tassello Foro Pince All'interno della forma
2		Specchia scalatura		Creating a symmetric shape of shape element : The line tables of the left and right are identical.
			Specchia attributi	Attribute changes carried out in the line table at the left and right.
			Do not mirror attributes	Attribute changes are carried out in the line table at the left or at the right.
		Do not mirror stepping		Creating an asymmetric shape / shape element : The line table can be edited differently at the left and at the right.
3		Mostra tutte le proprietà
		Mostra righe secondarie
		Nascondi righe secondarie
4	Display color for main lines and sublines of a selected line in the Vista linee
5		Tipo di curva		Display of the main line with the selected curve type Modification of the curve type
6	Columns for entering the values for the lines of the lined shape in the input format Maglie Height by Stitches Width in stitches Gradi Height in steps Width in steps : From the entered values and based on the curve type, the value factor, height of rest and width of rest is calculated.
7	Columns for the input of line attributes : The entry in the Function column is automatically determined based on the values for one line.
8	Specification for working with PTS (NPJ) for one line (shape edge) Value for the front and / or rear needle bed Width by Wales

Insert shape line in a shape element:

: The shape lines are inserted symmetrically with both methods by default.

In the Line Table:
Entry of a positive value: Widening and upwards
Entry of a negative value: Narrowing and down

Enter the desired values in the last table line with the * symbol. When confirming the input with the Enter key a new table line is inserted.
Select a row -> open the context menu with RMB -> select Aggiungi riga principale.
Select a row -> open the context menu with RMB -> select Aggiungi riga prima.
- or -
Select Aggiungi dopo riga.

: Only in the line table it is possible to create an asymmetrical line shape by deactivating Specchia scalatura.

In the document window

Position the cursor on a line of the displayed graphic -> open the context menu with RMB and select -> Inserisci linea di taglio .

Changing line properties of a shape line

Global project-related setting of the line properties via Configurazione / Tutti i tagli tab
In the shape regarding a shape line

In the Line Table
In the document window

Changing Line Properties:

In the Line Table

Direct change of a line property in the corresponding column of the table
Select a line in the table, open the tool window with the Proprietà della linea button and make the desired entries.

In the document window

Position the cursor on a line of the displayed graphic, select the context menu Proprietà della linea and make the desired entries in the tool window.

	1		Modification of the curve type
	2		Modification of the function of a shape line Senza funzione Diminuzione Aumento etc.
	3		Modifications for the shape line with the Diminuzione function
	4		Modifications of the Dissolvenza attribute for a shape line
	5		Specification for a shape line for working with PTS in the shape edge
	6	Display of the markings that are assigned to a shape line.
Applica marcature per linea riflessa	Applies the line-bound markings of the selected line to the line on the opposite. : Perhaps existing markings of the opposite shape line are removed.

Changing curve type:

In the Line Table

In the Tipo di curva column open the context menu with the RMB and select the desired curve type.
Select the line, open the Proprietà della linea with the Proprietà della linea button and select the desired curve type at Andamento della scalatura.

In the document window

Position the cursor on a line of the displayed graphic -> open the context menu with RMB and select -> Adatta andamento della scalatura....

Select the desired Andamento della scalatura in the selection menu.
When selecting the curve type uniforme con avanzo via·Adegua scalatura, specify the desired values for Height and Width of the steps.
: The window for entering specifications is displayed according to the selected curve type.
Transfer the entry to the shape line with the Ricalcola button.
: The shape line is displayed in the graphic and in the line table as well.

7: Allocate the desired attributes to the new shape lines:

Function: Function content + Function width
Fade-out: Fade-out content + Fade-out width
Line 3:

Function: Binding-off (at the external edge of the shape)
Function content: desired bind-off method

Binding-off of the external edges of the shape

The shape lines for binding-off at the external edge of the shape are at the same height in the line table.
During the technical processing these shape lines are moved regarding the height according to the carriage direction.
: The knitting sequence when binding-off depends on the carriage stroke!

The height (quantity of knitting rows) until binding-off is arbitrary

The height (quantity of knitting rows) until binding-off is an even number Binding-off right before left
The height (quantity of knitting rows) until binding-off is an odd number Binding-off left before right

Line 5:

In column Curva: Select Fair Isle stepping kind.
Function: 'Multi-step Narrowing'
Function content: Fair Isle+Binaggio, Maglia v
: The narrowing markings are calculated automatically and displayed in the pending shape of the Disegno design.

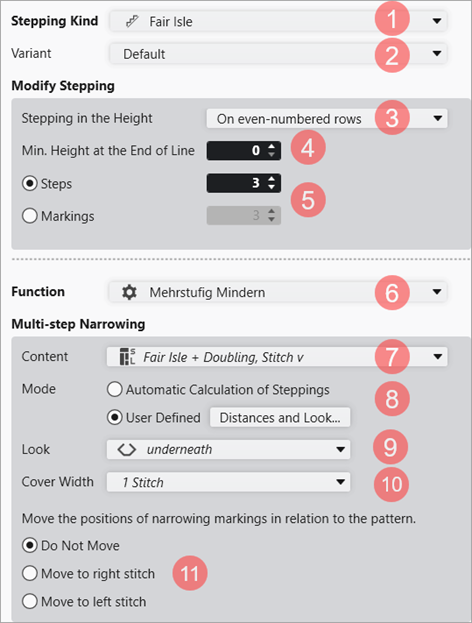

Options with the Fair Isle curve type Fair Isle
: Watch out: The selected stepping kind determines the corresponding options!

1	Andamento della scalatura		Selecting the desired curve type : The options in the pop-up window correspond to this selection.
2	Variante		Options of processing Fair Isle (multi-step narrowing)
			Impostazione predefinita		Display of the lined shape in the rasterized view
			Trapezio		Display of the pending lined shape in the basic pattern
					Display of the lined shape in the rasterized view
			Dente di sega		Display of the pending lined shape in the basic pattern
					Display of the lined shape in the rasterized view
			Piega		Display of the pending lined shape in the basic pattern
Modify Stepping
: The options in the pop-up window correspond to the selection at Variante
3	Scalatura verticale		Specification of the row in which the narrowing should be carried out.
4	Altezza min sull'estremità della linea		Quantity of rows at the end of the line (remaining height) : The value will be subtracted from the total height of the line. The steps are calculated from the remaining height.
5	Specification to calculate the shape line with Fair Isle stepping kind
		Gradi	Quantity of steps to calculate the narrowing
		Marcature	Quantity of markings per step (narrowing) : Corresponds to the value of the 'Width Steps' column of the line table
6	Funzione		Specifies the directory of the Knit Explorer to be used for the function (type) of shape lines
Multi-step Narrowing
7	Contenuto		Selection of the desired module for Diminuzione, Parecchi stadi from Knit Explorer
8	Modalità operativa		Selection of the calculation mode for the steps of Fair Isle
				Calcolo automatico dei passi based on the settings.

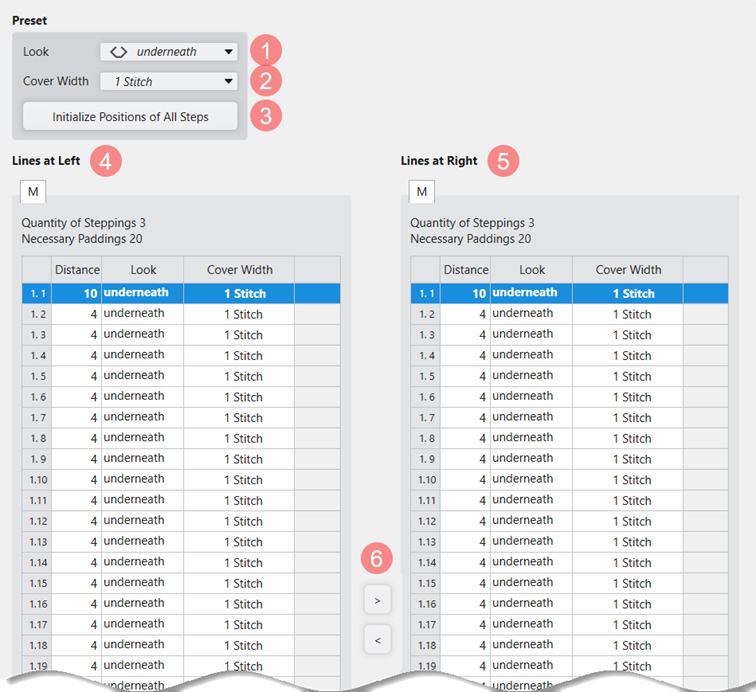

				Personalizzato -> Open the table by the Distanze ed effetto ottico... button in order to change the narrowings manually.
9	Aspetto		Selecting the desired look of narrowing Default Setting: sottostante The loop of the narrowed stitch is behind of the stitch of the basic pattern.
10	Ampiezza di copertura:		Specification of how many stitches should cover each other Default Setting: 1 maglia This corresponds to a racking by one needle
11	Move the position of the narrowing marking in relation to the pattern
		Non spostare	Position of the narrowing marking is calculated and freely placed.
		Sposta su maglia destra	Position of the narrowing marking is calculated and placed on Maglia davanti only.
		Sposta su maglia sinistra	Position of the narrowing marking is calculated and placed on Maglia dietro only.

Line 7:

Function: Aumento a più gradini
Function content: Aumento, A più livelli, Maglia v
: The widening markings are calculated automatically and displayed in the pending shape of the Disegno design.

End line of basic shape:

Function: Rimagliatura
Function content: Rimagliatura, Taglio base, Fine, Con filo di separazione

8: Open the graphic of the basic shape in the xx document window.

9: Click the Elaborazione del taglio button under Parametri in the Zone di lavoro ribbon.

The Zone di lavoro tool window appears.


1	Colors	Display color of the knitting range in the lined shape
2	Descrizione	Definition of a knitting range
3	Colore del filato	Allocation of: Colore del filato / Colore del magazzino / Colore del guidafilo / Colori vanisé / Colori a più cadute
4	Elemento di riempimento	Selection of a knitting element / needle action / structure / pattern element to fill the knitting range
5	Numero	Height of the knitting range by stitch rows
6	Maglie	Display of the total height by stitches
7	cm	Display of the total height by cm : Calculated by the stitch density in use from the Densità delle maglie table
8		Assignment of a stitch density from the stitch density tool window
9	Color Arrangement	Assignment of Color Arrangements
10		Assignment of a stitch length for the front needle bed
		Assignation of a stitch length for the rear needle bed
		Assignment of a take-down value
		Assignment of a auxiliary take-down value
		Assignment of a machine speed
11	List of the shapes (fabric pieces), where the selected knitting range is in use. : Knitting ranges can be removed from the corresponding pattern by the button.

10: Create the desired knitting range in the Zone di lavoro tool window.

Example:

Description: Collar
Filling Element: 2x2 Rib
Number: 28 (rows high)
+ columns: Allocate new stitch lengths

11: Select the desired shape point by the LMB to which you want to assign the knitting range.

12: Call up the Assegna zona di lavoro context menu.

List of the knitting ranges appears to select one.

13: Select the desired knitting range.

The knitting range appears in the assigned color at the the shape line point of the lined shape.

14: Move the inserted knitting range by 2 pattern rows to the top.
: The position of the widening markings should be in a SJ pattern row.

Enter the created knitting ranges into the shape and position it:

Shape is created as lined shape.
The knitting ranges are available in the Zone di lavoro tool window.
Lined shape is opened in the xx document window.

1: Select the desired shape point by the LMB to which you want to assign the knitting range.

2: Open the context menu and select Assegna zona di lavoro.

List of the knitting ranges appears to select one.
Multiple selection is possible.

3: Select the desired knitting range.

The knitting range appears in the assigned color at the the shape line point of the lined shape.

	Enable the view of the knitting ranges in the xx document window
	Disable the view of the knitting ranges in the xx document window
	Display of the knitting ranges in the xx document window by yarn colors

4: Position the inserted knitting range.


1	Selecting knitting ranges to replace the inserted knitting range.
2	Specify the Distanza in Maglie in relation to the shape line point
3	Inserisci zona di lavoro in basso
		Knitting range will be inserted above the shape line point
		Knitting range will be inserted below the shape line point

15: In the Tagli tool window select the created shape with LMB.

16: Open the context menu -> Posiziona taglio -> select Pattern name.

The shape is floating in the selected basic pattern.
: Very helpful here to position the Jacquard pattern element correctly in relation to the base pattern and shape.

17: Open Knit Explorer.

18: Open the Parti di disegno -> Parti di disegno, Tutti gli aghi -> Parti di disegno, Jacquard directory in the Deposito elementi di lavoro.

19: Open the Parti di disegno tool window.

20: Copy the Jacquard PD 19 pattern element from the Knit Explorer into the pattern project.
Example: H 39 x W 32

21: Modify the height of the pattern element in order to draw the pattern element into the the stepping of Fair Isle (height).

Original Pattern Element	Modified Pattern Element

H 39 x W 32	H 36 x W 32

22: Draw the pattern element using any 2 yarn colors from the center of the basic pattern to the left and right in relation to the Fair Isle shape lines in the basic pattern.

Pro Step:

2 rows of Maglia davanti
1 modified pattern element
2 rows of Maglia davanti

23: Select the rows of the Jacquard areas additively via the Rango del disegno control column by the CTRL key.

24: Positioning the cursor in the pattern area.

25: Call-up the Selezione / Crea Jacquard... context menu.

The Crea Jacquard [Nuovo disegno] dialog box appears.

Description to the dialog box


1	Display of the active document window Disegno design, for which the dialog box is valid.
2	Sequenza di colori e lunghezza della maglia
		Display or edit box for the stitch length per color / rear system : Depends on the selection under Lunghezza della maglia ((4)).
		Display of the used colors in the selection in the color sequence from the left
		Display or edit box for the stitch length per color / front system : Depends on the selection under Lunghezza della maglia ((4)).
	Seconda sequenza di colori
			Default setting The color sequence is the same as in the first pattern row
			Definition of the color sequence for the second pattern row is possible. : Input panel for the color sequence of the second pattern row
3	Modulo Jacquard
		Displays the selected Jacquard module. : Position the cursor in the display, to use the LMB to open the Knit Explorer.
		Display of the path of the selected directory in the Knit Explorer
		Selection list for selecting the desired Jacquard module in the specified directory
Jacquard
4	Colori		Selection list for the knitting sequence of the colors sempre uguale minimo per rango minimo per rango e colonna (ponti filato)
5	Lunghezza della maglia		Selection list for the stitch length Utilizza da disegno Utilizza da modulo Personalizzato Make presettings at and / or .
6	Lato del disegno		Selecting the desired face of picture of Jacquard Jv: Lato immagine davanti J^: Lato immagine dietro Jv^: Lato immagine davanti e dietro : Not with all Jacquard modules available
Dorso Jacquard
7	Più stretto a sinistra		Specification in case of Jacquard with yarn bridges, by how many needles the back side is to be narrower then the face of picture
8	spostamento orizzontale del punto di taglio		Specification in needles for shifting the Jacquard horizontally
9	Crea Jacquard		The changes made in the dialog box will be applied to the pattern.

Changing the default settings for Block Jacquard:

: A module for net pick-up and net ending are assigned by default to each area with Block Jacquard in the Progetto per disegni.

Possibilities for changing the module allocation:

In Configurazione -> Jacquard tab -> Block-Jacquard section
: Changes will apply to all patterns of the Progetto per disegni .
Select Jacquard in the ribbon.
: Individual changes regarding the desired Jacquard area
Select the context menu -> Apri Jacquard...
: Individual changes regarding the desired Jacquard area

26: Make the desired presets in the Crea Jacquard [Nuovo disegno] dialog box.

Colors: Continuously
Stitch length: Used by the module
Jacquard Module: Jacquard, Tubolare incrociato, Lato immagine Jv, J^, Jv^

27: Apply the settings to the pattern with the Crea Jacquard button.

28: Continue:
Create the next row selection for a new Jacquard area.
- or –
Exit working in the dialog box by Chiudi.

Jacquard is displayed with the correspondent symbol in the pattern and is listed in the Jacquard tool window for another editing.

29: Allocate the following attributes to the shape line 5 of the Fair Isle curve type in the line table:

Fade-out width: Set value to 0, since the different Jacquard areas are not to be hidden with Maglia v, Con trasporto.

Fade-out content: Stitch v, with transfer (will not be used)

: To fade-out with patterns with Jacquards, a corresponding Dissolvenza, Jacquard, Flottante, Rete module is used.

30: In the New Shape xx [Size x] document window, select the desired shape line 5 with the graphic shape presentation.

31: Position cursor on the selected shape line.

32: Select LMB -> Proprietà della linea context menu.

33: The Proprietà della linea tool window is opened for the selected shape line.

34: Make the following entries under the Per Jacquard (flottante / rete) section:

Content: Select Dissolvenza, Jacquard, Flottante, Rete Fade-out Module.
: The fade-out module knits only at the front.
Width: specify the desired fade-out width.

Default Setting: 2 Needles wide
Attention : The fade-out width is also executed in the rows of the net pick-up and the net ending.

35: Close the tool window.

The fade-out module appears in the Disegno design document window.

36: If necessary, position the shape in the document window with the button.

37: Check , attributes of the shape lines and, if desired, make corrections.

38: Changing markings of shape lines with the functions:

Function Diminuzione a parecchi stadi‘ (Fair-Isle): Modify the position of the narrowing marking
Function Aumento a più gradini: Modify the position of the widening marking

The following function was allocated to a shape line when creating the shape:

Diminuzione a parecchi stadi
Aumento a più gradini

The markings are automatically calculated based on the settings (values) in the line table, displayed in the Distanze della linea table and entered into the shape as shape markings.

Options to modify the narrowing and widening markings:

In the table: Change the values and apply them to the shape
In the pending shape: Re-position the markings manually

Modify the Markings for Narrowing in the Table:

A shape with shape lines of the Diminuzione a parecchi stadi (Fair-Isle) function is created.
The shape leis pending in the Disegno design
The document window with graphic of the shape is open.

1: Position cursor on the shape line e.g. no. 5 (multi-step narrowing).

2: Open the context menu with RMB and select Proprietà della linea.

The Proprietà della linea tool window is opened.

Options with the Fair Isle curve type Fair Isle
: Watch out: The selected stepping kind determines the corresponding options!

1	Andamento della scalatura		Selecting the desired curve type : The options in the pop-up window correspond to this selection.
2	Variante		Options of processing Fair Isle (multi-step narrowing)
			Impostazione predefinita		Display of the lined shape in the rasterized view
			Trapezio		Display of the pending lined shape in the basic pattern
					Display of the lined shape in the rasterized view
			Dente di sega		Display of the pending lined shape in the basic pattern
					Display of the lined shape in the rasterized view
			Piega		Display of the pending lined shape in the basic pattern
Modify Stepping
: The options in the pop-up window correspond to the selection at Variante
3	Scalatura verticale		Specification of the row in which the narrowing should be carried out.
4	Altezza min sull'estremità della linea		Quantity of rows at the end of the line (remaining height) : The value will be subtracted from the total height of the line. The steps are calculated from the remaining height.
5	Specification to calculate the shape line with Fair Isle stepping kind
		Gradi	Quantity of steps to calculate the narrowing
		Marcature	Quantity of markings per step (narrowing) : Corresponds to the value of the 'Width Steps' column of the line table
6	Funzione		Specifies the directory of the Knit Explorer to be used for the function (type) of shape lines
Multi-step Narrowing
7	Contenuto		Selection of the desired module for Diminuzione, Parecchi stadi from Knit Explorer
8	Modalità operativa		Selection of the calculation mode for the steps of Fair Isle
				Calcolo automatico dei passi based on the settings.
				Personalizzato -> Distanze ed effetto ottico... Button to change the narrowings manually in the Distanze della linea dialog box.
9	Aspetto		Selecting the desired look of narrowing Default Setting: sottostante The loop of the narrowed stitch is behind of the stitch of the basic pattern.
10	Ampiezza di copertura:		Specification of how many stitches should cover each other Default Setting: 1 maglia This corresponds to a racking by one needle
11	Move the position of the narrowing marking in relation to the pattern
		Non spostare	Position of the narrowing marking is calculated and freely placed.
		Sposta su maglia destra	Position of the narrowing marking is calculated and placed on Maglia davanti only.
		Sposta su maglia sinistra	Position of the narrowing marking is calculated and placed on Maglia dietro only.

1: Select the Personalizzato mode in the tool window under Diminuzione a parecchi stadi.

2: Open the table with Distanze ed effetto ottico... .

The Distanze della linea dialog box appears.

: The table displays all steps of a shape line with the automatically calculated values based on the specifications of the Proprietà della linea tool window.

Preset
1	Aspetto	List box to select the method of narrowing
2	Ampiezza di copertura:	List box to specify the quantity of stitches to cover each other
3	Inizializza posizioni di tutti gli stadi	Applies the changes of look and of the cover width

4	Linee a sinistra	Table with narrowing markings and their positions
	Label indicating the size	Size of the selected shape
	Numero di scalature	Total number of steps of the selected shape line
	Distanze necessarie	Quantity of stitches (step width) that should be narrowed

5	Linee a destra	Table with narrowing markings and their positions
	Label indicating the size	Size of the selected shape
	Numero di scalature	Total number of steps of the selected shape line
	Distanze necessarie	Quantity of stitches (step width) that should be narrowed

6	Arrow keys	To copy the manually changed values of the table from Linee a sinistra column to the Linee a destra column or vice versa. : If you make manual changes, the remaining markings will not be recalculated! You must also adjust all other markings manually.

1: Make a different selection in the dialog box below Assegnazioni.
- or -
Change the values for both shape lines (left and right) manually in the table.

2: Close the dialog box with the OK button.

The narrowing markings are applied to the shape and displayed.

: Using the same procedure, the widening markings in the Distanze… table can also be changed.

Modify Shape Markings of Pending Shape Manually:

: The user himself is responsible for the correct result!

A shape with shape lines of the Diminuzione a parecchi stadi (Fair-Isle) function is created.
The shape leis pending in the Disegno design

1: Select Livello della rifinitura in the Cursor Attributes + Editing Layers tool windows.

2: Select the Trasparenza del taglio mobile icon to delete the narrowing markings.

3: Delete the desired markings in the shape.

4: Set the cursor on a narrowing marking and pick this attribute with the F8 key in order to re-position it.
- or -
Select the Fair Isle+Binaggio, Maglia v technical module in the Moduli tab.

5: Insert markings manually at the new positions.
: Watch out:
The quantity of narrowing markings must correspond to the narrowing steps (width)! Otherwise the stitches cannot be transferred.

: The changes within the Livello della rifinitura cannot be saved.
Meaning, the pending shape must not be removed from the design pattern.

6: In order to save the changes, set the cursor in the pending shape and call-up Converti taglio in forma a griglia of the context menu.

The shape appears as Raster Shape.
: Modification within the Livello della rifinitura will be discarded when converting.

7: Then call-up Crea nuovo taglio da forma a griglia... context menu again.

The created lined shape is displayed in the Tagli tab.

: Using the same procedure, the widening markings of the pending shape can be changed manually as well.

39: Click the Avvio button under Anteprima in the Guidafili ribbon.

The New Pattern xx document window is opened as view and the Guidafili ribbon appears.

40: Open the dialog box via Mostra guidafilo.

41: If necessary, make the desired settings for allocating yarn carriers.

42: Start the Elaborazione tecnica:
Show symbol view after technical processing.

43: Generate Sintral.

44: Start the Controllo Sintral.

45: Estrazione the knitting program.

A program for the knitting machine will be created: CMS530.Pattern-12.zip.
Load knitting program into the machine.

: The extracted file CMS530.Pattern-12.zip can be loaded onto the machine with an USB stick or via Ethernet.

Step by Step to 'Pattern-12'

Explanation tool window 'New Lined Shape'

Rules for a shape in Single Jersey knitting mode

Rules for creating a shape for the knitting mode SJ:

Working with the line table or the document window (graphic)

About the Line Table

Insert new shape line in a shape element

Insert shape line in a shape element:

Change line properties of a shape line in line table or document window

Changing line properties of a shape line

Changing Line Properties:

Change curve type of a shape line in line table or document window

Changing curve type:

Information for binding-off of the external edges of the shape

Tool Window: Options with the Fair Isle curve type

Explanation of the 'Knitting Ranges' Tool Window

Enter and Position Created Knitting Ranges in the Shape

Enter the created knitting ranges into the shape and position it:

About the 'Create Jacquard' dialog box

Description to the dialog box

Changing the default settings for Block Jacquard:

Modify Markings for Narrowing or Widening

Modifying Narrowing Markings in the Table

Modify the Markings for Narrowing in the Table:

Tool Window: Options with the Fair Isle curve type

Explanation of 'Distances of the Line' Dialog Box

Modify Narrowing Markings of Pending Shape Manually

Modify Shape Markings of Pending Shape Manually:

All steps to create 'Pattern-12'
