Example 8: Color Arrangement with Sub-color

With this Color Arrangement CA8 and using a sub-color, the structure and stitch length of the design pattern (basic pattern) will be changed for one color area (search color).

Example:

Create the Color Arrangement CA8:

  1. The pattern project of pattern Pattern-7 is open.
  2. Pattern in Disegno design is active.

    : Colors from the Colori del filato table were used to draw the basic pattern.
    1
    If necessary, save the pattern project under a new name.
    2
    Create a sub-color for the desired yarn color.
    3
    If necessary, change the color value of the sub-color.

Creating Sub-colors:

: Be sure to create the sub-color for a main color used in the pattern only, as no additional yarn carrier should be added to the pattern.
With the help of the sub-color, you can allocate others attributes to a yarn carrier.

    1
    Position the cursor to the main color in use (e.g. yarn color #1) in the tool window Colori del disegno / Colori del filato.
  1. The icon appears beside the symbol.
    2. 2
    Click the icon.
  2. The input panel for the sub-color appears.
    3. 3
    Click on the icon.
  3. A new empty sub-color will be created and selected.
    4. 4
    If required:
    Call up the Cambia valore cromatico… context menu in order to change the color.
    - or -
    Delete the sub-color by Elimina sottocolore.
    5
    If required, create additional sub-colors for the same main color.
    - or –
    Switch to another main color in order to add sub-colors.
    6
    Select sub-color und draw it into the area of Disegno design for which different specifications are necessary.
  1. The sub-color will be marked by the icon and appears in the color parameter table.
    4

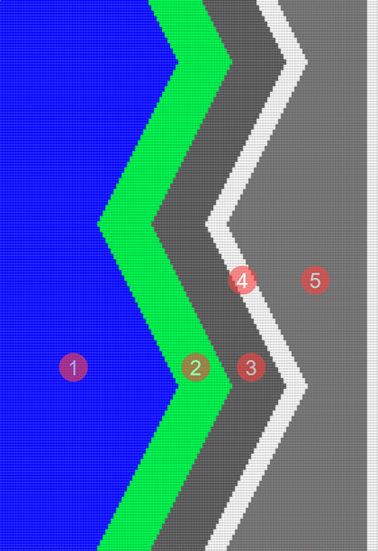

    Draw this sub-color into the color field of yarn color #1 of the Disegno design .

1

Yarn Color #3

2

Yarn Color #4

3

Yarn Color #2

4

Yarn Color #1

5

Sub-color #1/1 of yarn color #1

    5
    In the Rango del disegno control column, select the first 2 pattern rows.
    6
    Position the cursor in the pattern area.
    7
    Call up the Selezione / Crea Color Arrangement... context menu.
    - or -
    Click directly the button in the ribbon.

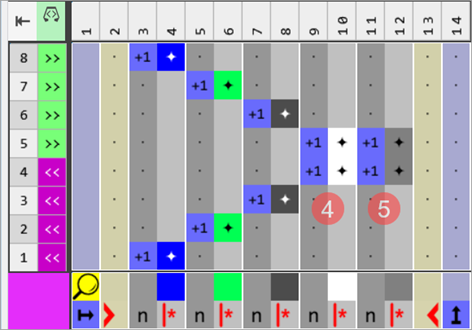

  1. The Color Arrangement Editor with the original standard knitting process of the 2 selected pattern rows is opened.

4

Color segment of the yarn color #1

5

Color segment of the sub-color of yarn color #1

Result after technical processing

  • Default knitting process from the original CA
  • Yarn carriers are not combined
  • Structure of the design pattern (basic pattern) from the corresponding source rows
  • Each area will be knit with stitch length NP5 at the front and NP6 at the rear

: This knitting process can also be knitted with 'Normal yarn carrier', as there is never more than one yarn carrier at one position and also no yarn carrier has to pass another.

The colors (= yarn carrier) from the 'processing area' of the CA are processed according to the number of knitting systems of the selected machine.

  • Search Area:
    The symbol (default entry) repeats the needle action from the source row in the entire color area from the left to the right
  • Processing Area:
    Based on the symbol, the corresponding needle action from the source row of the design pattern is read out and knitted according to the search color.
    8
    Draw the desired structure e.g. in the color segment of the sub-color #1/1.
    9
    In the tool window of the CA editor change to the Azioni dell'ago / colori tab.
    10
    Select the desired needle actions to draw:

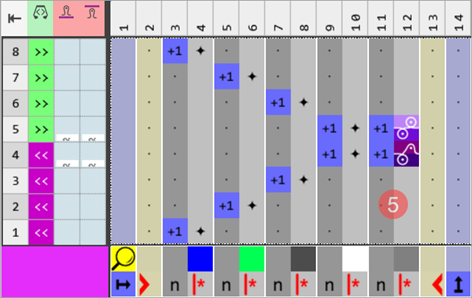

Example: Maglia perlata structure in the color segment of the sub-color #1/1

: The structure was drawn with needle actions, that contain the 'automatic transfer' information. If desired, the transfer is entered into the pattern by the technical processing.

    11

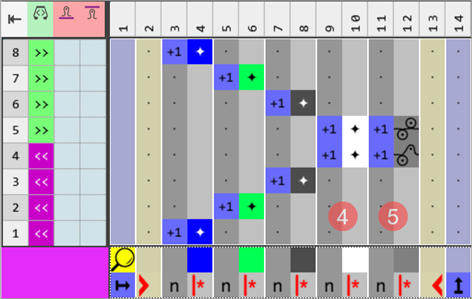

    Switch from Pattern Color to Stitch Length in the status bar of the Color Arrangement Editor

CA8

:
All stitch lengths of the yarn colors used are displayed 'transparently' both in the control columns and at the needle positions.
This means that all yarn colors are knitted with the stitch lengths specified by the Disegno design.

    12
    Select Parametri del disegno in the Avvio ribbon at Parametri.
  1. The Parametri del disegno dialog box appears.
    2. 13
    Select the Lunghezza della maglia section.
    14
    Open the Lunghezza della maglia (NP) tab.
    15
    Open the Impostazione predefinita tab.
    - or -
    Open the Utente tab.
    16
    Select the desired existing entry from the tables.
    - or -
    In the Utente tab position the cursor in the first column and select Aggiungi riga… in the context menu.
  2. New entry is added at the end of the table.
    3. 17
    Make the desired presettings for the entries in use:
    18
    Select the desired stitch length in the or column of the table and insert it into the needle actions of the sub-color #1/1.

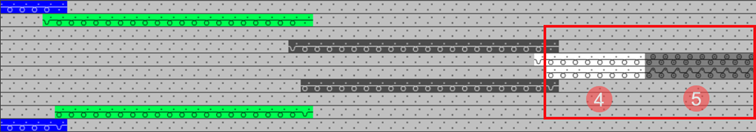

CA 8 with stitch lengths allocated exactly to needles

5

Stitch lengths allocated exactly to needles by the sub-color #1/1

: Processing of the pattern

  • Usage of NPJ:
    • Different stitch lengths are automatically knit by one technical row.
    • : Watch the distances between the sections!
  • Usage of the Rango extra option:
    • Settings in the Parametri del disegno dialog box / Lunghezza della maglia (NP) / Impostazione predefinita tab
    • Or in the NPJ column of the Utente tab.
    • : Longer run time of the pattern due to 'kicking' the yarn carriers!



    19
    If necessary, set NPJ -> Rango extra in the Lunghezza della maglia table for the sub-color of used NP data.
    20
    Check the generated Color Arrangement on correct entries with the Controlla button.
    : The knitting procedure cannot be checked!
    21
    If necessary, in case of a Color Arrangement already used in the design pattern, apply the changes to the basic pattern with the Applica button.
    - or -
    Close the tool window with .
    22
    Close the prompt with the desired button:
    23
    Enter the Color Arrangement via the control column into the desired rows of the design pattern.
    24
    Start Technical Processing
  1. The Color Arrangement is expanded by the technical processing.

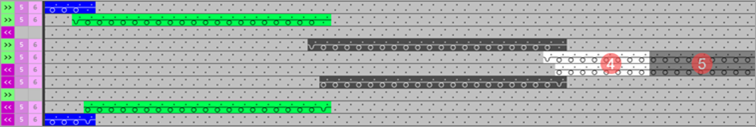

Result after technical processing

4

Yarn Color #1

5

Sub-color with Maglia perlata structure

: Switching the view from Pattern Color to Stitch Length makes the stitch length entries visible.

    25
    Generate Sintral.
    26
    Start the Controllo Sintral.
    27
    Estrazione the knitting program.
    28
    Load knitting program into the machine.
