Step by Step to 'Pattern-14A'

Features of the pattern:

Step by Step to 'Pattern-14A'

  1. A pattern project with one pattern and the desired settings is created.
    1
    To create a project-related lined shape, select the Tagli tab in the tool window.
    2
    Open the context menu with RMB and select Crea nuovo taglio nella taglia M….
  1. The Nuovo taglio lineare tool window is opened.

Nome del taglio

Name for the shape element

Commento

Information about the shape

Input Format

Maglia

Entry in the table of the lined shape

  • Height by stitches (stitch rows)
  • Width by stitches (wales)

: The stepping is converted based on the specification.

Gradi

Entry in the table of the lined shape

  • Height of step by stitches (stitch rows)
  • Width of step by stitches (wales)

Lavorazione a mano (giri)

Entry in the table of the lined shape

  • Height by courses (1 course corresponds 2 stitch rows)
  • Width by stitches (wales)

Rules for widening with hand knitting

Knitting before widening following the start

Widening before knitting following the start (default setting)

Crea taglio da immagine

No images will be used

Use image as template

    3
    Make the desired entries:
    4
    Confirm with the OK key.
  1. The new lined shape (basic shape) is graphically displayed in the Tagli tab and in a new document window New shape xx [size x] as rectangle.

: The default attributes will be used for the shape edges of the lined shape.
Menu File -> Opzioni -> Taglio lineare -> Opzioni per un nuovo taglio lineare

    5
    Open the docked line table by LMB in the New shape xx [size x] document window.

    - or -
    Use the graphic displayed in the New shape xx [size x] document window.
  1. The table Taglio lineare with the values of the rectangular shape appears.

: The method (table or graphic) to create a project-related lined shape is freely eligible, since the views are always updated simultaneously.

    6
    Insert new shape lines in the table and enter the desired values for the basic shape with Specchia scalatura.

Rules for a shape stitch-stitch knitting mode (DJ):

Shape Attributes

Rules

Knitting Mode

Maglia davanti - Maglia dietro

Step width of widening

1 Stitch

Step height of widening

As desired

Quantity of rows without shape modification

As desired

Step width when narrowing

1 needle

Step height when narrowing

As desired

Quantity of needles when narrowing

1 needle
- or -
As desired (long run time)

Knitting mode for fading-out

Modules of the Knit Explorer:
Deposito elementi di lavoro / fully fashion / Dissolvenza

Fading-out Width

Depending on the selected module

Binding-off

Stepping > 1 needle

Binding-off methods

Rimagliatura, RR, 01

Rimagliatura, RR, 02

Rimagliatura, Taglio base, Cimosa, RR con fissaggio, 01

Rimagliatura, Taglio base, Cimosa, RR con fissaggio, 02

    7
    Allocate the desired attributes to the new shape lines:
    8
    Disable the Specchia attributi check box.
    9
    Adopt the attributes allocated to the new shape lines (no. 2 - 4):

Example: Lined shape for Pattern-14A

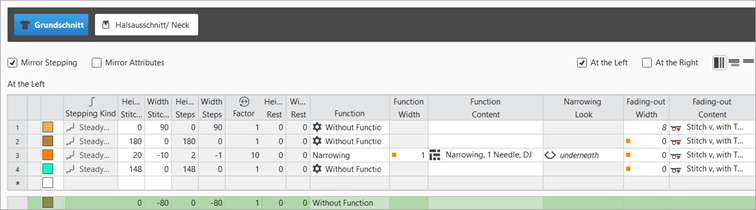

Basic Shape: Left Front

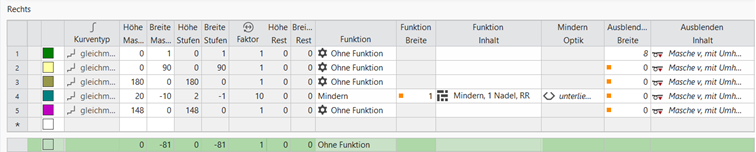

Basic Shape: Right Front

: In this pattern example, an odd numbered fabric piece width is necessary due to the DJ structure.

    10
    Proprietà del taglio menu:
    Position the cursor in the opened document window xx -> context menu with RMB -> select Proprietà del taglio
    -  or  -
    select the shape in the Tagli tool window -> context menu with RMB -> select Proprietà del taglio
    11
    Click on the Larghezza dispari selection.
  1. The right side of the basic shape is widened by 1 needle.
    : This setting also has an effect on the neckline shape element, i.e. the V-neck shape element starts with 1 needle.
    2. 12
    In the line table, position the cursor in the area next to the Taglio base button -> open the context menu by RMB -> select Aggiungi nuovo elemento di taglio....
    13
    In the selection menu select the desired shape element Scollatura -> symmetrically.
    14
    Allocate the desired attributes to the new shape lines:
    15
    Disable the Specchia attributi check box.
    16
    Adopt the attributes allocated to the new shape lines (no. 2 - 4):

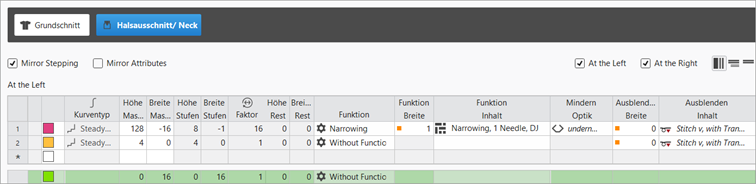

Left Neckline Shape Element (V-neck)

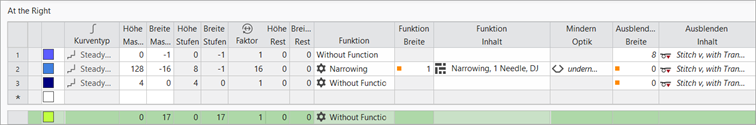

Right Neckline Shape Element (V-neck)

:

  • The Scollatura shape element starts with one needle.
  • Start module for the V-neck: Inizio scollo a V, Maglia v^

    17
    In the Tagli tool window select the created shape with LMB.
    18
    Open the context menu -> Posiziona taglio -> select Pattern name.
  1. The shape is floating in the selected basic pattern.
    2. 19
    Start the Elaborazione tecnica:
    Show symbol view after technical processing.
    20
    Generate Sintral.
    21
    Start the Controllo Sintral.
    22
    Estrazione the knitting program.
  2. A program for the knitting machine will be created: CMS530.Pattern-14A.zip.
  1. Load knitting program into the machine.

: The extracted file CMS530.Pattern-14A.zip can be loaded onto the machine with an USB stick or via Ethernet.
