Step by Step to 'Pattern-15'

  1. A pattern project with one pattern and the desired settings is created.
    1
    To draw select any desired drawing tool under the Disegna group.
    2
    In the Colori del disegno tool window, select the desired pattern colors from the Colori del filato color palette to draw the motif:
    3
    In Disegno design draw the desired motif.

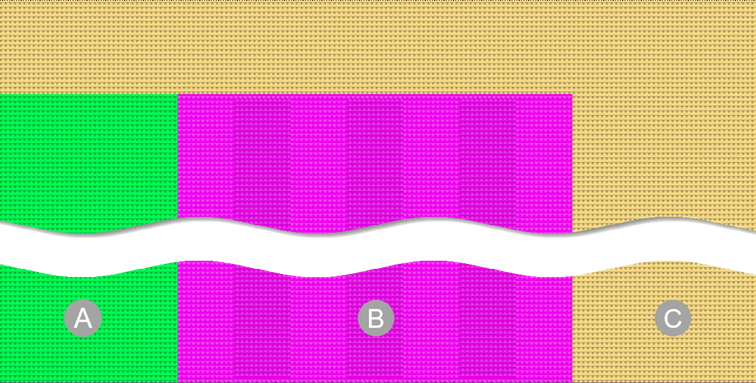

Basic pattern with 3 yarn colors

A

Yarn color #4 with needle action Maglia davanti con trasporto

B

Yarn color #6 with a structure consisting of

  • Maglia davanti con trasporto
  • Maglia dietro con trasporto


: The width of the areas depends on the sequence of the structure!

C

Yarn color #31 with Maglia davanti con trasporto needle action

    4
    In the Rango del disegno control column, select the first 2 pattern rows.
    - or -
    Select the total height of the pattern area for the CA.
    5
    Position the cursor in the pattern area.
    6
    Call up the Selezione / Crea Color Arrangement... context menu.
    - or -
    Click directly the button in the ribbon.
  1. The Color Arrangement Editor with the original 'Default knitting process' of the 2 selected pattern rows is opened.

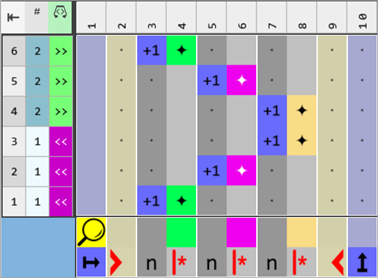

Original Color Arrangement

    7
    Position the cursor on the column selection bar.
    8
    Select the color column in the color segment of the yarn color #6 (pink) with LMB.
    9
    Position the cursor on the column selection bar.
    10
    Open the context menu with RMB and paste or duplicate the desired quantity of columns.
    11
    Select the technical rows no.2 and no.5 additively.
    12
    Add the quantity of needed rows as additional rows:
    13
    Draw the desired structure for working with the additional yarn carrier and the edge of the color field in the color segment of the yarn color #6 (pink) in the 'Processing Area':
    14
    In the tool window of the CA editor change to the Azioni dell'ago / colori tab.
    15
    Select the desired needle actions to draw:

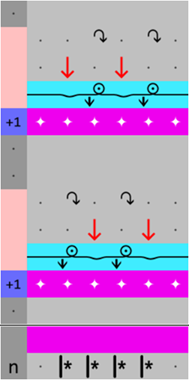

Example CA#1

First Additional Row

Filo flottante

  • Edge at the left + right of the color field

Maglia davanti con trasporto all'indietro

: Transferring to the front with following knitting on empty needles at the rear (tuck)

Filo flottante con trasporto all'indietro

: Float is in front the needle

Second Additional Row

Trasporto in avanti

Third Additional Row

Scarico dietro



    16
    In the 'Search area' in the columns for the edge of the color field, define 'no entry'.
    17
    In the tool window of the CA editor change to the CA tab.
    18
    In the Numeri di riferimento section select Per ranghi supplementari.
    19
    In the 'Reference column with reference numbers' of the inserted rows, insert the symbol.
    20
    Make the desired entries in the control columns of the CA:

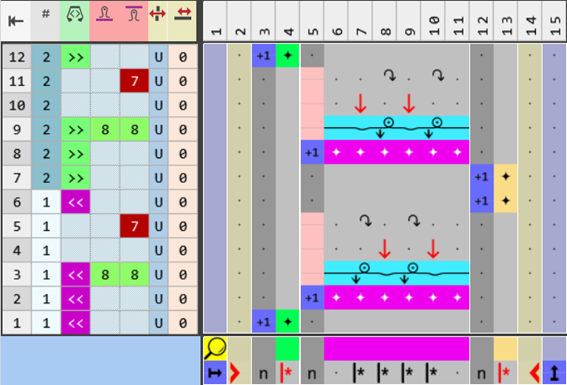

Modified Color Arrangement CA#1



    21
    Check the generated Color Arrangement on correct entries with the Controlla button.
    : The knitting procedure cannot be checked!
    22
    If necessary, in case of a Color Arrangement already used in the design pattern, apply the changes to the basic pattern with the Applica button.

    - or -
    Close the tool window with .
    23
    Close the prompt with the desired button:
    24
    Enter the generated Color Arrangement via the control column into the desired rows of the design pattern.
    25
    Start the Elaborazione tecnica:
    Show symbol view after technical processing.
    26
    Generate Sintral.
    27
    Start the Controllo Sintral.
    28
    Estrazione the knitting program.
  1. A program for the knitting machine will be created: CMS530.Pattern-15.zip.
  2. Load knitting program into the machine.

: The extracted file CMS530.Pattern-15.zip can be loaded onto the machine with an USB stick or via Ethernet.
