Step by Step to 'Pattern-1'

A pattern project with one pattern and the desired settings is created.

1: To draw select any desired drawing tool under the Disegna group.

2: In the Colori del disegno tool window, select the desired pattern colors from the Colori del filato color palette to draw the motif:

Colori del filato:

: The yarn carriers are not automatically placed on the yarn carrier rails.
The yarn carrier home position is determined in the Elaborazione tecnica.

: The color areas are less than 1 inch wide.

3: In Disegno design draw the desired SJ with pointelle motif.

With the Maglia dietro con trasporto needle action

- or -

With the Punzonato, Maglia ^ knitting element

: When drawing pay attention to the distances between the color fields.
A distance of ~2.8 inches is necessary, if yarn carriers are combined (double assignment).

ADF yarn carrier ('swiveled')

Min. distance between the color fields

Yarn carriers on different rails

0.7 Inch

Yarn carriers on the same rail

~ 2.8 inches

(for each yarn carrier 1 inch + 6 nic)

Basic pattern with 22 yarn colors

Part of the pattern with the structure for pointelle

Pattern-2A:
Pointelle with Maglia dietro con trasporto

Note:

The first pattern row is worked with V0 racking where the stitch is knitted at the rear. In the next row with VR1 racking the stitch then is transferred to the front and the pattern row is knitted.

Pattern-2B:
Pointelle with the Punzonato, Maglia ^ knitting element

4: In the Rango del disegno control column, select the first 2 pattern rows.
- or -
Select the total height of the pattern area for the CA.

5: Position the cursor in the pattern area.

6: Call up the context menu and select Selezione / Crea Color Arrangement... .
- or -
Click directly the button in the ribbon.

The Color Arrangement Editor with the original 'Default knitting process' of the 2 selected pattern rows is opened.

7: Make the desired changes in the Color Arrangement.

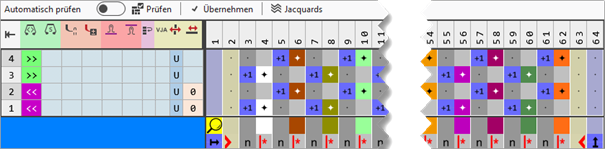

Part of Color Arrangement CA#2A

1	Combining the yarn carriers on 2 systems : Watch the distances between the color sections.
2	Entry within control columns: Direzione del carro Lavorazione nello spostamento (VJA^) Racking without Needle Action (^v): The selection for the needle action of the rear needle bed occurs in relation to the front needle bed. Tipo di spostamento (VN, VU, V#) Spostamento : In the 2nd pattern row, enter the racking R1 for the transfer of the rear stitch (pointelle)

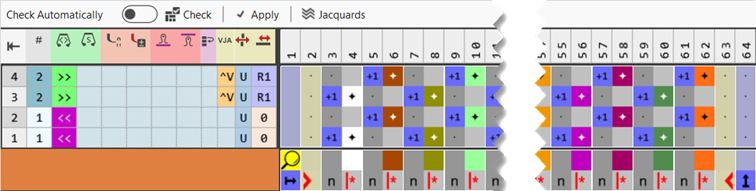

Part of Color Arrangement CA#2B

1	Combining the yarn carriers on 2 systems : Watch the distances between the color sections.
2	Entry within control columns: Direzione del carro Lavorazione nello spostamento (VJA^) NO entry required, as the corresponding setting is done in Configurazione -> Ottimizzazione tab. Tipo di spostamento (VN, VU, V#) Spostamento : In the 2nd pattern row, enter the racking to Impostazione predefinita for the transfer of Punzonato, Maglia ^ knitting element.

1: Open the Configurazione dialog box -> Ottimizzazione tab.

2: Select the Compensa spostamento anche se i valori di tirapezza non sono gli stessi setting in the Spostamento per corsa selection menu of Compensa spostamento nella corsa per lavorazione monofrontura.

The stitch is transferred by the R1 racking from the knitting element and then knitted.

Symbol view after technical processing

8: Check the generated Color Arrangement on correct entries with the Controlla button.
: The knitting procedure cannot be checked!

9: If necessary, in case of a Color Arrangement already used in the design pattern, apply the changes to the basic pattern with the Applica button.
- or -
Close the tool window with .

10: Close the prompt with the desired button:

Save: Color Arrangement is saved locally in the CA tool window.
Reject: The changes will not be saved.
Copy: The changed Color Arrangement is saved as copy in the CA tool window.

11: Enter the generated Color Arrangement via the control column into the desired rows of the design pattern.

12: Carry out Elaborazione tecnica if necessary.
: After carrying out the Elaborazione tecnica you are able to view and weigh up the result of the automatic processing, if corrections / optimizations are necessary.
