Step by Step to 'Pattern-7'

Selective Plating Combined With Inverse Plating

Several yarn carriers are used within on area with selective plating. Meaning all yarn carriers has to be placed optimally to knitting rows during knitting. This requests a border processing / correction of the motif.

  1. A pattern project with one pattern and the desired settings is created.
    1
    To draw select any desired drawing tool under the Disegna group.
    2
    In the Colori del disegno tool window, select the desired pattern colors from the Colori del filato color palette to draw the motif:
    3

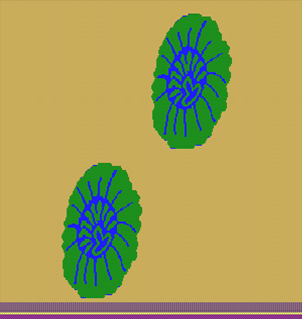

    Draw the desired motif in the Disegno design.
    4
    Open the Colori vanisé dialog box with in the Colori del disegno tool window.
  1. A total of 2 plating colors (2 colors for each area) are to be generated.
    2. 5
    Paste the used yarn colors into row P1:
    #31 (yellow = basic color) into column A
    #3 (blue) into column B
    6
    Paste both of the yarn colors in exchanged order into row P2.
    7
    Open the Plating Offset (YPI) table and assign the desired values.
    8
    Enter the settings for the selected YDI indices in the table.
    9
    Draw the plating color P1 and P2 into the design pattern.
    10
    Open the selection list in the ribbon under Dialogs with .
    - or -
    Open the context menu of the Design Pattern.
    11
    Open Elaborazione del bordo per vanisé parziale.
    12
    Make the desired settings and confirm with Apply.

: Note:

    13
    Make the desired settings in the Guidafili tool window.
    14
    Carry out all the steps of processing.

: The extracted file "ADF530-32W.Pattern-7.zip" can be loaded onto the machine with an USB stick or via Ethernet.
