Step by Step to 'Pattern-11'
- A pattern project with one pattern and the desired settings is created.
- 1
- To draw select any desired drawing tool under the Disegna group.
- 2
- In the Colori del disegno tool window, select the desired pattern colors from the Colori del filato color palette to draw the motif:
- 3
- Draw the desired motif in the
Disegno design.
|
|
|
|
- 4
- In the Rango del disegno control column, select the first 2 pattern rows.
- 5
- Call up the context menu and select Selezione
/
Crea Color Arrangement...
. - The Color Arrangement editor appears with the default CA.
- 6
- Make the desired changes in the Color Arrangement:
- In the processing area:
- Insert additional rows for the pattern related transferring and draw-in Transfer to front or Transferring optionally to the front.
- Insert rows for the additional yarn carriers that knit the ornamental seam on the left and on the right.
- Modifications in Control Columns
-
Direzione del carro control column: - Carriage Directions
- Enter
/
to move the yarn carriers independently
|

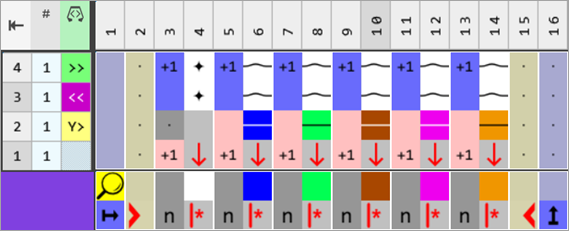

Color Arrangement CA1: Start |
|
|
|
|
- 7
- Check the generated Color Arrangement on correct entries with the
Controlla button.
: The knitting procedure cannot be checked! - 8
- Enter the generated Color Arrangement via the
control column into the first two rows of the design pattern. - 9
- In the Rango del disegno control column, select the following 2 pattern rows (diagonal to the left).
- 10
- Call up the context menu and select Selezione
/ Crea Color Arrangement...
.
- 11
- Make the desired changes as in the previous Color Arrangement.
|

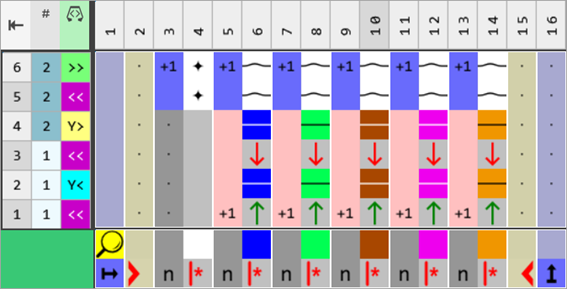

Color Arrangement CA2: Diagonal to the left |
|
|
- 12
- Check the generated Color Arrangement on correct entries with the Controlla button.: The knitting procedure cannot be checked!
- 13
- Enter the generated Color Arrangement via the control column into the following rows of the design pattern with the diagonals to the left.
- 14
- In the Rango del disegno control column, select the following 2 pattern rows (diagonal to the right).
- 15
- Call up the context menu and select Selezione
/ Crea Color Arrangement...
.
- 16
- Make the desired changes as in the previous Color Arrangement.
|

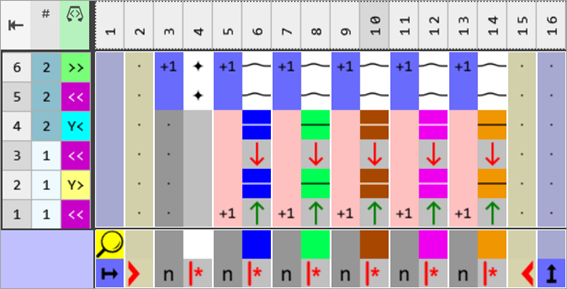

Color Arrangement CA2: Diagonal to the right |
|
|
- 17
- Check the generated Color Arrangement on correct entries with the Controlla button.: The knitting procedure cannot be checked!
- 18
- Enter the generated Color Arrangement via the control column into the following rows of the design pattern with the diagonals to the right.
- 19
- Open the Guidafili tool window.
- 20
- Make the required settings in the Parametro colore table:
- Immagliatura :
-
Modulo per immagliatura -
Nodo/legatura, immagliatura - Fine lavorazione
-
Modulo per fine lavorazione -
Nodo/legatura, fine lavorazione
- 21
- If desired, make the desired presets in the following control columns:
- Lunghezza della maglia (NP)
- Tirapezza principale (WMF)
- Velocità (MSEC)
- 22
- Carry out all the steps of processing.
: The extracted file "ADF530-32W.Pattern-11.zip" can be loaded onto the machine with an USB stick or via Ethernet.
