Special features of ADF 530-32 W

How to Read the Machine Designation ADF 530-32 W:

  • EP control (monophasic control)
  • PEP – Productivity Enhancement Pack
    • Optimization of the knitting processes through adapted carriage speeds
    • Improvement of the possibilities of yarn carrier staggering
  • Three weave-in devices are mount to each, the front and the rear carriage part.
  • The jack openers are not spring-loaded.

1

Weave-in device in operation

2

Weave-in device out of operation

During assembly / disassembly the following must be observed:

  • Washers for the weave-in device for adjusting the position in the needle bed gap center
  • Washers for the jack openers for adjusting the opening width of the jacks

: Jack opener

Between the opened jack and the jack opener, there should be a small gap to prevent the jack butt from wearing.

Needle Bed

  • Other limiters, as a wider needle bed gap is necessary.

Necessary reference runs at the machine:

  • Carriage reference run
  • Yarn carrier reference run
  • Reference run of the weft yarn presser foot

: Presser foot reference run

This reference run may be carried out only in the needle bed area. No yarn carrier may be located in the carriage as well.

Never carry out a reference run in the area of the clamping and cutting bed.

Settings / Adjustment of the presser feet:

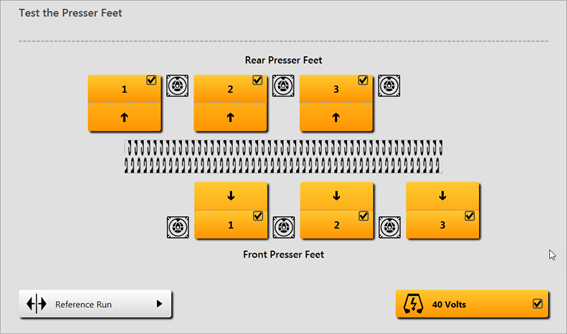

  • The setting / adjustment via the Revisiona macchina / Servizio -> Presse button

Set the presser foot type:

Different types of presser feet can be used:

  • The types of presser feet differ in the groove contour.
  • Depending on the width of the needle bed gap and the machine gauge, there are available different models of the respective types.

On the presser foot you will find the following specifications:

  • Designation of the type of presser foot (1)
  • ID (2)
  • Thickness of the presser foot [mm] (3)

Different types of presser feet can be used.

Gauge

Type 2,
deep groove
(Default)

Type 3A,
left deflecting curve

Type 3B,
right deflecting curve

Type 1,
flat groove
(Initial version)

E20

4170 283 431
[0,9]

4170 283 432
[0,9]

4170 283 433
[0,9]

—

E18
E18m.16
E16

4170 273 761
[1,1]

4170 276 081
[1,1]

4170 276 082
[1,1]

4170 268 381
[1,1]

E8.2

4170 275 160
[1,4]

4170 278 509
[1,4]

4170 278 510
[1,4]

4170 269 124
[1,4]

E10.2 KW
E9.2 KW

4170 275 160
[1,4]

4170 278 509
[1,4]

4170 278 510
[1,4]

—

E14
E14/12

4170 273 760
[1,6]

4170 278 562
[1,6]

4170 278 563
[1,6]

4170 267 946
[1,6]

E12
E12m.10

4170 275 161
[1,8]

4170 278 564
[1,8]

4170 278 565
[1,8]

4170 268 382
[1,8]

E6.2 MG
E7.2 MG
E10
E14 (TT)
E14/12 (TT)
E12m.10 (TT)

4170 274 790
[2,1]

4170 276 212
[2,1]

4170 276 213
[2,1]

4170 268 384
[2,0]

E7.2 KW (TT)
E7.2 KW

4170 274 789
[2,8]

4170 278 511
[2,8]

4170 278 512
[2,8]

4170 268 628
[2,2]

E6.2 KW

4170 277 815
[3,1]

4170 278 547
[3,1]

4170 278 548
[3,1]

—

E5

4200 274 639
[4,3]

—

—

—

E3,5.2 KW

4200 274 643
[4,7]

—

—

—
