Getting started with CREATE PLUS

Start the CREATE PLUS and create a new pattern project anlegen:

1

Start the program double-clicking .

1. The start page appears with the following options.

• Novo projecto de amostra
• Novo elemento de tricotagem
  Creating knitting elements and modules
• Novo projecto corte de linhas
  Creating new shape
• Novo projecto de corte de dimensões
  Creating shapes with grading

1

Create a new project by click on Novo projecto de amostra.
- or -
Select and open an existing project via Abrir.
- or -
Select and open a project in the list under Utilizado por último.

2

CREATE PLUS starts and Novo projecto de amostra dialog box appears.

3

Make the required settings in the Projecto sector:

• Enter a project under Nome .
• Change machine type and gauge via the Alterar máquina button if necessary.


1

Select the desired knitting mode in the Técnica de tricotagem sector.

• Design Pattern by All Needles
• Design Pattern by 1x1 Technique

1

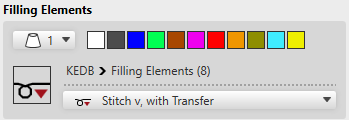

Make the required settings in the Elementos de preenchimento sector:

• Select yarn colors / magazine colors / yarn carrier colors for the design pattern
• Yarn colors by direct selection or via the selection list
• Magazine colors / yarn carrier colors via the selection list
• Desired knitting mode for the design pattern
• Via selection list
• Via the button:
  Position the cursor on the button, whereby it changes to -> click LMB to open the Knit Explorer da STOLL ->
  Select the desired directory -> Select a knitting element and allocate it with drag-and-drop.

1

Enter the desired size of the design pattern in the Dimensão sector by width and height.


2

Make the required settings in the Comb sector:

	Pente	Working with comb is enabled
		Comb Thread
			Módulo	A comb thread technical module is used
			Função Sintral	Comb thread will be inserted as a Sintral function
		Clamping at Fabric End in the Cast-off Function (RS17=0)
			Each fabric piece is started with the comb and casted-off at the end.
			The first fabric piece will be started with comb and the following fabric pieces will knit continuously with draw thread due to RS17=1. Last fabric piece is casted-off with piece counter =0 and RS17 =0 is set.
	Pinçar/Cortar	Clamping / cutting is automatically enabled
	Pente	Working with comb is disabled : The fabric pieces are knitted together separated by the draw thread.
	Pinçar/Cortar		Clamping / cutting is disabled
			Clamping / cutting is enabled

1

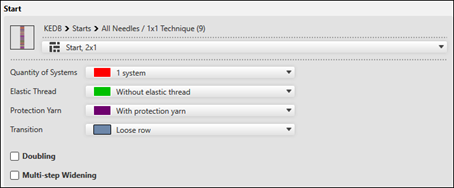

Make the desired settings in the Começo sector.

• shows the path to the directory and the selected start of the Knit Explorer.
  Change selection:
• Via selection list from the selected directory
• Via the button:
  Position the cursor on the button, whereby it changes to -> click LMB to open the Knit Explorer da STOLL ->
  Select the desired directory -> Select a knitting element and allocate it with drag-and-drop.
• Via path specification
  Open the selection list via the button and select the desired directory.
• Specify the desired Número de sistemas.
• Select the desired setting in the selection list.
• Fio elástico at the start
• Select the desired setting in the selection list
• Fio de proteção
• With protection yarn: A separate yarn carrier is used for technique color #205
• Without protection yarn: protection rows are knit by the rib yarn carrier #201
• Transição
• Select the desired setting in the selection list

Doubling		No multi-step narrowing module is entered for the transition after the start.
		Multi-step narrowing module is entered for the transition after the start.
Aumentar em vários passos		No multi-step widening module is entered for the transition after the start.
		Multi-step widening module is entered for the transition after the start.

1

Confirm the dialog box with the OK button.

1. The new pattern project appears in the symbol view of the main window with one order and one pattern.
