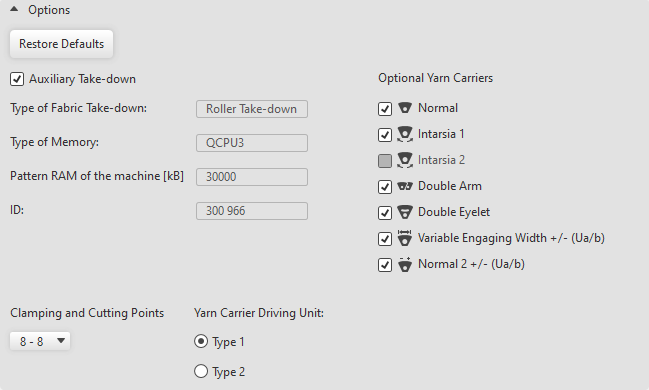

Options

Restaurar valores predefinidos

Resets the settings of the Opções section to the default values.

This option is only available in the Atributos da máquina tab, but not in the Selecionar máquina dialog box.

Estirador auxiliar

The auxiliary take-down is activated.

Type of Fabric Take-down:

Shows the type of fabric take-down: Roller Take-down or Estirador de banda.

Tipo de memória:

Shows the type of memory.

RAM de amostras de máquina [kB]:

Shows the memory capacity of the main memory.

ID:

Shows the machine ID's.

Posições de pinçamento e de corte

Select quantity of clamping and cutting points.

Guia-fios possíveis

Select the type of yarn carrier for the selected machine.

The following options are available depending on machine type:

Normal

Intarsia 1

Intarsia 2

Arco duplo

Ilhó duplo

Largura da hendedura variável +/- (Ua/b)

Normal 2 +/- (Ua/b)

Fio de trama Qw

Weft Yarn Qt1

Weft Yarn Qt2

Weft Yarn Qt3

Autárquico

• Yarn carrier types for the intarsia knitting technique
• Double Bow Plating Yarn Carrier
• Plating Knitting Technique and its Available Yarn Carrier Types
• W Machine - Weft Yarn Carrier Qw
• W Machine - Weft Yarn Carriers Qt1 Qt2 Qt3
• Autarkic yarn carriers

Arrasto do guia-fios:

Determine the type of yarn carrier drive of the machine.

The Intarsia yarn carrier type has to match with the drive type.
