Step by Step to 'Pattern-14A'

Features of the pattern:

Double jersey structure
Shape adopted to DJ:

Step width for narrowing by 1 needle
Narrowing width 1 needle (no fully fashion marking)
fading-out 1 needle at the right shape edge and at the left edge of the V-neck with Malha à frente com transferência needle action.

Step by Step to 'Pattern-14A'

A pattern project with one pattern and the desired settings is created.

1: To create a project-related lined shape, select the Cortes tab in the tool window.

2: Open the context menu with RMB and select Criar novo corte em tamanho M....

The Novo corte de linhas tool window is opened.


Nome de corte	Name for the shape element
Comment	Information about the shape

Input Format
Malha		Entry in the table of the lined shape Height by stitches (stitch rows) Width by stitches (wales) : The stepping is converted based on the specification.
Passos		Entry in the table of the lined shape Height of step by stitches (stitch rows) Width of step by stitches (wales)
Tricotagem manual (voltas)		Entry in the table of the lined shape Height by courses (1 course corresponds 2 stitch rows) Width by stitches (wales)
		Rules for widening with hand knitting
			Knitting before widening following the start
			Widening before knitting following the start (default setting)
Criar corte da imagem			No images will be used
			Use image as template

3: Make the desired entries:

Nome de corte: Any
Formato de entrada: Stitch

4: Confirm with the OK key.

The new lined shape (basic shape) is graphically displayed in the Cortes tab and in a new document window New shape xx [size x] as rectangle.

: The default attributes will be used for the shape edges of the lined shape.
Menu Arquivo -> Opções -> Corte de linhas -> Opções para o novo corte de linhas

5: Open the docked line table by LMB in the New shape xx [size x] document window.

- or -
Use the graphic displayed in the New shape xx [size x] document window.

The table Corte de linhas with the values of the rectangular shape appears.

: The method (table or graphic) to create a project-related lined shape is freely eligible, since the views are always updated simultaneously.

6: Insert new shape lines in the table and enter the desired values for the basic shape with Inverter escalonamento.

Rules for a shape stitch-stitch knitting mode (DJ):

Shape Attributes	Rules
Knitting Mode	Malha à frente - Malha atrás
Step width of widening	1 Stitch
Step height of widening	As desired
Quantity of rows without shape modification	As desired
Step width when narrowing	1 needle
Step height when narrowing	As desired
Quantity of needles when narrowing	1 needle - or - As desired (long run time)
Knitting mode for fading-out	Modules of the Knit Explorer: Depósito de elementos de tricotagem / Fully Fashion / Ocultar
Fading-out Width	Depending on the selected module
Binding-off	Stepping > 1 needle
Binding-off methods	Rematar, Malha cheia, 01 Rematar, Malha cheia, 02 Rematar, corte base, ourela, Malha cheia, com fixação, 01 Rematar, corte base, ourela, Malha cheia, com fixação, 02

7: Allocate the desired attributes to the new shape lines:

Function:

Function content: Minguar, 1 agulha, Malha cheia
Function width: Value 1

Fade-out:

Fade-out content: Malha v, com transferência
Fade-out width: Value 1

8: Disable the Inverter atributos check box.

9: Adopt the attributes allocated to the new shape lines (no. 2 - 4):

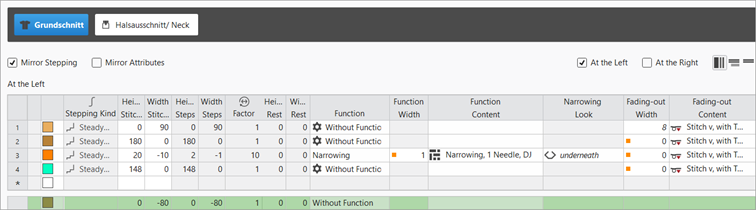

Basic shape at the left (line 2-4):

Function width: Value 1
Function content: Minguar, 1 agulha, Malha cheia
Fade-out width: Value 0

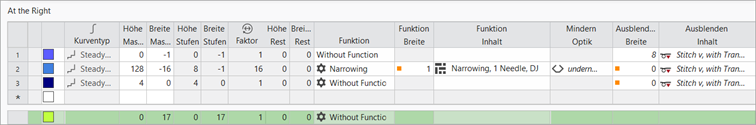

Basic shape at the right (line 2-4):

Function width: Value 1
Function content: Minguar, 1 agulha, Malha cheia
Fade-out width: Value 0

Example: Lined shape for Pattern-14A

Basic Shape: Left Front

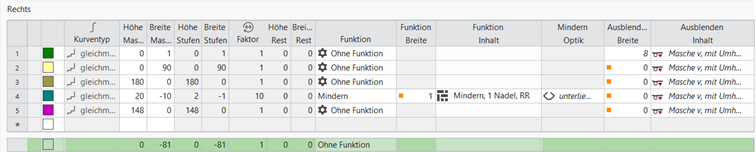

Basic Shape: Right Front

: In this pattern example, an odd numbered fabric piece width is necessary due to the DJ structure.

10: Propriedades de corte menu:
Position the cursor in the opened document window xx -> context menu with RMB -> select Propriedades de corte
- or -
select the shape in the Cortes tool window -> context menu with RMB -> select Propriedades de corte

11: Click on the Largura impar selection.

The right side of the basic shape is widened by 1 needle.

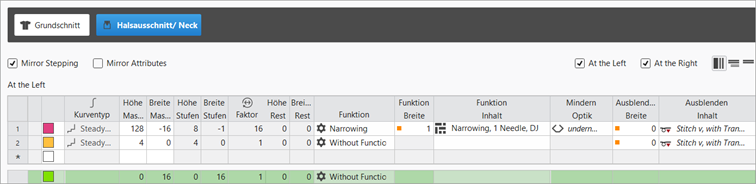

: This setting also has an effect on the neckline shape element, i.e. the V-neck shape element starts with 1 needle.

12: In the line table, position the cursor in the area next to the Corte base button -> open the context menu by RMB -> select Adicionar novo elemento de corte....
