Step by Step to 'Pattern-14'
- A pattern project with one pattern and the desired settings is created.
- 1
- Open the tool window Cores de vanizagem with
in the Cores da amostra tool window. - 2
- Create a plating color in line P1 of the Cores de vanizagem tool window:
- In column A:
- Yarn Color #3
- The
symbol via the
selection menu for the weft yarn carrier - In column B:
- Yarn color e.g. #1
- In column C:
- Additional yarn color e.g. #2
- 3
- Create the plating color for the start in line P2.
|
|
- 4

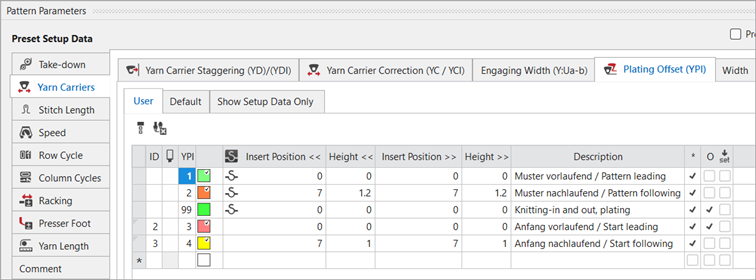

- Select the desired YPI indices from the Offset de vanizagem (YPI) table and allocate them.
|
|
- 5
- In the Fileira de amostra control column, select the first 2 pattern rows.
- 6
- Call up the context menu and select Seleção
/
Criar um Color Arrangement...
. - The Color Arrangement editor appears with the default CA.
- 7
- Make the desired changes in the Color Arrangement:
- In the processing area:
- Draw needle action Malha à frente - Malha atrás together with the plating color P1 into existing rows.
- Add additional rows for half Milano and draw-in the Malha atrás needle action with any desired yarn color.
- Modifications in Control Columns:
- Control column
Direção do carro - Control column
Sistema - Control column
Prensador W - Control column
Correção de prensador - Allocate a new stitch length index to the DJ row via the
Graduação dianteira (NPv) control column. - Allocate a new stitch length index to the DJ row via the
Graduação traseira (NP^) control column.
|
Color Arrangement CA1 |
|
|
- 8
- Check the generated Color Arrangement on correct entries with the
Verificar button.
: The knitting procedure cannot be checked! - 9
- Enter the created Color Arrangement via the control column
into the remaining pattern rows of the design pattern.: If necessary, knit-off 2 pattern rows at end with yarn color #1. - 10
- Open the Start, Tubular (modified) knitting element.
- 11
- Draw the plating color P2 into the knitting rows.
- 12
- If necessary, make the desired settings in the
Guia-fios tool window. - 13
- If desired, make the desired presets in the following control columns:
- Stitch Length (NP)
- Estirador principal (WMF)
- Velocidade (MSEC)
- 14
- Carry out all the steps of processing.
: The extracted file "ADF530-32W.Pattern-14.zip" can be loaded onto the machine with an USB stick or via Ethernet.
