Edit and modify inserted Jacquards

I. Edit the inserted Jacquards:

  1. In the pattern there are areas with inserted Jacquard modules.
    1
    In the Başlat ribbon under Araç penceresi, open the Jakarlar tool window.
    - or -
    Click on the Jakarları aç... in the context menu on the pattern.

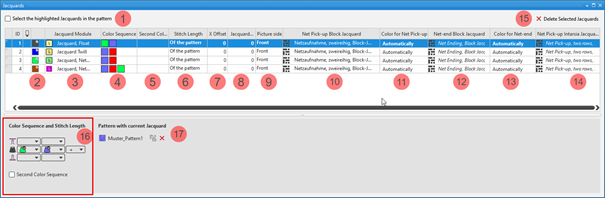

  1. The Jakarlar tool window is opened.

1

Seçili tablo girdilerini desende seç

The Jacquards selected in the table are not displayed as selection in the pattern.
: Selection via the first column in the table.

The Jacquards selected in the table are displayed as selection in the pattern.

ID

Consecutive numbering of the Jacquard areas

2

For drawing a Jacquard module in the pattern

  • The Jacquard area has the same colors as the selected Jacquard:
    No other entry necessary in the table
  • The Jacquard area has different colors from the selected Jacquard:
    Another entry necessary in the table

Index Color: Application in the search area of a Color Arrangement

: If there exist several patterns in the pattern project, the color is marked according to the active document (pattern) with (Kullanılıyor).

3

Jakar modülü
Jakarın arka tarafı için örme elemanı

  • Name of the Jacquard module with the 'L' identifier for local
  • Allocated knitting element color under Özellikler

4

Renk sıralaması
Arka taraftaki jakar renklerinin sıralaması

Display for the color sequence for the first and second pattern row if İkinci renk takip sırası is not active.

5

İkinci renk sıralaması
Arka taraftaki her ikinci desen sırası için jakar renklerinin ikinci sıralaması

Display for the color sequence for the second pattern row if İkinci renk takip sırası is active.

6

İlmek uzunluğu
Jakar alanı için ilmek uzunluğu

Specification for the stitch length which is to be used in the pattern:

  • desenden kullan
  • modülden kullan
  • Kullanıcı tanımlı

7

X ofseti

Arka tarafın başlangıç noktasını yatay olarak kaydır

Value in needles for the horizontal offset of a Jacquard module

8

Arka tarafı daha dar

Arka taraf resimli taraftan n iğne kadar daha dar

Value in needles, regarding how much the Jacquard back side is to be narrower in relation to the picture side.

:
If there are various entries, get a new Jacquard created with the desired value for Jakar arka tarafışu oranda daralt.

9

Resim tarafı
Jakarın resimli tarafı ön veya arka iğne yatağında

  • Ön
  • arka
  • ön ve arka

10

Blok jakar file başlangıcı
Blok jakar için file başlangıcı

Display of the knitting elements in use for the net pick-up with continuous Jacquards

11

File başlangıcı rengi

Specification of the color (yarn carrier) which is used for the net pick-up knitting element

12

File bitişi, blok jakar
Blok jakar için file bitişi

Display of the knitting elements in use for the net ending with continuous Jacquards

13

File bitişi rengi

Specification of the color (yarn carrier) which is used for the knitting element

14

İntarsiya jakar file başlangıcı
İntarsiya jakar için file başlangıcı

Display of the knitting elements in use for the net pick-up with Intarsia with Jacquard back

15

Seçili jakarları sil

The selected Jacquard is deleted in all the pattern where it is in use.

16

Renk sıralaması ve ilmek uzunluğu

Display or edit box for the stitch length per color / system for rear needle bed

: Depends on the selection under İlmek uzunluğu ((6)).

Display of the color sequence from the left for the Jacquard area selected in the table

Display or edit box for the stitch length per color / system for front needle bed

: Depends on the selection under İlmek uzunluğu ((6)).

Yeni renk ekle…

İkinci renk takip sırası

Default setting
The color sequence is the same as in the first pattern row

Definition of the color sequence for the second pattern row is possible.

:
The input panel for the color sequence for the second pattern row is displayed.

17

Güncel jakarlı desen

List of the patterns, where the Jacquard selected in the table is in use.

: Attention:
By default, the Jacquard areas with the same Jacquard module and the exact same colors are grouped.

Ungroup the grouped Jacquard areas.

: Necessary, if different settings must be made for the Jacquard areas.

The Jacquard module inserted in the pattern will be removed from the area in the pattern.

Result:
In the pattern area, no Jacquard module is attached anymore.

    2
    Select the Jacquard to be changed in the table.
    3
    Make the desired changes in the tool window.
    4
    Close the tool window with X.
  1. The changes will be applied to the pattern.

II. Direct selection of a Jacquard module in the pattern:

  1. In the pattern there are Jacquard modules in use.
    1
    Position the cursor in a Jacquard area with an inserted Jacquard module.
    2
    Apply the Jacquard module with the F5 key.
    3
    Enter the selected Jacquard module via the control columns in the entire pattern width or only in an area within the pattern.
  1. The selected Jacquard module is inserted.

Pay attention whether the exact same colors are in use in the area to be entered or not!

III. Selection of a Jacquard module in the Jacquard table:

  1. In the pattern there are Jacquard modules in use.
  2. All the Jacquard modules in use are contained in the table.
    1
    In the Başlat ribbon under Araç penceresi, open the Jakarlar tool window.
    2
    Select the desired Jacquard in the Jakarlar tool window in the column.
    : Pay attention to the Jacquard colors in use!
    3
    Enter the selected Jacquard module via the control columns in the entire pattern width or only in an area within the pattern.
  1. The following message appears:
    Çizim yaptığınız alan, tablodaki jakarda yer almayan en az bir renk içeriyor. Alan, uygun bir jakara bağlanıyor. Eğer yoksa, yeni bir jakar oluşturuluyor.
    2. 4
    Confirm message with:

IV. Adding an extra color:

The colors identified with knit only on the Jacquard back.

  1. In the pattern there are Jacquard modules in use.
  2. All the Jacquard modules in use are contained in the table.
  3. The Jakarlar tool window is open.
    1
    Select a Jacquard in the first column of the Jakarlar tool window.
  1. The color sequence is displayed in the tool window under Renk sıralaması ve ilmek uzunluğu.
    2. 2
    Select an additional color (additional color) in the empty edit box at the end of the displayed color sequence by the icon from the Desen renkleri tool window.
  1. The additional color is added to the color sequence and identified with .

V. Deleting an additional color marked with :

The colors identified with knit only on the Jacquard back.

  1. In the pattern there are Jacquard modules in use.
  2. All the Jacquard modules in use are contained in the table.
  3. The Jakarlar tool window is open.
    1
    Select a Jacquard with additional colors in the first column of the Jakarlar tool window.
  1. The color sequence is displayed in the tool window under Renk sıralaması ve ilmek uzunluğu.
    2. 2
    Position the cursor on the additional color -> click the Rengi kaldır context menu.
  1. The additional color is removed from the color sequence.
