Step by Step to Pattern-1

  1. A pattern project with one pattern and the desired settings is created.
    1
    Work with the following drawing tools:

While drawing with drawing tools without the selection of a pattern color, a
selection is generated.
It can be deleted with the shortcut Ctrl+D.

  • Deleting all cursor attributes: Key ESC
  • Deleting of individual cursor attributes with X via the corresponding attribute

Renk sil

For drawing the design pattern, with it several yarn carriers may be necessary for each yarn color.

  • Bobbin with color
    Not used within design pattern
  • Bobbin with color +
    Used within design pattern

: Yarn carriers will not be allocated automatically to a yarn carrier rail.
Yarn carrier home position can be determined automatically.

    2
    Change the width and height of the pattern.
    3
    Draw-in colored stripes in any yarn color from row 27 at the height of 18 rows.
    4
    Adjust the view of the control columns.

Displaying the control columns in the document window

  • The control columns can be displayed in every document window.
    • Kumanda sütunlarını göster (TAB)
    • Kumanda sütunlarını gizle (TAB)
  • The control columns are divided into colored groups.

View Options of the Control Columns:

  • Kullanılan kumanda sütunlarını göster
  • Tüm kumanda sütunlarını gizle
  • Tüm kumanda sütunlarını göster
  • Kullanıcı tanımlı kumanda sütunları
    • Project Layout
    • User Layout

Overview of all possible control columns after technical processing

:

  • Before technical processing:
    • The pattern row numbers are displayed in the column.
  • After technical processing:
    • The technical row number is displayed in the column.

Table header:

1 .

Symbols to identify control columns

2.

Default settings from global file STOLL for the respective control column with a new pattern project

:

  • No Entry
    No default settings for this control column
  • Colored entry
    STOLL Default Setting
    This default setting is displayed more transparent in every pattern row and used by the İşlem.
    • Change of the Stoll default setting in the table header:
      Change valid for all pattern rows in the selected pattern
      : It is not automatically applied in other patterns.
    • The change in the desired pattern rows:
      The change overwrites the default setting in the desired pattern rows with the selected entry (= colored entry)

Group 1

Desen sırası

Display the consecutive numbering of the pattern rows.

: If a pattern row consists of several rows (technical rows), the pattern row number is visible multiple times.

Jakar satır numarası

Display the Jacquard line number.

: Available after İşlem.

Sintral satır numarası

Display the Sintral line number.

: Available after İşlem.

Group 2

Strok numarası

Display stroke number

: Is determined by İşlem.

Strok

Specifications for defining the carriage stroke

Semer yönü

Presets of the carriage direction

: Is determined by İşlem.

Sistem

Presets of the use of knitting systems

: Is determined by İşlem.

Sistem işlevi

With the use of special cams

  • Holding-deep
  • Knitting via split curve
  • Not Sunken Tuck
  • Devoré
  • FlexPly

Group 3

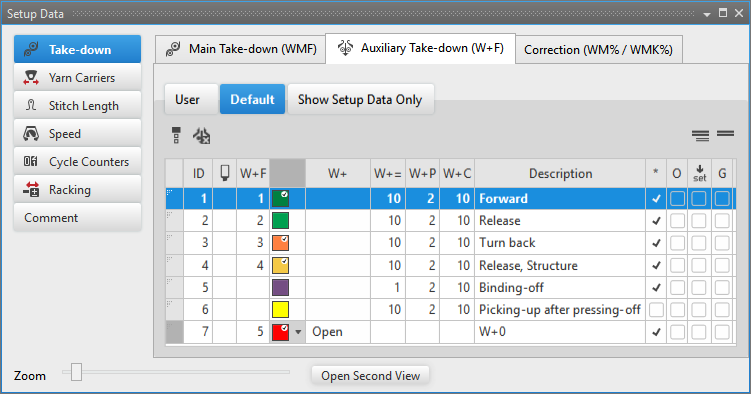

Ana merdane (WMF)

Presets for comb, main take-down and auxiliary take-down

Ana merdaneyi aç (=W= / =C=)

Yardımcı merdane (W+F)

Tarak

Group 4

Toplama alanı kontrolü (LK / LW)

Presets for the control of the collecting area

: Is only displayed with machines with control of the collecting area.

Kumaş sensörü (WS)

Specifications for the fabric sensors

: is only displayed for the CMS 9xx

Group 5

Hız (MSEC)

Presets for carriage speed

Makine yavaş (ML)

Makine durdur (MS)

Group 6

Ön ilmek uzunluğu (NPv)

Presets for the stitch length on front and rear needle bed

Arka ilmek uzunluğu (NP^)

Group 7

Raport (RS)

Specifications for cycles for length control

  • Inner cycles
  • Outer cycles

Group 8

Kenar sabitleme

Presets for the border fixation

Group 9

Sintral komutu / PRINT

Presets for the Sintral and PRINT command

Fonksiyon çağrısı (F:)

Presets for function calls and additional commands

Group 10

Örgü çıkışı

Presets for knitting-out all the yarn carriers of a common row

Color Arrangement

Color entry for Color Arrangements in use

İntersiya bağlantısı

Presets for the tuck binding with intarsia / gore in a common row

Group 11

Çevreyi aktar

Preset for transferring of the whole pattern or in a defined areas

Çok Sistemli Aktarma

Module Arrangement

Color entry for Module Arrangements in use

İlmek kapama ve Aktarma

Preset for combining transferring and casting-off in a common technical row of the whole pattern or in a defined areas

Group 12

Teknik sıralarını düzenle

Specifications for

  • Sorting of rows
  • Weft yarn insertion with CMS 330 / 530

Group 13

Yatak kaydırma sırasında örgü (VJA^)

Specifications for jacquard selection at the rear needle bed

Yatak kaydırma türü (VN, VU, V#)

Preset of racking type

  • Normal racking (N)
  • Half racking (#)
  • Transfer racking (U)

Jakar kırma değeri

Specification of the racking step for the rear needle bed

Yatak kaydırma düzeltmesi (VCI)

Preset for racking corrections

Group 14

Mekik derecelendirmesi (YD/YDI)

Presets of yarn carrier staggering on the fabric selvedge for Setup

Mekik düzeltmesi (YC / YCI)

Presets of yarn carrier corrections for Setup

Mekik yönergeleri

Specifications for

  • Swiveling of I yarn carriers
  • Clamp of yarn carriers
  • Open Clamp
  • Stop at the SEN edge
  • Waiting position of the yarn carriers

Mekikler

Column for display of all relevant yarn carrier data after İşlem

Two modes to enter data in the control columns:

In the Başlat ribbon under Çiz.

  • 1 tık
    Press LMB at start position and hold it until the end position.
  • 2 tık
    Click and release LMB at start position and click it again at the end position.

Two modes to delete data in the control columns:

In the Başlat ribbon under Doldur.

  • Delete All from Control Column (except racking)
    Sil
  • All Control Columns to Default
    Varsayılan

The procedure for multiple entries in control columns:

  • Raport (RS)
  • Mekik yönergeleri
  • Mekik duruşu

Add an entry to an existing entry:

  • Add
    With the Ctrl key
    • Select the desired location in the menu:
    • Set cursor to the start position.
    • Press the CTRL key.
    • Press LMB and hold it until the end position.
    • Release the left mouse button.
  • Add
    With the Ctrl key
    • Select the desired location in the menu:
    • Set cursor to the start position.
    • Press the CTRL key.
    • Click left mouse button.
    • Draw the cursor to the end position.
    • Click left mouse button again.

Delete Entry:

  • Delete
    With the CTRL + ALT key
    • Set cursor to the start position.
    • Press LMB and hold it until the end position.
    • Release the left mouse button.
  • Delete
    With the CTRL + ALT key
    • Select the desired location in the menu:
    • Set cursor to the start position.
    • Press the CTRL + ALT keys.
    • Click left mouse button.
    • Draw the cursor to the end position.
    • Click left mouse button again.

Selecting Control Columns

    1
    Position the cursor in the header of the control columns and press the right mouse button to open the context menu.
  1. The context menu appears.
    2. 2
    Select the desired control columns in the context menu via Kullanıcı tanımlı kumanda sütunları.
    3
    Open the context menu with RMB.
    4
    Select Görünümü tasarım deseni için varsayılan olarak kaydet in the menu.
  1. The setting will be saved and loaded when opening a design pattern.

Viewing Options of Control Columns

Kullanıcı tanımlı kumanda sütunları

Adding or closing the desired control columns in the selection list

Kullanılan kumanda sütunlarını göster

Display of the control columns used in the pattern

Tüm kumanda sütunlarını göster

Display of all control columns

Tüm kumanda sütunlarını gizle

Hide the display of control columns

Bu kumanda sütununu sabitle (çift tıklama)

Freezed control columns keep visible when hiding control columns
Identification of freezed control columns by a point

: Unfreezing by Bu grubu gizle or Bu kumanda sütununu gizle

Bu kumanda sütununu gizle

Hide control columns at the cursor position.

Bu grubu gizle

Hide all control columns allocated to a group.

Görünümü tasarım deseni için varsayılan olarak kaydet

Save the selected control columns as user defined default for editing the design pattern.

Tasarım deseni için görünüm varsayılanını yükle

Restore the customized default for editing the design pattern.

Tasarım deseni görünümünü STOLL varsayılanına sıfırla

Restore the saved STOLL default setting.

    5
    Change the following pattern parameters using the control column in the colored stripe:
    1
    Position the cursor on the desired or control column.
    2

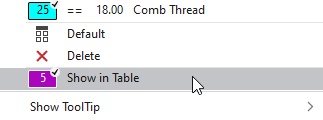

    Open the context menu with RMB and select Tabloda göster .

    - or -
    Select directly from the list of the Sık kullanılan.

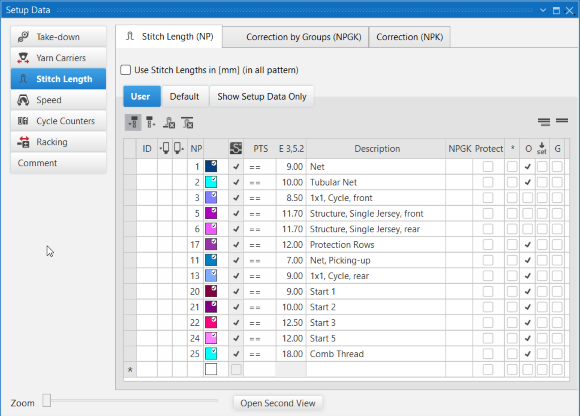

  1. The Pattern Parameters dialog box appears.
    2. 3
    Open the Varsayılan tab.
    - or -
    Open the Kullanıcı tab.
    4
    Select the desired existing entry from the tables.
    - or -
    In the Kullanıcı tab position the cursor in the first column and select Satır ekle... in the context menu.
  2. New entry is added at the end of the table.
    3. 5
    Make the desired presettings for the entries in use:
  • Define NP index.
  • Change Color.
  • Enter NP value.
  • Enter the description.
    6
    In the desired area of the control column enter the color of the stitch length.

Change the specifications for the stitch lengths in the pattern:

  1. See and modify the default settings for the stitch lengths in the Tasarım deseni.
  2. The Ön ilmek uzunluğu (NPv) / Arka ilmek uzunluğu (NP^) control columns appear.
    1
    Open the existing Desen projesi and save it with a new name via the Dosya / Farklı Kaydet menu.
    -  or  -
    Create new Desen projesi with an individual pattern.
    2
    Set the cursor to the Ön ilmek uzunluğu (NPv) / Arka ilmek uzunluğu (NP^) control columns of the Tasarım deseni document window and click the RMB.
    -  or  -
    Open the İlmek uzunluğu (NP) context menu in the second row of the table header containing the default settings.

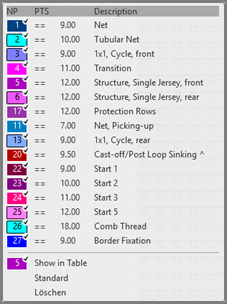

  1. The stitch lengths context menu appears.
  • The stitch lengths used in the pattern are displayed and are marked by the symbol.
  • The entries marked as favorites in the İlmek uzunluğu (NP) / Varsayılan tab under the İlmek uzunluğu section of the Pattern Parameters tool window are displayed.
    3
    Select the desired stitch length and enter it in the control column.
    -  or  -
    Fill a selection.

Notice:

The stitch lengths shown in the context menu correspond to the table in thePattern Parameters tool window under the İlmek uzunluğu section of the İlmek uzunluğu (NP) / Kullanıcı tab.

Open stitch length tab and select or change an entry:

  1. Tasarım deseni is selected.
    1
    Select Pattern Parameters in the Başlat ribbon at Parametreler.

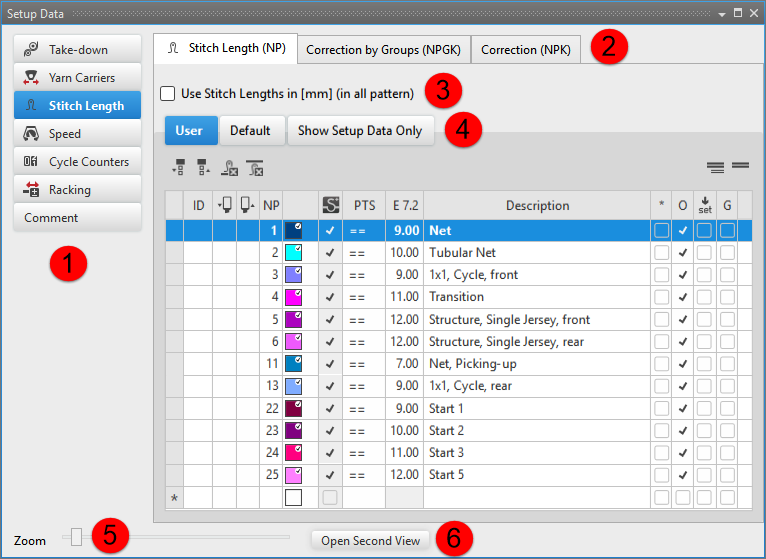

  1. The Pattern Parameters tool window appears.

1

All sections of Machine Parameters appear in Setup

2

Tabs for additional machine parameters

3

Use stitch length values in the STOLL default unit

Use stitch length values in millimeters

4

Tabs

Kullanıcı

  • Stitch lengths used in the pattern
  • Stitch lengths marked as favorites

Varsayılan

All the stitch lengths of the STOLL template

Sadece Setup verilerini göster
[Name of the active document]

All the stitch lengths used in the pattern

: These data will be saved to the setup file.

5

Zoom

Zoom in or out

6

İkinci görünümü aç

Opening an additional Pattern Parameters tool window.

    2
    Select the İlmek uzunluğu section.
    3
    Select the İlmek uzunluğu (NP) / Varsayılan tab.
    4
    Select the desired stitch length in the or column of the table and insert it in the control column.
  • Ön ilmek uzunluğu (NPv)
    Click the stitch length in the column.
  • Arka ilmek uzunluğu (NP^)
    Click the stitch length in the column.
  • Ön ilmek uzunluğu (NPv) and Arka ilmek uzunluğu (NP^)
    Click the stitch lengths with the CTRL key in the and columns.

The default settings in the control columns of these design rows will be overwritten.

Options in the toolbar

Selecting the default value to enter in the control column

Selecting the default value to enter in the control column

Deleting an entry in the control column

Deleting an entry in the control column

Show Pattern-related Values

Hide Pattern-related Values

Column labels of the stitch length tool window

Column

Display

ID / IDv / ID^

Consecutive numbering and sorting of the entries

Selecting stitch length for the front needle bed to enter it into the control column and as PTS into the pattern

Selecting stitch length for the rear needle bed to enter it into the control column and as PTS into the pattern

NP

Input and display of the index for the indirect (NPn=1-500) or direct (D) stitch length allocation

Colors

Display of colors to enter in the control columns

PTS

Specification for NPJ or PTS (Power Tension Setting).

Gauge E

List of stitch length values depending on the gauges of the selected machine

Column

Display

Description

Comment on the use of the entry.

*

Entry is not defined as favorite, meaning the entry is only within the Varsayılan table available.

Entry is defined as favorite, meaning the entry is available within the Kullanıcı table or directly via the context menu of the control columns.

O

Value cannot be overwritten (Overwrite) by a value of another table.

Value can be overwritten (Overwrite) by a value of another table. (Default)

The entry will not be applied to the Setup data

: All entries used in the pattern are applied by default to the Setup data.

The entry will be applied to the Setup data.

: With it, you can transfer data, even if not used in the pattern, into the Setup file.

G

All settings of the Varsayılan or Kullanıcı table are STOLL defaults (STOLL Template).
Changes in the table are only project-related!

: The STOLL template is used for creating a new pattern project.

These settings of the Varsayılan or Kullanıcı table are now User Standards (User-Template)
The changes in the table will be saved in the user template for following projects.

: The user template is used for creating a new pattern project.

Specify the favorites:

  1. Tasarım deseni is selected.
    1
    Open the Pattern Parameters tool window.
    2
    Select the İlmek uzunluğu section.
    3
    Select the İlmek uzunluğu (NP) / Varsayılan tab.
    4
    Mark the desired entry in the * column .
    5
    Close the tool window with .
  1. The selected entry will be displayed in the context menu and can be inserted in the design pattern for the front or rear stitch length.

Add a new entry in the stitch length tab:

: New entries can only be added in the Kullanıcı tab.

  1. Tasarım deseni is selected.
    1
    Open the Pattern Parameters tool window.
    2
    Select the İlmek uzunluğu section.
    3
    Select the İlmek uzunluğu (NP) / Kullanıcı tab.
    4
    Set the cursor in the left table column to the * row.
    5
    Call up the Satır ekle... context menu.
  1. A new entry will be added at the end of the table.
    2. 6
    Make the desired specifications in the columns of the new entry.
    7
    Close the table with .
  1. Changes are saved to the table and are available in the project for each order and for all of its individual patterns.

: The changes will be saved to the *.spf file when saving the project.

Add entry of the Stitch Lengths (NP) tab to the pattern:

  1. Tasarım deseni is selected.
  2. The control columns for Front Stitch Length and Rear Stitch Length are displayed.
    1
    Open the Pattern Parameters tool window.
    2
    Select the İlmek uzunluğu section.
    3
    Select the İlmek uzunluğu (NP) / Kullanıcı tab.
    4
    Select the desired stitch length in the or column:
  • Entry in the control column:
    Click on the stitch length in the column.
  • Entry in the control column:
    Click on the stitch length in the column.
  • Entry in the and control column
    Click on the stitch lengths with the CTRL key in the and columns.
    5
    Enter the stitch length in the control column.
    6
    If necessary, change more pattern parameters, e.g. in the colored stripe, via the control columns:

Change the specifications for the main take-down in the pattern:

  1. You see and change the default settings for the main take-down in the Tasarım deseni .
  2. The Ana merdane (WMF) control column is displayed.
    1
    Open the existing Desen projesi and save it with a new name via the Dosya / Farklı Kaydet menu.
    - or -
    Create new Desen projesi with an individual pattern.
    2
    In the document window Tasarım deseni, position the cursor on the Ana merdane (WMF) control column and click the RMB.
    - or -
    Open the context menu in the second row of the table header containing the default settings with RMB.
  1. The context menu for the Ana merdane (WMF) appears.
  • The fabric take-down functions (WMF) used in the pattern are displayed and are marked by the symbol.
  • The entries marked as favorites in the Ana merdane (WMF / WBF) / Varsayılan tab under the Kumaş çekimi section of the Pattern Parameters tool window are displayed.
    3
    Select the desired main take-down value and enter it in the control column.
    - or -
    Fill a selection.

: The main take-down values (WMF) displayed in the context menu correspond to the table in the Pattern Parameters tool window in the Ana merdane (WMF) section of the Kullanıcı tab.

Select an entry of the Main Take-down (WMF) tool window and change it:

  1. Tasarım deseni is selected.
  2. The Ana merdane (WMF) control column is displayed.
    1
    Open the Pattern Parameters tool window.
    Başlat ribbon -> Araç penceresi -> Pattern Parameters selection menu
    -  or  -
    Parametreler ribbon group-> Pattern Parameters .
  1. The Pattern Parameters tool window appears.
    2. 2
    Select the Kumaş çekimi section.
    3
    Ana merdane (WMF) / Varsayılan tab
    - or -
    Select Kullanıcı.
    4
    Select the desired main take-down value in the column and enter it in the control column.
  1. The default setting in the control column will be overwritten in these design rows.

Options in the toolbar

Selecting the default value to enter in the control column

Deleting an entry in the control column

WMF

Hide the display of the columns wit the main take-down values for the Multiflex take-down

Show the display of the columns wit the main take-down values for the Multiflex take-down

WBF

Hide the display of the columns wit the take-down values for the belt take-down

Show the display of the columns wit the take-down values for the belt take-down

Show Pattern-related Values

Hide Pattern-related Values

Column labels of the main take-down (WMF) tool window

Column

Display

ID / IDv / ID^

Consecutive numbering and sorting of the entries

Selecting the main take-down value to enter it in the control column

WMF / WBF

Index for indirect allocation of the fabric take-down value for the main take-down Multiflex or belt take-down

Color

Display of colors to enter in the control columns

WM(N)

WM

Fabric take-down value when this is not changed in accordance with the quantity of needles.

WMN

Fabric take-down value when this is changed in accordance with the quantity of needles (fabric width).

WM

Fabric take-down value when this is not changed in accordance with the quantity of needles.

WM min

Fabric take-down value for minimum fabric width

WM max

Fabric take-down value for maximum fabric width

N min

Quantity of needles for minimum fabric width

N max

Quantity of needles for maximum fabric width

WMI

Fabric take-down impulse value

WM^

Specification of a number of degrees for the reverse rotation of the take-down

WMC

Value for the sensitivity of the stop motion control of the main take-down

WM+C

Specification of the system number for the fabric take-down control

WMK+C

Specification of the system number for comb monitoring

Column

Display

Description

Comment on the use of the entry.

*

Entry is not defined as favorite, meaning the entry is only within the Varsayılan table available.

Entry is defined as favorite, meaning the entry is available within the Kullanıcı table or directly via the context menu of the control columns.

O

Value cannot be overwritten (Overwrite) by a value of another table.

Value can be overwritten (Overwrite) by a value of another table. (Default)

The entry will not be applied to the Setup data

: All entries used in the pattern are applied by default to the Setup data.

The entry will be applied to the Setup data.

: With it, you can transfer data, even if not used in the pattern, into the Setup file.

G

All settings of the Varsayılan or Kullanıcı table are STOLL defaults (STOLL Template).
Changes in the table are only project-related!

: The STOLL template is used for creating a new pattern project.

These settings of the Varsayılan or Kullanıcı table are now User Standards (User-Template)
The changes in the table will be saved in the user template for following projects.

: The user template is used for creating a new pattern project.

Specify the favorites:

  1. Tasarım deseni is selected.
    1
    Open the Pattern Parameters tool window.
    2
    Select the Kumaş çekimi section.
    3
    Select the Ana merdane (WMF) / Varsayılan tab.
    4
    Mark the desired entry of the table in the * column as .
    5
    Close the tool window with .
  1. The selected entry will be displayed in the context menu and can be inserted in the design pattern for the main take-down.

Add a new entry in the main take-down (WMF) tab:

: New entries can only be added in the Kullanıcı tab.

  1. Tasarım deseni is selected.
    1
    Open the Pattern Parameters tool window.
    2
    Select the Kumaş çekimi section.
    3
    Select the Ana merdane (WMF) / Kullanıcı tab.
    4
    Set the cursor in the left table column to the * row.
    5
    Call up the Satır ekle context menu.
  1. A new entry will be added at the end of the table.
    2. 6
    Make the desired specifications in the columns of the new entry.
    7
    Close the table with .
  1. Changes are saved to the table and are available in the project for each order and for all of its individual patterns.

: The changes will be saved to the *.spf file when saving the project.

Add entry of the Main take-down (WMF) tab to the pattern:

  1. Tasarım deseni is selected.
  2. The Ana merdane (WMF) control column is displayed.
    1
    Open the Pattern Parameters tool window.
    2
    Select the Kumaş çekimi section.
    3
    Select the Ana merdane (WMF) / Kullanıcı tab.
    4
    Select the desired main take-down value in the column.
    5
    Enter the selected main take-down value in the control column.

Change specifications for the auxiliary take-down in the pattern:

: In the Auxiliary take-down (W+F) control column the value W+F1 is entered by default and the value is set to 'Don't Care'. This allows for activating / deactivating the auxiliary take-down at the machine.

  1. You see and change the default settings for the auxiliary take-down in the Tasarım deseni.
  2. The Auxiliary take-down (W+F) control column is displayed.
    1
    Open the existing Desen projesi and save it with a new name via the File / Save as… menu.
    -  or  -
    Create new Desen projesi with an individual pattern.
    2
    In the document window Tasarım deseni, position the cursor on the Auxiliary take-down (W+F) control column and click the RMB.
    -  or  -
    Open the Auxiliary take-down context menu in the 2nd row of the table header containing the default settings with RMB.
  1. The context menu for the auxiliary take-down (W+F) appears.
  • The auxiliary take-down functions (W+F) used in the pattern are displayed and are marked by the symbol.
  • The entries marked as favorites in the Yardımcı merdane (W+F) / Varsayılan tab under the Kumaş çekimi section of the Pattern Parameters tool window are displayed.
    3
    Select the desired auxiliary take-down value and enter it in the control column.
    -  or  -
    Fill a selection.

: The auxiliary take-down values (W+F) shown in the context menu correspond to the table in the Pattern Parameters tool window under the Kumaş çekimi section of the Yardımcı merdane (W+F) / Kullanıcı tab.

Select an entry of the Auxiliary Take-down (W+F) tool window and change it:

  1. Tasarım deseni document window is selected.
  2. The Yardımcı merdane (W+F) control column is displayed.
    1
    Open the selection list in the Başlat ribbon at Araç penceresi and select Pattern Parameters .
    - or -
    Directly under Parametreler click the Pattern Parameters icon.
  1. The Pattern Parameters tool window appears.
    2. 2
    Select the Kumaş çekimi section.
    3
    Yardımcı merdane (W+F) tab / Varsayılan
    - or -
    Select Kullanıcı.
    4
    Select the desired auxiliary take-down value in the column and enter it in the control column.
  1. The default setting will be overwritten in these design rows.

Options in the toolbar

Selecting the default value to enter in the control column

Deleting an entry in the control column

Show Pattern-related Values

Hide Pattern-related Values

Column labels of the auxiliary take-down (W+F) tool window

Column

Display

ID

Consecutive numbering and sorting of the entries

Selecting the speed value to enter it in the control column

W+F

Index for indirect allocation to the auxiliary take-down

Color

Display of colors to enter in the control columns

W+

Open or close the auxiliary take-down

W+=

Speed of auxiliary take-down

W+P

Value for the contact pressure of the auxiliary take-down (CMS 822 only)

W+C

Specification of the system number for the auxiliary take-down control

Column

Display

Description

Comment on the use of the entry.

*

Entry is not defined as favorite, meaning the entry is only within the Varsayılan table available.

Entry is defined as favorite, meaning the entry is available within the Kullanıcı table or directly via the context menu of the control columns.

O

Value cannot be overwritten (Overwrite) by a value of another table.

Value can be overwritten (Overwrite) by a value of another table. (Default)

The entry will not be applied to the Setup data

: All entries used in the pattern are applied by default to the Setup data.

The entry will be applied to the Setup data.

: With it, you can transfer data, even if not used in the pattern, into the Setup file.

G

All settings of the Varsayılan or Kullanıcı table are STOLL defaults (STOLL Template).
Changes in the table are only project-related!

: The STOLL template is used for creating a new pattern project.

These settings of the Varsayılan or Kullanıcı table are now User Standards (User-Template)
The changes in the table will be saved in the user template for following projects.

: The user template is used for creating a new pattern project.

Specify the favorites:

  1. Tasarım deseni is selected.
    1
    Open the Pattern Parameters tool window.
    2
    Select Kumaş çekimi section -> Yardımcı merdane (W+F) tab.
    3
    Select the Varsayılan tab.
    4
    Mark the desired entry in the * column .
    5
    Close the tool window with .
  1. The selected entry will be displayed in the context menu and can be inserted in the design pattern for the speed.

Add a new entry in the auxiliary take-down (W+F) tab:

: New entries can only be added in the Kullanıcı tab.

  1. Tasarım deseni document window is selected.
    1
    Open the Pattern Parameters tool window.
    2
    Select the Kumaş çekimi section.
    3
    Select the Yardımcı merdane (W+F) / Kullanıcı tab.
    4
    Set the cursor in the left table column to the * row.
    5
    With the RMB open the context menu and select Add row.
  1. A new entry will be added at the end of the table.
    2. 6
    Make the desired specifications in the columns of the new entry.
    7
    Close the table with .
  1. Changes are saved to the table and are available in the project for each order and for all of its individual patterns.

: The changes will be saved to the *.spf file when saving the project.

Apply entry of the Auxiliary take-down (W+F) tab to the pattern:

  1. Tasarım deseni document window is selected.
  2. The Auxiliary take-down (W+F) control column is displayed.
    1
    Open the Pattern Parameters tool window.
    2
    Select the Kumaş çekimi section.
    3
    Select the Yardımcı merdane (W+F) / Kullanıcı tab.
    4
    Select the desired auxiliary take-down value in the column.
    5
    Enter the selected auxiliary take-down value in the control column.

Change the specifications for the carriage speed in the pattern:

  1. See and modify the default settings for the stitch lengths in the Tasarım deseni.
  2. The Hız (MSEC) control column is displayed.
    1
    Open the existing Desen projesi and save it with a new name via the Dosya / Farklı Kaydet menu.
    - or -
    Create new Desen projesi with an individual pattern.
    2
    In the document window Tasarım deseni, position the cursor on the Hız (MSEC) control column and click the RMB.
    - or -
    In the 2nd row of the table header, open the context menu containing the default settings with RMB.
  1. The context menu for the Hız (MSEC) appears.
  • The speed functions (MSEC) used in the pattern are displayed and are marked by the symbol.
  • The entries marked as favorites in the Pattern Parameters tool window under the Hız section of the Varsayılan table are displayed.
    3
    Select the desired main take-down value and enter it in the control column.
    - or -
    Fill a selection.

: The speed values (MSEC) displayed in the context menu correspond to the values of the Hız section in the Kullanıcı tab of the Pattern Parameters tool window

Select an entry of the Speed (MSEC) tool window and change it:

  1. Tasarım deseni is selected.
  2. The Hız (MSEC) control column is displayed.
    1
    Open the selection list in the Başlat ribbon at Araç penceresi and select Pattern Parameters .
    -  or  -
    click the Pattern Parameters icon directly under Parametreler.
  1. The Pattern Parameters tool window appears.
    2. 2
    Select the Hız (MSEC) section.
    3
    Varsayılan Tab
    - or -
    Select Kullanıcı.
    4
    Select the desired speed value in the column and enter it in the control column.
  1. The default setting will be overwritten in these design rows.

Options in the toolbar

Selecting the default value to enter in the control column

Deleting an entry in the control column

Show Pattern-related Values

Hide Pattern-related Values

Column labels of the Speed (MSEC) tool window

Column

Display

ID / IDv / ID^

Consecutive numbering and sorting of the entries

Selecting the speed value to enter it in the control column

MSEC

Index for indirect allocation of the speed

Color

Display of colors to enter in the control columns

m/s

Value for the speed

Column

Display

Description

Comment on the use of the entry.

*

Entry is not defined as favorite, meaning the entry is only within the Varsayılan table available.

Entry is defined as favorite, meaning the entry is available within the Kullanıcı table or directly via the context menu of the control columns.

O

Value cannot be overwritten (Overwrite) by a value of another table.

Value can be overwritten (Overwrite) by a value of another table. (Default)

The entry will not be applied to the Setup data

: All entries used in the pattern are applied by default to the Setup data.

The entry will be applied to the Setup data.

: With it, you can transfer data, even if not used in the pattern, into the Setup file.

G

All settings of the Varsayılan or Kullanıcı table are STOLL defaults (STOLL Template).
Changes in the table are only project-related!

: The STOLL template is used for creating a new pattern project.

These settings of the Varsayılan or Kullanıcı table are now User Standards (User-Template)
The changes in the table will be saved in the user template for following projects.

: The user template is used for creating a new pattern project.

Specify the favorites:

  1. Tasarım deseni is selected.
    1
    Open the Pattern Parameters tool window.
    2
    Select the Hız (MSEC) section.
    3
    Select the Varsayılan tab.
    4
    Mark the desired entry in the * column .
    5
    Close the tool window with .
  1. The selected entry will be displayed in the context menu and can be inserted in the design pattern for the speed.

Add a new entry in the speed (MSEC) tab:

: New entries can only be added in the Kullanıcı tab.

  1. Tasarım deseni document window is selected.
    1
    Open the Pattern Parameters tool window.
    2
    Select the Hız (MSEC) section.
    3
    Select the Kullanıcı tab.
    4
    Set the cursor in the left table column to the * row.
    5
    Call up the Satır ekle... context menu.
  1. A new entry will be added at the end of the table.
    2. 6
    Make the desired specifications in the columns of the new entry.
    7
    Close the table with .
  1. Changes are saved to the table and are available in the project for each order and for all of its individual patterns.

: The changes will be saved to the *.spf file when saving the project.

Apply entry of the Speed (MSEC) tab to the pattern:

  1. The Tasarım deseni document window is selected.
  2. The Hız (MSEC) control column is displayed.
    1
    Open the Pattern Parameters tool window.
    2
    Select the Hız (MSEC) section.
    3
    Select the Kullanıcı tab.
    4
    Select the desired speed value in the column.
    5
    Enter the selected speed value in the control column.
    7
    Import the existing sleeve shape and position it.

: If the basic pattern is too small for the shape, then the size of the basic pattern will be automatically adjusted to the size of the shape.
Attention: Perhaps the color strap needs to be adapted.

    8
    Open the line table by the Çizgi tablosu button to get an explanation of a shape.

Structure of a basic shape

A

Starting line

B

Area with shape modification because of widening

C

Area without shape modification

D

Area with shape modification because of narrowing

E

End line

Recommendation:
Create a shape of an even numbered height in total.

Fading-out

Exchange of the knitting mode at the shape edges

While cutting out the shape, the knitting mode is replaced at the shape edges.

1

Cutting-out the shape

  • Grey area = Outside shape
  • White area = Within shape

: This results in the shape edges for fading-out, widening, and narrowing.

2

Marked area (blue):

  • Fade-out width
    Number of stitches, that should be replaced with a different knitting mode.
  • Fade-out content
    Selection of the desired knitting mode for the specified fading-out width

Widening

Widening of a fabric piece

1

Step width of widening

: Widening by 1 needle only

2

Step height of widening

= Number of rows between two widening steps

: Step height is as desired.

Widening Width

Depending from the selected widening module

: When widening by 1 needle with the Arttırma, standart module, the widening width is 1 by default.

Narrowing

Narrowing of a fabric piece

: The transfer of stitches results in double stitches (fashioning marks).

1

Step Width

  • 1 needle (stitch) narrowing
  • 2-needle-narrowing (stitches)
  • 3-needle-narrowing (stitches)
  • From a narrowing greater than 4 needles (stitches) a binding-off is carried out

2

Step height

= Number of rows between two narrowing steps

: Step height is as desired.

Narrowing Width

Depending on the knitting mode of the basic pattern

Rules for a raglan sleeve shape in the SJ knitting mode

Shape Attributes

Rules

Knitting Mode

Single Jersey

Step width of widening

1 needle (stitch) per knitting row

Step height of widening

As desired

Quantity of rows without shape modification

As desired

Step width when narrowing

1 - 3 needles (stitches)

Step height when narrowing

As desired

Narrowing Width

As desired

Fading-out Width

As desired

Knitting mode for fading-out

Front Stitch with Transfer (default)

    9
    Click the Mekikler button under Önizleme in the Başlat ribbon.
  1. The New Pattern xx document window is opened as view and the Mekikler ribbon appears.

Yarn Carrier Color as Background

Switching the view between the different pattern colors

: Only with certain pattern colors available.

Show Knitting-out

inactive

Knitting-out of the yarn carriers is not displayed in the graphic.

Active

Knitting-out of the yarn carriers is displayed in the graphic.

: The knitting-out is displayed as marking with specified direction at the corresponding side of the area.

    10
    Open the tool window with the Mekikler button -> Mekikleri göster -> Mevcut iplikler ve mekikler tab

    11
    Select the desired yarn carrier.
    12
    Make the following changes:
    13
    Apply the changes:
    Düzenle group -> Uygula
    - or -
    Düzenle group -> Uygula ve kapat

Senkronizasyon

Tasarım desenindeki değişiklikleri açık mekik görünümüne uygular ve her iki görünümü güncel desen durumuna senkronize eder.

Uygula

Mekik değişikliklerini tasarım desenine alır. Diğer değişiklikler (örneğin renk parametreleri) hemen etkili olur.

Uygula ve kapat

Mekik değişikliklerini tasarım desenine alır ve görünümü kapatır. Diğer değişiklikler (örneğin renk parametreleri) hemen etkili olur.

İptal

Değişiklikleri siler ve mekik görünümünü kapatır.

Close with İptal if you only opened the Yarn Carrier view for control.

Explanation of the Mekikler tool window:

1

Mevcut iplikler ve mekikler Tab

5

Returning yarn carriers to the magazine according to their position at the left or right side of the yarn carrier rails.

: Yarn carriers of the pattern only - excepting the yarn carrier colors which are firmly allocated to a certain rail.

Allocating the yarn carriers for technique colors to the yarn carrier rails according to the standard preallocation.

Returning yarn carriers from the yarn carrier rails to the magazine as 'undefined'.

: Yarn carrier of the pattern only.

Allocating the yarn carriers from the magazine to the yarn carrier rails.

Kullanılmayan teknik renklerini göster

In the view of the yarn carrier rails, only the technique colors used in the pattern are displayed.

In the view of the yarn carrier rails, the technique colors not used in the pattern are displayed as well.

6

Display of the yarn carriers for yarn and magazine colors regarding the positioning on the left side during rail allocation.

: Yarn carriers not yet allocated to a yarn carrier rail but will be positioned on the left side when allocating.

7

Display of the yarn carriers for yarn and magazine colors regarding the positioning on the right side during rail allocation.

: Yarn carriers not yet allocated to a yarn carrier rail but will be positioned on the right side when allocating.

8

Display of the yarn carriers for yarn and magazine colors undefined.

: The yarn carriers have no allocation to a rail nor to a side (left/right)

9 / 10

Release for allocation of the rail with a yarn carrier left / right

No release for allocation of the rail with a yarn carrier left / right

10 / 11

Graphic presentation of the yarn carrier rails with the used yarn carrier types on the left / right side and specification of the corresponding colors.
This results in the yarn carrier home position left / right.

Input panel for the selected yarn carrier

13

Set as Used

Yarn carrier position is free for allocation

Yarn carrier position is not free for allocation

: For example when inserting Sintral functions where yarn carriers are used.

Pozisyon

Specification of the yarn carrier position of a yarn carrier color

Tipi

Açıklama

Comment on a yarn carrier

: Is entered in Sintral in the table of the yarn carriers.

14

Desen rengi (genişlettikten sonra)

Display of the pattern color of the selected yarn carrier

Teknik rengi

Display of the technique color of a selected technical yarn carrier

Tutma derinliği

Needle sinking of clamping and cutting needle
Command: NCC=n (n= -10 to 10)

15

Başlangıçtan önce örgüye gir

Selected yarn carrier is not knit-in in the Knitting-in before start function.

Selected yarn carrier is knit-in in the Knitting-in before start function.

Karşı yönden örgüye gir

A yarn carrier remains on the corresponding side based on its home position.

A yarn carrier is knitted before the start to the opposite side of its home position.

: Use:
With MC with single-sided clamping / cutting.

Bırakma noktası:

  • Şekil kenarı
  • SEN kenarı

16

Çekiş değeri [mm]

Sol (Ua)

Engaging width for the left side

Sağ (Ub)

Engaging width for the right side

Takoz eni [mm]

Specification depending on the yarn carrier type specified under Tipi

: No entry possible!

17

Kenar sabitleme

Selection of the knitting mode for the border fixation (module)

Minimum mesafe

Distance for the border fixation in rows

18

Fully Fashion geçini atla

At the end a yarn carrier is moved to the home position according to the setting in the Yarn Field Allocation.

At the end a yarn carrier is moved to its home position without knitting.

: Use:
For technical fabrics with weft yarn.

EAY/S0Y sonrasında şekil kenarına (YG:nF)

The yarn carrier will not be positioned at the counters #L and #R.

The yarn carrier will be positioned at the counters #L and #R and follows the shape.

'Tutucuyu aç''tan çıkart (Y-RALL( n ))

Selected yarn carrier is controlled by the Y-RALL function.

Selected yarn carrier will be excluded from the Y-RALL function and can be defined differently by the value (rows) at Color Parameters under .

: By default, the clamp will be opened by the Y-RALL function for all yarn carriers after about 25 rows.

Additional tabs:

2

Örgü alanları (SEN)

Working with several SEN areas:

  • Machines without comb
  • Machines with comb but without using it

3

Tandem (YLR)

Change of the yarn carrier home position with tandem machines

4

İplik besleme cihazlarını gruplandır

Use when working with feed wheels

: For the use of the feed wheels, you have define them in the Yapılandırma dialog box -> Makine öznitelikleri tab under Elektronik iplik besleme cihazları.

    14
    Open the Expanded Symbol View with the Sembol button as preview if necessary to check the design pattern before further editing.
      - and / or -
    Open the expanded fabric view with the Örgü button

Expanded Symbol View

  1. The desired pattern is selected.
    1
    Click the Önizleme button in the ribbon under Sembol.

: An additional document window appears with the expanded view of the design pattern.

    2
    Close the document window with in the Pattern name... tab.

Design Pattern

Expanded Symbol View

: The expanded symbol view opened via Sembol button is write protected.

Genişletilmiş örgü görünümü

  1. The desired pattern is selected.
    3
    Click the Önizleme button in the ribbon under Örgü.

: An additional document window appears with the fabric view of the design pattern.

    4
    Close the document window by in the pattern name... tab.

Fabric View

Options in the status bar

Açılmış olarak

Show Genişletilmiş örgü görünümü with knitting rows and not knitting rows (transfer, cast-off, etc.)

İç içe düşmüş olarak

Show Genişletilmiş örgü görünümü only with knitting rows

Çekimi hesapla

Calculate the stitch distortion in order to get a realistic fabric view.

İlmek yoğunluğu oranında gösterim

Show Genişletilmiş örgü görünümü with the specified stitch ratio

İlmek düşmeleri çözülmesin

Drop stitches are displayed.

Koruma sıralarını göster

Display of the protection rows

Ayırma ipliğini çek

Display of the draw thread

İplik dokusu

View of the selected yarn texture from the Yarn Explorer

Arka plana

Set background color for Genişletilmiş örgü görünümü

: The fabric view opened with the Örgü button is write protected.

    15
    Start Technical Processing:

: Tip
Open the yarn carrier path in the "Technical View" :
The yarn carrier for the protection thread 1 (#205) will be clamped after the start and at the end brought in again in the protection rows in the Atla, kilitle, kumaş kenarı module from Configuration.

Technical processing of an individual pattern:

    1
    Select the desired pattern for the technical processing in the Desen ribbon under Başlat .
    - or –
    Open the desired pattern in the Desen tool window double clicking.
    2
    Start the technical processing for the selected pattern by the button in the Başlat ribbon under Teknik.

: The result is shown in the pattern name... document window by an unprotected symbol view.

    3
    Close the document windows with in the Pattern name... tab of the document windows.
    : The data will not get lost and can at any time be shown and edited in a document window by the Sembol button.
  1. The success of technical processing is shown by in the Desen tool window behind the pattern name.

Technical Processing successfully performed

Outdated technical processing

: Changes in the design pattern discard the already performed technique processing.

Presentation of the views

Design Pattern

Processed Symbol View

(not write-protected)

Before Technical Processing:
Only knitting rows will be displayed in the design pattern.

After Technical Processing:
The knitting rows and the transfer rows will be displayed in the symbol view.
The data contained in the modules such as racking specifications, fabric take-down, carriage direction, etc. will be entered in the corresponding control columns.

: The pattern will completely be processed and checked by all technical rules.

: You can open a write-protected display of stitches (Fabric View) after the technical processing by the Örgü button.

: Changes will be overwritten by re-processing .

Multiple Selection of Patterns for Technical Processing:

You can select several patterns for technical processing to start it more quickly.

  1. Several patterns are created.
    1
    Click the İşlem button in the Başlat ribbon under Çoklu işlem .

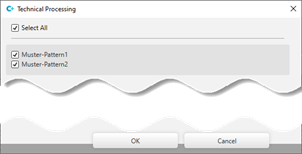

  1. The Teknik işlem dialog box appears.
    2. 2
    Select the desired setting.

: You cannot start the technical processing for patterns greyed-out as data may be missing.

    3
    Close the dialog box with Tamam.
  1. The technical processing is done automatically and shown by in the Desen tool window.
    2. 4
    Close the document windows by in the pattern name... tab of the document windows.
    : The data will not get lost and can at any time be shown and edited in a document window by the Sembol button.
  1. Successful processing is shown in the Desen tool window by behind the pattern name.
    16
    Generate Sintral.

Generate knitting program for a single pattern:

  1. Pattern is successfully processed.
    1
    Select the desired pattern in order to create it for the knitting program in the Başlat ribbon under Desen .
    - or –
    Open the desired pattern in the Desen tool window double clicking.
    2
    Start the technical processing by the button in the Sintral ribbon.
  1. The *.sin; *.jac and *.setx files will be generated for the current patten.

The elements of the program are displayed by the following buttons:

Sintral

Displaying the Sintral file

Jakarlar

Displaying the packed Jacquard file

MC-Setup

Displaying the Setup file

Generate knitting programs for several patterns:

: You can select several patterns for the Örme programı oluştur procedure to start it more quickly.

  1. Several patterns or an order with several patterns is created and the technical processing is carried out for all patterns.
    1
    Click the Örme programı oluştur button in the Başlat ribbon under Çoklu işlem .
  1. The Örme programı oluştur tool window is displayed.
    2. 2
    Select the desired setting.
  2. You cannot start the Örme programı oluştur processing for patterns greyed-out as data may be missing.
    3. 3
    Close the dialog box with Tamam.
  1. The processing step is automatically done for the selection and the patterns are marked with symbol in the Desen tool window.
    17
    Start Sintral Check

Sintral Check for a single pattern:

  1. The Örme programı oluştur processing step was performed so that the *.sin / *.jac / *.setx files are created for one pattern.
    1
    Select the desired pattern for the Sintral Check in the Başlat ribbon under Desen .
    - or –
    Open the desired pattern in the Desen tool window double clicking.
    2
    Start the Sintral Check with the Sintral Kontrolü button.
  1. The Sintral Kontrolü dialog box appears.
    2. 3
    Start the simulation by the START button.
  1. The Simulation OK message appears
    4
    Close the dialog box with X.
    5
    Continue with the next pattern.

Run the Sintral Check for several patterns (multiple selection):

You can select several patterns for the processing step

Sintral Kontrolü, to start it more quickly.

  1. Several patterns or an order with several patterns is created and processing steps are carried out until Örme programı oluştur.
    1
    Click the Sintral Kontrolü... button in the Başlat ribbon under Çoklu işlem .
  1. The Sintral Kontrolü tool window is displayed.
    2. 2
    Select the desired setting.

: You cannot start the Sintral Check for greyed-out patterns as data may be missing.

    3
    Close the dialog box with Tamam.
  1. The processing step is automatically done for the selection and the patterns are marked with symbol in the Desen tool window.
    18
    Extract knitting program.
  1. A program for the knitting machine will be created: CMS530.Pattern-1.zip.

Extract an individual pattern (*.zip) and save it:

  1. The Örme programı oluştur processing step was performed so that the *.sin / *.jac / *.setx files are created for one pattern.
  2. Sintral Check was done.
    1
    Select the desired pattern in order to extract it in the Başlat ribbon under Desen .
    - or –
    Open the desired pattern in the Desen tool window double clicking.
    2
    Click the Genişlet button in the Başlat ribbon under Sintral.
  1. The Farklı Kaydet dialog box will appear.
    2. 3
    Change file name if desired.
    4
    Select the desired path for the *.zip file.
  • Local Drive
  • USB Memory Stick
  • Network Drive
    5
    Close the dialog box with the Kaydet button.
  1. After saving it, the zip file can be loaded and knitted on the machine.

Multiple selection of patterns or orders to create knitting programs:

You can select several patterns or orders for the processing step Genişlet..., to start it more quickly.

  1. Several patterns are created.
  2. The processing steps up to Örme programı oluştur, even up to Sintral Kontrolü... are done.
    1
    Click the Genişlet button in the Başlat ribbon under Çoklu işlem .
  1. The Search Folder dialog box will be opened.
    2. 2
    Select an existing folder.
    - or –
    Create a new folder under the desired path by the Create folder button.
    3
    Select the folder.
    4
    Close the dialog box with OK.
  2. Note appears: Following files successfully extracted:
  3. You cannot start the Genişlet... processing step for greyed-out patterns / orders as data may be missing.
    4. 5
    Close the dialog box with OK.
  1. The extracted knitting programs are available in the folder and can be loaded on the machine.
    19
    Load knitting program into the machine.

: The extracted file CMS530.Pattern-1.zip can be loaded onto the machine with an USB stick or via Ethernet.
