Create a new pattern project with one pattern

Dialog Box: New Pattern Project

1: Ad
Enter the desired name for the pattern project.
: The first design pattern automatically receives the same name.

2: Makine

Display of the selected machine type.
Press the Makineyi değiştir button, to change the machine type:

STOLL :
Selection of a STOLL standard machine
Özel :
Selection of a machine created by yourself

: With private machines it is possible to allocate machine-specific Seçenekler and Sistem fonksiyonları.

Open the STOLL tab.

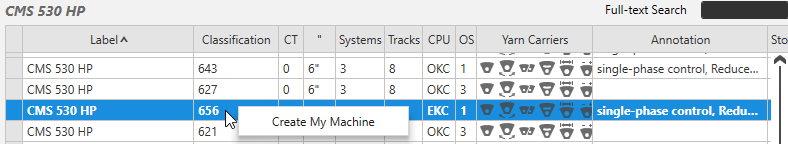

Select the desired machine in the selection list.
Example: CMS 530HP, E 3,5.2, Classification 656
Select the context menu Kendi makinemi oluştur.
Enter the machine name / specifications and confirm with OK.
Select the created machine -> Open the context menu Özellikler.
Make the desired entries.
: IP address for the Ethernet connection to the machine.

3: Örme tekniği

Tüm iğneler:
Design pattern is knitted with all needles (example).
1x1 teknik :
Design Pattern is knit in 1x1 Technique.

4: Dolgu elemanları :

Select the yarn color for the design pattern.
Select the structure element for the design pattern.

5: Boyut

6: Genişlik
Input of the pattern width: 200 stitches.

7: Yükseklik
Input of the pattern height: 300 rows.

8: Tarak:

Tarak ipliği
Modül :
Usage of the Tarak ipliği technical module.
: Örgü sonunda tutma işlemini ilmek kapama fonksiyonu (RS17=0) : Is automatically enabled, when Tarak is selected.

9: Başlangıç:

Selection of the module for the Start
Example: Başlama, 1x1 .
Sistem sayısı:
Selection of the quantity of working Systems for the Start
Example: 1 sistem

1 sistem:
The Start is knitted with one system / 1 yarn carrier.
- or -
2 sistem :
The Start is knitted with 2 systems / 2 yarn carriers.
: The knitted structure becomes more even due to knitting the start with 1 system.

Elastomer iplik:
Selection of the technical module for without / with elastic thread
Koruma ipliği :
Selection of a technical module for without / with protection thread.

Koruyucu iplik ile :
Preparation rows are knitted with a separate yarn carrier (Technical Color #205). (recommended).
- or -
Koruyucu iplik olmadan : Preparation rows are knitted with the same yarn carrier as the Start (Technical Color #201) (not recommendable).

: Working with protection thread saves thread because of the usage of cheaper thread as protection thread.

The yarn carrier with the protection thread for the protection rows will be clamped after the start and knitted-in again at the fabric end.
Recommendation:
Use the knot module Atla, kilitle, kumaş kenarı for the knitting-in of the protection thread in the protection rows at the fabric end.
Result: This way it is avoided that the thread at the fabric selvedge does not lay-in.
Setting in Yapılandırma -> Örgü alanları -> Emniyet sıraları

Geçiş:
Selection of the kind of transition from the start to the basic pattern
: An extra NP (NP4) index is assigned to this last row in the start, so that the stitch tension can be changed for a safe transfer.

10: Confirm entries with the OK button.

The pattern project appears.
