Create New Knitting Element of the 'Structure Module' Type

The options to save a knitting element:

Create a new knitting element for structure in the Knit Explorer:

    1
    Click on the Yeni örme elemanı icon at the start of CREATE PLUS.
    - or -
    With the CREATE PLUS running, open the Knit Explorer and click the Yeni örme elemanı icon.

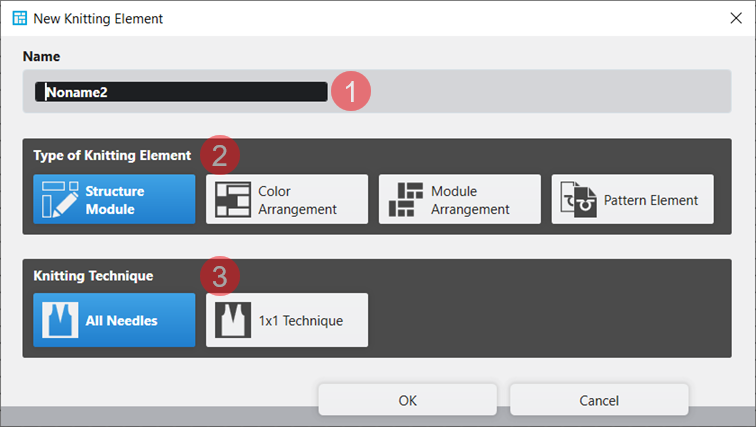

  1. The Yeni örme elemanı dialog box appears.

1

Ad

Enter the name of the new knitting element.

2

Örme elemanı tipi

Selection of the template for the new knitting element

: The template determines the basic properties.

3

Örme tekniği

Selection of the basic knitting mode for the new knitting element

  • Tüm iğneler
  • 1x1 teknik
    2
    Make the desired settings.
    3
    Close the dialog box with the Tamam button.

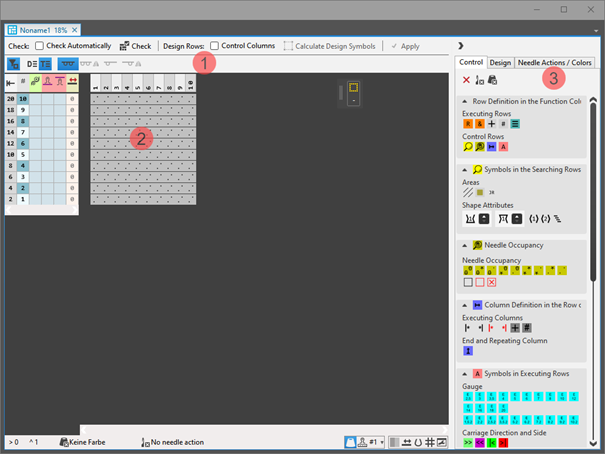

  1. The tool window appears with the corresponding template.

1

Kontrol et

Otomatik

The created knitting element are not automatically checked regarding the correct structure.

Otomatik

An automatic check is executed regarding the correct structure of the created knitting element.

Kontrol et

Checking of the created knitting element regarding the correct structure.

Tasarım sıraları

Kumanda sütunları

Not applying the control column data from the technical rows to the design rows

Kumanda sütunları

Applying the control column data from the technical rows to the design rows

:
The information from the design rows are displayed when drawing in the design pattern. If the control column data appears only in the technical rows, this data will only be entered by the technical processing.

Seçim

Get the design symbols for the technical rows in the selected area created.
  • Grey:
    Options for filtering the view is deactivated.
  • Blue:
    Options for filtering the view is activated
  • Grey:
    The design rows are not displayed in the view.
  • Blue:
    The design rows are displayed in the view.

:
The information from the design rows are displayed when drawing in the design pattern. The design rows are generated from the created technical rows by default.
  • Grey: The technical rows are not displayed in the view.
  • Blue: The technical rows are displayed in the view.

:
The information from the technical rows are inserted in the pattern during the technical processing.

Display of the symbols

  • Grey = Selected
    Display of the selection in the drawing canvas

Display of the drawing canvas for knitting with all needles.

Display of the drawing canvas for knitting with all needles mirrored.

: Display only possible when this drawing canvas is created.

Display of the drawing canvas for knitting in 1x1 technique.

: Display only possible when this drawing canvas is created.

Display of the drawing canvas for knitting in 1x1 technique mirrored.

: Display only possible when this drawing canvas is created.

2

Display of the template corresponding to the selected type of knitting elements with control columns and drawing canvas

3

Kumanda

Tab with all attributes for creating the different knitting element types

Tasarım

Tab with icons for changing / creating design rows

İğne hareketleri / renkler

Tab with needle actions and the pattern colors

    4
    Select the İğne hareketleri / renkler tab.
    5
    Select the display of Teknik sıralar.
    6
    Draw the structure of the new knitting element with needle actions and the desired pattern color into the technical rows.
  1. The design rows are generated automatically.
    2. 7
    Define the control column data in the technical rows.
    8
    If desired, apply the control column data to the design rows with the Kumanda sütunları button activated.
    9
    Check the knitting element regarding the correct structure with the Kontrol et button.
    10
    Save the knitting element.

Create a new, local knitting element:

  1. A pattern project is created and opened.
    1
    Select the Örme elemanları tab in the Örme elemanları tool window.
    2
    Call-up the Yeni modül... context menu of the tool window.
  1. The Yeni örme elemanı dialog box appears.

1

Ad

Enter the name of the new knitting element.

2

Örme elemanı tipi

Selection of the template for the new knitting element

: The template determines the basic properties.

3

Örme tekniği

Selection of the basic knitting mode for the new knitting element

  • Tüm iğneler
  • 1x1 teknik
    3
    Close the dialog box with the Tamam button.
  1. The tool window appears with the corresponding template.

1

Kontrol et

Otomatik

The created knitting element are not automatically checked regarding the correct structure.

Otomatik

An automatic check is executed regarding the correct structure of the created knitting element.

Kontrol et

Checking of the created knitting element regarding the correct structure.

Tasarım sıraları

Kumanda sütunları

Not applying the control column data from the technical rows to the design rows

Kumanda sütunları

Applying the control column data from the technical rows to the design rows

:
The information from the design rows are displayed when drawing in the design pattern. If the control column data appears only in the technical rows, this data will only be entered by the technical processing.

Seçim

Get the design symbols for the technical rows in the selected area created.
  • Grey:
    Options for filtering the view is deactivated.
  • Blue:
    Options for filtering the view is activated
  • Grey:
    The design rows are not displayed in the view.
  • Blue:
    The design rows are displayed in the view.

:
The information from the design rows are displayed when drawing in the design pattern. The design rows are generated from the created technical rows by default.
  • Grey: The technical rows are not displayed in the view.
  • Blue: The technical rows are displayed in the view.

:
The information from the technical rows are inserted in the pattern during the technical processing.

Display of the symbols

  • Grey = Selected
    Display of the selection in the drawing canvas

Display of the drawing canvas for knitting with all needles.

Display of the drawing canvas for knitting with all needles mirrored.

: Display only possible when this drawing canvas is created.

Display of the drawing canvas for knitting in 1x1 technique.

: Display only possible when this drawing canvas is created.

Display of the drawing canvas for knitting in 1x1 technique mirrored.

: Display only possible when this drawing canvas is created.

2

Display of the template corresponding to the selected type of knitting elements with control columns and drawing canvas

3

Kumanda

Tab with all attributes for creating the different knitting element types

Tasarım

Tab with icons for changing / creating design rows

İğne hareketleri / renkler

Tab with needle actions and the pattern colors

    4
    Select the İğne hareketleri / renkler tab.
    5
    Select the display of Teknik sıralar.
    6
    Draw the structure of the new knitting element with needle actions and the desired pattern color into the technical rows.
  1. The design rows are generated automatically.
    2. 7
    Define the control column data in the technical rows.
    8
    If desired, apply the control column data to the design rows with the Kumanda sütunları button activated.
    9
    Check the knitting element regarding the correct structure with the Kontrol et button.
    10
    Close the tool window with X.
  1. A new local knitting element is saved in the Örme elemanları tab.

Properties of Knitting Elements

The properties define the behavior, the appearance and the size of a knitting element for the use within the pattern project.

Özellikler Dialog Box:

    1
    Select module.
    2
    Open the context menu.
    3
    Select Özellikler.
  1. The Özellikler dialog box appears.
    2. 4
    Set the desired properties.
    5
    Close the dialog box with .
  1. The properties are applied when using it in the pattern.

Explaining the Özellikler dialog box by the Teknik modül type of knitting element

1

Graphic presentation of the selected type of knitting element

2

Ad

Name of the knitting element

Örme tekniği

Definition of the knitting technique for the use within the pattern

Örme elemanı tipi

Display of the selected type of knitting element

: As defined when creating.
Create New Knitting Element of the 'Structure Module' Type

Örme elemanı alt tipi

Selection of sub-types according to the selected knitting element type

: Not for all types of knitting element available.

Örme elemanı rengi

Definition of a color for the display of the knitting element in the document window with the Modül rengi setting.

Display color for the different knitting elements or modules

Display color for structure modules with the different knitting techniques

Desen sıraları

Quantity of pattern rows in the knitting element

Teknik sırası

Quantity of technical rows in the knitting element

Genişlik [iğneler]

Quantity of needles within one row of the knitting element

3

Geçmiş

Display of state of editing from creation until the last modification:

Düzenleyen

Tarih

Sürüm

İşlem

4

Yorum

Entry of a comment or a description

5

Kumanda sütunları

Control Column Options

  • Çok sistemli aktarmaya izin veriliyor
  • Çevre aktarmaya izin veriliyor
  • İlmek kapama ve Aktarmayı birleştirmeye izin veriliyor

İzin verilmeyen seçenekler, bu örme elemanının bulunduğu alandayken ilgili fonksiyonu kumanda sütunlarında baskılar.

Selected options enable the corresponding function in the control columns within the area of the knitting element.

Examples for 'Structure Module' Type of Knitting Element

Example 1: Create a Structure knitting element with knitting rows only:

    1
    Open the Yeni örme elemanı dialog box with Yeni örme elemanı.
    - or -
    Select tool window Modüller -> tab Modüller -> context menu Yeni modül... .
    2
    Enter the name of the new knitting element.
    3
    Make the following settings:
  • Örme tekniği
    • Tüm iğneler
  • Örme elemanı tipi :
    • Yapı modülü
  • Dolgu elemanları
    • No yarn color / magazine color or yarn carrier color
    • No Needle Action
  • Boyut [ilmekler]
    • Genişlik
    • Yükseklik
    4
    Close the dialog box with Tamam.
  1. The Knitting Element Editor is opened.
    2. 5
    Select the İğne hareketleri / renkler tab.
    6
    Draw the desired structure with needle actions in the drawing canvas, in the displayed technical rows indicated by .
  2. The design rows are generated automatically.
  • Tasarım sıraları göster :
    Design rows are generated automatically based on the information of the technical rows.
    : The icons can be changed.
  • Teknik sıraları göster :
    Display of the drawn structure with needle actions

: One design row and one technical row are automatically grouped to one pattern row.

    7
    Select for drawing the knitting element:
  • Without pattern color
  • With pattern color

Without pattern colors

With pattern colors

The needle action has no color, i.e. the structure module can be drawn in the design pattern into every color area.

The needle action has an assigned color, i.e. the structure module will be drawn in the design pattern with this color.

    8
    Enter the desired control column data in the corresponding control column of the corresponding technical rows.
  • İlmek uzunluğu (NP)
  • Ana merdane (WMF/WBF)
  • Hız (MSEC)
  • etc.

Entry

Meaning

Color entry

Assignment of a parameter value from the corresponding table

No color entry

Standard entry from the design pattern is kept

    9
    Tasarım sıraları :
    Enable the Kumanda sütunları button to apply the control column data from the technical rows to the design rows.

Behavior of control column data

No control column data

Control column data in technical rows only

Control column data in technical rows and design rows

With drawing in the design pattern and with the technical processing, no entry is made in the control columns.

These data from the technical rows will be inserted by the technical processing if in advance the standard entry is manually removed from the desired control columns of the design pattern.

When drawing in the design pattern it can be decided whether the control column data are to be entered in the design rows with the help of the cursor attributes.

: The control column data of the technical rows are not taken into account.

    1
    Check the formal correctness of the entries in the knitting element with the Kontrol et: button.
    : The knitting procedure cannot be checked!
    2
    If necessary, in case of a knitting element already used in the design pattern, apply the changes to the basic pattern with the Uygula button.
    3
    Close the Yeni örme elemanı tool window with .
  1. The knitting element is saved.

Group the pattern rows in the knitting element:

Group the technical rows which you want to form a common pattern row.

  1. A knitting element with multiple technical rows is created.
    : Each technical row corresponds to one design row.
    1
    Select the desired technical rows.
    2
    Position the cursor on the first control column, open the context menu and select Sıraları gruplandır.
    - or -
    Group the selected technical rows with Ctrl + G.

Behavior when drawing in the design pattern

All pattern rows are drawn-in one-to-one in the design pattern. This means that the corresponding number of pattern rows will be overwritten in the design pattern.

When drawing, only the first technical row is drawn in the design pattern. This means that the remaining technical rows of the group will be additionally inserted in the pattern by the technical processing.

Ungroup the rows:

  1. In the knitting element the technical rows are grouped.
    3
    Select the desired technical rows.
    4
    Position the cursor on the first control column, open the context menu, select Sıra gruplandırmasını kaldır.
    - or -
    Cancel the selection of the technical rows by Ctrl + Shift + G.

: If necessary, repeat the process multiple times.

Not knitting rows are:

  • Transferring rows.
  • Casting-off rows
  • Rows for post loop sinking

Creating structure module with knitting and not knitting rows:

    1
    Open the Yeni örme elemanı dialog box with Yeni örme elemanı.
    - or -
    Select tool window Modüller -> tab Modüller -> context menu Yeni modül... .
    2
    Enter the name of the new knitting element.
    3
    Make the following settings:
  • Örme tekniği
    • Tüm iğneler
  • Örme elemanı tipi :
    • Yapı modülü
  • Dolgu elemanları
    • No yarn color / magazine color or yarn carrier color
    • No Needle Action
  • Boyut [ilmekler]
    • Genişlik
    • Yükseklik
    4
    Close the dialog box with Tamam.
  1. The Knitting Element Editor is opened.
    2. 5
    Select the İğne hareketleri / renkler tab.
    6
    In the drawing canvas, in the technical rows, draw the desired structure with knitting and e.g. transfer needle actions.
  2. The design rows are generated automatically.
    3. 7
    If necessary, select a color for drawing.
    8
    Enter the desired control column data in the corresponding control column of the corresponding technical rows with needle actions.
  • İlmek uzunluğu (NP)
  • Ana merdane (WMF/WBF)
  • Hız (MSEC)
  • etc.
    9
    Also enter the desired control column data in the transfer rows:
  • Yatak kaydırma türü (VN, VU, V#)
  • Jakar kırma değeri
  • Yatak kaydırma düzeltmesi (VCI)
  • Ana merdane (WMF)
  • etc.
    10
    Select transfer rows with the previous knitting row or with following knitting row.
    11
    Group the selected rows with the CTRL + G keys.

    12
    Tasarım sıraları:
    Enable the Kumanda sütunları button to apply the control column data from the technical rows to the design rows.
    13
    Check the correctness of the entries in the knitting element with the Kontrol et: button.
    : The knitting procedure cannot be checked!
    14
    If necessary, in case of a knitting element already used in the design pattern, apply the changes to the basic pattern with the Uygula button.
    15
    Close the Yeni örme elemanı tool window with .
  1. The knitting element is saved.
    2. 16
    If desired, create more variants within the module.

Variants:

  • All needles knit
  • All needles knit mirrored
  • 1x1 Technique
  • 1x1 Technique, Mirrored

Procedure:

  1. A variant is created.
    1
    Position the cursor in the drawing canvas.
    2
    Open the context menu with RMB.
    3
    Select Versiyon oluştur.
    4
    Select the variant to be created in the submenu.
  1. The created variant is displayed in the drawing canvas.
    2. 5
    If desired, make changes in the technical rows and in the control column data of the new variant.

Change / reset design rows

When creating a knitting element, the design rows are generated automatically. It is possible to change the design rows manually.

Changing design rows manually:

  1. The knitting element is created.
  2. Design rows were generated automatically.
    1
    Open knitting element with double-click.
    2
    Activate the display of the design rows with the button.
    3
    Select the Design tab in the tool window.
  1. All symbols that may be used in the design rows are shown in this tab.
    2. 4
    Select the desired symbol.
    5
    Draw the symbol in the corresponding design row.
    6
    If necessary, continue with more design rows.
    7
    Knitting Element with .
  1. The change is saved and marked with the M symbol (modified).

Reset: Delete the M symbol in the modified design row:

  1. In the knitting element, there are design rows marked with the M symbol.
    8
    Select one or more design rows.
    9
    Click the Tasarım simgelerini hesapla button in the tool window.
  1. The M symbol is deleted and the symbol of the corresponding technical row is applied automatically.
