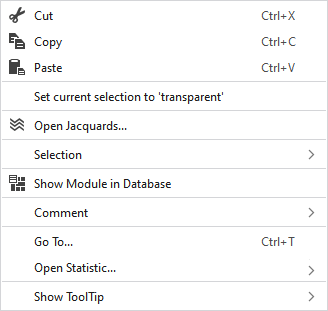

Context Menu of Pattern Elements

Kes

Seçimin içeriğini siler ve panoya kopyalar.

Kopyala

Seçimin içeriğini panoya kopyalar.

Yapıştır

Kopyalanan veya kesilen öğeleri seçilen konuma yapıştırır.

Güncel seçimi 'transparan' olarak ayarla

Sets the selected area in the pattern element to transparent.
The area is not overwritten when drawing in the pattern.

Jakarları aç...

Opens the Jacquard at the cursor position in the Jacquard table.

Seçim

Jakar oluştur...

Generate a Jacquard area in the selected area.
Opens the Jakar oluştur dialog box.
Make the corresponding settings with it.

Select

The functions of the menu bar Seçim are also available in the context menu.

Koru

A selection can be protected from interventions.

Modülü veritabanında göster

Shows the module at the cursor position in the Module Explorer.

Yorum

Place a pin, comment, or graphic anywhere in the pattern.

Git...

Opens the Git dialog box.

Desen sırası

Entry in Sıra refers to a Desen sırası.

Teknik sırası

Entry in Sıra refers to a Teknik sırası.

Sıra

Enter the Sıra you want to jump to.

Sütun

Enter the Sütun you want to jump to.

With row and column enabled, the position with the corresponding coordinates is jumped to.

Sonucu seç

The jumped to result is selected.

HızlıBilgi göster

İğne alanında

Activates the tooltip in the needle area.

Modül önizlemesi ile iğne alanında

Activates the tooltip in the needle area, as well as a preview of the modules.

Kontrol sütunlarında

Activates the tooltip in the control columns.

CA/MA önizlemesi ile kontrol sütunlarında

Activates the tooltip in the control columns as well as a preview of CA and MA.

Çizimde koordinatları göster

The coordinates of the drawing are shown when drawing.
