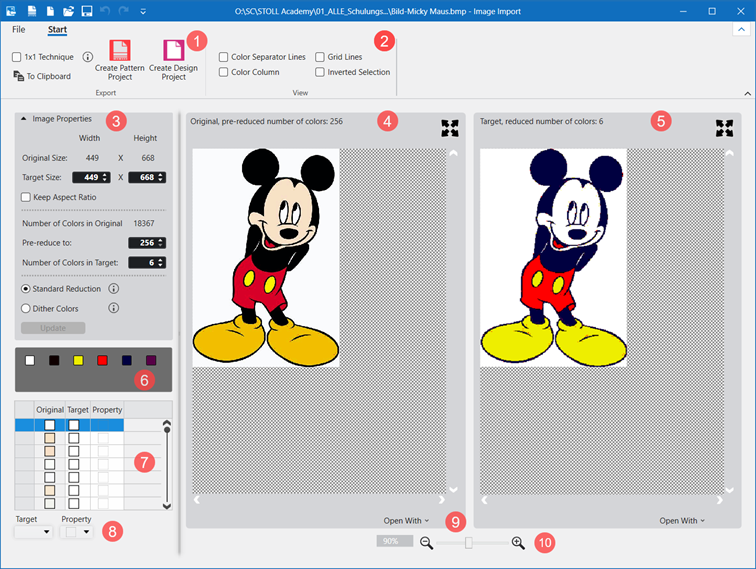

Image Import dialog box

Working with the Image Import dialog box

Options to open the dialog box

Importing an image:

    1
    Start the program double-clicking .
    2
    Click Resmi al in the start page under Start.
    - or -
    In the started CREATE PLUS, in the Dosya ribbon, İçe aktar tab, select Resmi al.
  1. The Image import dialog box is opened without display of an image.
    2. 3
    Select and open the path of the desired image in the Dosya ribbon over Aç.
    : The following formats can be read: bmp, jpg, jpeg, jpe, jfif, gif, tiff, tif, png
  2. The image reduced by the default settings is displayed in the dialog box under Hedef and the original one under Orijinal.

Start ribbon

1

Ver group

1x1 teknik

The image will be doubled in the width (1x1 technique).

: Attention
Note the knitting technique of the design pattern!

  • Tüm iğneler
  • 1x1 teknik

This affects the insertion of the image!

Panoya

The edited image is copied to the clipboard.

: In the CPS, the image can be inserted in the Desen Parçaları tool window under Pattern Elements.

Desen proje oluştur

A pattern project with a design pattern is opened from an edited image.

Tasarım projesi oluştur

A design project with a design pattern is opened from an edited image.

2

Görünüm group

: The settings are displayed only in the Hedef, düşürülmüş renk sayısı: view.

Renk ayırma çizgileri

Display of the Hedef, düşürülmüş renk sayısı: view of colored separating lines for subdividing the different areas with different quantity of colors

Kılavuz çizgileri

Display of a grid in the Hedef, düşürülmüş renk sayısı: view

Renk sütunu

Display of an additional column in the Hedef, düşürülmüş renk sayısı: view with the existing colors in each case.

Ters seçim

Display of the selected color

: Select the color only in the Orijinal or in the Hedef.

3

Resim özellikleri

Orijinal boyut:

Display of the original size of the image in width x height

Hedef boyut:

Edit boxes for the size of the target in width x height

Kenar oranını uydur

Size of the image freely changeable in width and height.

Size of the image changeable depending on the aspect ratio.

Orijinaldeki renk sayısı

Original quantity of colors in the original image

Öncesinde şuna düşür:

Entry of the quantity of colors to which the image is to be reduced when loading it.

: This, already reduced image will be displayed as Orijinal.

Hedefteki renk sayısı:

Entry of the quantity of colors for reducing the Orijinal to Hedef

Standart düşürme

Type of reduction of an image, e.g. for Jacquard

Renkler karıştırma (Dithering)

Type of reduction of an image with smooth color transitions, e.g. for photos

Güncelleştir

Apply changes of the settings

4

Display of the Orijinal with already previously reduced number of colors

5

Display of the Hedef image with the specified quantity of colors

6

  • Display of all colors in the target
  • For selecting all the original colors of the table that correspond to the target color

: Corresponds to the entry under Hedefteki renk sayısı: .

7

Table with the following columns

Orijinal

Quantity of colors which were entered at Öncesinde şuna düşür:.

Hedef

Allocation of a target color to a original color

: Manual changing of the allocation via the selection menu at the corresponding target color.

Sahiplik

 Şekil dışında

Allocate 'outside shape' to one or more selected target colors.

: When importing an image, e.g. as shape template

 Rengi kullan

One or more selected target colors are imported as color in the CPS.

: When importing an image as Jacquard template

 Transparan

Allocate Transparan to one or more selected target colors.

: When importing an image, which is to be positioned on a specific background.

8

Hedef

Selection of the target color for the allocation of a property

Sahiplik

Selection of the desired property for the selected target color

9

Şununla aç

Open the original or the target in an image editing app to make changes

10

Yakınlaştır

Zoom display
