Border Processing with Intarsia Jacquard

:
Due to the motif and the inserted jacquard back, adjustments to the back of the jacquard may be necessary at the border regarding the carriage direction.

Options of border processing with Intarsia Jacquards:

Example:

Processing steps for the border processing

Recommendation:
Edit the border processing and net end following each other as the pattern will be modified by the border processing.
This change can affect the net ending and require a File bitişi module to be inserted.

  1. A Jacquard back is applied to the a selected Jacquard area.
  2. A row selection in the height of the motif is created.
    1
    In the ribbon under İletişim kutuları -> click on Kenar işlemesi
    - or -
    Place the cursor in the pattern area of the design pattern -> open the context menu with RMB.
    2
    Select İntarsiya jakar için kenar işlemesi....

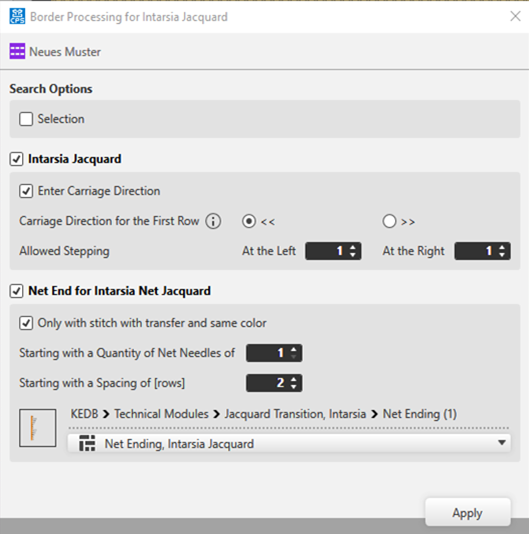

  1. The İntarsiya jakar için kenar işlemesi dialog box appears.

İntarsiya jakar için kenar işlemesi - pattern name

Search Options

Edit the border processing of the Jacquard areas within the whole pattern.

Border processing only of the Jacquard areas within a selection.

: Multiple selection is possible.

İntarsiya-Jakar

Default Setting:
The border processing will be carried out at the Intarsia Jacquard motif.

The border processing of the Intarsia Jacquard motif will not be carried out.

Semer yönünü gir

The carriage directions will be applied to the control column of the pattern.

The carriage directions will be not applied to the control column of the pattern.

Birinci sıranın semer yönü

<<

Carriage direction to the left for the first row of the Jacquard area

>>

Carriage direction to the right for the first row of the Jacquard area

Geçerli basamak

Solda

Preset of allowed stepping by needles at the left border

Sağda

Preset of allowed stepping by needles at the right border

: No Jacquard back will be entered in the area of allowed stepping.

İntersiya file jakar için file sonu

Default Setting:
A Net ending module will be inserted at the end of the inserted Jacquard back.

No Net ending module will be inserted at the end of the inserted Jacquard back.

Sadece aktarmalı ve aynı renkli ilmekte

The following requirements have to be fulfilled:

  • First SJ row following the Jacquard must contain one color only.
  • First SJ row following the Jacquard must be filled with Aktarmalı ön ilmek needle action.

: Net-end will not be placed if one of these conditions is not met.

Original

Result

Şu file iğnesi sayısından itibaren Net Stitches

Specify the quantity of net stitches at the Jacquard back from which the selected module is to be inserted.

: Net-end will not be placed with less stitches at the ending row of the Jacquard.

[sıra] boşluktan itibaren

Quantity of SJ rows interrupting the Jacquard (space)

  • The net-end will be placed if the actual quantity of rows is equal to or greater than the value set.
  • Net-end will not be placed if the actual quantity of rows is less.
  • Stitch with transfer is automatically replaced by Stitch without transfer within the spacing in order to prevent the net stitches from auto transferring to the front.
    The net back is paused until the following Jacquard area.

: Recommendation:
Avoid the entry of the net ending in case of small spaces!

Example: without net ending

Example:Preset 5 [rows]

  • With a spacing of 6 rows, the net back is completed.
  • With a spacing of 2 and 4 rows, the net back is not interrupted.
    : Stitch with transfer will be replaced by Stitch without transfer. With it, the stitch of the Jacquard back will not be transferred.

Selection of the module for net ending

  • File sonu / İntarsiya-Jakar

    3
    Make the desired settings under İntarsiya-Jakar.
    4
    Disable the İntersiya file jakar için file sonu function.
    5
    Apply the settings to the pattern with the Uygula button.
  1. The dialog box will not be closed.
    2. 6
    Disable the İntarsiya-Jakar function.
    7
    Make the desired settings under İntersiya file jakar için file sonu.
    : Inserting the module for the net ending avoids the stitches transferred at the net ending to shine through.
    8
    Apply the settings to the pattern with the Uygula button.
  2. The dialog box will not be closed.
    3. 9
    Close the dialog box with X.
