Step by Step to 'Pattern-12'

A pattern project with one pattern and the desired settings is created.

1: To create a project-related lined shape, select the Kesimler tab in the tool window.

2: Open the context menu with RMB and select M boyutunda yeni kesim oluştur... .

The Yeni çizgi kesimi tool window is opened.


Kesim adı	Name for the shape element
Yorum	Information about the shape

Input Format
İlmek		Entry in the table of the lined shape Height by stitches (stitch rows) Width by stitches (wales) : The stepping is converted based on the specification.
Aşamalar		Entry in the table of the lined shape Height of step by stitches (stitch rows) Width of step by stitches (wales)
El örgüsü (turlar)		Entry in the table of the lined shape Height by courses (1 course corresponds 2 stitch rows) Width by stitches (wales)
		Rules for widening with hand knitting
			Knitting before widening following the start
			Widening before knitting following the start (default setting)
Resimden kesim oluştur			No images will be used
			Use image as template

3: Make the desired entries:

Kesim adı : Any
Giriş formatı : Stitch

4: Confirm with the OK key.

The new lined shape (basic shape) is graphically displayed in the Kesimler tab and in a new document window New shape xx [size x] as rectangle.

: Default attributes are used for the shape edges of the lined shape.
Menu Dosya -> Seçenekler -> Çizgi kesimi -> Yeni çizgi kesimi seçenekleri

5: Open the docked line table by LMB in the New shape xx [size x] document window.

- or -
Use the graphic displayed in the New shape xx [size x] document window.

The table Çizgi kesimi with the values of the rectangular shape appears.

: The method (table or graphic) to create a project-related lined shape is freely eligible, since the views are always updated simultaneously.

6: Insert new shape lines in the table and enter the desired values for the basic shape.

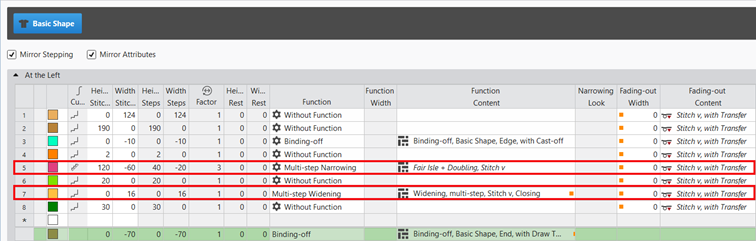

Example: Lined shape for Pattern-12

Basic Shape: Front

Row 5	Steps for 'Multi-step Narrowing' (Fair Isle) : With ‘multi-step narrowing’, narrowings (e.g. 20 stitches per step) are carried out one after the other, evenly distributed in a row.
Row 7	Stepping for Multi-step Widening : With ‘multi-step widening’, widenings (e.g. 16 stitches per step) are carried out one after the other, evenly distributed in a row.
End line	End line of the basic shape (green) : No assignment of attributes by default

Rules for creating a shape for the knitting mode SJ:

Example Front:

Shape Attributes	Rules / possible settings
Knitting Mode:	Single Jersey
Step width of widening	1 needle (stitch) per knitting row
Step height of widening	As desired
Quantity of rows without shape modification	As desired
Step width when narrowing	1 - 3 needles (stitches)
Step height when narrowing	As desired
Fading-out Width	As desired
Knitting mode for fading-out	Aktarmalı ön ilmek
Binding-off width:	Stepping > 3 stitches
Binding-off methods	Binding-off, Structure, Single Jersey Remayözleme, strüktür, tek plaka Remayözleme, TP, 01 > Remayözleme, TP, 01 Remayözleme, TP, 02


1	Display of the available shape elements Ana Kesim (exists always) Adding a new symmetric or asymmetric shape element Yaka açıklığı Doldurulmuş yaka açıklığı Tiktak Delik Pens Şekil dahilinde
2		Basamaklamayı yansıt		Creating a symmetric shape of shape element : The line tables of the left and right are identical.
			Öznitelikleri yansıt	Attribute changes carried out in the line table at the left and right.
			Do not mirror attributes	Attribute changes are carried out in the line table at the left or at the right.
		Do not mirror stepping		Creating an asymmetric shape / shape element : The line table can be edited differently at the left and at the right.
3		Tüm özellikleri göster
		Alt satırları göster
		Alt satırları gizle
4	Display color for main lines and sublines of a selected line in the Çizgi görünümü
5		Eğri		Display of the main line with the selected curve type Modification of the curve type
6	Columns for entering the values for the lines of the lined shape in the input format İlmekler Height by Stitches Width in stitches Aşamalar Height in steps Width in steps : From the entered values and based on the curve type, the value factor, height of rest and width of rest is calculated.
7	Columns for the input of line attributes : The entry in the Function column is automatically determined based on the values for one line.
8	Specification for working with PTS (NPJ) for one line (shape edge) Value for the front and / or rear needle bed Width by Wales

Insert shape line in a shape element:

: The shape lines are inserted symmetrically with both methods by default.

In the Line Table:
Entry of a positive value: Widening and upwards
Entry of a negative value: Narrowing and down

Enter the desired values in the last table line with the * symbol. When confirming the input with the Enter key a new table line is inserted.
Select a row -> open the context menu with RMB -> select Ana satır ekle.
Select a row -> open the context menu with RMB -> select Önüne satır ekle.
- or -
Select Arkasına satır ekle.

: Only in the line table it is possible to create an asymmetrical line shape by deactivating Basamaklamayı yansıt.

In the document window

Position the cursor on a line of the displayed graphic -> open the context menu with RMB and select -> Kesim çizgisi ekle .

Changing line properties of a shape line

Global project-related setting of the line properties via Yapılandırma / Tüm kesimler tab
In the shape regarding a shape line

In the Line Table
In the document window

Changing Line Properties:

In the Line Table

Direct change of a line property in the corresponding column of the table
Select a line in the table, open the tool window with the Çizgi özellikleri button and make the desired entries.

In the document window

Position the cursor on a line of the displayed graphic, select the context menu Çizgi özellikleri and make the desired entries in the tool window.

	1		Modification of the curve type
	2		Modification of the function of a shape line İşlevsiz Reglan Artırma etc.
	3		Modifications for the shape line with the Reglan function
	4		Modifications of the Soluklaştırma attribute for a shape line
	5		Specification for a shape line for working with PTS in the shape edge
	6	Display of the markings that are assigned to a shape line.
Yansıtılmış çizginin işaretlerini uygula	Applies the line-bound markings of the selected line to the line on the opposite. : Perhaps existing markings of the opposite shape line are removed.

Changing curve type:

In the Line Table

In the Eğri column open the context menu with the RMB and select the desired curve type.
Select the line, open the Çizgi özellikleri with the Çizgi özellikleri button and select the desired curve type at Basamaklama akışı.

In the document window

Position the cursor on a line of the displayed graphic -> open the context menu with RMB and select -> Basamaklama akışını ayarla....

Select the desired Basamaklama akışı in the selection menu.
When selecting the curve type diğerleri ile aynı şekilde via·Basamaklamayı değiştir, specify the desired values for Height and Width of the steps.
: The window for entering specifications is displayed according to the selected curve type.
Transfer the entry to the shape line with the Yeniden hesapla button.
: The shape line is displayed in the graphic and in the line table as well.

7: Allocate the desired attributes to the new shape lines:

Function: Function content + Function width
Fade-out: Fade-out content + Fade-out width
Line 3:

Function: Binding-off (at the external edge of the shape)
Function content: desired bind-off method

Binding-off of the external edges of the shape

The shape lines for binding-off at the external edge of the shape are at the same height in the line table.
During the technical processing these shape lines are moved regarding the height according to the carriage direction.
: The knitting sequence when binding-off depends on the carriage stroke!

The height (quantity of knitting rows) until binding-off is arbitrary

The height (quantity of knitting rows) until binding-off is an even number Binding-off right before left
The height (quantity of knitting rows) until binding-off is an odd number Binding-off left before right

Line 5:

In column Eğri: Select Fair Isle stepping kind.
Function: 'Multi-step Narrowing'
Function content: Fair Isle + Doubling, düz örgü
: The narrowing markings are calculated automatically and displayed in the pending shape of the Tasarım deseni.

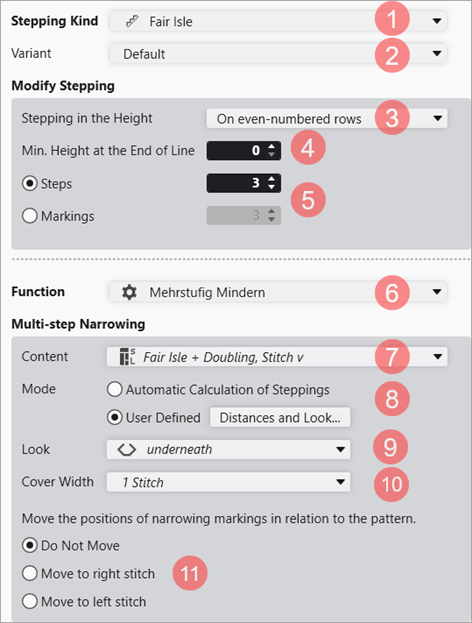

Options with the Fair Isle curve type Fair Isle
: Watch out: The selected stepping kind determines the corresponding options!

1	Basamaklama akışı		Selecting the desired curve type : The options in the pop-up window correspond to this selection.
2	Çeşit		Options of processing Fair Isle (multi-step narrowing)
			Varsayılan		Display of the lined shape in the rasterized view
			Trapez		Display of the pending lined shape in the basic pattern
					Display of the lined shape in the rasterized view
			Testere dişi		Display of the pending lined shape in the basic pattern
					Display of the lined shape in the rasterized view
			Pli		Display of the pending lined shape in the basic pattern
Modify Stepping
: The options in the pop-up window correspond to the selection at Çeşit
3	Yükseklik basamaklaması		Specification of the row in which the narrowing should be carried out.
4	Çizgi bitişinde min. yükseklik		Quantity of rows at the end of the line (remaining height) : The value will be subtracted from the total height of the line. The steps are calculated from the remaining height.
5	Specification to calculate the shape line with Fair Isle stepping kind
		Aşamalar	Quantity of steps to calculate the narrowing
		İşaretler	Quantity of markings per step (narrowing) : Corresponds to the value of the 'Width Steps' column of the line table
6	Fonksiyon		Specifies the directory of the Knit Explorer to be used for the function (type) of shape lines
Multi-step Narrowing
7	Kapsam		Selection of the desired module for Eksiltme, kademeli from Knit Explorer
8	Mod		Selection of the calculation mode for the steps of Fair Isle
				Otomatik basamak hesaplaması based on the settings.

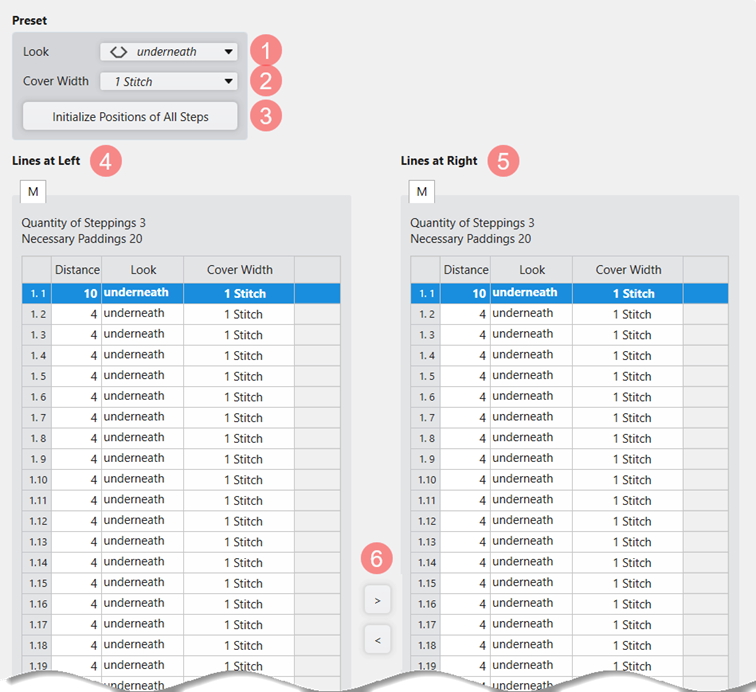

				Kullanıcı tanımlı -> Open the table by the Distances and Look... button in order to change the narrowings manually.
9	Görüntü		Selecting the desired look of narrowing Default Setting: altta kalsın The loop of the narrowed stitch is behind of the stitch of the basic pattern.
10	Örtme mesafesi:		Specification of how many stitches should cover each other Default Setting: 1 ilmek This corresponds to a racking by one needle
11	Move the position of the narrowing marking in relation to the pattern
		Kaydırılmasın	Position of the narrowing marking is calculated and freely placed.
		Düz ilmeğe kaydır	Position of the narrowing marking is calculated and placed on Önde ilmek only.
		Ters ilmeğe kaydır	Position of the narrowing marking is calculated and placed on Arkada ilmek only.

Line 7:

Function: Kademeli Artırma
Function content: Arttırma, kademeli, önde örgü
: The widening markings are calculated automatically and displayed in the pending shape of the Tasarım deseni.

End line of basic shape:

Function: Remayözleme
Function content: Remayözleme, temel kalıp, bitiş, çekim ipli

8: Open the graphic of the basic shape in the xx document window.

9: Click the Kesim düzenleme button under Parametreler in the Örgü alanları ribbon.

The Örgü alanları tool window appears.


1	Colors	Display color of the knitting range in the lined shape
2	Açıklama	Definition of a knitting range
3	İplik rengi	Allocation of: İplik rengi / Depo rengi / Mekik rengi: / Vanize renkleri / Çok sistem renkleri
4	Dolgu elemanı	Selection of a knitting element / needle action / structure / pattern element to fill the knitting range
5	Adet	Height of the knitting range by stitch rows
6	İlmekler	Display of the total height by stitches
7	cm	Display of the total height by cm : Calculated by the stitch density in use from the İlmek yoğunluğu table
8		Assignment of a stitch density from the stitch density tool window
9	Renk Aranjmanı	Assignment of Color Arrangements
10		Assignment of a stitch length for the front needle bed
		Assignation of a stitch length for the rear needle bed
		Assignment of a take-down value
		Assignment of a auxiliary take-down value
		Assignment of a machine speed
11	List of the shapes (fabric pieces), where the selected knitting range is in use. : Knitting ranges can be removed from the corresponding pattern by the button.

10: Create the desired knitting range in the Örgü alanları tool window.

Example:

Description: Collar
Filling Element: 2x2 Rib
Number: 28 (rows high)
+ columns: Allocate new stitch lengths

11: Select the desired shape point by the LMB to which you want to assign the knitting range.

12: Call up the Örgü alanı ata context menu.

List of the knitting ranges appears to select one.

13: Select the desired knitting range.

The knitting range appears in the assigned color at the the shape line point of the lined shape.

14: Move the inserted knitting range by 2 pattern rows to the top.
: The position of the widening markings should be in a SJ pattern row.

Enter the created knitting ranges into the shape and position it:

Shape is created as lined shape.
The knitting ranges are available in the Örgü alanları tool window.
Lined shape is opened in the xx document window.

1: Select the desired shape point by the LMB to which you want to assign the knitting range.

2: Open the context menu and select Örgü alanı ata.

List of the knitting ranges appears to select one.
Multiple selection is possible.

3: Select the desired knitting range.

The knitting range appears in the assigned color at the the shape line point of the lined shape.

	Enable the view of the knitting ranges in the xx document window
	Disable the view of the knitting ranges in the xx document window
	Display of the knitting ranges in the xx document window by yarn colors

4: Position the inserted knitting range.


1	Selecting knitting ranges to replace the inserted knitting range.
2	Specify the İç boşluk in İlmekler in relation to the shape line point
3	Örgü alanını aşağı doğru yerleştir
		Knitting range will be inserted above the shape line point
		Knitting range will be inserted below the shape line point

15: In the Kesimler tool window select the created shape with LMB.

16: Open the context menu -> Kesimi konumlandır -> select Pattern name.

The shape is floating in the selected basic pattern.
: Very helpful here to position the Jacquard pattern element correctly in relation to the base pattern and shape.

17: Open Knit Explorer.

18: Open the Desen parçası -> Desen Parçaları, Tüm İğneler -> Desen Parçaları, Jakarlı directory in the Örme elemanı deposu.

19: Open the Desen parçası tool window.

20: Copy the Jakarlı DP 19 pattern element from the Knit Explorer into the pattern project.
Example: H 39 x W 32

21: Modify the height of the pattern element in order to draw the pattern element into the the stepping of Fair Isle (height).

Original Pattern Element	Modified Pattern Element

H 39 x W 32	H 36 x W 32

22: Draw the pattern element using any 2 yarn colors from the center of the basic pattern to the left and right in relation to the Fair Isle shape lines in the basic pattern.

Pro Step:

2 rows of Önde ilmek
1 modified pattern element
2 rows of Önde ilmek

23: Select the rows of the Jacquard areas additively via the Desen sırası control column by the CTRL key.

24: Positioning the cursor in the pattern area.

25: Call-up the Seçimden oluştur / Jakar oluştur... context menu.

The Jakar oluştur [Yeni desen] dialog box appears.

Description to the dialog box


1	Display of the active document window Tasarım deseni, for which the dialog box is valid.
2	Renk sıralaması ve ilmek uzunluğu
		Display or edit box for the stitch length per color / rear system : Depends on the selection under İlmek uzunluğu ((4)).
		Display of the used colors in the selection in the color sequence from the left
		Display or edit box for the stitch length per color / front system : Depends on the selection under İlmek uzunluğu ((4)).
	İkinci renk takip sırası
			Default setting The color sequence is the same as in the first pattern row
			Definition of the color sequence for the second pattern row is possible. : Input panel for the color sequence of the second pattern row
3	Jakar modülü
		Displays the selected Jacquard module. : Position the cursor in the display, to use the LMB to open the Knit Explorer.
		Display of the path of the selected directory in the Knit Explorer
		Selection list for selecting the desired Jacquard module in the specified directory
Jakarlar
4	Renkler		Selection list for the knitting sequence of the colors boydan boya eşit sıra başına minimum sıra ve sütun başına minimum (iplik köprüleri)
5	İlmek uzunluğu		Selection list for the stitch length desenden kullan modülden kullan Kullanıcı tanımlı Make presettings at and / or .
6	Resim tarafı		Selecting the desired face of picture of Jacquard Jv: Resim önde J^: Resim arkada Jv^: Resim önde ve arkada : Not with all Jacquard modules available
Jakar arka tarafı
7	şu oranda daralt		Specification in case of Jacquard with yarn bridges, by how many needles the back side is to be narrower then the face of picture
8	şu oranda yatay kaydır		Specification in needles for shifting the Jacquard horizontally
9	Jakar oluştur		The changes made in the dialog box will be applied to the pattern.

Changing the default settings for Block Jacquard:

: A module for net pick-up and net ending are assigned by default to each area with Block Jacquard in the Desen projesi.

Possibilities for changing the module allocation:

In Yapılandırma -> Jacquard tab -> Block-Jacquard section
: Changes will apply to all patterns of the Desen projesi .
Select Jakarlar in the ribbon.
: Individual changes regarding the desired Jacquard area
Select the context menu -> Jakarları aç...
: Individual changes regarding the desired Jacquard area

26: Make the desired presets in the Jakar oluştur [Yeni desen] dialog box.

Colors: Continuously
Stitch length: Used by the module
Jacquard Module: Jakar, Çapraz torba, Resim tarafı Jv, J^, Jv^

27: Apply the settings to the pattern with the Jakar oluştur button.

28: Continue:
Create the next row selection for a new Jacquard area.
- or –
Exit working in the dialog box by Kapat.

Jacquard is displayed with the correspondent symbol in the pattern and is listed in the Jakarlar tool window for another editing.

29: Allocate the following attributes to the shape line 5 of the Fair Isle curve type in the line table:

Fade-out width: Set value to 0, since the different Jacquard areas are not to be hidden with Aktarmalı ön ilmek.

Fade-out content: Stitch v, with transfer (will not be used)

: To fade-out with patterns with Jacquards, a corresponding Kenar düzeltme, Jakar, Altama, Torba module is used.

30: In the New Shape xx [Size x] document window, select the desired shape line 5 with the graphic shape presentation.

31: Position cursor on the selected shape line.

32: Select LMB -> Çizgi özellikleri context menu.

33: The Çizgi özellikleri tool window is opened for the selected shape line.

34: Make the following entries under the jakarlar için (atlama / file) section:

Content: Select Kenar düzeltme, Jakar, Altama, Torba Fade-out Module.
: The fade-out module knits only at the front.
Width: specify the desired fade-out width.

Default Setting: 2 Needles wide
Attention : The fade-out width is also executed in the rows of the net pick-up and the net ending.

35: Close the tool window.

The fade-out module appears in the Tasarım deseni document window.

36: If necessary, position the shape in the document window with the button.

37: Check , attributes of the shape lines and, if desired, make corrections.

38: Changing markings of shape lines with the functions:

Function Çok adımlı reglanı‘ (Fair-Isle): Modify the position of the narrowing marking
Function Çok basamaklı artırma: Modify the position of the widening marking

The following function was allocated to a shape line when creating the shape:

Çok adımlı reglanı
Çok basamaklı artırma

The markings are automatically calculated based on the settings (values) in the line table, displayed in the Çizgi mesafeleri table and entered into the shape as shape markings.

Options to modify the narrowing and widening markings:

In the table: Change the values and apply them to the shape
In the pending shape: Re-position the markings manually

Modify the Markings for Narrowing in the Table:

A shape with shape lines of the Çok adımlı reglanı (Fair-Isle) function is created.
The shape leis pending in the Tasarım deseni
The document window with graphic of the shape is open.

1: Position cursor on the shape line e.g. no. 5 (multi-step narrowing).

2: Open the context menu with RMB and select Çizgi özellikleri.

The Çizgi özellikleri tool window is opened.

Options with the Fair Isle curve type Fair Isle
: Watch out: The selected stepping kind determines the corresponding options!

1	Basamaklama akışı		Selecting the desired curve type : The options in the pop-up window correspond to this selection.
2	Çeşit		Options of processing Fair Isle (multi-step narrowing)
			Varsayılan		Display of the lined shape in the rasterized view
			Trapez		Display of the pending lined shape in the basic pattern
					Display of the lined shape in the rasterized view
			Testere dişi		Display of the pending lined shape in the basic pattern
					Display of the lined shape in the rasterized view
			Pli		Display of the pending lined shape in the basic pattern
Modify Stepping
: The options in the pop-up window correspond to the selection at Çeşit
3	Yükseklik basamaklaması		Specification of the row in which the narrowing should be carried out.
4	Çizgi bitişinde min. yükseklik		Quantity of rows at the end of the line (remaining height) : The value will be subtracted from the total height of the line. The steps are calculated from the remaining height.
5	Specification to calculate the shape line with Fair Isle stepping kind
		Aşamalar	Quantity of steps to calculate the narrowing
		İşaretler	Quantity of markings per step (narrowing) : Corresponds to the value of the 'Width Steps' column of the line table
6	Fonksiyon		Specifies the directory of the Knit Explorer to be used for the function (type) of shape lines
Multi-step Narrowing
7	Kapsam		Selection of the desired module for Eksiltme, kademeli from Knit Explorer
8	Mod		Selection of the calculation mode for the steps of Fair Isle
				Otomatik basamak hesaplaması based on the settings.
				Kullanıcı tanımlı -> Distances and Look... Button to change the narrowings manually in the Çizgi mesafeleri dialog box.
9	Görüntü		Selecting the desired look of narrowing Default Setting: altta kalsın The loop of the narrowed stitch is behind of the stitch of the basic pattern.
10	Örtme mesafesi:		Specification of how many stitches should cover each other Default Setting: 1 ilmek This corresponds to a racking by one needle
11	Move the position of the narrowing marking in relation to the pattern
		Kaydırılmasın	Position of the narrowing marking is calculated and freely placed.
		Düz ilmeğe kaydır	Position of the narrowing marking is calculated and placed on Önde ilmek only.
		Ters ilmeğe kaydır	Position of the narrowing marking is calculated and placed on Arkada ilmek only.

1: Select the Kullanıcı tanımlı mode in the tool window under Çok adımlı reglanı.

2: Open the table with Distances and Look... .

The Çizgi mesafeleri dialog box appears.

: The table displays all steps of a shape line with the automatically calculated values based on the specifications of the Çizgi özellikleri tool window.

Preset
1	Görüntü	List box to select the method of narrowing
2	Örtme mesafesi:	List box to specify the quantity of stitches to cover each other
3	Tüm aşamaların pozisyonlarını başlat	Applies the changes of look and of the cover width

4	Sol çizgiler	Table with narrowing markings and their positions
	Label indicating the size	Size of the selected shape
	Basamak sayısı	Total number of steps of the selected shape line
	gereken mesafeler	Quantity of stitches (step width) that should be narrowed

5	Sağ çizgiler	Table with narrowing markings and their positions
	Label indicating the size	Size of the selected shape
	Basamak sayısı	Total number of steps of the selected shape line
	gereken mesafeler	Quantity of stitches (step width) that should be narrowed

6	Arrow keys	To copy the manually changed values of the table from Sol çizgiler column to the Sağ çizgiler column or vice versa. : If you make manual changes, the remaining markings will not be recalculated! You must also adjust all other markings manually.

1: Make a different selection in the dialog box below Ön veriler.
- or -
Change the values for both shape lines (left and right) manually in the table.

2: Close the dialog box with the OK button.

The narrowing markings are applied to the shape and displayed.

: Using the same procedure, the widening markings in the Mesafeler... table can also be changed.

Modify Shape Markings of Pending Shape Manually:

: The user himself is responsible for the correct result!

A shape with shape lines of the Çok adımlı reglanı (Fair-Isle) function is created.
The shape leis pending in the Tasarım deseni

1: Select Finishing düzeyi in the Cursor Attributes + Editing Layers tool windows.

2: Select the Kayan kesimin saydamlığı icon to delete the narrowing markings.

3: Delete the desired markings in the shape.

4: Set the cursor on a narrowing marking and pick this attribute with the F8 key in order to re-position it.
- or -
Select the Fair Isle + Doubling, düz örgü technical module in the Modüller tab.

5: Insert markings manually at the new positions.
: Watch out:
The quantity of narrowing markings must correspond to the narrowing steps (width)! Otherwise the stitches cannot be transferred.

: The changes within the Finishing düzeyi cannot be saved.
Meaning, the pending shape must not be removed from the design pattern.

6: In order to save the changes, set the cursor in the pending shape and call-up Kesimi kılavuz şekline dönüştür of the context menu.

The shape appears as Raster Shape.
: Modification within the Finishing düzeyi will be discarded when converting.

7: Then call-up Kılavuz şeklinden yeni kesim oluştur... context menu again.

The created lined shape is displayed in the Kesimler tab.

: Using the same procedure, the widening markings of the pending shape can be changed manually as well.

39: Click the Başlat button under Önizleme in the Mekikler ribbon.

The New Pattern xx document window is opened as view and the Mekikler ribbon appears.

40: Open the dialog box via Mekikleri göster.

41: If necessary, make the desired settings for allocating yarn carriers.

42: Start the Teknik işlem:
Show symbol view after technical processing.

43: Generate Sintral.

44: Start the Sintral Kontrolü.

45: Genişlet the knitting program.

A program for the knitting machine will be created: CMS530.Pattern-12.zip.
Load knitting program into the machine.

: The extracted file CMS530.Pattern-12.zip can be loaded onto the machine with an USB stick or via Ethernet.

Step by Step to 'Pattern-12'

Explanation tool window 'New Lined Shape'

Rules for a shape in Single Jersey knitting mode

Rules for creating a shape for the knitting mode SJ:

Working with the line table or the document window (graphic)

About the Line Table

Insert new shape line in a shape element

Insert shape line in a shape element:

Change line properties of a shape line in line table or document window

Changing line properties of a shape line

Changing Line Properties:

Change curve type of a shape line in line table or document window

Changing curve type:

Information for binding-off of the external edges of the shape

Tool Window: Options with the Fair Isle curve type

Explanation of the 'Knitting Ranges' Tool Window

Enter and Position Created Knitting Ranges in the Shape

Enter the created knitting ranges into the shape and position it:

About the 'Create Jacquard' dialog box

Description to the dialog box

Changing the default settings for Block Jacquard:

Modify Markings for Narrowing or Widening

Modifying Narrowing Markings in the Table

Modify the Markings for Narrowing in the Table:

Tool Window: Options with the Fair Isle curve type

Explanation of 'Distances of the Line' Dialog Box

Modify Narrowing Markings of Pending Shape Manually

Modify Shape Markings of Pending Shape Manually:

All steps to create 'Pattern-12'
