Step by Step to 'Pattern-1'

A pattern project with one pattern and the desired settings is created.

1: To draw select any desired drawing tool under the Çiz group.

2: In the Desen renkleri tool window, select the desired pattern colors from the İplik renkleri color palette to draw the motif:

İplik renkleri:

: The yarn carriers are not automatically placed on the yarn carrier rails.
The yarn carrier home position is determined in the Teknik işlem.

: The color areas are less than 1 inch wide.

3: In Tasarım deseni draw the desired SJ with pointelle motif.

With the Aktarmalı arka ilmek needle action

- or -

With the Ajur, arkada örgü knitting element

: When drawing pay attention to the distances between the color fields.
A distance of ~2.8 inches is necessary, if yarn carriers are combined (double assignment).

ADF yarn carrier ('swiveled')

Min. distance between the color fields

Yarn carriers on different rails

0.7 Inch

Yarn carriers on the same rail

~ 2.8 inches

(for each yarn carrier 1 inch + 6 nic)

Basic pattern with 22 yarn colors

Part of the pattern with the structure for pointelle

Pattern-2A:
Pointelle with Aktarmalı arka ilmek

Note:

The first pattern row is worked with V0 racking where the stitch is knitted at the rear. In the next row with VR1 racking the stitch then is transferred to the front and the pattern row is knitted.

Pattern-2B:
Pointelle with the Ajur, arkada örgü knitting element

4: In the Desen sırası control column, select the first 2 pattern rows.
- or -
Select the total height of the pattern area for the CA.

5: Position the cursor in the pattern area.

6: Call up the context menu and select Seçimden oluştur / Color Arrangement.
- or -
Click directly the button in the ribbon.

The Color Arrangement Editor with the original 'Default knitting process' of the 2 selected pattern rows is opened.

7: Make the desired changes in the Color Arrangement.

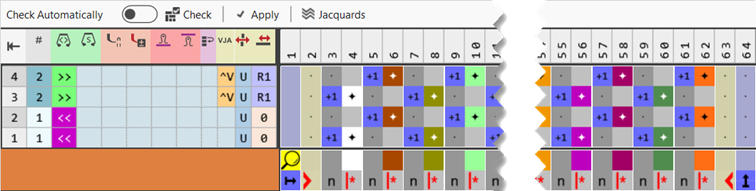

Part of Color Arrangement CA#2A

1	Combining the yarn carriers on 2 systems : Watch the distances between the color sections.
2	Entry within control columns: Semer yönü Yatak kaydırma sırasında örgü (VJA^) Racking without Needle Action (^v): The selection for the needle action of the rear needle bed occurs in relation to the front needle bed. Yatak kaydırma türü (VN, VU, V#) Jakar kırma : In the 2nd pattern row, enter the racking R1 for the transfer of the rear stitch (pointelle)

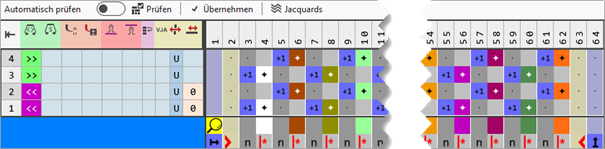

Part of Color Arrangement CA#2B

1	Combining the yarn carriers on 2 systems : Watch the distances between the color sections.
2	Entry within control columns: Semer yönü Yatak kaydırma sırasında örgü (VJA^) NO entry required, as the corresponding setting is done in Yapılandırma -> Optimizasyon tab. Yatak kaydırma türü (VN, VU, V#) Jakar kırma : In the 2nd pattern row, enter the racking to Varsayılan for the transfer of Ajur, arkada örgü knitting element.

1: Open the Yapılandırma dialog box -> Optimizasyon tab.

2: Select the Equalize Racking Even With Different Take-down Values setting in the Strok başına yatak kaydırma selection menu of Tek yataklı örgüde stroktaki yatak kaydırmayı eşitle.

The stitch is transferred by the R1 racking from the knitting element and then knitted.

Symbol view after technical processing

8: Check the generated Color Arrangement on correct entries with the Kontrol et button.
: The knitting procedure cannot be checked!

9: If necessary, in case of a Color Arrangement already used in the design pattern, apply the changes to the basic pattern with the Uygula button.
- or -
Close the tool window with .

10: Close the prompt with the desired button:

Save: Color Arrangement is saved locally in the CA tool window.
Reject: The changes will not be saved.
Copy: The changed Color Arrangement is saved as copy in the CA tool window.

11: Enter the generated Color Arrangement via the control column into the desired rows of the design pattern.

12: Carry out Teknik işlem if necessary.
: After carrying out the Teknik işlem you are able to view and weigh up the result of the automatic processing, if corrections / optimizations are necessary.
