Step by Step to 'Pattern-15'

A pattern project with one pattern and the desired settings is created.

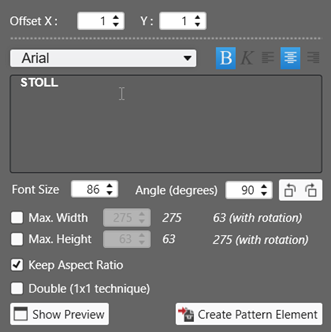

1: Create the motif using the Metin drawing tool and any desired yarn color (e.g. #3).
: This yarn color serves as a search color for transferring stitches. At this point, the weft yarn is at the top.

2: Create a pattern element by Create Pattern Element and draw it into the Tasarım deseni.

3: Open the tool window Vanize renkleri with in the Desen renkleri tool window.

4: Create a plating color in line P1 of the Vanize renkleri tool window:

In column A:

Yarn Color #3
The symbol via the selection menu for the weft yarn carrier

In column B:

Yarn color e.g. #1

In column C:

Additional yarn color e.g. #2

5: Create the plating color for the start in line P2.

6: Select the desired YPI indices from the Vanize ofseti (YPI) table and allocate them.

7: Select the total height of the design pattern in the Desen sırası control column.
: If necessary, knit-off 2 pattern rows at end with yarn color #1.

8: Call up the context menu and select Seçimden oluştur / Color Arrangement.

The Color Arrangement editor appears with the default CA.

9: Make the desired changes in the Color Arrangement:

In the processing area:

Draw needle action Önde ilmek - Arkada ilmek together with the plating color P1 into existing rows.
Add additional rows for half Milano and draw-in the Arkada ilmek needle action with any desired yarn color.
Add additional rows for Arkaya aktar.

Modifications in Control Columns:

Control column Semer yönü
Control column Sistem
Control column W bastırıcı ayak
Control column Bastırıcı ayak düzeltmesi
Allocate a new stitch length index to the DJ row via the Ön ilmek uzunluğu (NPv) control column.
Allocate a new stitch length index to the DJ row via the Arka ilmek uzunluğu (NP^) control column.

Color Arrangement CA1

10: Check the generated Color Arrangement on correct entries with the Kontrol et button.
: The knitting procedure cannot be checked!

11: Open the Start, Tubular (modified) knitting element.

12: Draw the plating color P2 into the knitting rows.

13: If necessary, make the desired settings in the Mekikler tool window.

14: If desired, make the desired presets in the following control columns:

İlmek uzunluğu (NP)
Ana merdane (WMF)
Hız (MSEC)

15: Carry out all the steps of processing.


Yarn Carrier 9RQ	Weft yarn carrier Q ahead of system S1
Yarn Carrier 5b	The yarn carrier with yarn color #1 of the plating color P1 knits by system S1
Yarn Carrier 7R	The yarn carrier with yarn color #2 of the plating color P1 knits by system S1
Yarn Carrier 11R	The yarn carrier with yarn color #4 for the half Milano stitch knits by system S2

: The extracted file "ADF530-32W.Pattern-15.zip" can be loaded onto the machine with an USB stick or via Ethernet.
