Make settings for racking corrections in the knitting element
With STOLL knitting elements, the racking correction index (VCI) is used by default.
Enter settings for a racking correction in a local knitting element:
All the knitting elements drawn in the pattern which came out of the 编织资源管理器 are saved as local knitting elements in the 花型项目.
- The settings for a racking correction referred to transfer rows are to be entered into a local knitting element in the
设计花型. - The
control column can be displayed in 设计花型, but without entries, as no transfer rows are displayed.
- 1
- Open the existing project and save it with a new name via the 文件 / 另存为 menu.
- or -
Create new 花型项目 with one individual pattern and draw-in structure. - 2
- Open local knitting element with double-click.
- 3
- Display the control column in the Knitting Element editor.
- 4
- In the
Cable stitch 3x3 window, position the cursor on the control column and tap the RMB. - The context menu for the racking correction (VCI) appears.
- All the racking correction indices (VCI) used in the Cable stitch 3x3 knitting element are displayed and are marked with the
symbol.
Note:
In the knitting elements, the structures for knitting on all needles are managed and also for 1x1 technique. This means, that there is entered a racking correction value for all racking courses in the knitting element. - The entries marked as favorites in the 横移 section / of the 默认tab in the Pattern Parameters
tool window are displayed.
- 5
- Select the desired racking correction and enter it in the control column.

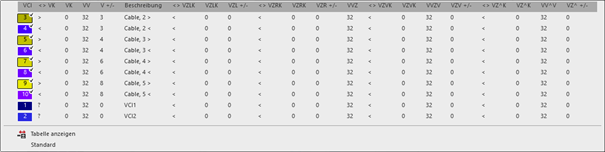

The racking correction index (VCI) shown in the context menu correspond to the table in the Pattern Parameters
tool window under the 横移 section of the 用户 tab.
