Show Yarn Carriers

In the Yarn Carriers tool window, you can indicate the desired specifications regarding the yarn carriers and influence the yarn carrier home position.

I. Open the Yarn Carriers tool window:

  1. The New Pattern xx document window is enabled.
  2. 导纱器 is enabled.
    1
    Open the 导纱器 tool window.
    In 导纱器 group -> 显示导纱器
  1. The 导纱器 tool window appears with the 可用的纱线和导纱器 tab active.
    3. 2
    Select the yarn carrier.
    3
    Make the desired changes in the 可用的纱线和导纱器 tab of the 导纱器 tool window.
    4
    Apply the modifications.
    编辑 group -> 应用
    - or -
    编辑 group -> 应用并关闭

同步

将设计花型中的更改应用到导纱器视图上并把两个视图同步到花型的当前状态。

应用

将导纱器更改应用到设计花型上。其他更改（例如颜色参数）将一次应用。

应用并关闭

将导纱器更改应用到设计花型上然后关闭视图。其他更改（例如颜色参数）将一次应用。

取消并关闭

忽略更改并关闭导纱器视图。

Close with 取消并关闭 if you only opened the Yarn Carrier view for control.

II. Working with the Yarn Carrier tool window:

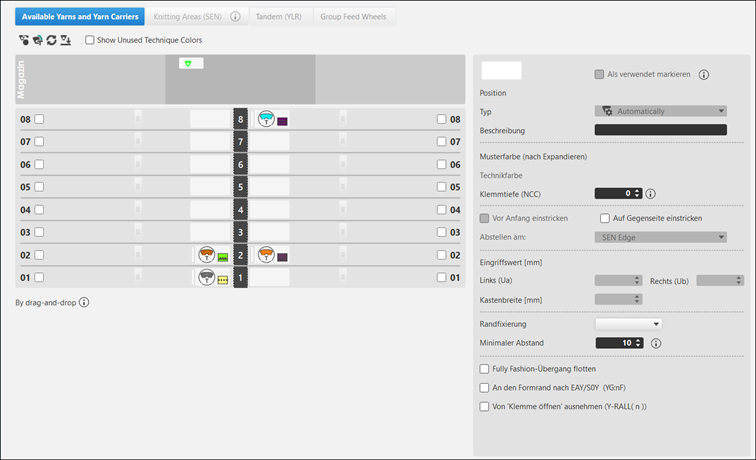

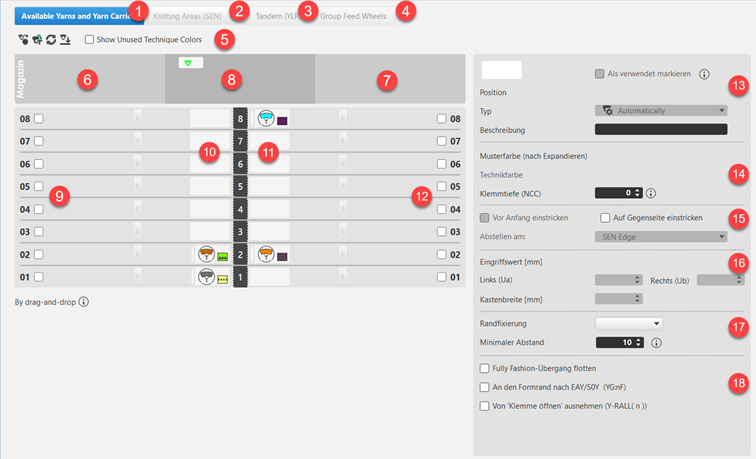

1

可用的纱线和导纱器 tab

5

Returning yarn carriers to the magazine according to their position at the left or right side of the yarn carrier rails.

: Yarn carriers of the pattern only - excepting the yarn carrier colors which are firmly allocated to a certain rail.

Allocating the yarn carriers for technique colors to the yarn carrier rails according to the standard preallocation.

Returning yarn carriers from the yarn carrier rails to the magazine as 'undefined'.

: Yarn carrier of the pattern only.

Allocating the yarn carriers from the magazine to the yarn carrier rails.

显示未使用的工艺色

In the view of the yarn carrier rails, only the technique colors used in the pattern are displayed.

In the view of the yarn carrier rails, the technique colors not used in the pattern are displayed as well.

6

Display of the yarn carriers for yarn and magazine colors regarding the positioning on the left side during rail allocation.

: Yarn carriers not yet allocated to a yarn carrier rail but will be positioned on the left side when allocating.

7

Display of the yarn carriers for yarn and magazine colors regarding the positioning on the right side during rail allocation.

: Yarn carriers not yet allocated to a yarn carrier rail but will be positioned on the right side when allocating.

8

Display of the yarn carriers for yarn and magazine colors undefined.

: The yarn carriers have no allocation to a rail nor to a side (left/right)

9 / 10

Release for allocation of the rail with a yarn carrier left / right

No release for allocation of the rail with a yarn carrier left / right

10 / 11

Graphic presentation of the yarn carrier rails with the used yarn carrier types on the left / right side and specification of the corresponding colors.
This results in the yarn carrier home position left / right.

Input panel for the specifications for a selected yarn carrier

Input panel for the specifications for a selected yarn carrier

13

Set as Used

Yarn carrier position is free for allocation

Yarn carrier position is not free for allocation

: For example when inserting Sintral functions where yarn carriers are used.

位置

Specification of the yarn carrier position of the yarn carrier color

型号

说明

Comment on a yarn carrier

: Is entered in Sintral in the table of the yarn carriers.

14

Pattern Color (After Expanding)

Display of the pattern color of the selected yarn carrier

Technique Color

Display of the technique color of a selected technical yarn carrier

夹持深度

Needle sinking of clamping and cutting needle
Command: NCC=n (n= -10 to 10)

15

Knit-in before Start

Selected yarn carrier is not knit-in in the Knitting-in before start function.

Selected yarn carrier is knit-in in the Knitting-in before start function.

Knit-in to opposite side

A yarn carrier remains on the corresponding side based on its home position.

A yarn carrier is knitted before the start to the opposite side of its home position.

: Use:
With MC with single-sided clamping / cutting.

Stop at:

  • Shape Edge
  • SEN Edge

16

Engaging Value [mm]

At the Left (Ua)

Engaging width for the left side

At the Right (Ub)

Engaging width for the right side

滑块宽度 [mm]

Specification depending on the yarn carrier type specified under 型号

: No entry possible!

17

Border Fixation

Selection of the knitting mode for the border fixation (module)

Minimum Padding

Distance for the border fixation in rows

18

浮线全成型过渡

At the end a yarn carrier is moved to the home position according to the setting in the Yarn Field Allocation.

At the end a yarn carrier is moved to its home position without knitting.

: Use:
For technical fabrics with weft yarn.

EAY/S0Y 之后到模型边缘 (YG:nF)

The yarn carrier will not be positioned at the counters #L and #R.

The yarn carrier will be positioned at the counters #L and #R and follows the shape.

从 ”打开紗夹“ (Y-RALL( n ))命令中排除

Selected yarn carrier is controlled by the Y-RALL function.

Selected yarn carrier will be excluded from the Y-RALL function and can be defined differently by the value (rows) at Color Parameters under .

: By default, the clamp will be opened by the Y-RALL function for all yarn carriers after about 25 rows.

Additional tabs:

2

编织区域 (SEN)

Working with several SEN areas:

  • Machines without comb
  • Machines with comb but without using it

3

分机头 (YLR)

Change of the yarn carrier home position with tandem machines

4

送纱器组合

Use when working with feed wheels

: For the use of the feed wheels, they have to be defined in the 配置 dialog box -> 机器属性 tab under 电子送纱器.
