Properties of Knitting Elements

The properties define the behavior, the appearance and the size of a knitting element.

属性 Dialog Box:

    1
    Select module.
    2
    Open the context menu.
    3
    Select 属性.
  1. The 属性 dialog box will appear.

Example:

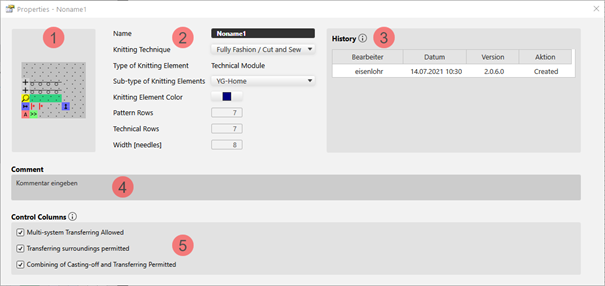

 属性 dialog box for a technical module

1

Graphic presentation of the selected type of knitting element

2

名称

Name of the knitting element

编织工艺

Definition of the knitting technique for the use within the pattern

编织元素类型

Display of the selected type of knitting element

: As defined when creating.
Create New Knitting Elements

编织元素的次类型

Selection of sub-types according to the selected knitting element type

: Not for all types of knitting element available.

编织元素颜色

Definition of a color for the display of the knitting element in the document window with the 模块颜色 setting.

Display color for the different knitting elements or modules

Display color for structure modules with the different knitting techniques

花型行

Quantity of pattern rows in the knitting element

工艺行

Quantity of technical rows in the knitting element

宽度 [针]

Quantity of needles within one row of the knitting element

3

历史记录

Display of state of editing from creation until the last modification:

制单员

日期

版本

操作

4

注释

Entry of a comment or a description

5

控制列

Control Column Options

  • 允许多系统翻针
  • 允许周边组织翻针
  • 允许脱圈和翻针合并

Options not allowed suppress the corresponding function in the control columns within the area of this knitting element.

Allowed options enable the corresponding function in the control columns within the area of the knitting element.

    4
    Make the desired settings.
    5
    Close the dialog box with .
  1. The properties are applied when using it in the pattern.
