Step by Step to Pattern-2

A pattern project with one pattern and the desired settings is created.

1: Select an existing 阿兰花 pattern element in 编织资源管理器 to draw.
- or -
Generate a private Aran diamond as a pattern element.

Selection of the needed 阿兰花 structure modules via:

编织资源管理器
快速访问
: The desired folder has to be added in 编织资源管理器 to the folder 快速访问.

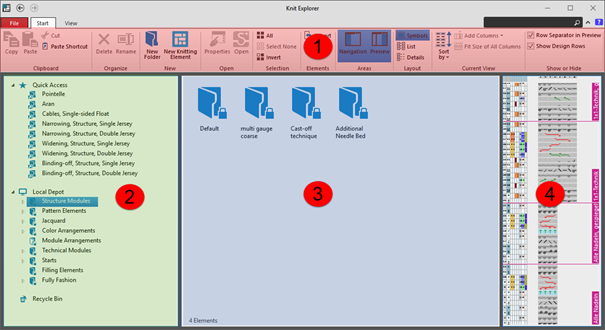

Knit Explorer

编织资源管理器

Managing all STOLL knitting elements

Pattern Elements
All types of knitting elements
STOLL knitting elements are write protected

Managing self created pattern elements and knitting elements


1	Ribbon	文件	Information about the Knit Explorer Exiting the Knit Explorer
		起头	Functions for working in the Knit Explorer
		视图	Possible settings for the Knit Explorer view
2	导航窗格	快速访问	Managing linked directories for a faster access
		编织元素记录	Managing all knitting elements / modules STOLL database (write-protected) Private database (not write-protected)
3	Display of the content of a selected folder
4	Preview of a selected knitting element / module

Marking of directories

Directory without property
Directory without content
Write-protected directory

STOLL knitting elements are write protected

Linked directory

Managing the Knitting Elements and Different Types of Knitting Elements

Managing the knitting elements in the 编织资源管理器

You will find the different types of knitting elements in the following directories:

This write-protected directories contains all the knitting elements from STOLL with their corresponding properties for each type of knitting element.
For a better structuring there are sub-directories assigned to the directories.

Types of knitting elements

花型元素
结构模块

All structures with / without transfer rows
Knitting element with connecting points

颜色排列
模块排列
提花模块
工艺模块
工艺设计模块
收针模块
多步骤收针模块
放针模块
多步骤放针模块
拷针模块
起头

2: Drawing of an Aran diamond with the drawing tools.

Select group 修改, function 多重复制.
: For easier, faster handling of the drawing tools, open the pop-up window with CTRL + Space bar.

3: Filling of the interior of the Aran diamond with Pattern element / Structure module 米粒针 with the following drawing tools and settings:

魔术棒 with corresponding settings in the group 填充 :

不覆盖边界
保持边界轮廓
覆盖边界

填充线

: The result when filling the Aran diamond depends on whether a pattern element or a structure module is used.
The use of a pattern element is recommended.

4: Select the created Aran diamond.

5: Press the keys CTRL + C.

A temporary pattern element is assigned to the cursor.

6: Draw basic pattern with the temporary pattern element.

Create the selection as a temporary pattern element with CTRL + C.
: Pattern element is not saved and can be deleted from the cursor with the ESC button.
Context menu -> 选择 -> 创建花型元素...
: Pattern element will be saved as 花型元素 and with the project.
Context menu -> 选择 -> 创建结构模块...
: Structure module will be saved as 模块 and with the project.

: Attention:
The behavior of the pattern element and module is different when working with shapes.
Recommendation:
Create the basic pattern only with pattern elements when working with shapes.

7: Import and position the existing shape Front with V-neck.

: If the basic pattern is too small for the positioning of the shape, then the size of the basic pattern will be automatically adjusted to the size of the shape.

: This adjustment always takes place with 带翻针前板线圈 .

8: Open the shape with the 线表 button.

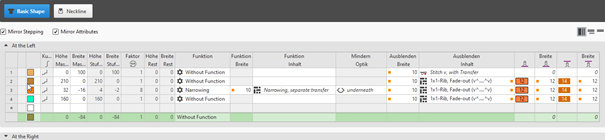

9: Make the desired changes in the basic shape and neckline:

: These changes are directly visible in the document window 设计花型 with positioned shape.

Narrowing:

Function width

10 needles (stitches)

Fade-out:

Fade-out width:

10 needles (stitches)

Fade-out content:

Shape edges in the basic shape: Knitting Element 1x1 罗纹，边缘效果 (v^....^v)
Shape edges neckline. Knitting Element 1x1 罗纹，边缘效果 (v^....^v)

	1	After cutting out the shape, the fading-out is inserted, where knitting elements are 'cut-into'.
	2	Cut into knitting elements are displayed.

	1	After cutting out the shape, the fading-out is inserted, where knitting elements are 'cut-into'.
	2	Cut into knitting elements are not displayed and are replaced by default with Front Stitch with Transfer.

Power Tension Setting (NPJ) at the shape edge:

+ :
Allocation of the desired stitch length indexes for stitch length at the front / rear
Width + Width :
Quantity of stitches for PTS (NPJ): 12 needles (stitches)

: Power Tension Setting (NPJ) is needed at the shape edge, to adjust the quality of the stitch lengths between the different structures Aran diamond and the 1x1 Rib at the shape edge.

In the document window 设计花型 switch the view to 织针区域里的前后板线圈长度.

Shape generation in the current pattern project

Tab 模型 -> Context menu 创建 M 码新模型...

Shape generation with 新建线模型项目

Basic Shape

: Ensure an even numbered height in total in the basic shape.

Neckline

Ensure an even numbered height in total in the element 开领.
V-neck starts by default with 2 needles.
A marking point with the allocation of the knitting element V领开始，交接处 is automatically set at the V-neck start.

Displaying and changing marking point properties:

In the document window

Position the cursor on a marking point in the displayed graphic -> open the context menu with RMB and select -> 标记点属性 and make the desired entries in the tool window.
With the 标记点属性 button in the ribbon, open the tool window and make the desired entries.

1	Buttons for switching between the created marking points
2	Name of the selected marking point : Name changing possible.
3	Used knitting element as marking
4	Positioning of the knitting element at the marking point
	定位点	Corresponds to the reference point in a knitting element : The reference point is at the bottom left by default.
	距离	Offset in x direction and y direction for positioning the assigned knitting element regarding the marking point depending on the set anchor point
	水平居中	Centers the assigned knitting element at the anchor point

Quantity of yarn carriers for shapes with neckline:

The row number after the start up to the beginning of the neck has to be aligned to the number of yarn carriers in use to achieve a correct knitting sequence.

Graphic presentation	Quantity of yarn carriers up to neckline	Height up to neckline
	One yarn carrier	Even-numbered
	Two yarn carriers in the same home position	odd
	Two yarn carriers in different home position	Even-numbered
: If the shape is not placed directly on the first knitting row after the start, these knitting rows outside shape will be removed.

10: Working in the dialog box 导纱器 -> 显示导纱器

可用的纱线和导纱器 Tab

Combine Yarn Carriers
If desired, allocate the yarn carriers to the yarn carrier rails manually

颜色参数 Table

Allocate the 浮线，锁定，织物边缘 module as attribute to the yarn carrier of the left shoulder

Open the Yarn Carrier document window:

: The motive is created in the 设计花型.

Click the 导纱器 button under 预览 in the 起头 ribbon.
The New Pattern xx document window is opened as view and the 导纱器 ribbon appears.
Make the desired settings for the view of Yarn Carriers the status bar:

导纱器颜色作为背景
	Switching the view between the different pattern colors : Only with certain pattern colors available.

显示编织带出
	inactive	Knitting-out of the yarn carriers is not displayed in the graphic.
	Active	Knitting-out of the yarn carriers is displayed in the graphic. : The knitting-out is displayed as marking with specified direction at the corresponding side of the area.

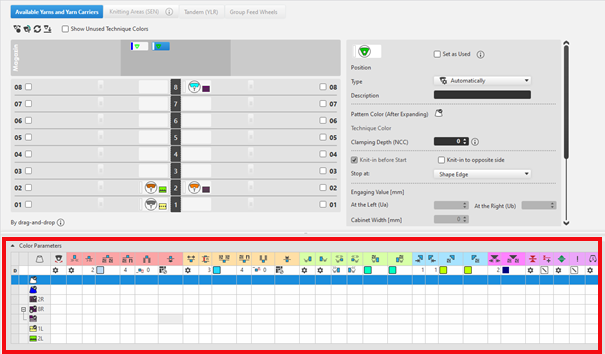

Table 颜色参数

You can make the desired presettings for the colors used in the pattern (color areas) within the 颜色参数 table.

Open the 颜色参数 table:

With the 导纱器 button open the document window (Pattern name) in the ribbon.
Open the dialog box via 显示导纱器.

For each color in the pattern color tables used in the design pattern, a color area is created in the color parameter table.
This means that you can make presettings only once for this color area.
For pattern related, different changes of a color area sub-colors must be created. You have to draw them manually in the design pattern at the point to be changed.
Then, other specifications can be set in the color parameter table.
Make the desired presettings for the corresponding color:

Knitting-in and out
Change the starting direction of a color (yarn carrier)
Knot or binding at start or end of a color
Border Processing
etc.

Apply the modifications of the Color Parameter table to the pattern:
编辑 group -> 应用
- or -
编辑 group -> 应用并关闭

Functions of the 编辑 ribbon

	同步	将设计花型中的更改应用到导纱器视图上并把两个视图同步到花型的当前状态。
	应用	将导纱器更改应用到设计花型上。其他更改（例如颜色参数）将一次应用。
	应用并关闭	将导纱器更改应用到设计花型上然后关闭视图。其他更改（例如颜色参数）将一次应用。
	取消并关闭	忽略更改并关闭导纱器视图。 Close with 取消并关闭 if you only opened the Yarn Carrier view for control.

Adjust the display of the columns in the 颜色参数 table:

Move the cursor to the first row of the table header.
Open the context menu with RMB.


选择列	Adding or closing the desired columns in the selection list.
显示使用列	Display of the columns used in the pattern
显示所有行	Display all of the columns

隐藏该组	Hide all columns allocated to a group (color coded)
隐藏该列	Hide the individual column at cursor position

Structure and column headers of the 颜色参数 table:

Group 1: General / Table header:

1st row:
All the symbols identifying the table columns
2nd row D
Default settings for the respective column
Settings from the STOLL file - cannot be modified at the moment

Default settings are applied from a STOLL file and cannot be modified at the moment.
These are automatically applied to all colors without specifications.


Group 1: General

1. Column		Entry D for the definition of the 2nd row of the table (D = Default settings for the table columns)
2. Column		Display for available sub-colors
	颜色	Display of all the colors used in a project Symbol and color: Not visible but used within the design pattern. Symbol and color + : Visible and used within the design pattern. : The symbols show the type of pattern color.
	导纱器编织一个多系统颜色	Specifications with multi-system knitting
	导纱器编织一个添纱颜色	Specifications with plating
	摆动	Settings for the swivelling of intarsia yarn carriers or of autarkic yarn carriers
	Quantity of pattern rows for knitting-out, SEN edge and clamping Define the distance from the end of the color field to the knitting-out, to the shifting to SEN edge or to the clamping.	Specify the maximum distance between the color fields of the yarn carrier. If this value is exceeded, one of the intended actions will take place: Knitting-out the yarn carrier Move the yarn carrier to the SEN border Clamp Yarn Carrier

Group 2: Knitting-in

	开始方向	Specification of the knitting direction for the first row of a color (color area)
	无编织带入列数	Quantity of columns (wales) without knitting-in module
	编织带入模块	Specification of the knitting mode for knitting-in : The module for knitting-in has two functions: Repeatable knitting mode for feeding-in the yarn carrier Knitting mode for knot or binding at the edge of the color area
	编织带入重复宽度	Presetting of the module width in total for the knitting mode of feeding-in the yarn carrier : The module width is repeatable.
	移动脱布行	Column appears automatically if a module for knitting-in with casting-off is used
	编织带入的行偏移	Knitting-in of the yarn carrier by x rows before the beginning of the color area Related to: 花型行 Default Setting 工艺行在一个额外行
	起头处锁定或打结	Presetting a module for knot / binding at start of a color area without knitting-in. : Entry in intarsia color areas, without assigned knitting-in module and thus no knitting-in is entered. Example: Two overlapping color areas without knitting-out and knitting-in.
	打结编织带入的列偏移	Move the position of a knot (module) by x columns to the left or right. : This column is displayed automatically if a module is allocated in the 起头处锁定或打结 column.

The direction of knitting-in of a yarn carrier is always carried out from last position.

Group 3: Knitting-out

	编织带出方向	Preset of the direction for knitting-out of the yarn carrier at the end of a color area
	编织带出模块	Preset of the knitting mode (module) for knitting-out : The module for knitting-out has two functions: Example Repeatable knitting mode for feeding-out the yarn carrier Knitting mode for knot or binding at the edge of the color area
	编织带出重复宽度	Presetting of the module width in total for the knitting mode of feeding-in the yarn carrier : The module width is repeatable
	移动脱布行	Column appears automatically if a module for knitting-out with casting-off is used
	编织带出的行偏移	Knitting-out of the yarn carrier by x rows after the end of the color area Related to: 花型行 Default Setting 工艺行在一个额外行
	结束处锁定或打结	Presetting a module for knot / binding at end of a color area without knitting-out. : Entry in intarsia color areas, without assigned knitting-out module and thus no knitting-out is entered. Example: Two overlapping color areas without knitting-out and knitting-in.
	打结编织带出的列偏移	Move the position of a knot (module) by x columns to the left or right. : This column is displayed automatically if a module is allocated in the 结束处锁定或打结 column.

Group 4 : Intarsia Binding

	左侧嵌花锁定	Presetting of a binding or no binding at the left border of the color area
	右侧嵌花锁定	Presetting of a binding or no binding at the right border of the color area
	左侧嵌花锁定方向	Specification for inserting the Binding module at the left border of the color area depending on the carriage direction 编织带入加锁定 Binding at the left at the beginning of a knitting row 编织带出加锁定 Binding at the left at the end of a knitting row
	右侧嵌花锁定方向	Specification for inserting the module Binding at the right border of the color are depending on the carriage direction 编织带入加锁定 Binding at the right at the beginning of a knitting row 编织带出加锁定 Binding at the right at the end of a knitting row
	左侧嵌花锁定模块	Presetting of the knitting mode for binding at the left border of the color area
	右侧嵌花锁定模块	Presetting of the knitting mode for binding at the right border of the color area

Group 5: Border Processing

	左侧无边界处理的允许收放针	Maximum number of needles when widening at the left border of the color area without automatic border processing. : No module is inserted.
	右侧无边界处理的允许收放针	Maximum number of needles when widening at the right border of the color area without automatic border processing. : No module is inserted.
	左侧边界处理模块	Presetting of the knitting mode for the border processing (feeding) in case of large widenings (stepping) of the color area : With steppings greater than the setting in the 左侧无边界处理的允许收放针 column.
	右侧边界处理模块	Presetting of the knitting mode for the border processing (feeding) in case of large widenings (stepping) of the color area : For steppings which are larger than the settings in the 右侧无边界处理的允许收放针 column.

Group 6: Multi Gauge

	允许的粗针多针距行收放针	Allowed number of needles when widening at the left and right border of the color area without automatic border processing. : No module is inserted.
	多针距从粗到细的边界处理模块	Presetting of the knitting mode for the border processing (feeding) in case of large widenings (stepping) of the color area and as transition : For steppings which are larger than the setting in the 允许的粗针多针距行收放针 column

Group 7: Miscellaneous

	夹持	Presetting for the yarn carrier, when it is to be clamped after knitting its color area.
	延迟夹纱	Without Delay n 个花型行之后夹持 n 个工艺行之后夹持
	打开夹纱装置	n 行之后打开夹纱装置自动
	SEN 边缘	Specifications for positioning the yarn carrier during the knitting SEN边缘 Stop at the SEN edge W 等待位置 Parking (waiting position) at the fabric selvedge with an additional distance (needles). 无操作 Default Setting
	系统（与方向无关）	Selection of a knitting system for the selected color area 左侧第一系统左侧第二系统左侧第三系统 … : The yarn carrier is always knitted by the same system. The system specification changes depending on the carriage direction.
Group 8
说明		有关条目应用的注释。您可以在这里输入文本。 Comment about the color area

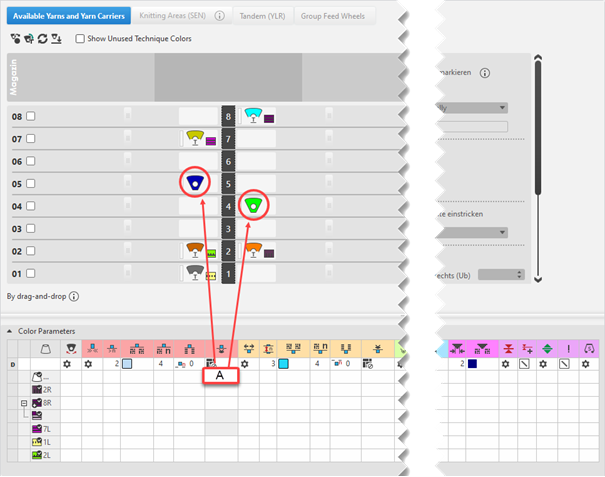

Standard behavior by the yarn carrier allocation

On the left side (shoulder) an additional yarn carrier is required for the yarn color #1 in shapes with neckline (shape element outside shape). It will be knitted-in from left by default at the start of the shoulder.

: In this knitting situation it might happen that the yarn does not lay-in correctly at the fabric selvedge.

: A row is created in the Color Parameter table for the Yarn color #1 in which the desired attributes A can be allocated.
These attributes are valid for both yarn carriers 4R and 5L.

:
If there is the necessity to allocate other attributes to the yarn carrier of the left shoulder, there has to be another yarn color or a sub-color of the main color available in the table 颜色参数.

Creating Sub-colors within the Different Tables of Pattern Colors

Possible in the following tables:

纱线颜色
库颜色
工艺颜色
导纱器颜色

: You can create sub-colors in each of these tables in the same way.

Creating Sub-colors:

: Be sure to create the sub-color for a main color used in the pattern only, as no additional yarn carrier should be added to the pattern.
With the help of the sub-color, you can allocate others attributes to a yarn carrier.

Position the cursor to the main color in use (e.g. yarn color #1) in the tool window 花型颜色 / 纱线颜色.
The icon appears beside the symbol.
Click the icon.
The input panel for the sub-color appears.
Click on the icon.
A new empty sub-color will be created and selected.
If required:
Call up the 改变颜色值... context menu in order to change the color.
- or -
Delete the sub-color by 删除子颜色.
If required, create additional sub-colors for the same main color.
- or –
Switch to another main color in order to add sub-colors.
Select sub-color und draw it into the area of 设计花型 for which different specifications are necessary.
The sub-color will be marked by the icon and appears in the color parameter table.
Allocate the 浮线，锁定，织物边缘 module to the sub-color 1/1.

Modified Design Pattern	Yarn Carrier View


: A row is created in the 颜色参数 Table for the main color of the yarn color #1 (yarn carrier 4R) in which the desired attributes A can be allocated. A row is created in the 颜色参数 Table for the sub-color of the yarn color #1 (yarn carrier 5L) in which the desired attributes B can be allocated.

11: Start Technical Processing:

Show symbol view after technical processing.

12: Generate Sintral.

13: Start Sintral Check

14: Extract knitting program.

A program for the knitting machine will be created: CMS530.Pattern-2.zip.

15: Load knitting program into the machine.

: The extracted file CMS530W.Pattern-2.zip can be loaded onto the machine with an USB stick or via Ethernet.

Step by Step to Pattern-2

Working with Knit Explorer and Quick Access

Information about the Knit Explorer

Knit Explorer

Directories in the Knit Explorer

Marking of directories

Managing the Knitting Elements and Different Types of Knitting Elements

Managing the Knitting Elements and Different Types of Knitting Elements

Types of knitting elements

General Handling of the 'Multi-Copy' Drawing Tool

Generate a private Aran diamond

Fill the interior of the Aran diamond with the desired structure

Possibilities to create pattern elements and structure modules from a selection

Behavior of the knitting elements in the basic pattern when fading-out

Activate display of Power Tension Setting in the document window Design Pattern

Shape editing: Import of a shape and change of the shape attributes

Options for creating a lined shape based on the shape example

Shape generation via 'New Lined Shape Project'

Line table Basic Shape

Line Table Neckline

Displaying and changing marking point properties

Displaying and changing marking point properties:

Specifications for the yarn carrier for shapes with neck

Quantity of yarn carriers for shapes with neckline:

View in the Yarn Carrier document window

Open the Yarn Carrier document window:

Working in the Color Parameter table

Table 颜色参数

Open the 颜色参数 table:

Functions of the 编辑 ribbon

Adjust the display of the columns in the Color Parameter table

Adjust the display of the columns in the 颜色参数 table:

Structure and column headers of the Color Parameter table

Structure and column headers of the 颜色参数 table:

Explanation group 2: Knitting-in

Explanation group 3: Knitting-out

Explanation group 4: Intarsia Binding

Explanation group 5: Border Processing

Explanation group 6: Multi Gauge

Explanation group 7 and 8: Miscellaneous and description

Allocation of attributes in the Color Parameter table

Options to add sub-colors

Creating Sub-colors within the Different Tables of Pattern Colors

Creating Sub-colors

Creating Sub-colors:

All steps of the pattern creation 'Pattern-02'

其他信息
