Step by Step to Pattern-6

    1
    A pattern project with one pattern and the desired settings is created.
    2
    Select an existing pattern element in the 编织资源管理器 -> 编织元素记录 -> 花型元素 -> 花型元素，满针 -> 花型元素，提花 to draw.
    - or -
    Draw a private motif in the basic pattern with 纱线颜色 and save as pattern element.
    3
    Draw the desired 2 and 3 color Jacquard areas with the corresponding pattern element over the entire working width (Block Jacquard) into the basic pattern.
    4
    Generate a row selection over the desired area e.g. area (1) for 提花，浮线.
    5
    Positioning the cursor in the pattern area.
    6
    Call-up the 选择 / 创建提花... context menu.
  1. The 创建提花 [新花型] dialog box appears.

Description to the dialog box

1

Display of the active document window 设计花型, for which the dialog box is valid.

2

颜色顺序和线圈长度

Display or edit box for the stitch length per color / rear system

: Depends on the selection under 线圈长度 ((4)).

Display of the used colors in the selection in the color sequence from the left

Display or edit box for the stitch length per color / front system

: Depends on the selection under 线圈长度 ((4)).

第二颜色顺序

Default Setting
The color sequence is the same as in the first pattern row

Definition of the color sequence for the second pattern row is possible

: Input panel for the color sequence of the second pattern row

3

提花模块

Displays the selected Jacquard module.

: Position the cursor in the display, to use the LMB to open the 编织资源管理器.

Display of the path of the selected directory in the 编织资源管理器

Selection list for selecting the desired Jacquard module in the specified directory

提花

4

颜色

Selection list for the knitting sequence of the colors

  • 连续
  • 每行最少颜色数
  • 每行和每列最少数量（跳纱）

5

线圈长度

Selection list for the stitch length

  • 花型的
  • 模块使用
  • 用户自定义
    Make presettings at and / or .

6

提花图

Selecting the desired face of picture of Jacquard

  • Jv: 图案正面
  • J^: 图案背面
  • Jv^: 图案前面和背面
    : Not with all Jacquard modules available

提花背面

7

减小宽度

Specification in case of Jacquard with yarn bridges, by how many needles the back side is to be narrower then the face of picture

8

横向移动

Specification by needles for shifting the Jacquard horizontally

9

创建提花

The presets made in the dialog box will be applied to the pattern.

Changing the default settings for Block Jacquard:

: A module for net pick-up and net ending are assigned by default to each area with Block Jacquard in the 花型项目.

Possibilities for changing the module allocation:

  • In 配置 -> Jacquard tab -> Block-Jacquard section
    : Changes will apply to all patterns of the 花型项目 .
  • Select 提花 in the ribbon.
    : Individual changes regarding the desired Jacquard area
  • Select the context menu -> 打开提花...
    : Individual changes regarding the desired Jacquard area
    7
    Make the desired presets in the 创建提花 [新花型] dialog box.
    8
    Apply the presets to the pattern with the 创建提花 button.
    9
    Continue:
    Create the next row selection for a new Jacquard area.
    - or -
    Exit working in the dialog box by 关闭.
  1. The different Jacquards are displayed with different symbols in the pattern and are listed in the 提花 tool window for another edit.

Direct selection of a Jacquard module in the pattern:

  1. In the pattern there are Jacquard modules in use.
    1
    Position the cursor in a Jacquard area with an inserted Jacquard module.
    2
    Apply the Jacquard module with the F5 key.
    3
    Enter the selected Jacquard module via the control columns in the entire pattern width or only in an area within the pattern.
  1. The selected Jacquard module is inserted in the pattern and in the 提花 table.

: Pay attention whether the exact same colors are in use in the area to be entered or not!

  • Used exactly the same colors -> The Jacquard areas will be grouped in the table.
  • Used different colors -> A new entry is added in the table.

Selection of a Jacquard module in the Jacquard table:

  1. In the pattern there are Jacquard modules in use.
  2. All the Jacquard modules in use are contained in the table.
    1
    In the 起头 ribbon under 参数, open the 提花 tool window with .
    2
    Select the desired Jacquard in the 提花 tool window in the column.
    : Pay attention to the Jacquard colors in use!
    3
    Enter the selected Jacquard module via the control columns in the entire pattern width or only in an area within the pattern.
  1. The following message appears:
    在绘制区域内至少一个颜色不包含在提花表中。 区域将连接与一个匹配的提花相连。如果没有匹配提花可用，将生成一个新提花。
    2. 4
    Confirm message with:
  • 确定
    -> A new Jacquard with the missing color is created in the table.
  • 取消
    -> No Jacquard module will be inserted.

Used Jacquards in Pattern-6

1

提花，浮线

1 row single jersey

1 row double jersey (for shaft)

2

提花，无翻针浮线

: Shaft

2 rows single jersey

3

提花，网眼1x1

1 row single jersey

1 row double jersey

2

提花，无翻针浮线

: Shaft

2 rows single jersey

4

提花，网眼1x2

1 row single jersey

1 row double jersey

2

提花，无翻针浮线

: Shaft

2 rows single jersey

5

提花，网眼1x3

1 row single jersey

1 row double jersey

2

提花，无翻针浮线

: Shaft

2 rows single jersey

6

芝麻点提花

1 row single jersey

1 row double jersey

2

提花，无翻针浮线

2 rows single jersey

7

横条提花

8

Any number of rows single jersey

: It is necessary to pay attention when drawing, that not too many colors (yarn carriers) are used depending on the selected machine.

    10
    To process inserted Jacquards, open the selection list in the 起头 ribbon at 工具窗口 and select 提花.
    - or -
    Open the context menu in the Jacquard area in the pattern and click 打开提花....
  1. The 提花 tool window is opened.
    2. 11
    Make the desired changes in the table.

Edit inserted Jacquards:

  1. In the pattern there are areas with inserted Jacquard modules.
    1
    In the 起头 ribbon under 参数, open the 提花 tool window with .
    - or -
    Open the context menu in the Jacquard area in the pattern and click 打开提花....
  1. The 提花 tool window is opened.

1

选择花型中所选表项

The Jacquards selected in the table are not displayed as selection in the pattern.
: Selection via the first column in the table.

The Jacquards selected in the table are displayed as selection in the pattern.

ID

Consecutive numbering of the Jacquard areas

2

For drawing a Jacquard module in the pattern

  • The Jacquard area has the same colors as the selected Jacquard:
    No other entry necessary in the table
  • The Jacquard area has different colors from the selected Jacquard:
    Another entry necessary in the table

Index Color: Use in the search area of a Color Arrangement with the marking 'Jq'

: If there exist several patterns in the pattern project, the color is marked according to the active document (pattern) with (使用).

3

提花模块

: 提花背面的编织元素

  • Name of the Jacquard module with the 'L' identifier for local
  • Display of the assigned knitting element color under 属性

4

颜色顺序
: 提花背面的颜色顺序

Display for the color sequence for the first and second pattern row if 第二颜色顺序 is not active.

5

第二颜色顺序
: 用于提花背面每第二行的第二颜色顺序

Display for the color sequence for the second pattern row if 第二颜色顺序 is active.

6

线圈长度

Specification for the stitch length which is to be used in the pattern:

  • 花型的
  • 模块使用
  • 用户自定义

7

X 偏移
: 水平移动提花背面的起始点

Value in needles for the horizontal offset of a Jacquard module

8

提花背面缩减
: 提花背面相对正面缩减 n 针

Input value in needles, regarding how many needles the Jacquard back side is to be narrower in relation to the picture side when inserted.

9

提花图
: 提花图形正面位于前针床或后针床

  • 前
  • 后
  • 前和后

10

网眼起针，拼块提花
: 用于拼块提花的网眼起针

Display of the knitting elements in use for the net pick-up with continuous Jacquards (Block Jacquard).

11

网眼起针颜色

Specification of the color (yarn carrier) which is used for the net pick-up knitting element.

12

拼块提花网眼结束
: 用于拼块提花网眼结束

Display of the knitting elements in use for the net ending with continuous Jacquards (Block Jacquard).

13

网眼结束颜色

Specification of the color (yarn carrier) which is used for the knitting element

14

网眼起针，嵌花提花
: 用于嵌花提花的网眼起针

Display of the knitting elements in use for the net pick-up with Intarsia with Jacquard back (placed Jacquard back).

15

删除选中提花

The selected Jacquard is deleted in all the pattern where it is in use.

16

颜色顺序和线圈长度

Display or edit box for the stitch length per color / system for rear needle bed

: Depends on the selection under 线圈长度 ((6)).

Display of the color sequence from the left for the Jacquard area selected in the table

Display or edit box for the stitch length per color / system for front needle bed

: Depends on the selection under 线圈长度 ((6)).

添加新颜色

第二颜色顺序

Default Setting
The color sequence is the same as in the first pattern row

Definition of the color sequence for the second pattern row is possible.

:
The input panel for the color sequence for the second pattern row is displayed.

17

带有当前提花的花型

List of the patterns, where the Jacquard selected in the table is in use.

: Attention:
By default, the Jacquard areas with the same Jacquard module and the exact same colors are grouped.

Ungroup the grouped Jacquard areas.

: Necessary, if different settings must be made for the Jacquard areas.

The inserted Jacquard module will be removed from the area in the pattern or pattern element.

Result:
In the pattern area or in the pattern element, no Jacquard module is attached anymore.

    2
    Select the Jacquard to be changed in the table.
    3
    Activate 选择花型中所选表项 if necessary.
  1. The Jacquard selected in the table will be displayed as a row selection in the design pattern.
    2. 4
    Make the desired changes in the tool window.
    5
    Close the tool window with X.
  1. The changes will be applied to the pattern.

Normally, in a Jacquard area, the number of colors found in the design pattern are knitted on the Jacquard back. In special cases it is necessary to knit in an additional thread (color = yarn carrier) on the Jacquard back.
An additional color is added to the Jacquard area for this purpose.

Addition of an additional color:

: The colors identified with knit only on the Jacquard back.

  1. In the pattern there are Jacquard modules in use.
  2. All the Jacquard modules in use are contained in the table.
  3. The 提花 tool window is open.
    1
    Select a Jacquard in the first column of the 提花 tool window.
  1. The color sequence is displayed in the tool window under 颜色顺序和线圈长度.
    2. 2
    Select an additional color in the edit box at the end of the displayed color sequence using the selection list from the 花型颜色 tool window.
  1. The additional color is added to the color sequence and identified with .

Deleting an additional color marked with :

: The colors identified with knit only on the Jacquard back.

  1. In the pattern there are Jacquard modules in use.
  2. All the Jacquard modules in use are contained in the table.
  3. The 提花 tool window is open.
    3
    Select a Jacquard with additional colors in the first column of the 提花 tool window.
  1. The color sequence is displayed in the tool window under 颜色顺序和线圈长度.
    2. 4
    Position the cursor on the additional color -> click the 删除颜色 context menu.
  1. The additional color is removed from the color sequence.
    12
    To create a project-related lined shape, select the 模型 tab in the tool window.
    13
    Open the context menu with RMB and select 创建 M 码新模型... .
  1. The 新线模型 tool window appears.
    2. 14
    Make the desired entries:
    15
    Confirm with the OK key.
  1. The new lined shape (basic shape) is graphically displayed in the 模型 tab and in a new document window New shape xx [size x] as rectangle.

: Default attributes are used for the shape edges of the lined shape.
Menu 文件 -> 选项 -> 线模型 -> 新建线模型选项

    16
    To create a lined shape based on the displayed rectangle in the ribbon 模型编辑 under 属性, click the 线表 button.
    - or -
    Use the graphic displayed in the New shape xx [size x] document window.

: The method (table or graphic) to create a project-related lined shape is freely eligible, since the views are always updated simultaneously.

    17
    Open 线表 in the ribbon.

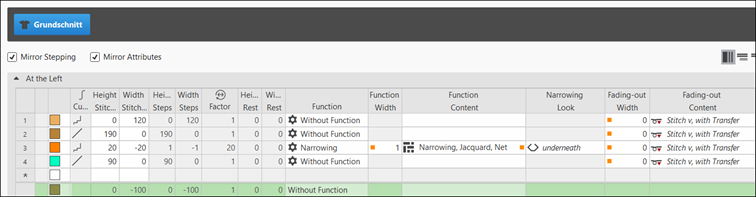

  1. The table 线模型 with the values of the rectangular shape is displayed.
    2. 18
    Insert new shape lines in the table and enter the desired values for the basic shape.
  2. Standard attributes from configuration are assigned to those shape lines.

Example: Lined shape for 'Pattern-6'

Basic Shape: Front

Rules for creating a shape for the jacquard knitting mode with different backs:

Example Front:

Shape Attributes

Rules / possible settings

Knitting Mode:

Different color jacquards

Step width of widening

1 Stitch

Step height of widening

As desired

Quantity of rows without shape modification

As desired

Step width when narrowing

Single-jersey Jacquards (float): 1-3 stitches

Double Jersey Jacquards (Stripe, Twill, Net): 1 Stitch

Step height when narrowing

As desired

Fading-out Width

As desired

Standard: 2 needles

: The motif colors at the border are automatically faded-out and knitted in 1x1.

Knitting mode for fading-out

Module 边缘效果，提花，浮线，背面网眼

Binding-off width:

Single-jersey Jacquards: from 4 stitches

Double Jersey Jacquards:from 2 stitches

Binding-off methods

Single-jersey Jacquards:

  • Binding-off, Structure, Single Jersey
    • Binding-off, SJ, 01
    • Binding-off, SJ, 02

Double Jersey Jacquards:

  • Binding-off, Structure, Double Jersey
    • Binding-off, DJ, 01
    • Binding-off, DJ, 02
    19
    Allocate the desired attributes to the shape lines:

: To fade-out with patterns with Jacquards, a corresponding 边缘效果，提花，浮线，背面网眼 module is used.

    20
    Check shape lines, attributes and if desired make corrections.
    21
    In the New Shape xx [Size x] document window, select the desired shape line with the graphic shape presentation.
    22
    Position cursor on the selected shape line.
    23
    Select LMB -> 线属性 context menu.
  1. The 线属性 tool window is opened for the selected shape line.
    2. 24
    Make the following entries under the 提花 (浮线 / 网眼) section:
    25
    In the 模型 tool window select the created shape with LMB.
    26
    Open the context menu -> 定位模型 -> select Pattern name.
  1. The shape is floating in the selected basic pattern.
    2. 27
    Position the shape in the document window with the button.
    28
    Start Technical Processing:
    29
    Generate Sintral.
    30
    Start the Sintral 检验.
    31
    提取 the knitting program.
  1. A program for the knitting machine will be created: CMS530.Pattern-6.zip.
  2. Load knitting program into the machine.

: The extracted file "CMS530.Pattern-6.zip" can be loaded onto the machine with an USB stick or via Ethernet.
