Border Processing for Block Jacquard without Shape

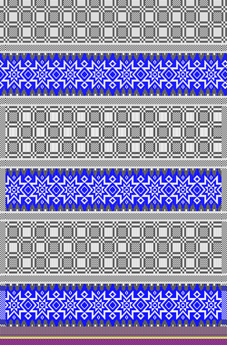

Block Jacquard without border processing

Block Jacquard with border processing

The border processing for Block Jacquard with Jacquards with Float or Net rear sides is worked with the 边缘效果，提花，浮线，背面网眼 fade-out module.

: With rear sides knitted on all needles, no border processing is entered.

Stoll technical module with border processing for Block Jacquard

Border processing for Block Jacquard in pattern without shape:

: Attention:
If the pattern is saved, then the border processing cannot be undone.
Because of this, save the pattern project under a different name before the border processing or duplicate the design pattern in the pattern project.

  1. Pattern project with a design pattern is created.
  2. Jacquard areas are drawn into the basic pattern.
  3. Jacquard backs are inserted.
    1
    Open the selection list in the 起头 ribbon under 对话 with the button and select 拼块提花边界处理....
    -  or  -
    In the design pattern, select with LMB -> context menu -> 边界处理 -> 拼块提花边界处理....
  1. The 拼块提花边界处理 dialog box appears.

搜索区域

The border processing will be entered in the whole pattern

Border processing only in the selected rows

提花织片的边缘组织

Display of the knitting element

Selection of the 边缘效果，提花，浮线，背面网眼 technical module for the border processing

: Fade-out module: Knitting technique single jersey

宽度

Desired fade-out width for the border processing in needles

:
Default Setting: 2 Needles wide
the border curls up with a fade-out width bigger than 2 needles.

    2
    Make the desired presets in the dialog box.
    3
    Tap the 应用 key.
  1. The desired border processing will be entered and displayed in the design pattern.
    2. 4
    After entering all necessary border processings in the design pattern, close the dialog box with .
    5
    If necessary, to view open the Expanded Symbol View.
    6
    Start the 工艺 处理:
    Show symbol view after Technique.
    7
    Generate Sintral.
    8
    Start the Sintral 检验.
    9
    提取 the knitting program.
  2. A program for the knitting machine will be created.
  3. Load knitting program into the machine.

: The extracted file can be loaded onto the machine with an USB stick or via Ethernet.

Procedure with the pattern creation:

: With this possibility, the border processing can be changed or deleted with easy steps. A square shape in the size of the design pattern is created for this purpose.

  1. Pattern project with a design pattern is created.
  2. Jacquard areas are drawn into the basic pattern.
  3. Jacquard backs are inserted.
    1
    To create a project-related lined shape, select the 模型 tab in the tool window.
    2
    Open the context menu with RMB and select 创建 M 码新模型....
  1. The 新线模型 tool window appears.
    2. 3
    Make the desired entries:
  • 模型名称 : Any
  • 输入格式 : Stitch
    4
    Confirm with the OK key.
  1. The new lined shape (basic shape) is graphically displayed in the 模型 tab and in a new document window New shape xx [size x] as rectangle.
    2. 5
    To adjust the displayed rectangle to the size of the basic pattern, in the ribbon 模型编辑 under 属性, click the 线表 button.
    - or -
    Use the graphic displayed in the New shape xx [size x] document window.
    6
    Open 线表 in the ribbon.
  2. The table 线模型 with the values of the rectangular shape is displayed.
    3. 7
    Adapt the values in the table to the size of the basic pattern.
    8
    Allocate the desired attributes to the shape lines:
  • Fade-out width: Set value to 0, since the different Jacquard areas are not to be hidden with 线圈 v，带翻针.
    9
    In the New Shape xx [Size x] document window, select the desired shape line with the graphic shape presentation.
    10
    Position cursor on the selected shape line.
    11
    Select LMB -> 线属性 context menu.
  1. The 线属性 tool window is opened for the selected shape line.
    2. 12
    Make the following entries under the 提花 (浮线 / 网眼) section:
  • Content: Select 边缘效果，提花，浮线，背面网眼 Fade-out Module.
  • Width: specify the desired fade-out width.
    • Default setting: 2 Needles wide
      Attention: The fade-out width is also executed in the rows of the net pick-up and the net ending.
    13
    In the 模型 tool window select the created shape with LMB.
    14
    Open the context menu -> 定位模型 -> select Pattern name.
  1. The shape is floating in the selected basic pattern.
    2. 15
    Enable the button of the document window.
    16
    Start the 工艺 处理:
    Show symbol view after Technique.
    17
    Generate Sintral.
    18
    Start the Sintral 检验.
    19
    提取 the knitting program.
  1. A program for the knitting machine will be created.
  2. Load knitting program into the machine.
