Step by Step to Pattern-8

  1. A pattern project with one pattern and the desired settings is created.
  2. The image was reduced to 3 colors in the 图像导入 dialog box and was saved on the clipboard as a pattern element.
    1
    Select the tab in the 花型元素 tool window.
    2
    Position the cursor in the tool window.
    3
    Open the context menu with RMB.
    4
    Using Insert (Ctrl+V) save the image from the clipboard in the tool window.
  1. Image with name and image size is displayed.
    2. 5
    Select image.

: Modify the pattern element (image), if desired, to avoid unnecessary knit-in and knit-out rows!

    6
    Position image in the 设计花型.

: If necessary for the better positioning of the image, save the shape in advance in 设计花型 (floating).

    7
    To create a project-related lined shape, in the tool window change to the 模型 tab.
    8
    Open the context menu with RMB and select 创建 M 码新模型....
  1. The 新线模型 tool window is opened.
    2. 9
    Make the desired entries:
    10
    Confirm with the OK key.
  1. The new lined shape (basic shape) is graphically displayed in the 模型 tab and in a new document window New shape xx [size x] as rectangle.

: Default attributes are used for the shape edges of the lined shape.
Menu 文件 -> 选项 -> 线模型 -> 新建线模型选项

    11
    To create a lined shape based on the displayed rectangle in the ribbon 模型编辑 under 属性, click the 线表 button.
    - or -
    Use the graphic displayed in the New shape xx [size x] document window.

: The method (table or graphic) to create a project-related lined shape is freely eligible, since the views are always updated simultaneously.

    12

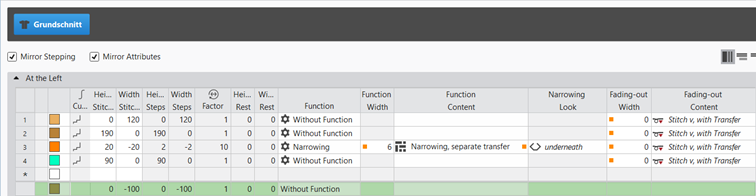

    Insert new shape lines in the table and enter the desired values for the basic shape.
  1. Standard attributes from configuration are assigned to those shape lines.

Example: Lined shape for Pattern-8

Basic Shape: Front without neckline

Rules for creating a shape for the knitting mode SJ:

Example Front:

Shape Attributes

Rules / possible settings

Knitting Mode:

Single Jersey

Step width of widening

1 needle (stitch) per knitting row

Step height of widening

As desired

Quantity of rows without shape modification

As desired

Step width when narrowing

1 - 3 needles (stitches)

Step height when narrowing

As desired

Fading-out Width

As desired

Knitting mode for fading-out

Front Stitch with Transfer

Binding-off width:

Stepping > 3 stitches

Binding-off methods

Binding-off, Structure, Single Jersey

  • Binding-off, SJ, 01
  • Binding-off, SJ, 02
    13
    Allocate the desired attributes to the shape lines of the shape.
    14
    In the 模型 tool window select the created shape with LMB.
    15
    Open the context menu -> 定位模型 -> select Pattern name.
  1. The shape is floating in the 设计花型.
    2. 16
    To position the shape in the Editing Layers user control, change from the 编辑基本层 to the 编辑线模型 (Y).
    17
    If necessary, use to position the floating shape in the 设计花型.
    18
    Using the Editing Layers user control, change back from the 编辑线模型 (Y) to the 编辑基本层.
    19
    In the control column, create a row selection over the whole height of the image.
    20
    Position cursor in the image area.
    21
    Open the context menu with RMB.
    22
    Under 选择 -> select 创建提花....

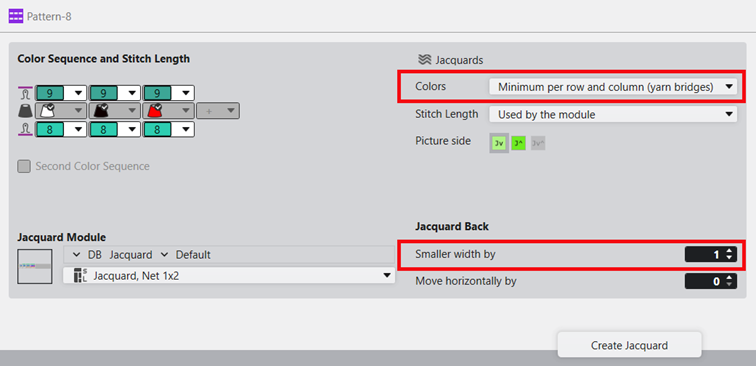

  2. The 创建提花 dialog box appears.

    23
    Make the desired settings:
    24
    Apply the presets with the 创建提花 button into the design pattern.
  1. The selected Jacquard module is displayed in the 设计花型.
    2. 25

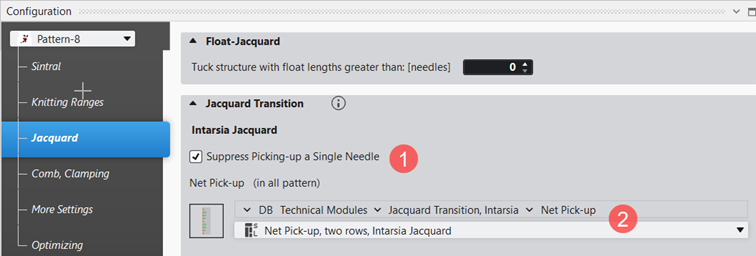

    For further presets, open the dialog box in the ribbon under 配置 -> 配置.
    26
    In the 配置 dialog box, select the 提花 tab.
    27
    Under the 提花过渡 -> 嵌花提花 section, make the desired settings.

1

忽略一针起针

Default Setting

: With Jacquard rows where the rear side starts with only one needle, the selected technical module for the net pick-up is not entered.

With Jacquard rows where the rear side starts with only one needle, the selected technical module for the net pick-up is entered.

2

Selection of the desired technical module for net pick-up.

    28
    Open the 导纱器 tool window to edit the presets for the yarn carriers.
    29
    In the 颜色参数 table make the desired changes in the following groups:
    30
    Make the desired changes in the following control columns:
    31
    Start the 工艺 处理.
    32
    Generate Sintral.
    33
    Execute Sintral 检验.
    34
    提取 the knitting program.
  1. A program for the knitting machine will be created: CMS530.Pattern-8.zip
    2. 35
    Load knitting program into the machine.

: The extracted file CMS530.Pattern-8.zip can be loaded onto the machine with an USB stick or via Ethernet.
