Border Processing with Intarsia Jacquard

:
Due to the motif and the inserted jacquard back, adjustments to the back of the jacquard may be necessary at the border regarding the carriage direction.

Options of border processing with Intarsia Jacquards:

Example:

Processing steps for the border processing

Recommendation:
Edit the border processing and net end following each other as the pattern will be modified by the border processing.
This change can affect the net ending and require a 网眼结束 module to be inserted.

  1. A Jacquard back is applied to the a selected Jacquard area.
  2. A row selection in the height of the motif is created.
    1
    In the ribbon under 对话 -> click on 边界处理
    - or -
    Place the cursor in the pattern area of the design pattern -> open the context menu with RMB.
    2
    Select 嵌花提花的边界处理....

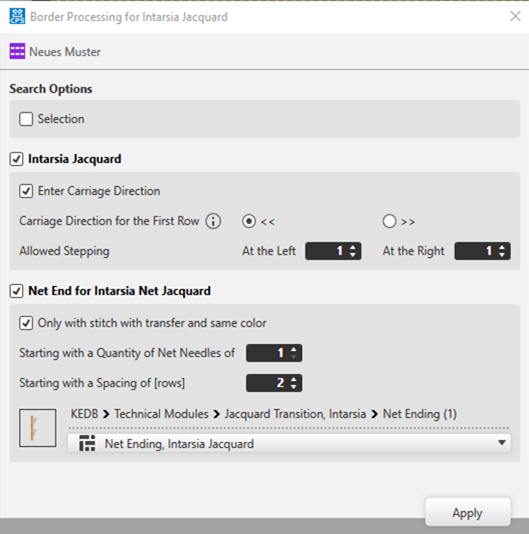

  1. The 嵌花提花的边界处理 dialog box appears.

嵌花提花的边界处理 - pattern name

Search Options

Edit the border processing of the Jacquard areas within the whole pattern.

Border processing only of the Jacquard areas within a selection.

: Multiple selection is possible.

嵌花提花

Default Setting:
The border processing will be carried out at the Intarsia Jacquard motif.

The border processing of the Intarsia Jacquard motif will not be carried out.

输入机头方向

The carriage directions will be applied to the control column of the pattern.

The carriage directions will be not applied to the control column of the pattern.

第一行的机头方向

<<

Carriage direction to the left for the first row of the Jacquard area

>>

Carriage direction to the right for the first row of the Jacquard area

允许的步骤

左侧

Preset of allowed stepping by needles at the left border

右侧

Preset of allowed stepping by needles at the right border

: No Jacquard back will be entered in the area of allowed stepping.

背面网眼嵌花的网眼结束

Default Setting:
A Net ending module will be inserted at the end of the inserted Jacquard back.

No Net ending module will be inserted at the end of the inserted Jacquard back.

仅适用于带翻针线圈和同样颜色

The following requirements have to be fulfilled:

  • First SJ row following the Jacquard must contain one color only.
  • First SJ row following the Jacquard must be filled with 带翻针前板线圈 needle action.

: Net-end will not be placed if one of these conditions is not met.

Original

Result

以网眼针起始数量开始 Net Stitches

Specify the quantity of net stitches at the Jacquard back from which the selected module is to be inserted.

: Net-end will not be placed with less stitches at the ending row of the Jacquard.

以一个间隔[行]开始

Quantity of SJ rows interrupting the Jacquard (space)

  • The net-end will be placed if the actual quantity of rows is equal to or greater than the value set.
  • Net-end will not be placed if the actual quantity of rows is less.
  • Stitch with transfer is automatically replaced by Stitch without transfer within the spacing in order to prevent the net stitches from auto transferring to the front.
    The net back is paused until the following Jacquard area.

: Recommendation:
Avoid the entry of the net ending in case of small spaces!

Example: without net ending

Example:Preset 5 [rows]

  • With a spacing of 6 rows, the net back is completed.
  • With a spacing of 2 and 4 rows, the net back is not interrupted.
    : Stitch with transfer will be replaced by Stitch without transfer. With it, the stitch of the Jacquard back will not be transferred.

Selection of the module for net ending

  • 网眼结束，嵌花提花

    3
    Make the desired settings under 嵌花提花.
    4
    Disable the 背面网眼嵌花的网眼结束 function.
    5
    Apply the settings to the pattern with the 应用 button.
  1. The dialog box will not be closed.
    2. 6
    Disable the 嵌花提花 function.
    7
    Make the desired settings under 背面网眼嵌花的网眼结束.
    : Inserting the module for the net ending avoids the stitches transferred at the net ending to shine through.
    8
    Apply the settings to the pattern with the 应用 button.
  2. The dialog box will not be closed.
    3. 9
    Close the dialog box with X.
