Step by Step to 'Pattern-12'

A pattern project with one pattern and the desired settings is created.

1: To create a project-related lined shape, select the 模型 tab in the tool window.

2: Open the context menu with RMB and select 创建 M 码新模型... .

The 新线模型 tool window is opened.


模型名称	Name for the shape element
注释	Information about the shape

Input Format
线圈		Entry in the table of the lined shape Height by stitches (stitch rows) Width by stitches (wales) : The stepping is converted based on the specification.
步		Entry in the table of the lined shape Height of step by stitches (stitch rows) Width of step by stitches (wales)
手摇机编织（转）		Entry in the table of the lined shape Height by courses (1 course corresponds 2 stitch rows) Width by stitches (wales)
		Rules for widening with hand knitting
			Knitting before widening following the start
			Widening before knitting following the start (default setting)
从图片创建模型			No images will be used
			Use image as template

3: Make the desired entries:

模型名称 : Any
输入格式 : Stitch

4: Confirm with the OK key.

The new lined shape (basic shape) is graphically displayed in the 模型 tab and in a new document window New shape xx [size x] as rectangle.

: Default attributes are used for the shape edges of the lined shape.
Menu 文件 -> 选项 -> 线模型 -> 新建线模型选项

5: Open the docked line table by LMB in the New shape xx [size x] document window.

- or -
Use the graphic displayed in the New shape xx [size x] document window.

The table 线模型 with the values of the rectangular shape appears.

: The method (table or graphic) to create a project-related lined shape is freely eligible, since the views are always updated simultaneously.

6: Insert new shape lines in the table and enter the desired values for the basic shape.

Example: Lined shape for Pattern-12

Basic Shape: Front

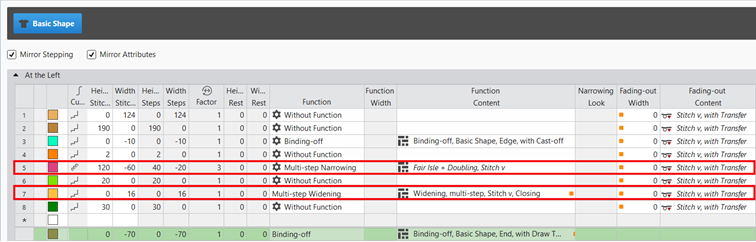

Row 5	Steps for 'Multi-step Narrowing' (Fair Isle) : With ‘multi-step narrowing’, narrowings (e.g. 20 stitches per step) are carried out one after the other, evenly distributed in a row.
Row 7	Stepping for Multi-step Widening : With ‘multi-step widening’, widenings (e.g. 16 stitches per step) are carried out one after the other, evenly distributed in a row.
End line	End line of the basic shape (green) : No assignment of attributes by default

Rules for creating a shape for the knitting mode SJ:

Example Front:

Shape Attributes	Rules / possible settings
Knitting Mode:	Single Jersey
Step width of widening	1 needle (stitch) per knitting row
Step height of widening	As desired
Quantity of rows without shape modification	As desired
Step width when narrowing	1 - 3 needles (stitches)
Step height when narrowing	As desired
Fading-out Width	As desired
Knitting mode for fading-out	带翻针前板线圈
Binding-off width:	Stepping > 3 stitches
Binding-off methods	Binding-off, Structure, Single Jersey 拷针，结构，平针拷针，单面平针，01 > 拷针，单面平针，01 拷针，单面平针，02


1	Display of the available shape elements 基本模型 (exists always) Adding a new symmetric or asymmetric shape element 开领填充的开领楔形洞褶模型内
2		对称收放针		Creating a symmetric shape of shape element : The line tables of the left and right are identical.
			镜像属性	Attribute changes carried out in the line table at the left and right.
			Do not mirror attributes	Attribute changes are carried out in the line table at the left or at the right.
		Do not mirror stepping		Creating an asymmetric shape / shape element : The line table can be edited differently at the left and at the right.
3		显示所有属性
		显示子行
		隐藏子行
4	Display color for main lines and sublines of a selected line in the 线视图
5		曲线		Display of the main line with the selected curve type Modification of the curve type
6	Columns for entering the values for the lines of the lined shape in the input format 线圈 Height by Stitches Width in stitches 步 Height in steps Width in steps : From the entered values and based on the curve type, the value factor, height of rest and width of rest is calculated.
7	Columns for the input of line attributes : The entry in the Function column is automatically determined based on the values for one line.
8	Specification for working with PTS (NPJ) for one line (shape edge) Value for the front and / or rear needle bed Width by Wales

Insert shape line in a shape element:

: The shape lines are inserted symmetrically with both methods by default.

In the Line Table:
Entry of a positive value: Widening and upwards
Entry of a negative value: Narrowing and down

Enter the desired values in the last table line with the * symbol. When confirming the input with the Enter key a new table line is inserted.
Select a row -> open the context menu with RMB -> select 添加主行.
Select a row -> open the context menu with RMB -> select 上添加表行.
- or -
Select 下添加表行.

: Only in the line table it is possible to create an asymmetrical line shape by deactivating 对称收放针.

In the document window

Position the cursor on a line of the displayed graphic -> open the context menu with RMB and select -> 插入模型线 .

Changing line properties of a shape line

Global project-related setting of the line properties via 配置 / 所以模型 tab
In the shape regarding a shape line

In the Line Table
In the document window

Changing Line Properties:

In the Line Table

Direct change of a line property in the corresponding column of the table
Select a line in the table, open the tool window with the 线属性 button and make the desired entries.

In the document window

Position the cursor on a line of the displayed graphic, select the context menu 线属性 and make the desired entries in the tool window.

	1		Modification of the curve type
	2		Modification of the function of a shape line 没有功能收针放针 etc.
	3		Modifications for the shape line with the 收针 function
	4		Modifications of the 边缘组织 attribute for a shape line
	5		Specification for a shape line for working with PTS in the shape edge
	6	Display of the markings that are assigned to a shape line.
应用标记到对称线	Applies the line-bound markings of the selected line to the line on the opposite. : Perhaps existing markings of the opposite shape line are removed.

Changing curve type:

In the Line Table

In the 曲线 column open the context menu with the RMB and select the desired curve type.
Select the line, open the 线属性 with the 线属性 button and select the desired curve type at 收放针曲线类型.

In the document window

Position the cursor on a line of the displayed graphic -> open the context menu with RMB and select -> 调节收放针类型....

Select the desired 收放针曲线类型 in the selection menu.
When selecting the curve type 稳定剩余 via·修改收放针, specify the desired values for Height and Width of the steps.
: The window for entering specifications is displayed according to the selected curve type.
Transfer the entry to the shape line with the 重新计算 button.
: The shape line is displayed in the graphic and in the line table as well.

7: Allocate the desired attributes to the new shape lines:

Function: Function content + Function width
Fade-out: Fade-out content + Fade-out width
Line 3:

Function: Binding-off (at the external edge of the shape)
Function content: desired bind-off method

Binding-off of the external edges of the shape

The shape lines for binding-off at the external edge of the shape are at the same height in the line table.
During the technical processing these shape lines are moved regarding the height according to the carriage direction.
: The knitting sequence when binding-off depends on the carriage stroke!

The height (quantity of knitting rows) until binding-off is arbitrary

The height (quantity of knitting rows) until binding-off is an even number Binding-off right before left
The height (quantity of knitting rows) until binding-off is an odd number Binding-off left before right

Line 5:

In column 曲线: Select 均匀收针 stepping kind.
Function: 'Multi-step Narrowing'
Function content: 均匀收针+罗纹并针，线圈 v
: The narrowing markings are calculated automatically and displayed in the pending shape of the 设计花型.

Options with the Fair Isle curve type 均匀收针
: Watch out: The selected stepping kind determines the corresponding options!

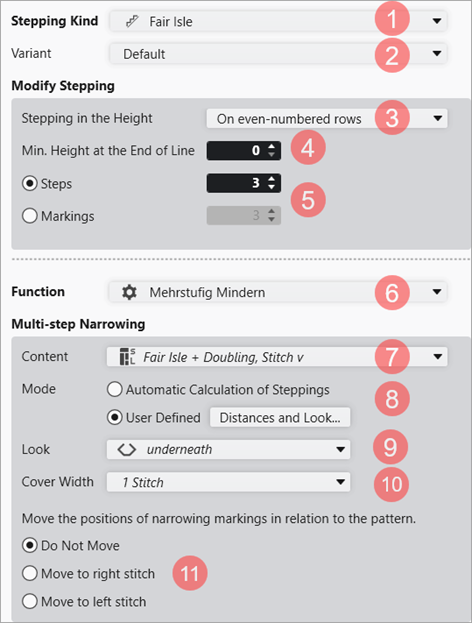

1	收放针曲线类型		Selecting the desired curve type : The options in the pop-up window correspond to this selection.
2	种类		Options of processing 均匀收针 (multi-step narrowing)
			默认		Display of the lined shape in the rasterized view
			梯形		Display of the pending lined shape in the basic pattern
					Display of the lined shape in the rasterized view
			锯齿		Display of the pending lined shape in the basic pattern
					Display of the lined shape in the rasterized view
			皱褶		Display of the pending lined shape in the basic pattern
Modify Stepping
: The options in the pop-up window correspond to the selection at 种类
3	高度方向收放针		Specification of the row in which the narrowing should be carried out.
4	线尾最小高度		Quantity of rows at the end of the line (remaining height) : The value will be subtracted from the total height of the line. The steps are calculated from the remaining height.
5	Specification to calculate the shape line with 均匀收针 stepping kind
		步	Quantity of steps to calculate the narrowing
		标记	Quantity of markings per step (narrowing) : Corresponds to the value of the 'Width Steps' column of the line table
6	功能		Specifies the directory of the 编织资源管理器 to be used for the function (type) of shape lines
Multi-step Narrowing
7	内容		Selection of the desired module for 收针，多步骤 from 编织资源管理器
8	模式		Selection of the calculation mode for the steps of 均匀收针
				自动计算幅度 based on the settings.

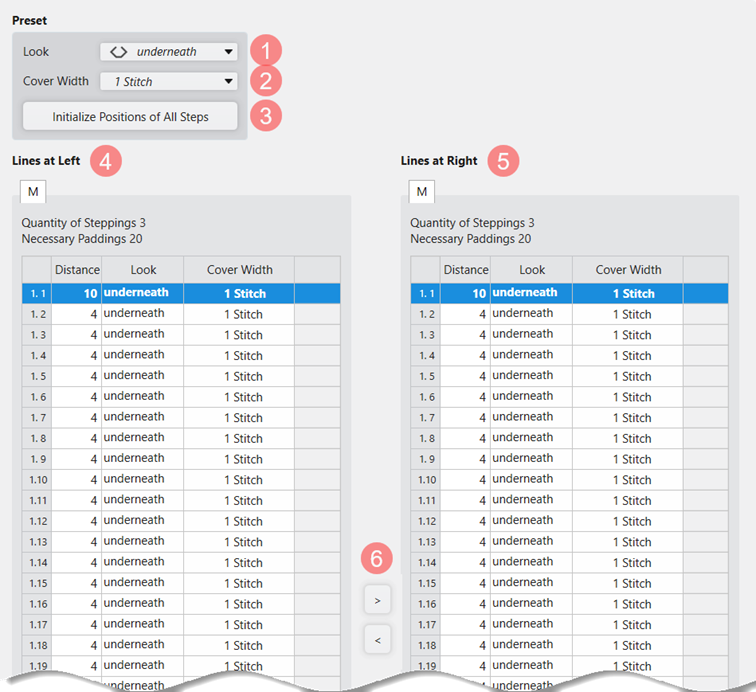

				用户自定义 -> Open the table by the Distances and Look... button in order to change the narrowings manually.
9	外观		Selecting the desired look of narrowing Default Setting: 下收针 The loop of the narrowed stitch is behind of the stitch of the basic pattern.
10	覆盖宽度：		Specification of how many stitches should cover each other Default Setting: 1 线圈 This corresponds to a racking by one needle
11	Move the position of the narrowing marking in relation to the pattern
		不移动	Position of the narrowing marking is calculated and freely placed.
		移动到右侧线圈	Position of the narrowing marking is calculated and placed on 前板线圈 only.
		移动到左侧线圈	Position of the narrowing marking is calculated and placed on 后板线圈 only.

Line 7:

Function: 多步骤放针
Function content: Widening, multi-step, Stitch v, Closing
: The widening markings are calculated automatically and displayed in the pending shape of the 设计花型.

End line of basic shape:

Function: 拷针
Function content: 拷针，基本模型，结束，带分离纱

8: Open the graphic of the basic shape in the xx document window.

9: Click the 模型编辑 button under 参数 in the 编织区域颜色 ribbon.

The 编织区域颜色 tool window appears.


1	Colors	Display color of the knitting range in the lined shape
2	说明	Definition of a knitting range
3	纱线颜色	Allocation of: 纱线颜色 / 库颜色{ / 导纱器颜色 / 添纱颜色 / 多系统颜色
4	填充元素	Selection of a knitting element / needle action / structure / pattern element to fill the knitting range
5	数量	Height of the knitting range by stitch rows
6	线圈	Display of the total height by stitches
7	厘米	Display of the total height by cm : Calculated by the stitch density in use from the 线圈密度 table
8		Assignment of a stitch density from the stitch density tool window
9	颜色排列	Assignment of Color Arrangements
10		Assignment of a stitch length for the front needle bed
		Assignation of a stitch length for the rear needle bed
		Assignment of a take-down value
		Assignment of a auxiliary take-down value
		Assignment of a machine speed
11	List of the shapes (fabric pieces), where the selected knitting range is in use. : Knitting ranges can be removed from the corresponding pattern by the button.

10: Create the desired knitting range in the 编织区域颜色 tool window.

Example:

Description: Collar
Filling Element: 2x2 Rib
Number: 28 (rows high)
+ columns: Allocate new stitch lengths

11: Select the desired shape point by the LMB to which you want to assign the knitting range.

12: Call up the 分配编织范围 context menu.

List of the knitting ranges appears to select one.

13: Select the desired knitting range.

The knitting range appears in the assigned color at the the shape line point of the lined shape.

14: Move the inserted knitting range by 2 pattern rows to the top.
: The position of the widening markings should be in a SJ pattern row.

Enter the created knitting ranges into the shape and position it:

Shape is created as lined shape.
The knitting ranges are available in the 编织区域颜色 tool window.
Lined shape is opened in the xx document window.

1: Select the desired shape point by the LMB to which you want to assign the knitting range.

2: Open the context menu and select 分配编织范围.

List of the knitting ranges appears to select one.
Multiple selection is possible.

3: Select the desired knitting range.

The knitting range appears in the assigned color at the the shape line point of the lined shape.

	Enable the view of the knitting ranges in the xx document window
	Disable the view of the knitting ranges in the xx document window
	Display of the knitting ranges in the xx document window by yarn colors

4: Position the inserted knitting range.


1	Selecting knitting ranges to replace the inserted knitting range.
2	Specify the 距离 in 线圈 in relation to the shape line point
3	向下插入编织范围
		Knitting range will be inserted above the shape line point
		Knitting range will be inserted below the shape line point

15: In the 模型 tool window select the created shape with LMB.

16: Open the context menu -> 定位模型 -> select Pattern name.

The shape is floating in the selected basic pattern.
: Very helpful here to position the Jacquard pattern element correctly in relation to the base pattern and shape.

17: Open 编织资源管理器.

18: Open the 花型元素 -> 花型元素，满针 -> 花型元素，提花 directory in the 编织元素记录.

19: Open the 花型元素 tool window.

20: Copy the 提花花型元素 19 pattern element from the 编织资源管理器 into the pattern project.
Example: H 39 x W 32

21: Modify the height of the pattern element in order to draw the pattern element into the the stepping of 均匀收针 (height).

Original Pattern Element	Modified Pattern Element

H 39 x W 32	H 36 x W 32

22: Draw the pattern element using any 2 yarn colors from the center of the basic pattern to the left and right in relation to the 均匀收针 shape lines in the basic pattern.

Pro Step:

2 rows of 前板线圈
1 modified pattern element
2 rows of 前板线圈

23: Select the rows of the Jacquard areas additively via the 花型行 control column by the CTRL key.

24: Positioning the cursor in the pattern area.

25: Call-up the 选择 / 创建提花... context menu.

The 创建提花 [新花型] dialog box appears.

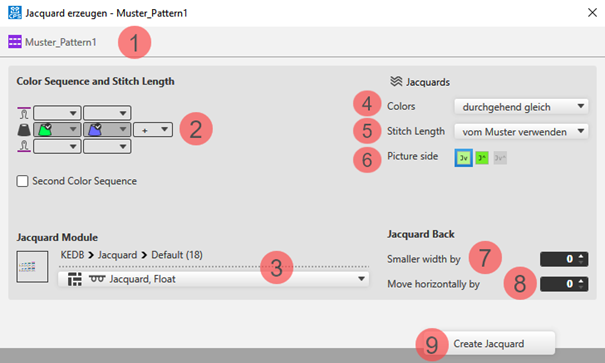

Description to the dialog box


1	Display of the active document window 设计花型, for which the dialog box is valid.
2	颜色顺序和线圈长度
		Display or edit box for the stitch length per color / rear system : Depends on the selection under 线圈长度 ((4)).
		Display of the used colors in the selection in the color sequence from the left
		Display or edit box for the stitch length per color / front system : Depends on the selection under 线圈长度 ((4)).
	第二颜色顺序
			Default setting The color sequence is the same as in the first pattern row
			Definition of the color sequence for the second pattern row is possible. : Input panel for the color sequence of the second pattern row
3	提花模块
		Displays the selected Jacquard module. : Position the cursor in the display, to use the LMB to open the 编织资源管理器.
		Display of the path of the selected directory in the 编织资源管理器
		Selection list for selecting the desired Jacquard module in the specified directory
提花
4	颜色		Selection list for the knitting sequence of the colors 连续每行最少颜色数每行和每列最少数量（跳纱）
5	线圈长度		Selection list for the stitch length 花型的模块使用用户自定义 Make presettings at and / or .
6	提花图		Selecting the desired face of picture of Jacquard Jv: 图案正面 J^: 图案背面 Jv^: 图案前面和背面 : Not with all Jacquard modules available
提花背面
7	减小宽度		Specification in case of Jacquard with yarn bridges, by how many needles the back side is to be narrower then the face of picture
8	横向移动		Specification in needles for shifting the Jacquard horizontally
9	创建提花		The changes made in the dialog box will be applied to the pattern.

Changing the default settings for Block Jacquard:

: A module for net pick-up and net ending are assigned by default to each area with Block Jacquard in the 花型项目.

Possibilities for changing the module allocation:

In 配置 -> Jacquard tab -> Block-Jacquard section
: Changes will apply to all patterns of the 花型项目 .
Select 提花 in the ribbon.
: Individual changes regarding the desired Jacquard area
Select the context menu -> 打开提花...
: Individual changes regarding the desired Jacquard area

26: Make the desired presets in the 创建提花 [新花型] dialog box.

Colors: Continuously
Stitch length: Used by the module
Jacquard Module: 提花，交叉空转，图案 Jv，J^，Jv^

27: Apply the settings to the pattern with the 创建提花 button.

28: Continue:
Create the next row selection for a new Jacquard area.
- or –
Exit working in the dialog box by 关闭.

Jacquard is displayed with the correspondent symbol in the pattern and is listed in the 提花 tool window for another editing.

29: Allocate the following attributes to the shape line 5 of the Fair Isle curve type in the line table:

Fade-out width: Set value to 0, since the different Jacquard areas are not to be hidden with 线圈 v，带翻针.

Fade-out content: Stitch v, with transfer (will not be used)

: To fade-out with patterns with Jacquards, a corresponding 边缘效果，提花，浮线，背面网眼 module is used.

30: In the New Shape xx [Size x] document window, select the desired shape line 5 with the graphic shape presentation.

31: Position cursor on the selected shape line.

32: Select LMB -> 线属性 context menu.

33: The 线属性 tool window is opened for the selected shape line.

34: Make the following entries under the 提花 (浮线 / 网眼) section:

Content: Select 边缘效果，提花，浮线，背面网眼 Fade-out Module.
: The fade-out module knits only at the front.
Width: specify the desired fade-out width.

Default Setting: 2 Needles wide
Attention : The fade-out width is also executed in the rows of the net pick-up and the net ending.

35: Close the tool window.

The fade-out module appears in the 设计花型 document window.

36: If necessary, position the shape in the document window with the button.

37: Check , attributes of the shape lines and, if desired, make corrections.

38: Changing markings of shape lines with the functions:

Function 多步骤收针‘ (Fair-Isle): Modify the position of the narrowing marking
Function 多步骤放针: Modify the position of the widening marking

The following function was allocated to a shape line when creating the shape:

多步骤收针
多步骤放针

The markings are automatically calculated based on the settings (values) in the line table, displayed in the 线的距离 table and entered into the shape as shape markings.

Options to modify the narrowing and widening markings:

In the table: Change the values and apply them to the shape
In the pending shape: Re-position the markings manually

Modify the Markings for Narrowing in the Table:

A shape with shape lines of the 多步骤收针 (Fair-Isle) function is created.
The shape leis pending in the 设计花型
The document window with graphic of the shape is open.

1: Position cursor on the shape line e.g. no. 5 (multi-step narrowing).

2: Open the context menu with RMB and select 线属性.

The 线属性 tool window is opened.

Options with the Fair Isle curve type 均匀收针
: Watch out: The selected stepping kind determines the corresponding options!

1	收放针曲线类型		Selecting the desired curve type : The options in the pop-up window correspond to this selection.
2	种类		Options of processing 均匀收针 (multi-step narrowing)
			默认		Display of the lined shape in the rasterized view
			梯形		Display of the pending lined shape in the basic pattern
					Display of the lined shape in the rasterized view
			锯齿		Display of the pending lined shape in the basic pattern
					Display of the lined shape in the rasterized view
			皱褶		Display of the pending lined shape in the basic pattern
Modify Stepping
: The options in the pop-up window correspond to the selection at 种类
3	高度方向收放针		Specification of the row in which the narrowing should be carried out.
4	线尾最小高度		Quantity of rows at the end of the line (remaining height) : The value will be subtracted from the total height of the line. The steps are calculated from the remaining height.
5	Specification to calculate the shape line with 均匀收针 stepping kind
		步	Quantity of steps to calculate the narrowing
		标记	Quantity of markings per step (narrowing) : Corresponds to the value of the 'Width Steps' column of the line table
6	功能		Specifies the directory of the 编织资源管理器 to be used for the function (type) of shape lines
Multi-step Narrowing
7	内容		Selection of the desired module for 收针，多步骤 from 编织资源管理器
8	模式		Selection of the calculation mode for the steps of 均匀收针
				自动计算幅度 based on the settings.
				用户自定义 -> Distances and Look... Button to change the narrowings manually in the 线的距离 dialog box.
9	外观		Selecting the desired look of narrowing Default Setting: 下收针 The loop of the narrowed stitch is behind of the stitch of the basic pattern.
10	覆盖宽度：		Specification of how many stitches should cover each other Default Setting: 1 线圈 This corresponds to a racking by one needle
11	Move the position of the narrowing marking in relation to the pattern
		不移动	Position of the narrowing marking is calculated and freely placed.
		移动到右侧线圈	Position of the narrowing marking is calculated and placed on 前板线圈 only.
		移动到左侧线圈	Position of the narrowing marking is calculated and placed on 后板线圈 only.

1: Select the 用户自定义 mode in the tool window under 多步骤收针.

2: Open the table with Distances and Look... .

The 线的距离 dialog box appears.

: The table displays all steps of a shape line with the automatically calculated values based on the specifications of the 线属性 tool window.

Preset
1	外观	List box to select the method of narrowing
2	覆盖宽度：	List box to specify the quantity of stitches to cover each other
3	初始化所有步位置	Applies the changes of look and of the cover width

4	Lines at Left	Table with narrowing markings and their positions
	Label indicating the size	Size of the selected shape
	Quantity of Steppings	Total number of steps of the selected shape line
	Necessary Paddings	Quantity of stitches (step width) that should be narrowed

5	Lines at Right	Table with narrowing markings and their positions
	Label indicating the size	Size of the selected shape
	Quantity of Steppings	Total number of steps of the selected shape line
	Necessary Paddings	Quantity of stitches (step width) that should be narrowed

6	Arrow keys	To copy the manually changed values of the table from Lines at Left column to the Lines at Right column or vice versa. : If you make manual changes, the remaining markings will not be recalculated! You must also adjust all other markings manually.

1: Make a different selection in the dialog box below 预设.
- or -
Change the values for both shape lines (left and right) manually in the table.

2: Close the dialog box with the OK button.

The narrowing markings are applied to the shape and displayed.

: Using the same procedure, the widening markings in the 距离... table can also be changed.

Modify Shape Markings of Pending Shape Manually:

: The user himself is responsible for the correct result!

A shape with shape lines of the 多步骤收针 (Fair-Isle) function is created.
The shape leis pending in the 设计花型

1: Select 结束层 in the Cursor Attributes + Editing Layers tool windows.

2: Select the 悬停模型淡化 icon to delete the narrowing markings.

3: Delete the desired markings in the shape.

4: Set the cursor on a narrowing marking and pick this attribute with the F8 key in order to re-position it.
- or -
Select the 均匀收针+罗纹并针，线圈 v technical module in the 模块 tab.

5: Insert markings manually at the new positions.
: Watch out:
The quantity of narrowing markings must correspond to the narrowing steps (width)! Otherwise the stitches cannot be transferred.

: The changes within the 结束层 cannot be saved.
Meaning, the pending shape must not be removed from the design pattern.

6: In order to save the changes, set the cursor in the pending shape and call-up 转换模型为栅格模型 of the context menu.

The shape appears as Raster Shape.
: Modification within the 结束层 will be discarded when converting.

7: Then call-up 根据栅格模型创建新模型 context menu again.

The created lined shape is displayed in the 模型 tab.

: Using the same procedure, the widening markings of the pending shape can be changed manually as well.

39: Click the 起头 button under 预览 in the 导纱器 ribbon.

The New Pattern xx document window is opened as view and the 导纱器 ribbon appears.

40: Open the dialog box via 显示导纱器.

41: If necessary, make the desired settings for allocating yarn carriers.

42: Start the 工艺处理:
Show symbol view after technical processing.

43: Generate Sintral.

44: Start the Sintral 检验.

45: 提取 the knitting program.

A program for the knitting machine will be created: CMS530.Pattern-12.zip.
Load knitting program into the machine.

: The extracted file CMS530.Pattern-12.zip can be loaded onto the machine with an USB stick or via Ethernet.

Step by Step to 'Pattern-12'

Explanation tool window 'New Lined Shape'

Rules for a shape in Single Jersey knitting mode

Rules for creating a shape for the knitting mode SJ:

Working with the line table or the document window (graphic)

About the Line Table

Insert new shape line in a shape element

Insert shape line in a shape element:

Change line properties of a shape line in line table or document window

Changing line properties of a shape line

Changing Line Properties:

Change curve type of a shape line in line table or document window

Changing curve type:

Information for binding-off of the external edges of the shape

Tool Window: Options with the Fair Isle curve type

Explanation of the 'Knitting Ranges' Tool Window

Enter and Position Created Knitting Ranges in the Shape

Enter the created knitting ranges into the shape and position it:

About the 'Create Jacquard' dialog box

Description to the dialog box

Changing the default settings for Block Jacquard:

Modify Markings for Narrowing or Widening

Modifying Narrowing Markings in the Table

Modify the Markings for Narrowing in the Table:

Tool Window: Options with the Fair Isle curve type

Explanation of 'Distances of the Line' Dialog Box

Modify Narrowing Markings of Pending Shape Manually

Modify Shape Markings of Pending Shape Manually:

All steps to create 'Pattern-12'
