Step by Step to 'Pattern-14A'

Features of the pattern:

Step by Step to 'Pattern-14A'

  1. A pattern project with one pattern and the desired settings is created.
    1
    To create a project-related lined shape, select the 模型 tab in the tool window.
    2
    Open the context menu with RMB and select 创建 M 码新模型....
  1. The 新线模型 tool window is opened.

模型名称

Name for the shape element

注释

Information about the shape

Input Format

线圈

Entry in the table of the lined shape

  • Height by stitches (stitch rows)
  • Width by stitches (wales)

: The stepping is converted based on the specification.

步

Entry in the table of the lined shape

  • Height of step by stitches (stitch rows)
  • Width of step by stitches (wales)

手摇机编织（转）

Entry in the table of the lined shape

  • Height by courses (1 course corresponds 2 stitch rows)
  • Width by stitches (wales)

Rules for widening with hand knitting

Knitting before widening following the start

Widening before knitting following the start (default setting)

从图片创建模型

No images will be used

Use image as template

    3
    Make the desired entries:
    4
    Confirm with the OK key.
  1. The new lined shape (basic shape) is graphically displayed in the 模型 tab and in a new document window New shape xx [size x] as rectangle.

: The default attributes will be used for the shape edges of the lined shape.
Menu 文件 -> 选项 -> 线模型 -> 新建线模型选项

    5
    Open the docked line table by LMB in the New shape xx [size x] document window.

    - or -
    Use the graphic displayed in the New shape xx [size x] document window.
  1. The table 线模型 with the values of the rectangular shape appears.

: The method (table or graphic) to create a project-related lined shape is freely eligible, since the views are always updated simultaneously.

    6
    Insert new shape lines in the table and enter the desired values for the basic shape with 对称收放针.

Rules for a shape stitch-stitch knitting mode (DJ):

Shape Attributes

Rules

Knitting Mode

前板线圈 - 后板线圈

Step width of widening

1 Stitch

Step height of widening

As desired

Quantity of rows without shape modification

As desired

Step width when narrowing

1 needle

Step height when narrowing

As desired

Quantity of needles when narrowing

1 needle
- or -
As desired (long run time)

Knitting mode for fading-out

Modules of the 编织资源管理器:
编织元素记录 / 全成形 FF / 边缘组织

Fading-out Width

Depending on the selected module

Binding-off

Stepping > 1 needle

Binding-off methods

拷针，双面平针，01

拷针，双面平针，02

拷针，基本模型，边缘，双面平针带固定，01

拷针，基本模型，边缘，双面平针带固定，02

    7
    Allocate the desired attributes to the new shape lines:
    8
    Disable the 镜像属性 check box.
    9
    Adopt the attributes allocated to the new shape lines (no. 2 - 4):

Example: Lined shape for Pattern-14A

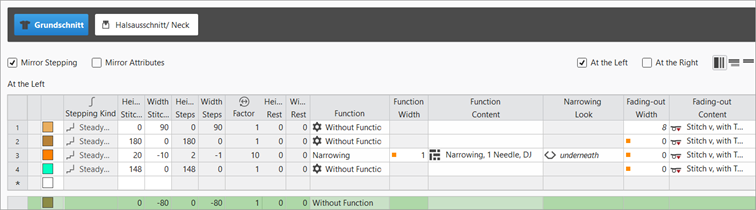

Basic Shape: Left Front

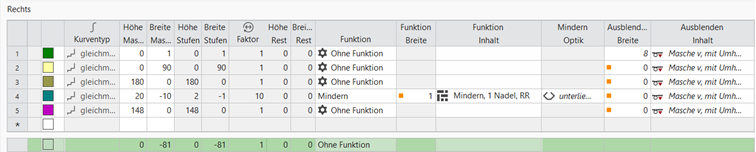

Basic Shape: Right Front

: In this pattern example, an odd numbered fabric piece width is necessary due to the DJ structure.

    10
    模型属性 menu:
    Position the cursor in the opened document window xx -> context menu with RMB -> select 模型属性
    -  or  -
    select the shape in the 模型 tool window -> context menu with RMB -> select 模型属性
    11
    Click on the 奇数宽度 selection.
  1. The right side of the basic shape is widened by 1 needle.
    : This setting also has an effect on the neckline shape element, i.e. the V-neck shape element starts with 1 needle.
    2. 12
    In the line table, position the cursor in the area next to the 基本模型 button -> open the context menu by RMB -> select 添加新模型元素....
    13
    In the selection menu select the desired shape element 开领 -> symmetrically.
    14
    Allocate the desired attributes to the new shape lines:
    15
    Disable the 镜像属性 check box.
    16
    Adopt the attributes allocated to the new shape lines (no. 2 - 4):

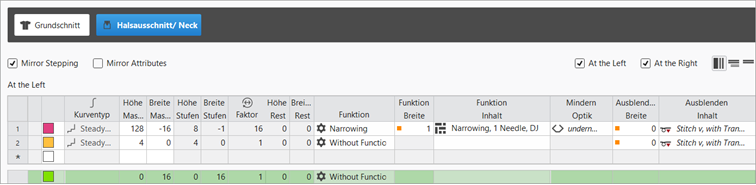

Left Neckline Shape Element (V-neck)

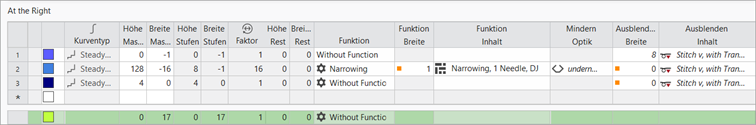

Right Neckline Shape Element (V-neck)

:

  • The 开领 shape element starts with one needle.
  • Start module for the V-neck: V 领开始，线圈 v^

    17
    In the 模型 tool window select the created shape with LMB.
    18
    Open the context menu -> 定位模型 -> select Pattern name.
  1. The shape is floating in the selected basic pattern.
    2. 19
    Start the 工艺 处理:
    Show symbol view after technical processing.
    20
    Generate Sintral.
    21
    Start the Sintral 检验.
    22
    提取 the knitting program.
  2. A program for the knitting machine will be created: CMS530.Pattern-14A.zip.
  1. Load knitting program into the machine.

: The extracted file CMS530.Pattern-14A.zip can be loaded onto the machine with an USB stick or via Ethernet.
