Step by Step to 'Pattern-1'

A pattern project with one pattern and the desired settings is created.

1: To draw select any desired drawing tool under the 绘图 group.

2: In the 花型颜色 tool window, select the desired pattern colors from the 纱线颜色 color palette to draw the motif:

纱线颜色:

: The yarn carriers are not automatically placed on the yarn carrier rails.
The yarn carrier home position is determined in the 工艺处理.

: The color areas are less than 1 inch wide.

3: In 设计花型 draw the desired SJ with pointelle motif.

With the 带翻针后板线圈 needle action

- or -

With the 挑孔，线圈 ^ knitting element

: When drawing pay attention to the distances between the color fields.
A distance of ~2.8 inches is necessary, if yarn carriers are combined (double assignment).

ADF yarn carrier ('swiveled')

Min. distance between the color fields

Yarn carriers on different rails

0.7 Inch

Yarn carriers on the same rail

~ 2.8 inches

(for each yarn carrier 1 inch + 6 nic)

Basic pattern with 22 yarn colors

Part of the pattern with the structure for pointelle

Pattern-2A:
Pointelle with 带翻针后板线圈

Note:

The first pattern row is worked with V0 racking where the stitch is knitted at the rear. In the next row with VR1 racking the stitch then is transferred to the front and the pattern row is knitted.

Pattern-2B:
Pointelle with the 挑孔，线圈 ^ knitting element

4: In the 花型行 control column, select the first 2 pattern rows.
- or -
Select the total height of the pattern area for the CA.

5: Position the cursor in the pattern area.

6: Call up the context menu and select 选择 / 颜色排列.
- or -
Click directly the button in the ribbon.

The Color Arrangement Editor with the original 'Default knitting process' of the 2 selected pattern rows is opened.

7: Make the desired changes in the Color Arrangement.

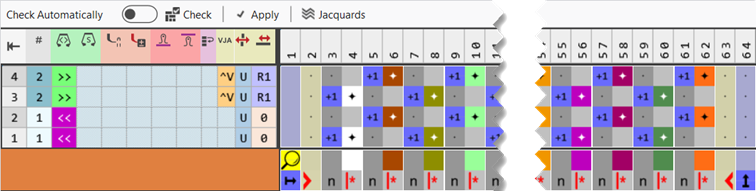

Part of Color Arrangement CA#2A

1	Combining the yarn carriers on 2 systems : Watch the distances between the color sections.
2	Entry within control columns: 机头方向横移位编织 VJA^ Racking without Needle Action (^v): The selection for the needle action of the rear needle bed occurs in relation to the front needle bed. 横移 VN，VU，V# 横移 : In the 2nd pattern row, enter the racking R1 for the transfer of the rear stitch (pointelle)

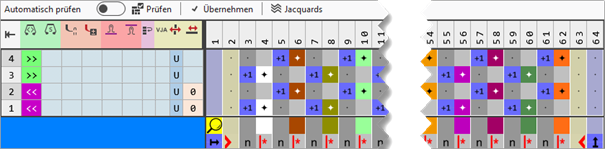

Part of Color Arrangement CA#2B

1	Combining the yarn carriers on 2 systems : Watch the distances between the color sections.
2	Entry within control columns: 机头方向横移位编织 VJA^ NO entry required, as the corresponding setting is done in 配置 -> 优化 tab. 横移 VN，VU，V# 横移 : In the 2nd pattern row, enter the racking to 默认 for the transfer of 挑孔，线圈 ^ knitting element.

1: Open the 配置 dialog box -> 优化 tab.

2: Select the Equalize Racking Even With Different Take-down Values setting in the 每个动程横移 selection menu of 单针床编织时在动程里均衡横移类型.

The stitch is transferred by the R1 racking from the knitting element and then knitted.

Symbol view after technical processing

8: Check the generated Color Arrangement on correct entries with the 检验 button.
: The knitting procedure cannot be checked!

9: If necessary, in case of a Color Arrangement already used in the design pattern, apply the changes to the basic pattern with the 应用 button.
- or -
Close the tool window with .

10: Close the prompt with the desired button:

Save: Color Arrangement is saved locally in the 颜色排列 tool window.
Reject: The changes will not be saved.
Copy: The changed Color Arrangement is saved as copy in the 颜色排列 tool window.

11: Enter the generated Color Arrangement via the control column into the desired rows of the design pattern.

12: Carry out 工艺处理 if necessary.
: After carrying out the 工艺处理 you are able to view and weigh up the result of the automatic processing, if corrections / optimizations are necessary.
