Step by Step to 'Pattern-6'

Selective Plating

Several yarn carriers are used within on area with selective plating. Meaning all yarn carriers has to be placed optimally to knitting rows during knitting. This requests a border processing / correction of the motif.

A pattern project with one pattern and the desired settings is created.

1: To draw select any desired drawing tool under the 绘图 group.

2: In the 花型颜色 tool window, select the desired pattern colors from the 纱线颜色 color palette to draw the motif:

3: Draw the desired motif in the 设计花型.

4: Open the 添纱颜色 dialog box with in the 花型颜色 tool window.

5: Paste the used yarn colors into row P1:
#23 (blue) into column A
#31 (yellow) for 'selektive plating' into column B

: The yarn color used as the basic color (#31) must be the following yarn guide with plating offset (YPI) #2.

6: Open the Plating Offset (YPI) table and assign the desired values.
Result:

7: Draw the plating color P1 into the design pattern.

8: Open the selection list in the ribbon under Dialogs with .
- or -
Open the context menu of the Design Pattern.

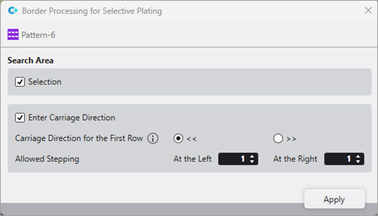

9: Select 选择性添纱的边界处理.

The dialog box is opened.



Search Area
		In complete pattern		Edit the border processing of the areas within the whole pattern.
		Within the selected area		Edit the border processing of the areas within the selection. : Multiple selection is possible.

	Carriage direction for first row
	<<			Carriage direction for the first row in the area of selective plating to the left
	>>			Carriage direction for the first row in the area of selective plating to the right
	Enter Carriage Direction			Switching carriage directions for the left and right border will be inserted into the pattern.
	Allowed Stepping
			Border processing left	Preset of allowed stepping by needles at the left border
			Border processing right	Preset of allowed stepping by needles at the right border
	: No widening by plating color will be entered in the area of allowed stepping
	1	Allowed stepping of one needle
	2	Border correction with an automatically created plating color
	Rules of Border Processing For a correct processing of the selvedge correction, ensure: When creating the plating color, the color for the selective plating must be entered in the first position of the dialog box. This way, the basic color is entered in the second position.
: Note: You have to process the border in the design pattern (basic pattern). Attention: The border processing cannot be undone after technical processing of the pattern !
