Step by Step to 'Pattern-15'

A pattern project with one pattern and the desired settings is created.

1: Create the motif using the 文本 drawing tool and any desired yarn color (e.g. #3).
: This yarn color serves as a search color for transferring stitches. At this point, the weft yarn is at the top.

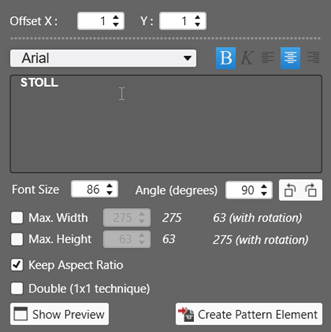

2: Create a pattern element by Create Pattern Element and draw it into the 设计花型.

3: Open the tool window 添纱颜色 with in the 花型颜色 tool window.

4: Create a plating color in line P1 of the 添纱颜色 tool window:

In column A:

Yarn Color #3
The symbol via the selection menu for the weft yarn carrier

In column B:

Yarn color e.g. #1

In column C:

Additional yarn color e.g. #2

5: Create the plating color for the start in line P2.

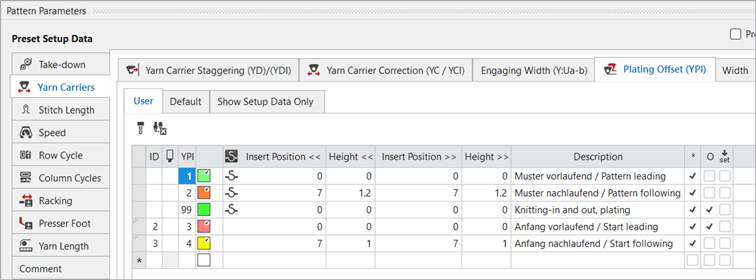

6: Select the desired YPI indices from the 添纱偏移 (YPI) table and allocate them.

7: Select the total height of the design pattern in the 花型行 control column.
: If necessary, knit-off 2 pattern rows at end with yarn color #1.

8: Call up the context menu and select 选择 / 颜色排列.

The Color Arrangement editor appears with the default CA.

9: Make the desired changes in the Color Arrangement:

In the processing area:

Draw needle action 前板线圈 - 后板线圈 together with the plating color P1 into existing rows.
Add additional rows for half Milano and draw-in the 后板线圈 needle action with any desired yarn color.
Add additional rows for 向后翻针.

Modifications in Control Columns:

Control column 机头方向
Control column 系统
Control column W 压脚
Control column 压脚修正
Allocate a new stitch length index to the DJ row via the 前板线圈长度（NPv） control column.
Allocate a new stitch length index to the DJ row via the 后板线圈长度（NP^） control column.

Color Arrangement CA1

10: Check the generated Color Arrangement on correct entries with the 检验 button.
: The knitting procedure cannot be checked!

11: Open the Start, Tubular (modified) knitting element.

12: Draw the plating color P2 into the knitting rows.

13: If necessary, make the desired settings in the 导纱器 tool window.

14: If desired, make the desired presets in the following control columns:

线圈长度 (NP)
主牵拉（WMF）
速度 (MSEC)

15: Carry out all the steps of processing.


Yarn Carrier 9RQ	Weft yarn carrier Q ahead of system S1
Yarn Carrier 5b	The yarn carrier with yarn color #1 of the plating color P1 knits by system S1
Yarn Carrier 7R	The yarn carrier with yarn color #2 of the plating color P1 knits by system S1
Yarn Carrier 11R	The yarn carrier with yarn color #4 for the half Milano stitch knits by system S2

: The extracted file "ADF530-32W.Pattern-15.zip" can be loaded onto the machine with an USB stick or via Ethernet.
