Step by Step to Pattern-1

A pattern project with one pattern and the desired settings is created.

1: Work with the following drawing tools:

Group Drawing Tools :

Pencil (V)
Line (B)
Rectangle (N)

Without the selection of a pattern color - Yarn Color:
A selection is generated.

While drawing with drawing tools without the selection of a pattern color, a
selection is generated.
It can be deleted with the shortcut Ctrl+D.

With the selection of a pattern color - Yarn Color:
The yarn color is drawn into the basic pattern.

Deleting all cursor attributes: Key ESC
Deleting of individual cursor attributes with X via the corresponding attribute

Delete Color

For drawing the design pattern, with it several yarn carriers may be necessary for each yarn color.

Bobbin with color
Not used within design pattern
Bobbin with color +
Used within design pattern

: Yarn carriers will not be allocated automatically to a yarn carrier rail.
Yarn carrier home position can be determined automatically.

2: Change the width and height of the pattern.

Group Modify :

Zoom (function button Z)
Delete / insert row(s) / column(s)
Select row(s) / column(s) and insert / delete

3: Draw-in colored stripes in any yarn color from row 27 at the height of 18 rows.

4: Adjust the view of the control columns.

In the design pattern (before technical processing)
In the technical pattern (after technical processing)

Displaying the control columns in the document window

The control columns can be displayed in every document window.

Show Control Columns (TAB)
Hide Control Columns (TAB)

The control columns are divided into colored groups.

View Options of the Control Columns:

Show Used Control Columns
Hide All Control Columns
Show All Control Columns
User-defined Control Columns

Project Layout
User Layout

Overview of all possible control columns after technical processing


: Before technical processing: The pattern row numbers are displayed in the column. After technical processing: The technical row number is displayed in the column.

Table header	1.	Symbols to identify control columns
Table header	2.	Default settings from global file STOLL for the respective control column with a new pattern project : No Entry No default settings for this control column Colored entry STOLL Default Setting This default setting is displayed more transparent in every pattern row and used by the Processing. Change of the Stoll default setting in the table header: Change valid for all pattern rows in the selected pattern : It is not automatically applied in other patterns. The change in the desired pattern rows: The change overwrites the default setting in the desired pattern rows with the selected entry (= colored entry)

Group 1		Pattern Row	Display the consecutive numbering of the pattern rows. : If a pattern row consists of several rows (technical rows), the pattern row number is visible multiple times.
		Jacquard Line Number	Display the Jacquard line number. : Available after Processing.
		Sintral Line Number	Display the Sintral line number. : Available after Processing.
Group 2		Number of Stroke	Display stroke number : Is determined by Processing.
		Stroke	Specifications for defining the carriage stroke
		Carriage Direction	Presets of the carriage direction : Is determined by Processing.
		System	Presets of the use of knitting systems : Is determined by Processing.
		System Function	With the use of special cams Holding-deep Knitting via split curve Not Sunken Tuck Devoré FlexPly

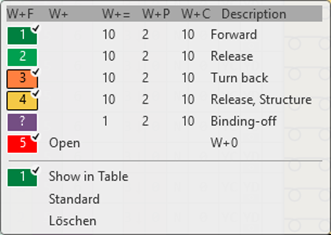

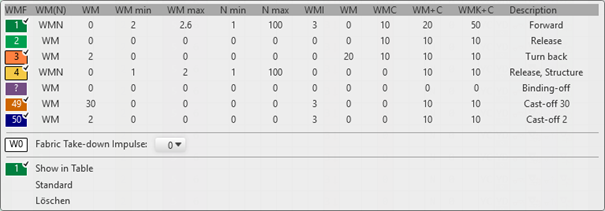

Group 3		Main Take-down (WMF)	Presets for comb, main take-down and auxiliary take-down
		Open Main Take-down (=W= / =C=)
		Auxiliary Take-down (W+F)
		Comb
Group 4		Control of Collecting Area (LK / LW)	Presets for the control of the collecting area : Is only displayed with machines with control of the collecting area.
Group 4		Fabric Sensor (WS)	Specifications for the fabric sensors : is only displayed for the CMS 9xx
Group 5		Speed (MSEC)	Presets for carriage speed
		Machine Slow (ML)
		Machine Stop (MS)
Group 6		Front Stitch Length (NPv)	Presets for the stitch length on front and rear needle bed
Group 6		Rear Stitch Length (NP^)	Presets for the stitch length on front and rear needle bed
Group 7		Cycle (RS)	Specifications for cycles for length control Inner cycles Outer cycles
Group 8		Border Fixation	Presets for the border fixation
Group 9		Sintral Instruction / PRINT	Presets for the Sintral and PRINT command
Group 9		Function call (F:)	Presets for function calls and additional commands
Group 10		Knitting-out	Presets for knitting-out all the yarn carriers of a common row
		Color Arrangement	Color entry for Color Arrangements in use
		Intarsia Binding	Presets for the tuck binding with intarsia / gore in a common row
Group 11		Transfer Surrounding	Preset for transferring of the whole pattern or in a defined areas
		Multi-system Transferring
		Module Arrangement	Color entry for Module Arrangements in use
		Cast-off and Transfer	Preset for combining transferring and casting-off in a common technical row of the whole pattern or in a defined areas
Group 12		Sorting Technical Rows	Specifications for Sorting of rows Weft yarn insertion with CMS 330 / 530
Group 13		Knitting with racked beds (VJA^)	Specifications for jacquard selection at the rear needle bed
		Racking (VN, VU, V#)	Preset of racking type Normal racking (N) Half racking (#) Transfer racking (U)
		Racking Value	Specification of the racking step for the rear needle bed
		Racking Correction (VCI)	Preset for racking corrections
Group 14		Yarn carrier staggering (YD)/(YDI)	Presets of yarn carrier staggering on the fabric selvedge for Setup
		Yarn Carrier Correction (YC / YCI)	Presets of yarn carrier corrections for Setup

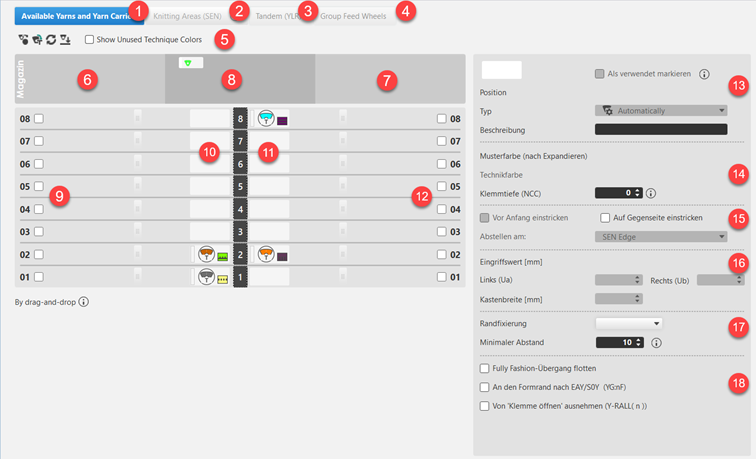

		Yarn Carrier Presettings	Specifications for Swiveling of I yarn carriers Clamp of yarn carriers Open Clamp Stop at the SEN edge Waiting position of the yarn carriers
		Yarn Carriers	Column for display of all relevant yarn carrier data after Processing

Two modes to enter data in the control columns:

In the Start ribbon under Drawing.

One Click
Press LMB at start position and hold it until the end position.
Double Click
Click and release LMB at start position and click it again at the end position.

Two modes to delete data in the control columns:

In the Start ribbon under Fill.

Delete All from Control Column (except racking)
Delete
All Control Columns to Default
Default

The procedure for multiple entries in control columns:

Cycle (RS)
Yarn Carrier Presettings
Yarn Carrier Parking

Add an entry to an existing entry:

Add
With the Ctrl key

Select the desired location in the menu:
Set cursor to the start position.
Press the CTRL key.
Press LMB and hold it until the end position.
Release the left mouse button.

Add
With the Ctrl key

Select the desired location in the menu:
Set cursor to the start position.
Press the CTRL key.
Click left mouse button.
Draw the cursor to the end position.
Click left mouse button again.

Delete Entry:

Delete
With the CTRL + ALT key

Set cursor to the start position.
Press LMB and hold it until the end position.
Release the left mouse button.

Delete
With the CTRL + ALT key

Select the desired location in the menu:
Set cursor to the start position.
Press the CTRL + ALT keys.
Click left mouse button.
Draw the cursor to the end position.
Click left mouse button again.

Selecting Control Columns

1: Position the cursor in the header of the control columns and press the right mouse button to open the context menu.

The context menu appears.

2: Select the desired control columns in the context menu via User-defined Control Columns.

3: Open the context menu with RMB.

4: Select Save Appearance of Design Patterns as Default in the menu.

The setting will be saved and loaded when opening a design pattern.

Viewing Options of Control Columns

User-defined Control Columns	Adding or closing the desired control columns in the selection list
Show Used Control Columns	Display of the control columns used in the pattern
Show All Control Columns	Display of all control columns
Hide All Control Columns	Hide the display of control columns
Freeze this Control Column (double-click)	Freezed control columns keep visible when hiding control columns Identification of freezed control columns by a point : Unfreezing by Hide this Group or Hide this Control Column
Hide this Control Column	Hide control columns at the cursor position.
Hide this Group	Hide all control columns allocated to a group.
Save Appearance of Design Patterns as Default	Save the selected control columns as user defined default for editing the design pattern.
Load Default Appearance of Design Patterns	Restore the customized default for editing the design pattern.
Reset Appearance of Design Patterns to STOLL Default	Restore the saved STOLL default setting.

5: Change the following pattern parameters using the control column in the colored stripe:

Stitch Length

1: Position the cursor on the control column.

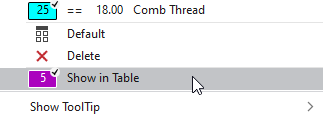

2: Select Show in Table in the context menu.

- or -
Select directly from the list of the Favorites.

The Setup Data dialog box appears.

3: Open the Default tab.
- or -
Open the User tab.

4: Select the desired existing entry from the tables.
- or -
In the User tab position the cursor in the first column and select Add Table Row... in the context menu.

New entry is added at the end of the table.

5: Make the desired presettings for the entries in use:

Define NP index.
Change Color.
Enter NP value.
Enter the description.

6: In the desired area of the control column enter the color of the stitch length.

Change the specifications for the stitch lengths in the pattern:

See and modify the default settings for the stitch lengths in the Design Pattern.
The Front Stitch Length (NPv) / Rear Stitch Length (NP^) control columns appear.

1: Open the existing Pattern Project and save it with a new name via the File / Save As menu.
- or -
Create new Pattern Project with an individual pattern.

2: Set the cursor to the Front Stitch Length (NPv) / Rear Stitch Length (NP^) control columns of the Design Pattern document window and click the RMB.
- or -
Open the Stitch Length (NP) context menu in the second row of the table header containing the default settings.

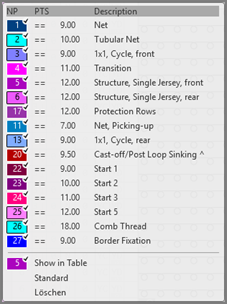

The stitch lengths context menu appears.

The stitch lengths used in the pattern are displayed and are marked by the symbol.
The entries marked as favorites in the Stitch Length (NP) / Default tab under the Stitch Length section of the Setup Data tool window are displayed.

3: Select the desired stitch length and enter it in the control column.
- or -
Fill a selection.

Notice:

The stitch lengths shown in the context menu correspond to the table in theSetup Data tool window under the Stitch Length section of the Stitch Length (NP) / User tab.

Open stitch length tab and select or change an entry:

Design Pattern is selected.

1: Open the selection list in the Start ribbon under Parameter at Tool Windows and select the Setup Data .
- or -
Click the symbol directly under Parameter.

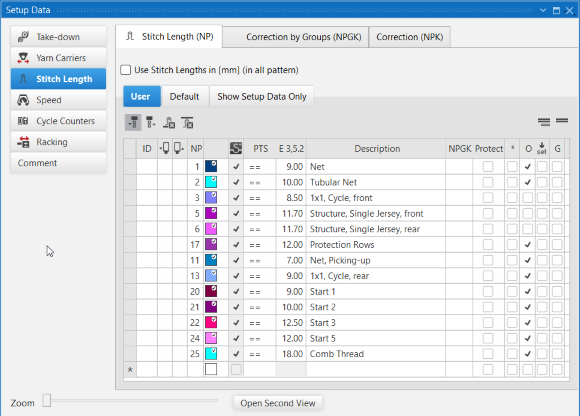

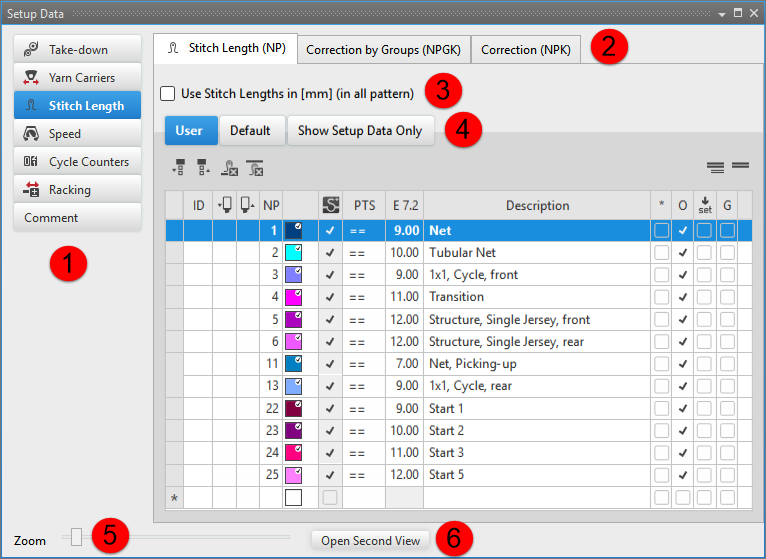

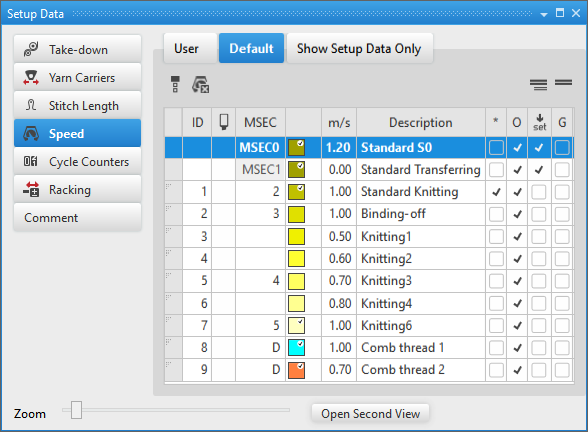

The Setup Data tool window appears.


1	All sections of Machine Parameters appear in Setup
2	Tabs for additional machine parameters
3		Use stitch length values in the STOLL default unit
		Use stitch length values in millimeters
4	Tabs
	User		Stitch lengths used in the pattern Stitch lengths marked as favorites
	Default		All the stitch lengths of the STOLL template
	Show Setup Data Only [Name of the active document]		All the stitch lengths used in the pattern : These data will be saved to the setup file.
5	Zoom		Zoom in or out
6	Open Second View		Opening an additional Setup Data tool window.

2: Select the Stitch Length section.

3: Select the Stitch Length (NP) / Default tab.

4: Select the desired stitch length in the or column of the table and insert it in the control column.

Front Stitch Length (NPv)
Click the stitch length in the column.
Rear Stitch Length (NP^)
Click the stitch length in the column.
Front Stitch Length (NPv) and Rear Stitch Length (NP^)
Click the stitch lengths with the CTRL key in the and columns.

The default settings in the control columns of these design rows will be overwritten.

Options in the toolbar

	Selecting the default value to enter in the control column
	Selecting the default value to enter in the control column
	Deleting an entry in the control column
	Deleting an entry in the control column
	Show Pattern-related Values
	Hide Pattern-related Values

Column labels of the stitch length tool window

Column	Display
ID / IDv / ID^	Consecutive numbering and sorting of the entries
	Selecting stitch length for the front needle bed to enter it into the control column and as PTS into the pattern
	Selecting stitch length for the rear needle bed to enter it into the control column and as PTS into the pattern
NP	Input and display of the index for the indirect (NPn=1-500) or direct (D) stitch length allocation
Colors	Display of colors to enter in the control columns
PTS	Specification for NPJ or PTS (Power Tension Setting).
Gauge E	List of stitch length values depending on the gauges of the selected machine

Column	Display
Description	Comment on the use of the entry.
*		Entry is not defined as favorite, meaning the entry is only within the Default table available.
*		Entry is defined as favorite, meaning the entry is available within the User table or directly via the context menu of the control columns.
O		Value cannot be overwritten (Overwrite) by a value of another table.
O		Value can be overwritten (Overwrite) by a value of another table. (Default)
		The entry will not be applied to the Setup data : All entries used in the pattern are applied by default to the Setup data.
		The entry will be applied to the Setup data. : With it, you can transfer data, even if not used in the pattern, into the Setup file.
G		All settings of the Default or User table are STOLL defaults (STOLL Template). Changes in the table are only project-related! : The STOLL template is used for creating a new pattern project.
G		These settings of the Default or User table are now User Standards (User-Template) The changes in the table will be saved in the user template for following projects. : The user template is used for creating a new pattern project.

Specify the favorites:

Design Pattern is selected.

1: Open the Setup Data tool window.

2: Select the Stitch Length section.

3: Select the Stitch Length (NP) / Default tab.

4: Mark the desired entry in the * column .

5: Close the tool window with .

The selected entry will be displayed in the context menu and can be inserted in the design pattern for the front or rear stitch length.

Add a new entry in the stitch length tab:

Notice:
New entries can only be added in the User tab.

Design Pattern is selected.

1: Open the Setup Data tool window.

2: Select the Stitch Length section.

3: Select the Stitch Length (NP) / User tab.

4: Set the cursor in the left table column to the * row.

5: Call up the Add Table Row... context menu.

A new entry will be added at the end of the table.

6: Make the desired specifications in the columns of the new entry.

7: Close the table with .

Changes are saved to the table and are available in the project for each order and for all of its individual patterns.

: The changes will be saved to the *.spf file when saving the project.

Add entry of the Stitch Lengths (NP) tab to the pattern:

Design Pattern is selected.
The control columns for Front Stitch Length and Rear Stitch Length are displayed.

1: Open the Setup Data tool window.

2: Select the Stitch Length section.

3: Select the Stitch Length (NP) / User tab.

4: Select the desired stitch length in the or column:

Entry in the control column:
Click on the stitch length in the column.
Entry in the control column:
Click on the stitch length in the column.
Entry in the and control column
Click on the stitch lengths with the CTRL key in the and columns.

5: Enter the stitch length in the control column.

6: If necessary, change more pattern parameters, e.g. in the colored stripe, via the control columns:

Main Take-down :
Create new WMF index in the Setup table and enter it into the control column.
: WM min /WM max , N min / N max is displayed after technical processing in the Setup table according to the pattern width.

Change the specifications for the main take-down in the pattern:

You see and change the default settings for the main take-down in the Design Pattern.
The Main Take-down (WMF) control column is displayed.

1: Open the existing Pattern Project and save it with a new name via the File / Save As menu.
- or -
Create new Pattern Project with an individual pattern.

2: In the document window Design Pattern, position the cursor on the Main Take-down (WMF) control column and click the RMB.
- or -
Open the context menu in the second row of the table header containing the default settings with RMB.

The context menu for the Main Take-down (WMF) appears.

The fabric take-down functions (WMF) used in the pattern are displayed and are marked by the symbol.
The entries marked as favorites in the Main Take-down (WMF / WBF) / Default tab under the Take-down section of the Setup Data tool window are displayed.

3: Select the desired main take-down value and enter it in the control column.
- or -
Fill a selection.

: The main take-down values (WMF) displayed in the context menu correspond to the table in the Setup Data tool window in the Main Take-down (WMF) section of the User tab.

Select an entry of the Main Take-down (WMF) tool window and change it:

Design Pattern is selected.
The Main Take-down (WMF) control column is displayed.

1: Open the Setup Data tool window.
Start ribbon -> Tool Windows -> Setup Data selection menu
- or -
Parameter ribbon group-> Setup Data.

The Setup Data tool window appears.

2: Select the Take-down section.

3: Main Take-down (WMF) / Default tab
- or -
Select User.

4: Select the desired main take-down value in the column and enter it in the control column.

The default setting in the control column will be overwritten in these design rows.

Options in the toolbar

	Selecting the default value to enter in the control column
	Deleting an entry in the control column
WMF		Hide the display of the columns wit the main take-down values for the Multiflex take-down
		Show the display of the columns wit the main take-down values for the Multiflex take-down
WBF		Hide the display of the columns wit the take-down values for the belt take-down
		Show the display of the columns wit the take-down values for the belt take-down
	Show Pattern-related Values
	Hide Pattern-related Values

Column labels of the main take-down (WMF) tool window

Column	Display
ID / IDv / ID^	Consecutive numbering and sorting of the entries
	Selecting the main take-down value to enter it in the control column
WMF / WBF	Index for indirect allocation of the fabric take-down value for the main take-down Multiflex or belt take-down
Color	Display of colors to enter in the control columns
WM(N)	WM	Fabric take-down value when this is not changed in accordance with the quantity of needles.
WM(N)	WMN	Fabric take-down value when this is changed in accordance with the quantity of needles (fabric width).
WM	Fabric take-down value when this is not changed in accordance with the quantity of needles.
WM min	Fabric take-down value for minimum fabric width
WM max	Fabric take-down value for maximum fabric width
N min	Quantity of needles for minimum fabric width
N max	Quantity of needles for maximum fabric width
WMI	Fabric take-down impulse value
WM^	Specification of a number of degrees for the reverse rotation of the take-down
WMC	Value for the sensitivity of the stop motion control of the main take-down
WM+C	Specification of the system number for the fabric take-down control
WMK+C	Specification of the system number for comb monitoring

Column	Display
Description	Comment on the use of the entry.
*		Entry is not defined as favorite, meaning the entry is only within the Default table available.
*		Entry is defined as favorite, meaning the entry is available within the User table or directly via the context menu of the control columns.
O		Value cannot be overwritten (Overwrite) by a value of another table.
O		Value can be overwritten (Overwrite) by a value of another table. (Default)
		The entry will not be applied to the Setup data : All entries used in the pattern are applied by default to the Setup data.
		The entry will be applied to the Setup data. : With it, you can transfer data, even if not used in the pattern, into the Setup file.
G		All settings of the Default or User table are STOLL defaults (STOLL Template). Changes in the table are only project-related! : The STOLL template is used for creating a new pattern project.
G		These settings of the Default or User table are now User Standards (User-Template) The changes in the table will be saved in the user template for following projects. : The user template is used for creating a new pattern project.

Specify the favorites:

Design Pattern is selected.

1: Open the Setup Data tool window.

2: Select the Take-down section.

3: Select the Main Take-down (WMF) / Default tab.

4: Mark the desired entry of the table in the * column as .

5: Close the tool window with .

The selected entry will be displayed in the context menu and can be inserted in the design pattern for the main take-down.

Add a new entry in the main take-down (WMF) tab:

: New entries can only be added in the User tab.

Design Pattern is selected.

1: Open the Setup Data tool window.

2: Select the Take-down section.

3: Select the Main Take-down (WMF) / User tab.

4: Set the cursor in the left table column to the * row.

5: Call up the Add Table Row context menu.

A new entry will be added at the end of the table.

6: Make the desired specifications in the columns of the new entry.

7: Close the table with .

Changes are saved to the table and are available in the project for each order and for all of its individual patterns.

: The changes will be saved to the *.spf file when saving the project.

Add entry of the Main take-down (WMF) tab to the pattern:

Design Pattern is selected.
The Main Take-down (WMF) control column is displayed.

1: Open the Setup Data tool window.

2: Select the Take-down section.

3: Select the Main Take-down (WMF) / User tab.

4: Select the desired main take-down value in the column.

5: Enter the selected main take-down value in the control column.

Auxiliary Take-down (W+F)

Change specifications for the auxiliary take-down in the pattern:

: In the Auxiliary take-down (W+F) control column the value W+F1 is entered by default and the value is set to 'Don't Care'. This allows for activating / deactivating the auxiliary take-down at the machine.

You see and change the default settings for the auxiliary take-down in the Design Pattern.
The Auxiliary take-down (W+F) control column is displayed.

1: Open the existing Pattern Project and save it with a new name via the File / Save as… menu.
- or -
Create new Pattern Project with an individual pattern.

2: In the document window Design Pattern, position the cursor on the Auxiliary take-down (W+F) control column and click the RMB.
- or -
Open the Auxiliary take-down context menu in the 2nd row of the table header containing the default settings with RMB.

The context menu for the auxiliary take-down (W+F) appears.

The auxiliary take-down functions (W+F) used in the pattern are displayed and are marked by the symbol.
The entries marked as favorites in the Auxiliary Take-down (W+F) / Default tab under the Take-down section of the Setup Data tool window are displayed.

3: Select the desired auxiliary take-down value and enter it in the control column.
- or -
Fill a selection.

: The auxiliary take-down values (W+F) shown in the context menu correspond to the table in the Setup Data tool window under the Take-down section of the Auxiliary Take-down (W+F) / User tab.

Select an entry of the Auxiliary Take-down (W+F) tool window and change it:

Design Pattern document window is selected.
The Auxiliary Take-down (W+F) control column is displayed.

1: Open the selection list in the Start ribbon at Tool Windows and select Setup Data.
- or -
Directly under Parameter click the Setup Data icon.

The Setup Data tool window appears.

2: Select the Take-down section.

3: Auxiliary Take-down (W+F) tab / Default
- or -
Select User.

4: Select the desired auxiliary take-down value in the column and enter it in the control column.

The default setting will be overwritten in these design rows.

Options in the toolbar

	Selecting the default value to enter in the control column
	Deleting an entry in the control column
	Show Pattern-related Values
	Hide Pattern-related Values

Column labels of the auxiliary take-down (W+F) tool window

Column	Display
ID	Consecutive numbering and sorting of the entries
	Selecting the speed value to enter it in the control column
W+F	Index for indirect allocation to the auxiliary take-down
Color	Display of colors to enter in the control columns
W+	Open or close the auxiliary take-down
W+=	Speed of auxiliary take-down
W+P	Value for the contact pressure of the auxiliary take-down (CMS 822 only)
W+C	Specification of the system number for the auxiliary take-down control

Column	Display
Description	Comment on the use of the entry.
*		Entry is not defined as favorite, meaning the entry is only within the Default table available.
*		Entry is defined as favorite, meaning the entry is available within the User table or directly via the context menu of the control columns.
O		Value cannot be overwritten (Overwrite) by a value of another table.
O		Value can be overwritten (Overwrite) by a value of another table. (Default)
		The entry will not be applied to the Setup data : All entries used in the pattern are applied by default to the Setup data.
		The entry will be applied to the Setup data. : With it, you can transfer data, even if not used in the pattern, into the Setup file.
G		All settings of the Default or User table are STOLL defaults (STOLL Template). Changes in the table are only project-related! : The STOLL template is used for creating a new pattern project.
G		These settings of the Default or User table are now User Standards (User-Template) The changes in the table will be saved in the user template for following projects. : The user template is used for creating a new pattern project.

Specify the favorites:

Design Pattern is selected.

1: Open the Setup Data tool window.

2: Select Take-down section -> Auxiliary Take-down (W+F) tab.

3: Select the Default tab.

4: Mark the desired entry in the * column .

5: Close the tool window with .

The selected entry will be displayed in the context menu and can be inserted in the design pattern for the speed.

Add a new entry in the auxiliary take-down (W+F) tab:

: New entries can only be added in the User tab.

Design Pattern document window is selected.

1: Open the Setup Data tool window.

2: Select the Take-down section.

3: Select the Auxiliary Take-down (W+F) / User tab.

4: Set the cursor in the left table column to the * row.

5: With the RMB open the context menu and select Add row.

A new entry will be added at the end of the table.

6: Make the desired specifications in the columns of the new entry.

7: Close the table with .

Changes are saved to the table and are available in the project for each order and for all of its individual patterns.

: The changes will be saved to the *.spf file when saving the project.

Apply entry of the Auxiliary take-down (W+F) tab to the pattern:

Design Pattern document window is selected.
The Auxiliary take-down (W+F) control column is displayed.

1: Open the Setup Data tool window.

2: Select the Take-down section.

3: Select the Auxiliary Take-down (W+F) / User tab.

4: Select the desired auxiliary take-down value in the column.

5: Enter the selected auxiliary take-down value in the control column.

Carriage Speed :
Create new index for the carriage speed in the Setup table and enter it into the control column.

Change the specifications for the carriage speed in the pattern:

See and modify the default settings for the stitch lengths in the Design Pattern.
The Speed (MSEC) control column is displayed.

1: Open the existing Pattern Project and save it with a new name via the File / Save As menu.
- or -
Create new Pattern Project with an individual pattern.

2: In the document window Design Pattern, position the cursor on the Speed (MSEC) control column and click the RMB.
- or -
In the 2nd row of the table header, open the context menu containing the default settings with RMB.

The context menu for the Speed (MSEC) appears.

The speed functions (MSEC) used in the pattern are displayed and are marked by the symbol.
The entries marked as favorites in the Setup Data tool window under the Speed section of the Default table are displayed.

3: Select the desired main take-down value and enter it in the control column.
- or -
Fill a selection.

: The velocity values (MSEC) displayed in the context menu correspond to the table in the Setup Data tool window in the Speed section / User tab.

Select an entry of the Speed (MSEC) tool window and change it:

Design Pattern is selected.
The Speed (MSEC) control column is displayed.

1: Open the selection list in the Start ribbon at Tool Windows and select Setup Data.
- or -
click the Setup Data icon directly under Parameter.

The Setup Data tool window appears.

2: Select the Speed (MSEC) section.

3: Default Tab
- or -
Select User.

4: Select the desired speed value in the column and enter it in the control column.

The default setting will be overwritten in these design rows.

Options in the toolbar

	Selecting the default value to enter in the control column
	Deleting an entry in the control column
	Show Pattern-related Values
	Hide Pattern-related Values

Column labels of the Speed (MSEC) tool window

Column	Display
ID / IDv / ID^	Consecutive numbering and sorting of the entries
	Selecting the speed value to enter it in the control column
MSEC	Index for indirect allocation of the speed
Color	Display of colors to enter in the control columns
m/s	Value for the speed

Column	Display
Description	Comment on the use of the entry.
*		Entry is not defined as favorite, meaning the entry is only within the Default table available.
*		Entry is defined as favorite, meaning the entry is available within the User table or directly via the context menu of the control columns.
O		Value cannot be overwritten (Overwrite) by a value of another table.
O		Value can be overwritten (Overwrite) by a value of another table. (Default)
		The entry will not be applied to the Setup data : All entries used in the pattern are applied by default to the Setup data.
		The entry will be applied to the Setup data. : With it, you can transfer data, even if not used in the pattern, into the Setup file.
G		All settings of the Default or User table are STOLL defaults (STOLL Template). Changes in the table are only project-related! : The STOLL template is used for creating a new pattern project.
G		These settings of the Default or User table are now User Standards (User-Template) The changes in the table will be saved in the user template for following projects. : The user template is used for creating a new pattern project.

Specify the favorites:

Design Pattern is selected.

1: Open the Setup Data tool window.

2: Select the Speed (MSEC) section.

3: Select the Default tab.

4: Mark the desired entry in the * column .

5: Close the tool window with .

The selected entry will be displayed in the context menu and can be inserted in the design pattern for the speed.

Add a new entry in the speed (MSEC) tab:

: New entries can only be added in the User tab.

Design Pattern document window is selected.

1: Open the Setup Data tool window.

2: Select the Speed (MSEC) section.

3: Select the User tab.

4: Set the cursor in the left table column to the * row.

5: Call up the Add Table Row... context menu.

A new entry will be added at the end of the table.

6: Make the desired specifications in the columns of the new entry.

7: Close the table with .

Changes are saved to the table and are available in the project for each order and for all of its individual patterns.

: The changes will be saved to the *.spf file when saving the project.

Apply entry of the Speed (MSEC) tab to the pattern:

The Design Pattern document window is selected.
The Speed (MSEC) control column is displayed.

1: Open the Setup Data tool window.

2: Select the Speed (MSEC) section.

3: Select the User tab.

4: Select the desired speed value in the column.

5: Enter the selected speed value in the control column.

7: Import the existing sleeve shape and position it.

: If the basic pattern is too small for the shape, then the size of the basic pattern will be automatically adjusted to the size of the shape.
Attention: Perhaps the color strap needs to be adapted.

8: Open the line table by the Line Table button to get an explanation of a shape.

Structure of a basic shape

	A	Starting line
	B	Area with shape modification because of widening
	C	Area without shape modification
	D	Area with shape modification because of narrowing
	E	End line

Recommendation: Create a shape of an even numbered height in total.

Fading-out

Exchange of the knitting mode at the shape edges

While cutting out the shape, the knitting mode is replaced at the shape edges.

Cutting-out the shape

Grey area = Outside shape
White area = Within shape

: This results in the shape edges for fading-out, widening, and narrowing.

Marked area (blue):

Fade-out width
Number of stitches, that should be replaced with a different knitting mode.
Fade-out content
Selection of the desired knitting mode for the specified fading-out width

Widening

Widening of a fabric piece

Step width of widening

: Widening by 1 needle only

Step height of widening

= Number of rows between two widening steps

: Step height is as desired.

Widening Width

Depending from the selected widening module

: When widening by 1 needle with the Widening, Standard module, the widening width is 1 by default.

Narrowing

Narrowing of a fabric piece

: The transfer of stitches results in double stitches (fashioning marks).

Step Width

1 needle (stitch) narrowing
2-needle-narrowing (stitches)
3-needle-narrowing (stitches)
From a narrowing greater than 4 needles (stitches) a binding-off is carried out

Step height

= Number of rows between two narrowing steps

: Step height is as desired.

Narrowing Width

Depending on the knitting mode of the basic pattern

Rules for a raglan sleeve shape in the SJ knitting mode

Shape Attributes	Rules
Knitting Mode	Single Jersey
Step width of widening	1 needle (stitch) per knitting row
Step height of widening	As desired
Quantity of rows without shape modification	As desired
Step width when narrowing	1 - 3 needles (stitches)
Step height when narrowing	As desired
Narrowing Width	As desired
Fading-out Width	As desired
Knitting mode for fading-out	Front Stitch with Transfer (default)

9: Click the Yarn Carriers button under Preview in the Start ribbon.

The New Pattern xx document window is opened as view and the Yarn Carriers ribbon appears.

Yarn Carrier Color as Background
	Switching the view between the different pattern colors : Only with certain pattern colors available.

Show Knitting-out
	inactive	Knitting-out of the yarn carriers is not displayed in the graphic.
	Active	Knitting-out of the yarn carriers is displayed in the graphic. : The knitting-out is displayed as marking with specified direction at the corresponding side of the area.

10: Open the tool window with the Yarn Carriers button -> Show Yarn Carriers -> Available Yarns and Yarn Carriers tab

11: Select the desired yarn carrier.

12: Make the following changes:

Combine yarn carriers from the pattern with the yarn carriers from the start.

Combine Yarn Carriers
Do Not Combine Yarn Carriers

Allocate the yarn carriers to the rails.

13: Apply the changes:
Edit group -> Apply
- or -
Edit group -> Apply and Close

	Synchronize	Applies the changes from the Design Pattern to the open Yarn Carrier View and synchronizes both views to the current state of the pattern.
	Apply	Applies changes for yarn carriers to the Design Pattern. Other changes (e.g. of color parameters) will be applied at once.
	Apply and Close	Applies changes for yarn carriers to the Design Pattern and closes the view. Other changes (e.g. of color parameters) will be applied at once.
	Cancel and Close	Rejects modifications and closes the Yarn Carrier View. Close with Cancel and Close if you only opened the Yarn Carrier view for control.

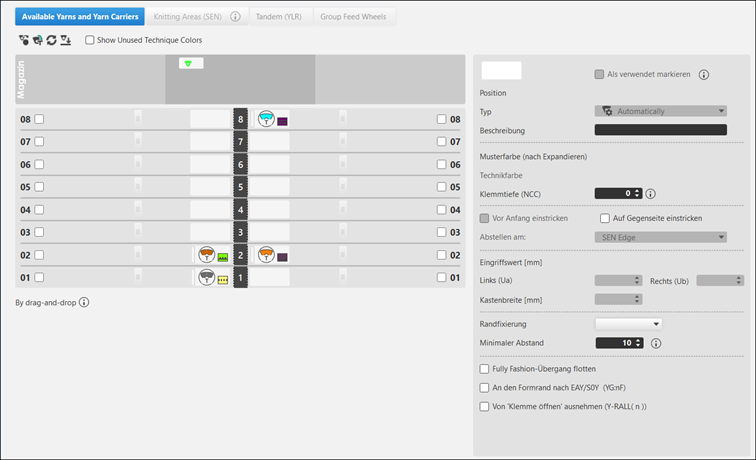

Explanation of the Yarn Carriers tool window:


1		Available Yarns and Yarn Carriers Tab

5			Returning yarn carriers to the magazine according to their position at the left or right side of the yarn carrier rails. : Yarn carriers of the pattern only - excepting the yarn carrier colors which are firmly allocated to a certain rail.
			Allocating the yarn carriers for technique colors to the yarn carrier rails according to the standard preallocation.
			Returning yarn carriers from the yarn carrier rails to the magazine as 'undefined'. : Yarn carrier of the pattern only.
			Allocating the yarn carriers from the magazine to the yarn carrier rails.
		Show Unused Technique Colors
			In the view of the yarn carrier rails, only the technique colors used in the pattern are displayed.
			In the view of the yarn carrier rails, the technique colors not used in the pattern are displayed as well.
6		Display of the yarn carriers for yarn and magazine colors regarding the positioning on the left side during rail allocation. : Yarn carriers not yet allocated to a yarn carrier rail but will be positioned on the left side when allocating.
7		Display of the yarn carriers for yarn and magazine colors regarding the positioning on the right side during rail allocation. : Yarn carriers not yet allocated to a yarn carrier rail but will be positioned on the right side when allocating.
8		Display of the yarn carriers for yarn and magazine colors undefined. : The yarn carriers have no allocation to a rail nor to a side (left/right)
9 / 10			Release for allocation of the rail with a yarn carrier left / right
			No release for allocation of the rail with a yarn carrier left / right
10 / 11		Graphic presentation of the yarn carrier rails with the used yarn carrier types on the left / right side and specification of the corresponding colors. This results in the yarn carrier home position left / right.

Input panel for the selected yarn carrier
13				Set as Used
						Yarn carrier position is free for allocation
						Yarn carrier position is not free for allocation : For example when inserting Sintral functions where yarn carriers are used.
	Position			Specification of the yarn carrier position of a yarn carrier color
	Type
	Description			Comment on a yarn carrier : Is entered in Sintral in the table of the yarn carriers.
14	Pattern Color (After Expanding)			Display of the pattern color of the selected yarn carrier
	Technique Color			Display of the technique color of a selected technical yarn carrier
	Clamping Depth			Needle sinking of clamping and cutting needle Command: NCC=n (n= -10 to 10)
15	Knit-in before Start				Selected yarn carrier is not knit-in in the Knitting-in before start function.
					Selected yarn carrier is knit-in in the Knitting-in before start function.
	Knit-in to opposite side				A yarn carrier remains on the corresponding side based on its home position.
					A yarn carrier is knitted before the start to the opposite side of its home position. : Use: With MC with single-sided clamping / cutting.
	Stop at:			Shape Edge SEN Edge
16	Engaging Value [mm]
	At the Left (Ua)			Engaging width for the left side
	At the Right (Ub)			Engaging width for the right side
	Cabinet Width [mm]			Specification depending on the yarn carrier type specified under Type : No entry possible!
17	Border Fixation			Selection of the knitting mode for the border fixation (module)
	Minimum Padding			Distance for the border fixation in rows
18	Float Fully Fashion Transition				At the end a yarn carrier is moved to the home position according to the setting in the Yarn Field Allocation.
					At the end a yarn carrier is moved to its home position without knitting. : Use: For technical fabrics with weft yarn.
	Go to Shape Edge after EAY/S0Y (YG:nF;)				The yarn carrier will not be positioned at the counters #L and #R.
					The yarn carrier will be positioned at the counters #L and #R and follows the shape.
	Exclude from 'Open Clamp' (Y-RALL( n ))				Selected yarn carrier is controlled by the Y-RALL function.
					Selected yarn carrier will be excluded from the Y-RALL function and can be defined differently by the value (rows) at Color Parameters under .
				: By default, the clamp will be opened by the Y-RALL function for all yarn carriers after about 25 rows.

Additional tabs:

Knitting Areas (SEN)

Working with several SEN areas:

Machines without comb
Machines with comb but without using it

Tandem (YLR)

Change of the yarn carrier home position with tandem machines

Group Feed Wheels

Use when working with feed wheels

: For the use of the feed wheels, you have define them in the Configuration dialog box -> Machine Attributes tab under Electronic Feed Wheels.

14: Open the Expanded Symbol View with the Symbol button as preview if necessary to check the design pattern before further editing.
- and / or -
Open the expanded fabric view with the Fabric button

Expanded Symbol View

The desired pattern is selected.

1: Click the Preview button in the ribbon under Symbol.

: An additional document window appears with the expanded view of the design pattern.

2: Close the document window with in the Pattern name... tab.

Design Pattern	Expanded Symbol View

: The expanded symbol view opened via Symbol button is write protected.

Expanded Fabric View

The desired pattern is selected.

3: Click the Preview button in the ribbon under Fabric.

: An additional document window appears with the fabric view of the design pattern.

4: Close the document window by in the pattern name... tab.

Fabric View

Options in the status bar
Expanded		Show Expanded Fabric View with knitting rows and not knitting rows (transfer, cast-off, etc.)
Collapsed		Show Expanded Fabric View only with knitting rows
Calculate Distortions		Calculate the stitch distortion in order to get a realistic fabric view.
Display in Relation of Stitch Density		Show Expanded Fabric View with the specified stitch ratio
Do Not Dissolve Drop Stitches		Drop stitches are displayed.
Show Protection Rows		Display of the protection rows
Draw the Draw Thread		Display of the draw thread
Yarn Texture		View of the selected yarn texture from the Yarn Explorer
Background		Set background color for Expanded Fabric View
: The fabric view opened with the Fabric button is write protected.

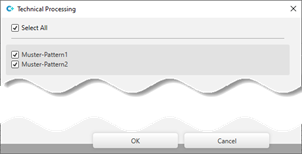

15: Start Technical Processing:

Show symbol view after technical processing.

: Tip
Open the yarn carrier path in the "Technical View" :
The yarn carrier for the protection thread 1 (#205) will be clamped after the start and at the end brought in again in the protection rows in the Float, Lock, Fabric selvedge module from Configuration.

Technical processing of an individual pattern:

1: Select the desired pattern for the technical processing in the Patterns ribbon under Start .
- or –
Open the desired pattern in the Patterns tool window double clicking.

2: Start the technical processing for the selected pattern by the button in the Start ribbon under Technique.

: The result is shown in the pattern name... document window by an unprotected symbol view.

3: Close the document windows with in the Pattern name... tab of the document windows.
: The data will not get lost and can at any time be shown and edited in a document window by the Symbol button.

The success of technical processing is shown by in the Patterns tool window behind the pattern name.

Technical Processing successfully performed

Outdated technical processing

: Changes in the design pattern discard the already performed technique processing.

Presentation of the views

Design Pattern

Processed Symbol View

(not write-protected)

Before Technical Processing:
Only knitting rows will be displayed in the design pattern.

After Technical Processing:
The knitting rows and the transfer rows will be displayed in the symbol view.
The data contained in the modules such as racking specifications, fabric take-down, carriage direction, etc. will be entered in the corresponding control columns.

: The pattern will completely be processed and checked by all technical rules.

: You can open a write-protected display of stitches (Fabric View) after the technical processing by the Fabric button.

: Changes will be overwritten by re-processing .

Multiple Selection of Patterns for Technical Processing:

You can select several patterns for technical processing to start it more quickly.

Several patterns are created.

1: Click the Processing button in the Start ribbon under Multiple Processing .

The Technical Processing dialog box appears.

2: Select the desired setting.

: You cannot start the technical processing for patterns greyed-out as data may be missing.

3: Close the dialog box with OK.

The technical processing is done automatically and shown by in the Patterns tool window.

4: Close the document windows by in the pattern name... tab of the document windows.
: The data will not get lost and can at any time be shown and edited in a document window by the Symbol button.

Successful processing is shown in the Patterns tool window by behind the pattern name.

16: Generate Sintral.

Generate knitting program for a single pattern:

Pattern is successfully processed.

1: Select the desired pattern in order to create it for the knitting program in the Start ribbon under Patterns .
- or –
Open the desired pattern in the Patterns tool window double clicking.

2: Start the technical processing by the button in the Sintral ribbon.

The *.sin; *.jac and *.setx files will be generated for the current patten.

The elements of the program are displayed by the following buttons:

	Sintral	Displaying the Sintral file
	Jacquards	Displaying the packed Jacquard file
	MC Setup	Displaying the Setup file

Generate knitting programs for several patterns:

: You can select several patterns for the Generate Knitting Program procedure to start it more quickly.

Several patterns or an order with several patterns is created and the technical processing is carried out for all patterns.

1: Click the Generate Knitting Program button in the Start ribbon under Multiple Processing .

The Generate Knitting Program tool window is displayed.

2: Select the desired setting.

You cannot start the Generate Knitting Program processing for patterns greyed-out as data may be missing.

3: Close the dialog box with OK.

The processing step is automatically done for the selection and the patterns are marked with symbol in the Patterns tool window.

17: Start Sintral Check

Sintral Check for a single pattern:

The Generate Knitting Program processing step was performed so that the *.sin / *.jac / *.setx files are created for one pattern.

1: Select the desired pattern for the Sintral Check in the Start ribbon under Patterns .
- or –
Open the desired pattern in the Patterns tool window double clicking.

2: Start the Sintral Check with the Sintral Check button.

The Sintral Check dialog box appears.

3: Start the simulation by the START button.

The Simulation OK message appears

4: Close the dialog box with X.

5: Continue with the next pattern.

Run the Sintral Check for several patterns (multiple selection):

You can select several patterns for the processing step

Sintral Check, to start it more quickly.

Several patterns or an order with several patterns is created and processing steps are carried out until Generate Knitting Program.

1: Click the Sintral Check... button in the Start ribbon under Multiple Processing .

The Sintral Check tool window is displayed.

2: Select the desired setting.

: You cannot start the Sintral Check for greyed-out patterns as data may be missing.

3: Close the dialog box with OK.

The processing step is automatically done for the selection and the patterns are marked with symbol in the Patterns tool window.

18: Extract knitting program.

A program for the knitting machine will be created: CMS530.Pattern-1.zip.

Extract an individual pattern (*.zip) and save it:

The Generate Knitting Program processing step was performed so that the *.sin / *.jac / *.setx files are created for one pattern.
Sintral Check was done.

1: Select the desired pattern in order to extract it in the Start ribbon under Patterns .
- or –
Open the desired pattern in the Patterns tool window double clicking.

2: Click the Extract button in the Start ribbon under Sintral.

The Save As dialog box will appear.

3: Change file name if desired.

4: Select the desired path for the *.zip file.

Local Drive
USB Memory Stick
Network Drive

5: Close the dialog box with the Save button.

After saving it, the zip file can be loaded and knitted on the machine.

Multiple selection of patterns or orders to create knitting programs:

You can select several patterns or orders for the processing step Extract..., to start it more quickly.

Several patterns are created.
The processing steps up to Generate Knitting Program, even up to Sintral Check... are done.

1: Click the Extract button in the Start ribbon under Multiple Processing .

The Search Folder dialog box will be opened.

2: Select an existing folder.
- or –
Create a new folder under the desired path by the Create folder button.

3: Select the folder.

4: Close the dialog box with OK.

Note appears: Following files successfully extracted:
You cannot start the Extract... processing step for greyed-out patterns / orders as data may be missing.

5: Close the dialog box with OK.

The extracted knitting programs are available in the folder and can be loaded on the machine.

19: Load knitting program into the machine.

: The extracted file CMS530.Pattern-1.zip can be loaded onto the machine with an USB stick or via Ethernet.

Step by Step to Pattern-1

Deleting a Selection

Deleting cursor attributes

Use of Yarn Colors

Drawing tools Pencil, Line and Rectangle without / with yarn color

Deleting / inserting of column(s) / row(s)

The Control Columns

Display of the control columns in the document window

Displaying the control columns in the document window

View Options of the Control Columns:

Overview of all possible control columns

Overview of all possible control columns after technical processing

Procedures within Control Columns

Two modes to enter data in the control columns

Two modes to enter data in the control columns:

Two modes to delete data in control columns

Two modes to delete data in the control columns:

Procedure for Multiple Entries in Control Columns

The procedure for multiple entries in control columns:

Add an entry to an existing entry:

Delete Entry:

Selecting Control Columns

Selecting Control Columns

Viewing Options of Control Columns

Viewing Options of Control Columns

Working with the control columns

Allocate New Indirect Stitch Length and Add it to Table

More About the Stitch Length (NP) Control Column

Change the default settings for the stitch length

Change the specifications for the stitch lengths in the pattern:

Working with the Stitch Length (NP) tab

Open stitch length tab and select or change an entry:

Options in the toolbar

Options in the toolbar

Meaning of the Columns of the Stitch Length (NP) Tool Window

Column labels of the stitch length tool window

Explanation of General Columns of the Stitch Length Tool Window

Specify Favorites

Specify the favorites:

Add New Entry to Table

Add a new entry in the stitch length tab:

Apply Entry from Auxiliary take-down Table to Pattern

Add entry of the Stitch Lengths (NP) tab to the pattern:

Indirect NP index and control columns

Working with Direct NP Values

More About the Main Take-down (WMF) Control Column

Change Default Settings for the Main Take-down

Change the specifications for the main take-down in the pattern:

Working with the Main Take-down (WMF) Tab

Select an entry of the Main Take-down (WMF) tool window and change it:

Options in the toolbar

Options in the toolbar

Meaning of the Columns of the Main Take-down (WMF) Tool Window

Column labels of the main take-down (WMF) tool window

Explanation of General Columns of the Take-down Tool Window

Specify Favorites

Specify the favorites:

Add New Entry to Table

Add a new entry in the main take-down (WMF) tab:

Apply Entry from Auxiliary take-down Table to Pattern

Add entry of the Main take-down (WMF) tab to the pattern:

Setup data for the main take-down

More About the Auxiliary Take-down (W+F) Control Column

Change default settings for the auxiliary take-down

Change specifications for the auxiliary take-down in the pattern:

Working with the Auxiliary Take-down Tab

Select an entry of the Auxiliary Take-down (W+F) tool window and change it:

Options in the toolbar

Options in the toolbar

Meaning of the Columns of the Auxiliary Take-down (W+F) Tool Window

Column labels of the auxiliary take-down (W+F) tool window

Explanation of General Columns of the Tool Window

Specify Favorites

Specify the favorites:

Add New Entry to Table

Add a new entry in the auxiliary take-down (W+F) tab:

Apply Entry from Auxiliary take-down Table to Pattern

Apply entry of the Auxiliary take-down (W+F) tab to the pattern:

More About the Speed (MSEC) Control Column

Change Default Settings of Machine Speed
