Step by Step to Pattern-5

A pattern project with one pattern and the desired settings is created.

1: Generate basic pattern with:

Yarn Colors

Basic Color
Color stripe

Needle Actions

Front Stitch with Transfer
Rear Stitch with Transfer

Stoll pattern element

Knit Explorer -> Pattern Elements -> Pattern Elements, All Needles -> Pattern Elements, Aran -> Aran PE 4


1	Color stripe 1	Yarn Color #3 Front Stitch with Transfer
2	Color stripe 2	Yarn Color #4 Links-Links: Change in rows from Front Stitch with Transfer and Rear Stitch with Transfer Left + right selvedge: per 2x Front Stitch with Transfer
3	Color stripe 3	Yarn Color #6 Front Stitch with Transfer
4	Color area	Yarn Color #1 Aran PE 4 pattern element on reverse jersey Left + right selvedge: per 2x Front Stitch with Transfer

2: Display the Cycle (RS) control column.

3: Place the cursor in the control column and with RMB -> open the context menu.

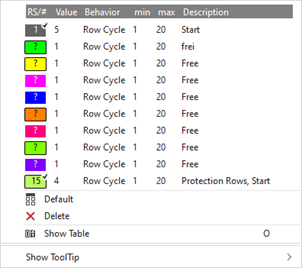

4: Select available cycle counter color+(?) directly in the context menu and draw into control column
- or -

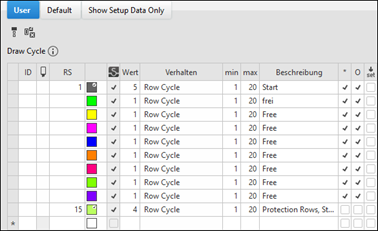

using Show Table open the Cycle Counters tool window in the context menu.

5: Select the User tab.

The tool window is displayed.

: In the table, the cycle counters in use (from knitting elements) and the ones to be used (available) are displayed before Technical Processing.


ID	Running numbering and sorting of newly created entries
	Selecting the cycle counter to enter in the Cycle (RS) control column
RS	Input and display of the index for the indirect (RSn =1-39) or direct (D) cycle counter allocation
Color	Display of the color to enter in the Cycle (RS) control column
Value	Number of repetitions with Row Cycle selection Specification of the validity with Switchable Cycle (function) selection
Behavior	Row Cycle	Definition of a repetition of knitting rows (simple cycle) Definition of a repetition with repetitions of knitting rows (nested cycle)
	Switchable Cycle (function)	Definition of cycles for the length control with different sizes (set of sizes for the fabric length)
	: All other options under Behavior are definitions, that are used in the Start knitting elements.
min	Minimal repetition factor Definition of the range of validity for Switchable Cycle (function)
max	Minimal repetition factor Definition of the range of validity for Switchable Cycle (function)
Description	About the use of the cycle in the fabric

6: Select the desired available entry (color) from the User tab and enter in the control column.

7: In the RS column, indicates the desired value for RSn (n=1-39).

8: Define the desired number of repeats in the Value column.

9: Make the following selection with Behavior:

Row Cycle

Simple cycle
Nested cycle
: Entry in the control column with CTRL. + LMB

Simple cycles	Nested cycles

The procedure for multiple entries in control columns:

Cycle (RS)
Yarn Carrier Presettings
Yarn Carrier Parking

Add an entry to an existing entry:

Add
With the Ctrl key

Select the desired location in the menu:
Set cursor to the start position.
Press the CTRL key.
Press LMB and hold it until the end position.
Release the left mouse button.

Add
With the Ctrl key

Select the desired location in the menu:
Set cursor to the start position.
Press the CTRL key.
Click left mouse button.
Draw the cursor to the end position.
Click left mouse button again.

Delete Entry:

Delete
With the CTRL + ALT key

Set cursor to the start position.
Press LMB and hold it until the end position.
Release the left mouse button.

Delete
With the CTRL + ALT key

Select the desired location in the menu:
Set cursor to the start position.
Press the CTRL + ALT keys.
Click left mouse button.
Draw the cursor to the end position.
Click left mouse button again.

Switchable Cycle (function)

Length control with a set of sizes e.g. size S to L


RS	Value	Behavior	min	max	Description

RS6	x	Row Cycle	1	20	Repetition of the Aran diamond (as desired)
RS16	1	Switchable Cycle (function)	1	3	Knitting Rows for Size S
RS16	2	Switchable Cycle (function)	2	3	Knitting Rows of Size S + Knitting Rows for Size M
RS16	3	Switchable Cycle (function)	3	3	Knitting Rows of Size S + Knitting Rows Size M + Knitting Rows for Size L
: When working with Switchable Cycle (function) it is necessary that a cycle counter e.g. RS16 is used. The cycle counter is freely selectable.

10: If necessary, open the Yarn Carrier View via Yarn Carriers in order to position the yarn carriers on the rails.

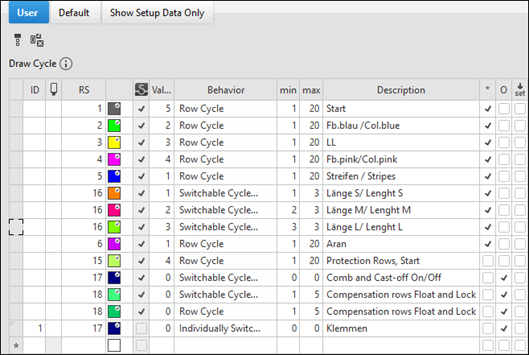

11: Start the Technical Processing:

Show symbol view after Technical Processing.


RS1 – RS6	Cycle counter for the length of the basic pattern
RS16	Cycle counter for the length control for the sizes S to L

RS15	Cycle for the extension of the protection rows in the knitting elements from the Starts directory
RS17	Comb on / off RS17=0: Working with comb
RS18	Cycle for row compensation with the Knit-in before the Start, Float and Lock (1 piece) technical modules

: The following cycle counters (RS) are added automatically to the Technical Processing in the table because of the use of the corresponding knitting elements.

RS1	Cycle for the length control of the Start knitting element
RS13	Use of the Sintral function FF-Trans when knitting without comb and clamping Without Comb Without Clamping Knit Without Comb With Clamping : Marking of the color in the Cycle Counterstable with the 'S' symbol
RS14	Cycle for lengthening when using special knitting elements from Protection Rows, with Cast-off
RS15	Cycle for the extension of the protection rows in the knitting elements from the Starts directory
RS17	Comb on / off RS17=0: Working with comb RS17=1: Working without comb
RS18	Cycle for row compensation with the Knit-in before the Start, Float and Lock (1 piece) or Knit-in before the Start, Float and Lock (2 pieces) technical modules
RS19	IF decision for knitting elements from the Starts directory Without elastic thread (RS19=0) With elastic thread / Plated with elastic thread (RS19=1)
RS20	Cycle for lengthening the knitting with residual yarn until the belt take-down grasps the fabric
Verwendung von Zähler #
: Counters # are saved momentarily in the Stoll template and when calling up in the Cycle Counters control column are written into Sintral.

12: Generate Sintral.

13: Start the Sintral Check.

: In the Sintral Check tool window -> Counter -> Set cycle counter (RS) the cycle counters can be set to be checked and be displayed with the help of the graphic view.
