Views Before Technical Processing

Expanded Symbol View

  1. The desired pattern is selected.
    1
    Click the Prévisualisation button in the ribbon under Icône.
  1. An additional document window appears with the expanded view of the design pattern.

Dessin de conception

Expanded Symbol View

The expanded symbol view opened via Icône button is write protected.

    1
    Close the document window by in the pattern name... tab.

Expanded Fabric View

  1. The desired pattern is selected.
    1
    Click the Tricot button in the ribbon under Prévisualisation.
  1. An additional document window appears with the fabric view of the design pattern.

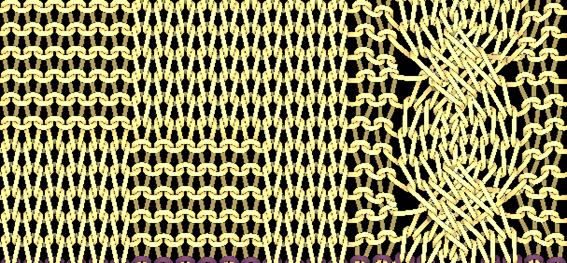

Fabric View

Options in the status bar

Déployé

Shows the opened view with technical rows.

Comprimé

Shows the compact view only in pattern rows.

Représentation du chevalement

Calculate the stitch distortion in order to get a realistic fabric view.

Affichage en fonction de la densité de maille

Shows the design in the specified stitch density.
The stitch density is specified in the Densité des mailles tool window.
This view is especially helpful with graphic designs with circular shapes.
This view is also the basis for the export of the fabric preview.

Ne pas défaire les mailles coulées

Drop stitches are displayed.

Afficher les rangées de protection

Protection rows can be displayed and hidden.

Tirer me fil de séparation

Display without draw thread and residual yarn

Texture du fil

When activating the yarn texture the yarn structures that are set in the yarn properties become visible. If the yarn texture is not activated, the stitches are displayed in a technical representation.

Fond



Click on the button to define the background color of the fabric view.

You have 3 different ways to establish the color:

  • Directly with the cursor in the color field, in the right or lower bar
  • Enter the RGB color values directly
  • Enter the HEX color value directly



The fabric view opened via Tricot button is write protected.

    1
    Close the document window by in the pattern name... tab.
