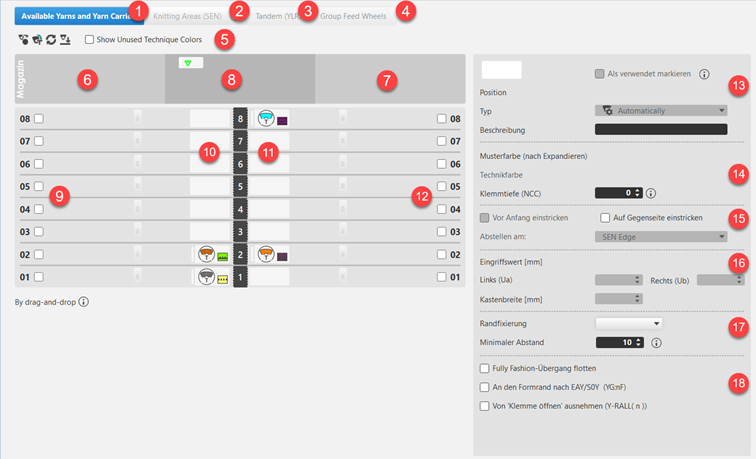

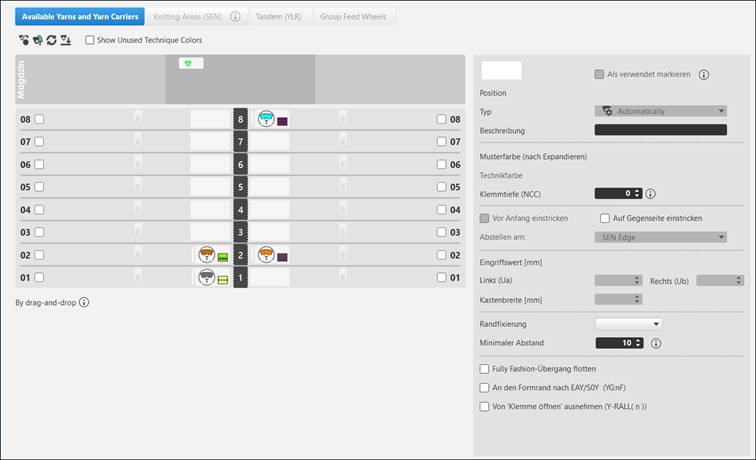

Show Yarn Carriers

1

Fils et guide-fils disponibles tab

5

Returning yarn carriers to the magazine according to their position at the left or right side of the yarn carrier rails.

: Yarn carriers of the pattern only - excepting the yarn carrier colors which are firmly allocated to a certain rail.

Allocating the yarn carriers for technique colors to the yarn carrier rails according to the standard preallocation.

Returning yarn carriers from the yarn carrier rails to the magazine as 'undefined'.

: Yarn carrier of the pattern only.

Allocating the yarn carriers from the magazine to the yarn carrier rails.

Afficher les couleurs techniques non utilisées

In the view of the yarn carrier rails, only the technique colors used in the pattern are displayed.

In the view of the yarn carrier rails, the technique colors not used in the pattern are displayed as well.

6

Display of the yarn carriers for yarn and magazine colors regarding the positioning on the left side during rail allocation.

: Yarn carriers not yet allocated to a yarn carrier rail but will be positioned on the left side when allocating.

7

Display of the yarn carriers for yarn and magazine colors regarding the positioning on the right side during rail allocation.

: Yarn carriers not yet allocated to a yarn carrier rail but will be positioned on the right side when allocating.

8

Display of the yarn carriers for yarn and magazine colors undefined.

: The yarn carriers have no allocation to a rail nor to a side (left/right)

9 / 10

Release for allocation of the rail with a yarn carrier left / right

No release for allocation of the rail with a yarn carrier left / right

10 / 11

Graphic presentation of the yarn carrier rails with the used yarn carrier types on the left / right side and specification of the corresponding colors.
This results in the yarn carrier home position left / right.

Input panel for the specifications for a selected yarn carrier

13

Set as Used

Yarn carrier position is free for allocation

Yarn carrier position is not free for allocation

: For example when inserting Sintral functions where yarn carriers are used.

Position

Specification of the yarn carrier position of the yarn carrier color

Type

Description

Comment on a yarn carrier

: Is entered in Sintral in the table of the yarn carriers.

14

Pattern Color (After Expanding)

Display of the pattern color of the selected yarn carrier

Technique Color

Display of the technique color of a selected technical yarn carrier

Clamping Depth

Needle sinking of clamping and cutting needle
Command: NCC=n (n= -10 to 10)

15

Knit-in before Start

Selected yarn carrier is not knit-in in the Knitting-in before start function.

Selected yarn carrier is knit-in in the Knitting-in before start function.

Knit-in to opposite side

A yarn carrier remains on the corresponding side based on its home position.

A yarn carrier is knitted before the start to the opposite side of its home position.

: Use:
With MC with single-sided clamping / cutting.

Stop at:

• Shape Edge
• SEN Edge

16

Engaging Value [mm]

At the Left (Ua)

Engaging width for the left side

At the Right (Ub)

Engaging width for the right side

Largeur de la boîte [mm]

Specification depending on the yarn carrier type specified under Type

: No entry possible!

17

Border Fixation

Selection of the knitting mode for the border fixation (module)

Minimum Padding

Distance for the border fixation in rows

18

Flotter la transition Fully Fashion

At the end a yarn carrier is moved to the home position according to the setting in the Yarn Field Allocation.

At the end a yarn carrier is moved to its home position without knitting.

: Use:
For technical fabrics with weft yarn.

Au bord de forme après EAY/S0Y (YG:nF)

The yarn carrier will not be positioned at the counters #L and #R.

The yarn carrier will be positioned at the counters #L and #R and follows the shape.

Exclure de 'Ouvrir la pince' (Y-RALL( n ))

Selected yarn carrier is controlled by the Y-RALL function.

Selected yarn carrier will be excluded from the Y-RALL function and can be defined differently by the value (rows) at Color Parameters under .

: By default, the clamp will be opened by the Y-RALL function for all yarn carriers after about 25 rows.

2

Zones de tricotage (SEN)

Working with several SEN areas:

• Machines without comb
• Machines with comb but without using it

3

Tandem (YLR)

Change of the yarn carrier home position with tandem machines

4

Regrouper les fournisseurs

Use when working with feed wheels

: For the use of the feed wheels, they have to be defined in the Configuration dialog box -> Attributs de machine tab under Fournisseurs électroniques.
