Step by Step to Pattern-2

  1. A pattern project with one pattern and the desired settings is created.
    1
    Select an existing Aran pattern element in Knit Explorer to draw.
    - or -
    Generate a private Aran diamond as a pattern element.

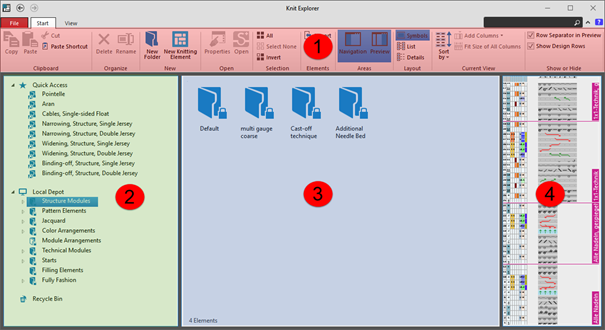

Knit Explorer

Knit Explorer

  • Managing all STOLL knitting elements
    • Pattern Elements
    • All types of knitting elements
    • STOLL knitting elements are write protected
  • Managing self created pattern elements and knitting elements

1

Ribbon

Fichier

  • Information about the Knit Explorer
  • Exiting the Knit Explorer

Démarrage

Functions for working in the Knit Explorer

Affichage

Possible settings for the Knit Explorer view

2

Zone de navigation

Accès rapide

Managing linked directories for a faster access

Dépôt d'élément de tricotage

Managing all knitting elements / modules

  • STOLL database (write-protected)
  • Private database (not write-protected)

3

Display of the content of a selected folder

4

Preview of a selected knitting element / module

Marking of directories


  • Directory without property

  • Directory without content

  • Write-protected directory
    • STOLL knitting elements are write protected

  • Linked directory

Managing the Knitting Elements and Different Types of Knitting Elements

Managing the knitting elements in the Knit Explorer

You will find the different types of knitting elements in the following directories:


  • This write-protected directories contains all the knitting elements from STOLL with their corresponding properties for each type of knitting element.
  • For a better structuring there are sub-directories assigned to the directories.

Types of knitting elements

  • Pattern Elements
  • Module de structure
    • All structures with / without transfer rows
    • Knitting element with connecting points
  • Color Arrangement
  • Module Arrangement
  • Module jacquard
  • Module technique
  • Module technique de conception
  • Module de diminution
  • Module de diminution à plusieurs escaliers
  • Module d'augmentation
  • Module d'augmentation à plusieurs escaliers
  • Module de chaînette
  • Début
    2
    Drawing of an Aran diamond with the drawing tools.
    3
    Filling of the interior of the Aran diamond with Pattern element / Structure module Point de riz with the following drawing tools and settings:

: The result when filling the Aran diamond depends on whether a pattern element or a structure module is used.
The use of a pattern element is recommended.

    4
    Select the created Aran diamond.
    5
    Press the keys CTRL + C.
  1. A temporary pattern element is assigned to the cursor.
    2. 6
    Draw basic pattern with the temporary pattern element.
  • Create the selection as a temporary pattern element with CTRL + C.
    : Pattern element is not saved and can be deleted from the cursor with the ESC button.
  • Context menu -> Sélection -> Élaborer la partie de dessin...
    : Pattern element will be saved as Parties de dessin and with the project.
  • Context menu -> Sélection -> Créer le module de structure...
    : Structure module will be saved as Modules and with the project.

: Attention:
The behavior of the pattern element and module is different when working with shapes.
Recommendation:
Create the basic pattern only with pattern elements when working with shapes.

    7

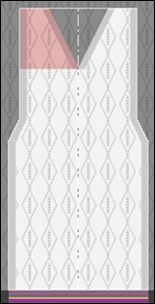

    Import and position the existing shape Front with V-neck.

: If the basic pattern is too small for the positioning of the shape, then the size of the basic pattern will be automatically adjusted to the size of the shape.

: This adjustment always takes place with Maille avant avec report .

    8
    Open the shape with the Yableau des lignes button.
    9

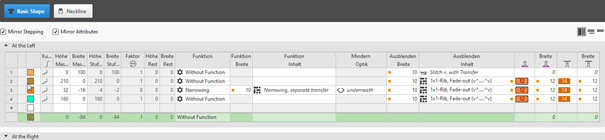

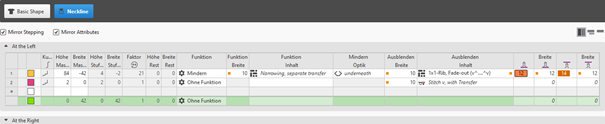

    Make the desired changes in the basic shape and neckline:

: These changes are directly visible in the document window Dessin de conception with positioned shape.

Narrowing:

Fade-out:

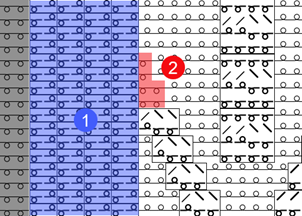

1

After cutting out the shape, the fading-out is inserted, where knitting elements are 'cut-into'.

2

Cut into knitting elements are displayed.

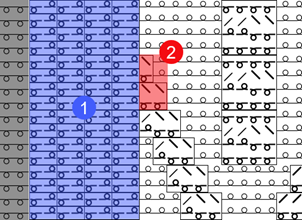

1

After cutting out the shape, the fading-out is inserted, where knitting elements are 'cut-into'.

2

Cut into knitting elements are not displayed and are replaced by default with Front Stitch with Transfer.

Power Tension Setting (NPJ) at the shape edge:

: Power Tension Setting (NPJ) is needed at the shape edge, to adjust the quality of the stitch lengths between the different structures Aran diamond and the 1x1 Rib at the shape edge.

In the document window Dessin de conception switch the view to Longueur de maille avant et arrière dans la zone d'aiguilles.

  • Shape generation in the current pattern project
    • Tab Coupes -> Context menu Créer une nouvelle coupe dans la taille M...
  • Shape generation with Nouveau projet de coupe de ligne

Basic Shape

: Ensure an even numbered height in total in the basic shape.

Neckline

:

  • Ensure an even numbered height in total in the element Encolure.
  • V-neck starts by default with 2 needles.
  • A marking point with the allocation of the knitting element Début encolure en V, croisement is automatically set at the V-neck start.

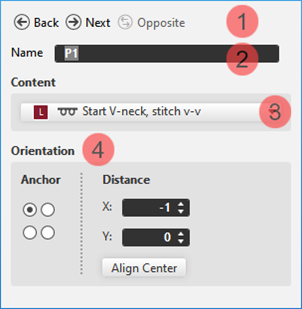

Displaying and changing marking point properties:

  • In the document window
    • Position the cursor on a marking point in the displayed graphic -> open the context menu with RMB and select -> Propriétes du point de marquage and make the desired entries in the tool window.
    • With the Propriétes du point de marquage button in the ribbon, open the tool window and make the desired entries.

1

Buttons for switching between the created marking points

2

Name of the selected marking point

: Name changing possible.

3

Used knitting element as marking

4

Positioning of the knitting element at the marking point

Ancre

Corresponds to the reference point in a knitting element

: The reference point is at the bottom left by default.

Distance

Offset in x direction and y direction for positioning the assigned knitting element regarding the marking point depending on the set anchor point

Centrer

Centers the assigned knitting element at the anchor point

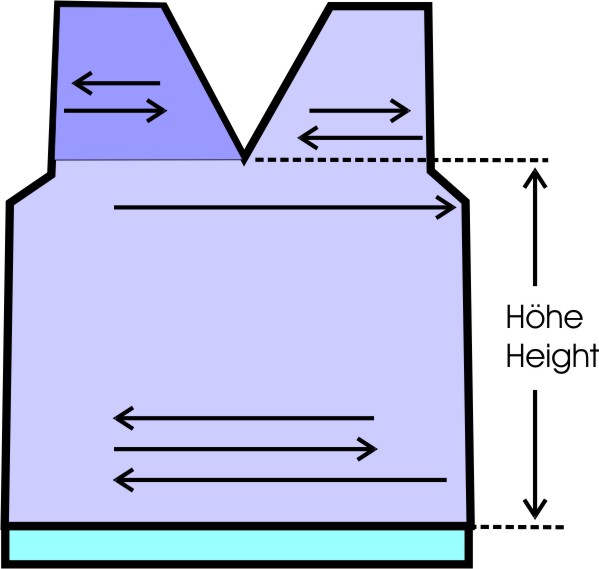

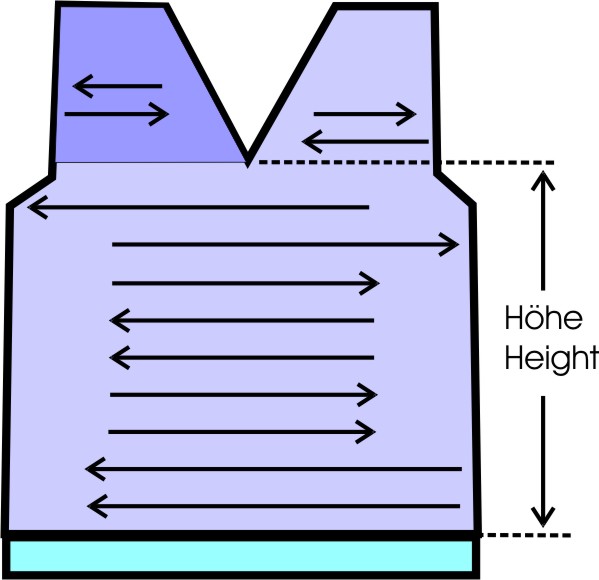

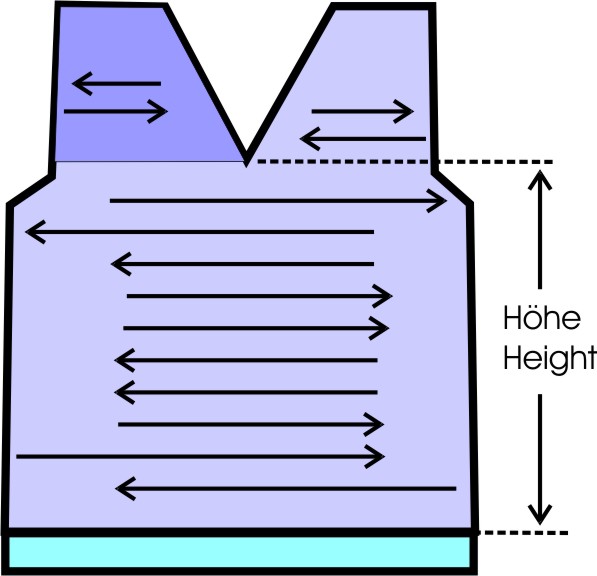

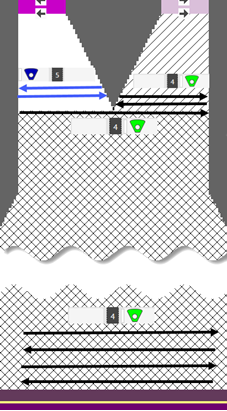

Quantity of yarn carriers for shapes with neckline:

Pour obtenir une séquence de tricotage correcte, le nombre de rangées après le début et jusqu'au début de l'encolure doit être adapté au nombre de guide-fil utilisés.

Graphic presentation

Quantity of yarn carriers up to neckline

Height up to neckline

One yarn carrier

Even-numbered

Two yarn carriers in the same home position

odd

Two yarn carriers in different home position

Even-numbered

: If the shape is not placed directly on the first knitting row after the start, these knitting rows outside shape will be removed.

    10

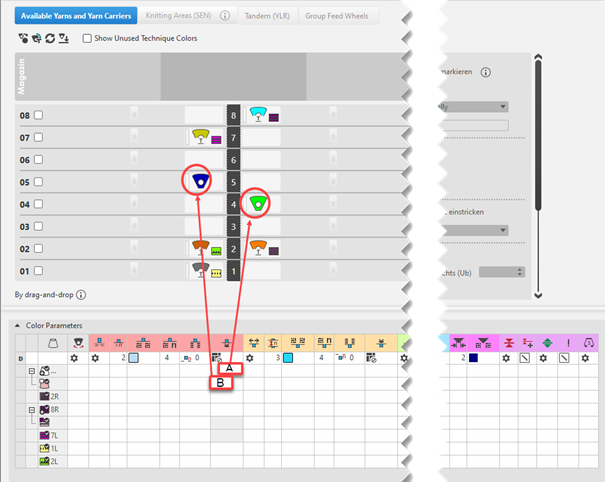

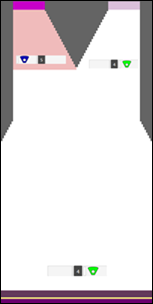

    Working in the dialog box Guide-fil -> Afficher le guide-fil

Open the Yarn Carrier document window:

: The motive is created in the Dessin de conception.

  1. Click the Guide-fil button under Prévisualisation in the Accueil ribbon.
  2. The New Pattern xx document window is opened as view and the Guide-fil ribbon appears.
  3. Make the desired settings for the view of Yarn Carriers the status bar:

Couleurs de guide-fil comme fond

Switching the view between the different pattern colors

: Only with certain pattern colors available.

Afficher la fin du tricotage

inactive

Knitting-out of the yarn carriers is not displayed in the graphic.

Active

Knitting-out of the yarn carriers is displayed in the graphic.

: The knitting-out is displayed as marking with specified direction at the corresponding side of the area.

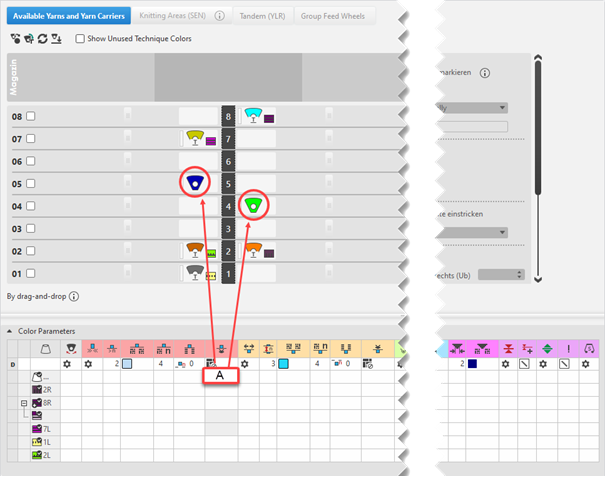

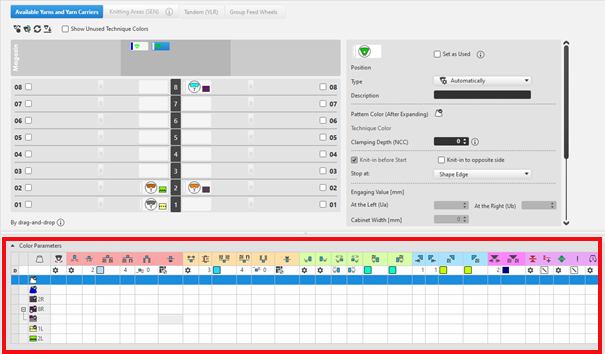

Table Paramètres de couleurs

You can make the desired presettings for the colors used in the pattern (color areas) within the Paramètres de couleurs table.

Open the Paramètres de couleurs table:

  1. With the Yarn Carriers button open the document window (Pattern name) in the ribbon.
  2. Open the dialog box via Afficher le guide-fil.


    For each color in the pattern color tables used in the design pattern, a color area is created in the color parameter table.
    This means that you can make presettings only once for this color area.
    For pattern related, different changes of a color area sub-colors must be created. You have to draw them manually in the design pattern at the point to be changed.
    Then, other specifications can be set in the color parameter table.
  3. Make the desired presettings for the corresponding color:
    • Knitting-in and out
    • Change the starting direction of a color (yarn carrier)
    • Knot or binding at start or end of a color
    • Border Processing
    • etc.
  4. Apply the modifications of the Color Parameter table to the pattern:
    Modifier group -> Accepter
    - or -
    Modifier group -> Accepter et fermer

Functions of the Modifier ribbon

Synchroniser

Accepte les modifications du dessin de conception dans la vue Guide-fil ouverte et synchronise les deux vues sur l'état de dessin actuel.

Accepter

Accepte les modifications pour les guide-fils dans le dessin de conception. Les autres modifications (paramètres couleur par ex.) sont aussitôt effectives.

Accepter et fermer

Accepte les modifications pour les guide-fils dans le dessin de conception et ferme la vue. Les autres modifications (paramètres couleur par ex.) sont aussitôt effectives.

Annuler et fermer

Rejette les modifications et ferme la vue Guide-fils.

Close with Annuler et fermer if you only opened the Yarn Carrier view for control.

Adjust the display of the columns in the Paramètres de couleurs table:

  1. Move the cursor to the first row of the table header.
  2. Open the context menu with RMB.

Sélectionner les colonnes

Adding or closing the desired columns in the selection list.

Afficher les colonnes utilisées

Display of the columns used in the pattern

Afficher toutes les colonnes

Display all of the columns

Masquer ce groupe

Hide all columns allocated to a group (color coded)

Masquer cette colonne

Hide the individual column at cursor position

Structure and column headers of the Paramètres de couleurs table:

Group 1: General / Table header:

  • 1st row:
    All the symbols identifying the table columns
  • 2nd row D
    Default settings for the respective column
    Settings from the STOLL file - cannot be modified at the moment

Default settings are applied from a STOLL file and cannot be modified at the moment.
These are automatically applied to all colors without specifications.

Group 1: General

1. Column

Entry D for the definition of the 2nd row of the table
(D = Default settings for the table columns)

2. Column

Display for available sub-colors

Couleur

Display of all the colors used in a project

  • Symbol and color:
    Not visible but used within the design pattern.
  • Symbol and color + :
    Visible and used within the design pattern.

:
The symbols show the type of pattern color.

Le guide-fil tricote une couleur multi-système

Specifications with multi-system knitting

Le guide-fil tricote une couleur de vanisage

Specifications with plating

Basculer

Settings for the swivelling of intarsia yarn carriers or of autarkic yarn carriers

Quantity of Rows for Knitting-out, SEN edge and clamping
Define the distance of color fields from which on you want to knit-out, to move to SEN edge and to clamp.

Specify the maximum distance between the color fields of the yarn carrier.
If this value is exceeded, one of the intended actions will take place:

  • Knitting-out the yarn carrier
  • Move the yarn carrier to the SEN border

Clamp Yarn Carrier

Group 2: Knitting-in

Direction de départ

Specification of the knitting direction for the first row of a color (color area)

Nombre de colonne sans tricotage en entrée

Quantity of columns (wales) without knitting-in module

Module pour le tricotage en entrée

Specification of the knitting mode for knitting-in

:
The module for knitting-in has two functions:

  • Repeatable knitting mode for feeding-in the yarn carrier
  • Knitting mode for knot or binding at the edge of the color area

Largeur de répétition pour le tricotage en entrée

Presetting of the module width in total for the knitting mode of feeding-in the yarn carrier

: The module width is repeatable.

Décalage des rangées pour le démaillage

Column appears automatically if a module for knitting-in with casting-off is used

Décalage de rangées pour le tricotage en entrée

Knitting-in of the yarn carrier by x rows before the beginning of the color area

  • Related to:
    • Rangées de dessin
      Default Setting
    • Rangées techniques
  • Dans une rangée supplémentaire

Nœud / entrelacement au début

Presetting a module for knot / binding at start of a color area without knitting-in.

: Entry in intarsia color areas, without assigned knitting-in module and thus no knitting-in is entered.
Example: Two overlapping color areas without knitting-out and knitting-in.

Décalage de colonne pour le tricotage en entrée avec nœud

Move the position of a knot (module) by x columns to the left or right.

: This column is displayed automatically if a module is allocated in the Nœud / entrelacement au début column.

The direction of knitting-in of a yarn carrier is always carried out from last position.

Group 3: Knitting-out

Direction de fin de tricotage

Preset of the direction for knitting-out of the yarn carrier at the end of a color area

Module pour la fin du tricotage

Preset of the knitting mode (module) for knitting-out

:
The module for knitting-out has two functions:
Example

  • Repeatable knitting mode for feeding-out the yarn carrier
  • Knitting mode for knot or binding at the edge of the color area

Largeur de répétition pour la fin de tricotage

Presetting of the module width in total for the knitting mode of feeding-in the yarn carrier

:
The module width is repeatable

Décalage des rangées pour le démaillage

Column appears automatically if a module for knitting-out with casting-off is used

Décalage de rangées pour la fin du tricotage

Knitting-out of the yarn carrier by x rows after the end of the color area

  • Related to:
    • Rangées de dessin
      Default Setting
    • Rangées techniques
  • Dans une rangée supplémentaire

Nœud / entrelacement à la fin

Presetting a module for knot / binding at end of a color area without knitting-out.

:
Entry in intarsia color areas, without assigned knitting-out module and thus no knitting-out is entered.
Example: Two overlapping color areas without knitting-out and knitting-in.

Décalage de colonne pour la fin du tricotage avec nœud

Move the position of a knot (module) by x columns to the left or right.

:
This column is displayed automatically if a module is allocated in the Nœud / entrelacement à la fin column.

Group 4 : Intarsia Binding

Entrelacement intarsia à gauche

Presetting of a binding or no binding at the left border of the color area

Entrelacement intarsia à droite

Presetting of a binding or no binding at the right border of the color area

Direction de l'entrelacement intarsia à gauche

Specification for inserting the Binding module at the left border of the color area depending on the carriage direction

  • Entrelacement en entrée
    Binding at the left at the beginning of a knitting row
  • Entrelacement à la fin du tricotage
    Binding at the left at the end of a knitting row

Direction de l'entrelacement intarsia à droite

Specification for inserting the module Binding at the right border of the color are depending on the carriage direction

  • Entrelacement en entrée
    Binding at the right at the beginning of a knitting row
  • Entrelacement à la fin du tricotage
    Binding at the right at the end of a knitting row

Module pour l'entrelacement intarsia à gauche

Presetting of the knitting mode for binding at the left border of the color area

Module pour l'entrelacement intarsia à droite

Presetting of the knitting mode for binding at the right border of the color area

Group 5: Border Processing

Gradation autorisée sans élaboration du bord, à gauche

Maximum number of needles when widening at the left border of the color area without automatic border processing.

: No module is inserted.

Gradation autorisée sans élaboration du bord, à droite

Maximum number of needles when widening at the right border of the color area without automatic border processing.

: No module is inserted.

Module pour l'élaboration du bord à gauche

Presetting of the knitting mode for the border processing (feeding) in case of large widenings (stepping) of the color area

: With steppings greater than the setting in the Gradation autorisée sans élaboration du bord, à gauche column.

Module pour l'élaboration du bord à droite

Presetting of the knitting mode for the border processing (feeding) in case of large widenings (stepping) of the color area

: For steppings which are larger than the settings in the Gradation autorisée sans élaboration du bord, à droite column.

Group 6: Multi Gauge

Escaliers autorisés des rangées de grosse multi-gauge

Allowed number of needles when widening at the left and right border of the color area without automatic border processing.

: No module is inserted.

Module pour le traitement du bord, passage de mg-gros à mg-fin

Presetting of the knitting mode for the border processing (feeding) in case of large widenings (stepping) of the color area and as transition

: For steppings which are larger than the setting in the Escaliers autorisés des rangées de grosse multi-gauge column

Group 7: Miscellaneous

Pince

Presetting for the yarn carrier, when it is to be clamped after knitting its color area.

Pince retardée

  • Sans délai
  • Pincer après n rangées de dessin :
  • Pincer après n rangées techniques :

ouvrir la pince

  • Ouvrir la pince après n rangées :
  • Automatique

SENBord

Specifications for positioning the yarn carrier during the knitting

  • SEN Edge
    Stop at the SEN edge
  • W Position d'attente
    Parking (waiting position) at the fabric selvedge with an additional distance (needles).
  • Pas d'action
    Default Setting

Système (selon la direction)

Selection of a knitting system for the selected color area

  • 1er système depuis la gauche
  • 2e système depuis la gauche
  • 3e système depuis la gauche
  • …

: The yarn carrier is always knitted by the same system.
The system specification changes depending on the carriage direction.

Group 8

Description

Remarque sur l'utilisation de l'entrée Vous pouvez introduire ici un nouveau texte.
Comment about the color area

Standard behavior by the yarn carrier allocation

On the left side (shoulder) an additional yarn carrier is required for the yarn color #1 in shapes with neckline (shape element outside shape). It will be knitted-in from left by default at the start of the shoulder.

: In this knitting situation it might happen that the yarn does not lay-in correctly at the fabric selvedge.

: A row is created in the Color Parameter table for the Yarn color #1 in which the desired attributes A can be allocated.
These attributes are valid for both yarn carriers 4R and 5L.

:
If there is the necessity to allocate other attributes to the yarn carrier of the left shoulder, there has to be another yarn color or a sub-color of the main color available in the table Paramètres de couleurs.

Creating Sub-colors within the Different Tables of Pattern Colors

Possible in the following tables:

  • Couleurs de fil
  • Couleur du magasin
  • Couleurs techniques
  • Couleurs des guide-fils

: You can create sub-colors in each of these tables in the same way.

Creating Sub-colors:

: Be sure to create the sub-color for a main color used in the pattern only, as no additional yarn carrier should be added to the pattern.
With the help of the sub-color, you can allocate others attributes to a yarn carrier.

  1. Position the cursor to the main color in use (e.g. yarn color #1) in the tool window Pattern Colors / Couleurs de fil.
  2. The icon appears beside the symbol.
  3. Click the icon.
  4. The input panel for the sub-color appears.
  5. Click on the icon.
  6. A new empty sub-color will be created and selected.
  7. If required:
    Call up the Modifier la valeur de la couleur... context menu in order to change the color.
    - or -
    Delete the sub-color by Supprimer une couleur secondaire.
  8. If required, create additional sub-colors for the same main color.
    - or –
    Switch to another main color in order to add sub-colors.
  9. Select sub-color und draw it into the area of Dessin de conception for which different specifications are necessary.
  10. The sub-color will be marked by the icon and appears in the color parameter table.
  11. Allocate the Flottage, verrouillage, lisière module to the sub-color 1/1.

Modified Design Pattern

Yarn Carrier View

:

  • A row is created in the Paramètres de couleurs Table for the main color of the yarn color #1 (yarn carrier 4R) in which the desired attributes A can be allocated.
  • A row is created in the Paramètres de couleurs Table for the sub-color of the yarn color #1 (yarn carrier 5L) in which the desired attributes B can be allocated.
    11
    Start Technical Processing:
    12
    Generate Sintral.
    13
    Start Sintral Check
    14
    Extract knitting program.
  1. A program for the knitting machine will be created: CMS530.Pattern-2.zip.
    2. 15
    Load knitting program into the machine.

: The extracted file CMS530W.Pattern-2.zip can be loaded onto the machine with an USB stick or via Ethernet.
