User Interface of CREATE PLUS

1

Quick Access Toolbar

Adjusting via the selection list

2

Ribbons

Ribbons containing the necessary groups for editing

  • Fichier
  • Accueil
  • Affichage
  • Sélection

: The ribbon can be minimized.

3

Properties of Drawing Tools

Adjusting the selected drawing tool

4

Tool Windows

Selection of the corresponding tool windows by in the ribbon

: You can move the tool windows by the Left Mouse Button and dock them to the edges of the main window or position them floating freely.

5

Document Window

Display and editing of pattern information

: You can move the tool windows by the Left Mouse Button and dock them in the center of the main window or position them floating freely.

6

Status Bar

  • Information about
    • Cursor position
    • Size when drawing
    • Color and needle action of the design pattern at the cursor position
    • Stitch length at the front / at the rear
  • Functions of controlling the view of the pattern
    • Diviser l'affichage verticalement
    • Toutes les couleurs de dessin avant et arrière
    • Longueur de maille avant et arrière dans la zone d'aiguilles
    • Couleur du module
      Shows the module identifying color
    • Correction de groupe de la longueur de la maille (NPGK)
      Display of the colors for the individual NPGK definitions
    • #1 Configurer la vue...
      View  (#1-#5) possible
    • Grandes icônes de forme
    • Afficher les ombrages de structure
    • Afficher les limites du module
    • Afficher le chevalement
    • Afficher l'occupation des aiguilles
    • Affichage en fonction de la densité de maille
    • Afficher les commentaires
    • Afficher la grille
    • : Options
      Settings for the needle occupancy and the grid
  • Additional functions of controlling the view of the pattern after the technical processing
    • Show Couleur de guide-fil
    • Afficher le guide-fil
      Display of the yarn carrier paths
  • Functions of controlling the view of shapes
    • Afficher l'axe de symétrie
    • Afficher le quadrillage des mailles
    • Afficher les axes du diagramme
    • Afficher les cotes de contrôle dans les mailles.
    • Masquer les zones de tricotage
    • Afficher les zones de tricotage
    • Afficher les zones de tricotage (couleur de fil)
    • Afficher les zones de tricotage (couleur de CA)
    • Afficher les icônes des points de marquage
    • Dépalcer l'objet sélectionné (point de coupe, point de marquage, zone de tricotage ou élément de coupe) avec les touches flèches du clavier (point de coupe uniquement au format d'insertion Mailles)

Adjusting and Saving the User Interface as User Profile

You can position the tool windows and document windows of CREATE PLUS as desired and save it as user profile.

Profiles

  • Disposition de la fenêtre Outils
    : Default layout of windows provided by STOLL which is used for all new pattern projects.
    • Creating Private Tool Window Layout
      : Disposition de la fenêtre par défaut from STOLL will be overwritten.
    • Resetting the private tool window layout to the STOLL tool window layout.
  • Disposition du projet
    Due to modifying the default window layout, these window positions will be saved as project layout in the *.spf file as Disposition du projet when closing the CREATE PLUS. They will be used within this pattern project only.
  • Additional Private Profiles
    Change position of windows and save them under a profile name.

Positioning tool windows and document windows, saving and loading them:

Display and selection of the profiles at the top right of the main window

Creating a single additional window layout only (project-related):

    1
    Position windows as desired.
  1. The display is automatically switched from Disposition de la fenêtre par défaut to Disposition du projet.
    2. 2
    Close or exit the CREATE PLUS main window.
  1. The positioning of the windows is saved as Disposition du projet within the pattern project and will automatically be used when opening the pattern project.

: Keep an eye on the current layout setting when closing the CREATE PLUS!

Creating more additional window layouts:

    1
    Position windows as desired.
  1. The display is automatically switched from Disposition de la fenêtre par défaut to Disposition du projet.
    2. 2
    Click the button next to the selection list.
  2. The Gestion de la disposition dialog box appears.
    3. 3
    Enter a name under Nouvelle disposition :.
    4
    Click the Enregistrer button.
  3. All saved layouts are listed under Window Layout.
    4. 5
    Click the Fermer button.
  1. Profile is saved and available for further projects.

You can create several different user profiles for the CREATE PLUS following this procedure.

Selecting Saved Profiles:

  1. Disposition du projet is selected.
    1
    Open the selection list with the button.
    2
    Select the desired profile from the list.
  1. Selected windows layout is shown.

Deleting or Renaming Saved Profiles:

    1
    Open the Gestion de la disposition dialog box with the button.
    2
    Select the desired profile from the list.
    3
    Open the context menu with RMB ->delete the profile by .
    - or -
    Change the profile name by Renommer

Create and save a private default window layout:

  1. Disposition du projet is selected.
    1
    Position windows as desired.
    2
    Select the Fichier tab of the main window.
    3
    Click the Utiliser la disposition de la fenêtre actuelle comme disposition de fenêtre par défaut button under Options / En général at Disposition.
  1. The arrangement of the windows when closing the program is saved as default window layout and the STOLL default of the tool window layout will be overwritten.
    2. 4
    Close the Options dialog box with OK.

Resetting the Private Default Layout to STOLL Default Layout:

    1
    Select the Fichier tab of the main window.
    2
    Click the Réinitialiser les information de disposition des fenêtres button under Options / En général at Disposition.
  1. The arrangement of the windows is set to the STOLL default window layout.
    2. 3
    Close the Options dialog box with OK.
Procedure with Window Layout

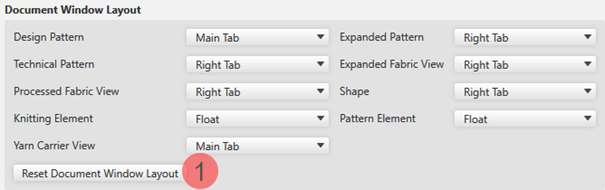

Define the Behavior of Document Windows:

  1. A pattern project is created.
    1
    Select the Fichier tab of the main window.
    2
    Make the desired settings under Options -> En général -> Disposition des fenêtres de document.
    3
    Close the Options dialog box with OK.
  1. The Options dialog box gets closed and the setting applied.

You can define the behavior of the listed document windows as follows:

Onglet principal

The selected document window is added as an additional window (register) to the other windows that are set as main windows.

Onglet droit

The selected document window is arranged as a new main window to the right of the open main windows.

Flottant

The document window is opened floating and can be positioned as desired.

Réinitialiser la disposition des fenêtres de document

The existing document window layout is restored to the STOLL document window layout.
